Press Die Components
Guide Components
Guide Posts and Bushings for Die Sets
Ball Cages / Guide Bushings
Needle cages for guide bushes / aluminium / groove / with circlip

Configure

L (Length)(mm)
- 45
- 55
- 65
- 75
- 85
- 95
- 105
- 115
- 125
D (Diameter)(mm)
- 19
- 20
- 24
- 25
- 30
- 32
- 38
- 40
- 48
- 50
Number of balls
- 40
- 46
- 48
- 56
- 60
- 64
- 72
- 84
- 96
- 105
- 108
- 120
- 135
- 144
- 150
- 156
- 165
- 195
CAD
- 2D
- 3D
Est. shipping days
- All
- Within 23 working days

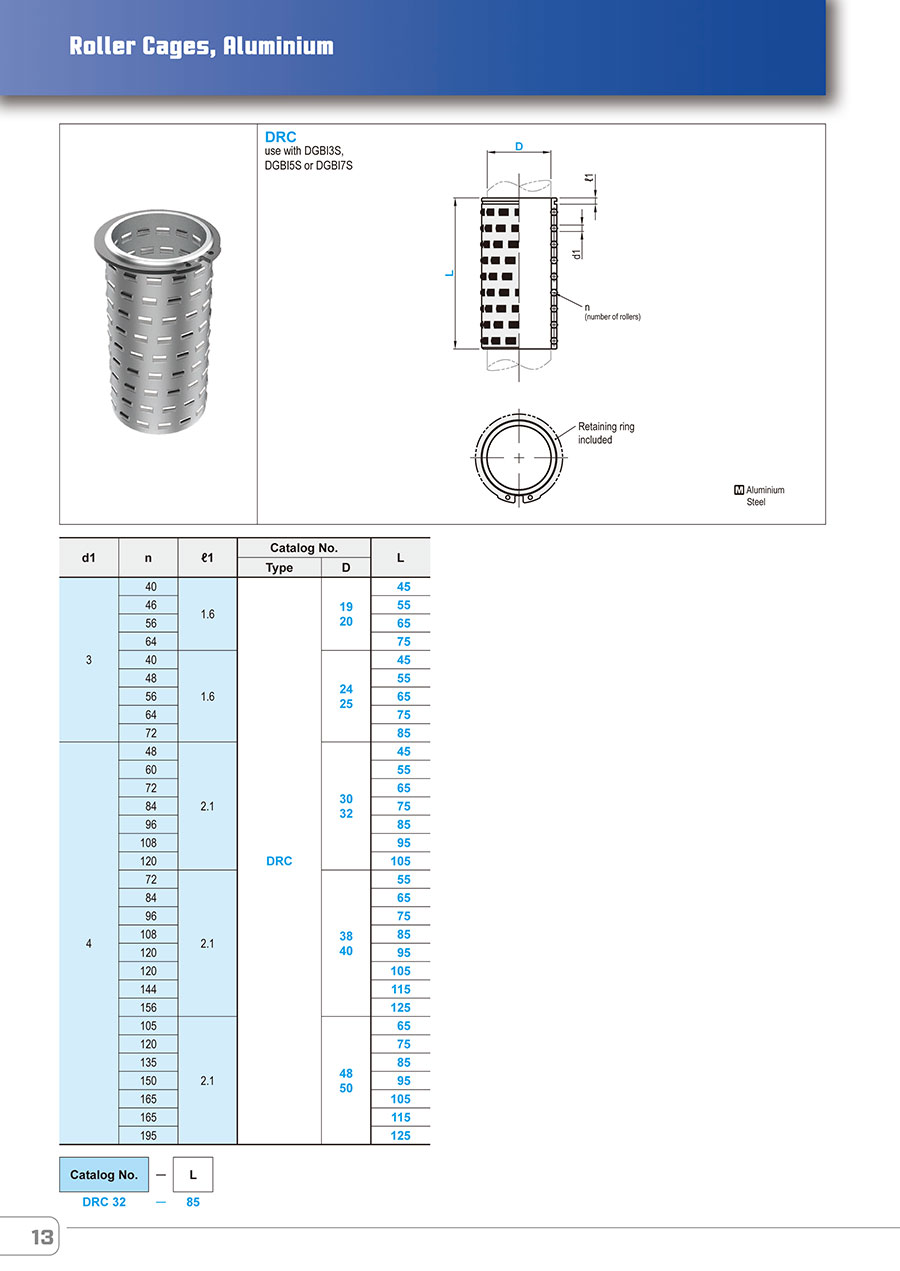

Needle cages for guide bushes / aluminium / groove / with circlip

Part number:

Still undefined. 62 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

L (Length)

(mm)

D (Diameter)

(mm)

Number of balls

Minimum order quantity

45	19	40	4 pieces
55	19	46	4 pieces
65	19	56	4 pieces
75	19	64	4 pieces
45	20	40	4 pieces
55	20	46	4 pieces
65	20	56	4 pieces
75	20	64	4 pieces
45	24	40	4 pieces
55	24	48	4 pieces
65	24	56	4 pieces
75	24	64	4 pieces
85	24	72	4 pieces
45	25	40	4 pieces
55	25	48	4 pieces
65	25	56	4 pieces
75	25	64	4 pieces
85	25	72	4 pieces
45	30	48	4 pieces
55	30	60	4 pieces
65	30	72	4 pieces
75	30	84	4 pieces
85	30	96	4 pieces
95	30	108	4 pieces
105	30	120	4 pieces
45	32	48	4 pieces
55	32	60	4 pieces
65	32	72	4 pieces
75	32	84	4 pieces
85	32	96	4 pieces
95	32	108	4 pieces
105	32	120	4 pieces
55	38	72	4 pieces
65	38	84	4 pieces
75	38	96	4 pieces
85	38	108	4 pieces
95	38	120	4 pieces
105	38	120	4 pieces
115	38	144	4 pieces
125	38	156	4 pieces
55	40	72	4 pieces
65	40	84	4 pieces
75	40	96	4 pieces
85	40	108	4 pieces
95	40	120	4 pieces
105	40	120	4 pieces
115	40	144	4 pieces
125	40	156	4 pieces
65	48	105	4 pieces
75	48	120	4 pieces
85	48	135	4 pieces
95	48	150	4 pieces
105	48	165	4 pieces
115	48	165	4 pieces
125	48	195	4 pieces
65	50	105	4 pieces
75	50	120	4 pieces
85	50	135	4 pieces
95	50	150	4 pieces
105	50	165	4 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

148.09 € ( 176.23 € )	23 working days
204.51 € ( 243.37 € )	23 working days
235.37 € ( 280.09 € )	23 working days
292.09 € ( 347.59 € )	23 working days
148.09 € ( 176.23 € )	23 working days
204.51 € ( 243.37 € )	23 working days
235.37 € ( 280.09 € )	23 working days
292.09 € ( 347.59 € )	23 working days
168.53 € ( 200.55 € )	23 working days
231.69 € ( 275.71 € )	23 working days
268.61 € ( 319.65 € )	23 working days
330.58 € ( 393.39 € )	23 working days
367.64 € ( 437.49 € )	23 working days
168.53 € ( 200.55 € )	23 working days
231.69 € ( 275.71 € )	23 working days
268.61 € ( 319.65 € )	23 working days
330.58 € ( 393.39 € )	23 working days
367.64 € ( 437.49 € )	23 working days
176.30 € ( 209.80 € )	23 working days
240.52 € ( 286.22 € )	23 working days
279.04 € ( 332.06 € )	23 working days
343.11 € ( 408.30 € )	23 working days
381.22 € ( 453.65 € )	23 working days
445.39 € ( 530.01 € )	23 working days
483.69 € ( 575.59 € )	23 working days
176.30 € ( 209.80 € )	23 working days
240.52 € ( 286.22 € )	23 working days
279.04 € ( 332.06 € )	23 working days
343.11 € ( 408.30 € )	23 working days
381.22 € ( 453.65 € )	23 working days
445.39 € ( 530.01 € )	23 working days
483.69 € ( 575.59 € )	23 working days
274.61 € ( 326.79 € )	23 working days
319.59 € ( 380.31 € )	23 working days
392.17 € ( 466.68 € )	23 working days
434.55 € ( 517.11 € )	23 working days
510.26 € ( 607.21 € )	23 working days
554.96 € ( 660.40 € )	23 working days
627.98 € ( 747.30 € )	23 working days
672.82 € ( 800.66 € )	23 working days
274.61 € ( 326.79 € )	23 working days
319.59 € ( 380.31 € )	23 working days
392.17 € ( 466.68 € )	23 working days
434.55 € ( 517.11 € )	23 working days
510.26 € ( 607.21 € )	23 working days
554.96 € ( 660.40 € )	23 working days
627.98 € ( 747.30 € )	23 working days
672.82 € ( 800.66 € )	23 working days
389.83 € ( 463.90 € )	23 working days
427.70 € ( 508.96 € )	23 working days
532.38 € ( 633.53 € )	23 working days
619.94 € ( 737.73 € )	23 working days
675.07 € ( 803.33 € )	23 working days
762.63 € ( 907.53 € )	23 working days
817.97 € ( 973.38 € )	23 working days
389.83 € ( 463.90 € )	23 working days
427.70 € ( 508.96 € )	23 working days
532.38 € ( 633.53 € )	23 working days
619.94 € ( 737.73 € )	23 working days
675.07 € ( 803.33 € )	23 working days
