Ejector pins, cylindrical, 1-way stepped
Ejector pins / cylindrical head / EN 1.3343 Equiv. / stepped / tip diameter, length configurable

Configure

Tip diameter tolerance (Reference tolerance)
- 0/-0.005
- -0.01/-0.02
Head thickness
D (Shaft diameter)(mm)
- 0.5
- 0.6
- 0.7
- 0.8
- 0.9
- 1
- 1.1
- 1.2
- 1.3
- 1.4
- 1.5
- 1.6
- 1.7
- 1.8
- 1.9
- 2
- 2.5
- 3
- 3.5
- 4
- 4.5
- 5
- 5.5
- 6
- 6.5
- 7
- 8
- 9
- 10
- 12
P (Tip diameter)(mm)
[0.3-11.9/0.01mm units]
[0.3-1.1/0.005mm units]
Type
- Small diameter type
- Standard type
L (L dimension)(mm)
[30-350/0.01mm units]
N(mm)
[15-330/1mm units]
Type
CAD
- 2D
- 3D

Ejector pins / cylindrical head / EN 1.3343 Equiv. / stepped / tip diameter, length configurable

CatalogP.135

Part number:

Still undefined. 80 possible part numbers found.

Outline drawing
Part number list
More Information
Catalog

Outline drawing

Part number list

Number of items

Part number

EHSF1-[40-150/0.01]-P[0.3-0.9/0.01]-N[15-135/1]

EHSF1.1-[40-200/0.01]-P[0.6-1/0.01]-N[15-185/1]

EHSF1.2-[40-200/0.01]-P[0.6-1.1/0.01]-N[15-185/1]

EHSF1.3-[40-200/0.01]-P[0.6-1.2/0.01]-N[15-185/1]

EHSF1.4-[40-200/0.01]-P[0.6-1.3/0.01]-N[15-185/1]

EHSF1.5-[40-200/0.01]-P[0.6-1.4/0.01]-N[15-185/1]

EHSF1.6-[40-250/0.01]-P[0.8-1.5/0.01]-N[15-235/1]

EHSF1.7-[40-250/0.01]-P[0.8-1.6/0.01]-N[15-235/1]

EHSF1.8-[40-250/0.01]-P[0.8-1.7/0.01]-N[15-235/1]

EHSF1.9-[40-250/0.01]-P[0.8-1.8/0.01]-N[15-235/1]

EHSF2-[40-300/0.01]-P[0.8-1.9/0.01]-N[15-250/1]

EHSF2.5-[40-300/0.01]-P[0.8-2.4/0.01]-N[15-250/1]

EHSF3-[40-350/0.01]-P[1-2.9/0.01]-N[15-300/1]

EHSF3.5-[40-350/0.01]-P[1.5-3.4/0.01]-N[15-300/1]

EHSF4-[40-350/0.01]-P[1.5-3.9/0.01]-N[15-300/1]

EHSF4.5-[40-350/0.01]-P[2.5-4.4/0.01]-N[15-300/1]

EHSF5-[40-350/0.01]-P[3-4.9/0.01]-N[15-330/1]

EHSF5.5-[40-350/0.01]-P[3.5-5.4/0.01]-N[15-330/1]

EHSF6-[40-350/0.01]-P[4-5.9/0.01]-N[15-330/1]

EHSF6.5-[40-350/0.01]-P[4.5-6.4/0.01]-N[15-330/1]

EHSF7-[40-350/0.01]-P[4.9-6.9/0.01]-N[15-330/1]

EHSF8-[40-350/0.01]-P[5.9-7.9/0.01]-N[15-330/1]

EHSF9-[40-350/0.01]-P[6.9-8.9/0.01]-N[15-330/1]

EHSF10-[40-350/0.01]-P[7.9-9.9/0.01]-N[15-330/1]

EHSF12-[40-350/0.01]-P[8.9-11.9/0.01]-N[15-300/1]

EHSFE1-[40-150/0.01]-P[0.3-0.9/0.01]-N[15-135/1]

EHSFE1.1-[40-200/0.01]-P[0.6-1/0.01]-N[15-185/1]

EHSFE1.2-[40-200/0.01]-P[0.6-1.1/0.01]-N[15-185/1]

EHSFE1.3-[40-200/0.01]-P[0.6-1.2/0.01]-N[15-185/1]

EHSFE1.4-[40-200/0.01]-P[0.6-1.3/0.01]-N[15-185/1]

EHSFE1.5-[40-200/0.01]-P[0.6-1.4/0.01]-N[15-185/1]

EHSFE1.6-[40-250/0.01]-P[0.8-1.5/0.01]-N[15-235/1]

EHSFE1.7-[40-250/0.01]-P[0.8-1.6/0.01]-N[15-235/1]

EHSFE1.8-[40-250/0.01]-P[0.8-1.7/0.01]-N[15-235/1]

EHSFE1.9-[40-250/0.01]-P[0.8-1.8/0.01]-N[15-235/1]

EHSFE2-[40-300/0.01]-P[0.8-1.9/0.01]-N[15-250/1]

EHSFE2.5-[40-300/0.01]-P[0.8-2.4/0.01]-N[15-250/1]

EHSFE3-[40-350/0.01]-P[1-2.9/0.01]-N[15-300/1]

EHSFE3.5-[40-350/0.01]-P[1.5-3.4/0.01]-N[15-300/1]

EHSFE4-[40-350/0.01]-P[1.5-3.9/0.01]-N[15-300/1]

EHSFE4.5-[40-350/0.01]-P[2.5-4.4/0.01]-N[15-300/1]

EHSFE5-[40-350/0.01]-P[3-4.9/0.01]-N[15-330/1]

EHSFE5.5-[40-350/0.01]-P[3.5-5.4/0.01]-N[15-330/1]

EHSFE6-[40-350/0.01]-P[4-5.9/0.01]-N[15-330/1]

EHSFE6.5-[40-350/0.01]-P[4.5-6.4/0.01]-N[15-330/1]

EHSFE7-[40-350/0.01]-P[4.9-6.9/0.01]-N[15-330/1]

EHSFE8-[40-350/0.01]-P[5.9-7.9/0.01]-N[15-330/1]

EHSFE9-[40-350/0.01]-P[6.9-8.9/0.01]-N[15-330/1]

EHSFE10-[40-350/0.01]-P[7.9-9.9/0.01]-N[15-330/1]

EHSFE12-[40-350/0.01]-P[8.9-11.9/0.01]-N[15-300/1]

EHSJF4-[50-350/0.01]-P[1.5-3.9/0.01]-N[30-300/1]

EHSJF4.5-[50-350/0.01]-P[2.5-4.4/0.01]-N[30-300/1]

EHSJF5-[50-350/0.01]-P[3-4.9/0.01]-N[30-330/1]

EHSJF5.5-[50-350/0.01]-P[3.5-5.4/0.01]-N[30-330/1]

EHSJF6-[50-350/0.01]-P[4-5.9/0.01]-N[30-330/1]

EHSJF6.5-[50-350/0.01]-P[4.5-6.4/0.01]-N[30-330/1]

EHSJF7-[50-350/0.01]-P[4.9-6.9/0.01]-N[30-330/1]

EHSJF8-[50-350/0.01]-P[5.9-7.9/0.01]-N[30-330/1]

EHSJF9-[50-350/0.01]-P[6.9-8.9/0.01]-N[30-330/1]

EHSJF10-[50-350/0.01]-P[7.9-9.9/0.01]-N[30-330/1]

Tip diameter tolerance (Reference tolerance)

Head thickness

D (Shaft diameter)

(mm)

P (Tip diameter)

(mm)

Type

L (L dimension)

(mm)

RoHS?

Minimum order quantity

0/-0.005	4mm(T4)	1	0.3 ～ 0.9	Standard type	40 ～ 150	15 ～ 135	10	1 pieces
0/-0.005	4mm(T4)	1.1	0.6 ～ 1	Standard type	40 ～ 200	15 ～ 185	10	1 pieces
0/-0.005	4mm(T4)	1.2	0.6 ～ 1.1	Standard type	40 ～ 200	15 ～ 185	10	1 pieces
0/-0.005	4mm(T4)	1.3	0.6 ～ 1.2	Standard type	40 ～ 200	15 ～ 185	10	1 pieces
0/-0.005	4mm(T4)	1.4	0.6 ～ 1.3	Standard type	40 ～ 200	15 ～ 185	10	1 pieces
0/-0.005	4mm(T4)	1.5	0.6 ～ 1.4	Standard type	40 ～ 200	15 ～ 185	10	1 pieces
0/-0.005	4mm(T4)	1.6	0.8 ～ 1.5	Standard type	40 ～ 250	15 ～ 235	10	1 pieces
0/-0.005	4mm(T4)	1.7	0.8 ～ 1.6	Standard type	40 ～ 250	15 ～ 235	10	1 pieces
0/-0.005	4mm(T4)	1.8	0.8 ～ 1.7	Standard type	40 ～ 250	15 ～ 235	10	1 pieces
0/-0.005	4mm(T4)	1.9	0.8 ～ 1.8	Standard type	40 ～ 250	15 ～ 235	10	1 pieces
0/-0.005	4mm(T4)	2	0.8 ～ 1.9	Standard type	40 ～ 300	15 ～ 250	10	1 pieces
0/-0.005	4mm(T4)	2.5	0.8 ～ 2.4	Standard type	40 ～ 300	15 ～ 250	10	1 pieces
0/-0.005	4mm(T4)	3	1 ～ 2.9	Standard type	40 ～ 350	15 ～ 300	10	1 pieces
0/-0.005	4mm(T4)	3.5	1.5 ～ 3.4	Standard type	40 ～ 350	15 ～ 300	10	1 pieces
0/-0.005	4mm(T4)	4	1.5 ～ 3.9	Standard type	40 ～ 350	15 ～ 300	10	1 pieces
0/-0.005	4mm(T4)	4.5	2.5 ～ 4.4	Standard type	40 ～ 350	15 ～ 300	10	1 pieces
0/-0.005	4mm(T4)	5	3 ～ 4.9	Standard type	40 ～ 350	15 ～ 330	10	1 pieces
0/-0.005	4mm(T4)	5.5	3.5 ～ 5.4	Standard type	40 ～ 350	15 ～ 330	10	1 pieces
0/-0.005	4mm(T4)	6	4 ～ 5.9	Standard type	40 ～ 350	15 ～ 330	10	1 pieces
0/-0.005	4mm(T4)	6.5	4.5 ～ 6.4	Standard type	40 ～ 350	15 ～ 330	10	1 pieces
0/-0.005	4mm(T4)	7	4.9 ～ 6.9	Standard type	40 ～ 350	15 ～ 330	10	1 pieces
0/-0.005	4mm(T4)	8	5.9 ～ 7.9	Standard type	40 ～ 350	15 ～ 330	10	1 pieces
0/-0.005	4mm(T4)	9	6.9 ～ 8.9	Standard type	40 ～ 350	15 ～ 330	10	1 pieces
0/-0.005	4mm(T4)	10	7.9 ～ 9.9	Standard type	40 ～ 350	15 ～ 330	10	1 pieces
0/-0.005	4mm(T4)	12	8.9 ～ 11.9	Standard type	40 ～ 350	15 ～ 300	10	1 pieces
-0.01/-0.02	4mm(T4)	1	0.3 ～ 0.9	Standard type	40 ～ 150	15 ～ 135	10	1 pieces
-0.01/-0.02	4mm(T4)	1.1	0.6 ～ 1	Standard type	40 ～ 200	15 ～ 185	10	1 pieces
-0.01/-0.02	4mm(T4)	1.2	0.6 ～ 1.1	Standard type	40 ～ 200	15 ～ 185	10	1 pieces
-0.01/-0.02	4mm(T4)	1.3	0.6 ～ 1.2	Standard type	40 ～ 200	15 ～ 185	10	1 pieces
-0.01/-0.02	4mm(T4)	1.4	0.6 ～ 1.3	Standard type	40 ～ 200	15 ～ 185	10	1 pieces
-0.01/-0.02	4mm(T4)	1.5	0.6 ～ 1.4	Standard type	40 ～ 200	15 ～ 185	10	1 pieces
-0.01/-0.02	4mm(T4)	1.6	0.8 ～ 1.5	Standard type	40 ～ 250	15 ～ 235	10	1 pieces
-0.01/-0.02	4mm(T4)	1.7	0.8 ～ 1.6	Standard type	40 ～ 250	15 ～ 235	10	1 pieces
-0.01/-0.02	4mm(T4)	1.8	0.8 ～ 1.7	Standard type	40 ～ 250	15 ～ 235	10	1 pieces
-0.01/-0.02	4mm(T4)	1.9	0.8 ～ 1.8	Standard type	40 ～ 250	15 ～ 235	10	1 pieces
-0.01/-0.02	4mm(T4)	2	0.8 ～ 1.9	Standard type	40 ～ 300	15 ～ 250	10	1 pieces
-0.01/-0.02	4mm(T4)	2.5	0.8 ～ 2.4	Standard type	40 ～ 300	15 ～ 250	10	1 pieces
-0.01/-0.02	4mm(T4)	3	1 ～ 2.9	Standard type	40 ～ 350	15 ～ 300	10	1 pieces
-0.01/-0.02	4mm(T4)	3.5	1.5 ～ 3.4	Standard type	40 ～ 350	15 ～ 300	10	1 pieces
-0.01/-0.02	4mm(T4)	4	1.5 ～ 3.9	Standard type	40 ～ 350	15 ～ 300	10	1 pieces
-0.01/-0.02	4mm(T4)	4.5	2.5 ～ 4.4	Standard type	40 ～ 350	15 ～ 300	10	1 pieces
-0.01/-0.02	4mm(T4)	5	3 ～ 4.9	Standard type	40 ～ 350	15 ～ 330	10	1 pieces
-0.01/-0.02	4mm(T4)	5.5	3.5 ～ 5.4	Standard type	40 ～ 350	15 ～ 330	10	1 pieces
-0.01/-0.02	4mm(T4)	6	4 ～ 5.9	Standard type	40 ～ 350	15 ～ 330	10	1 pieces
-0.01/-0.02	4mm(T4)	6.5	4.5 ～ 6.4	Standard type	40 ～ 350	15 ～ 330	10	1 pieces
-0.01/-0.02	4mm(T4)	7	4.9 ～ 6.9	Standard type	40 ～ 350	15 ～ 330	10	1 pieces
-0.01/-0.02	4mm(T4)	8	5.9 ～ 7.9	Standard type	40 ～ 350	15 ～ 330	10	1 pieces
-0.01/-0.02	4mm(T4)	9	6.9 ～ 8.9	Standard type	40 ～ 350	15 ～ 330	10	1 pieces
-0.01/-0.02	4mm(T4)	10	7.9 ～ 9.9	Standard type	40 ～ 350	15 ～ 330	10	1 pieces
-0.01/-0.02	4mm(T4)	12	8.9 ～ 11.9	Standard type	40 ～ 350	15 ～ 300	10	1 pieces
0/-0.005	6mm(JIS)	4	1.5 ～ 3.9	Standard type	50 ～ 350	30 ～ 300	10	1 pieces
0/-0.005	6mm(JIS)	4.5	2.5 ～ 4.4	Standard type	50 ～ 350	30 ～ 300	10	1 pieces
0/-0.005	6mm(JIS)	5	3 ～ 4.9	Standard type	50 ～ 350	30 ～ 330	10	1 pieces
0/-0.005	6mm(JIS)	5.5	3.5 ～ 5.4	Standard type	50 ～ 350	30 ～ 330	10	1 pieces
0/-0.005	6mm(JIS)	6	4 ～ 5.9	Standard type	50 ～ 350	30 ～ 330	10	1 pieces
0/-0.005	6mm(JIS)	6.5	4.5 ～ 6.4	Standard type	50 ～ 350	30 ～ 330	10	1 pieces
0/-0.005	6mm(JIS)	7	4.9 ～ 6.9	Standard type	50 ～ 350	30 ～ 330	10	1 pieces
0/-0.005	8mm(JIS)	8	5.9 ～ 7.9	Standard type	50 ～ 350	30 ～ 330	10	1 pieces
0/-0.005	8mm(JIS)	9	6.9 ～ 8.9	Standard type	50 ～ 350	30 ～ 330	10	1 pieces
0/-0.005	8mm(JIS)	10	7.9 ～ 9.9	Standard type	50 ～ 350	30 ～ 330	10	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote

Catalog

Products homepage

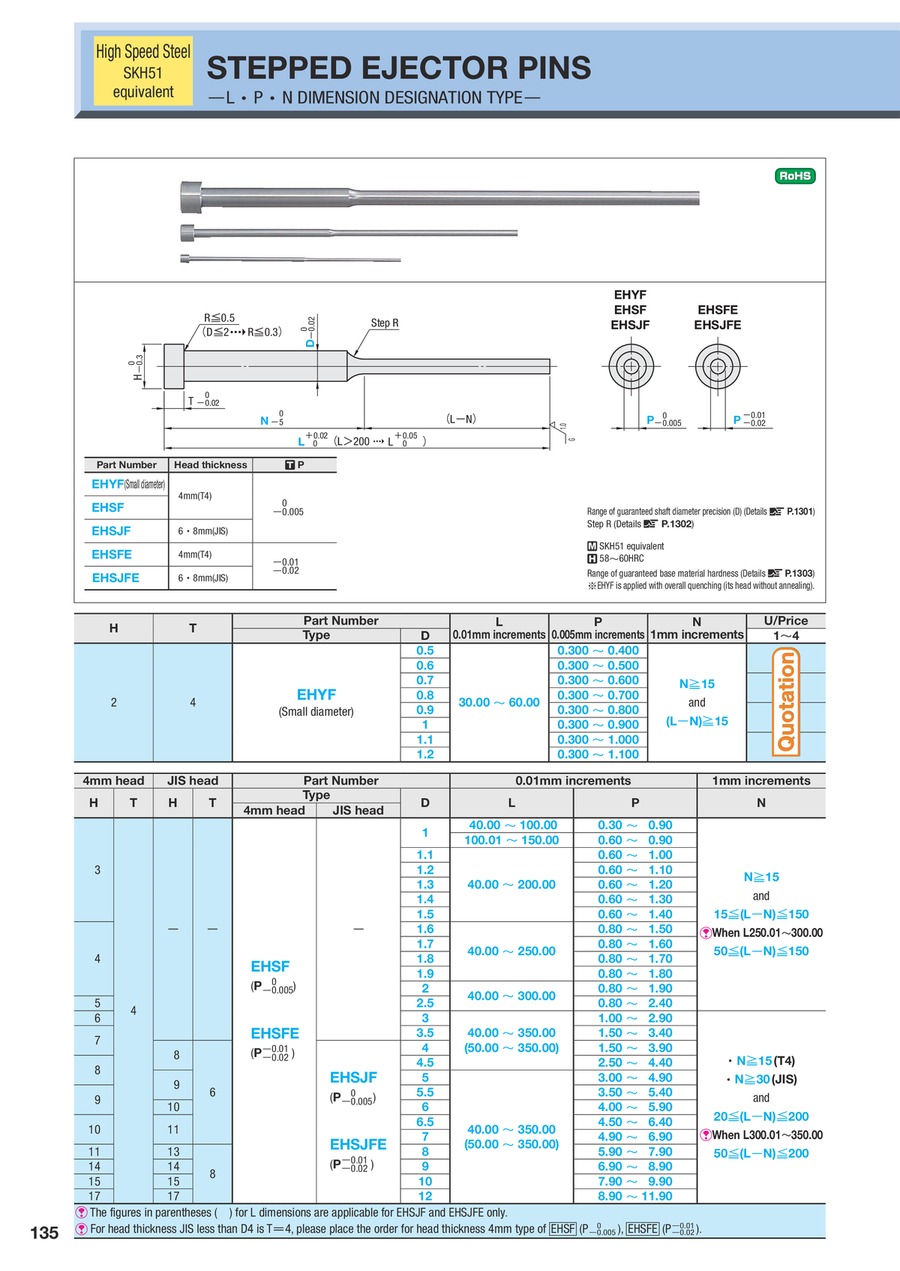

Catalog (2-page spread)
