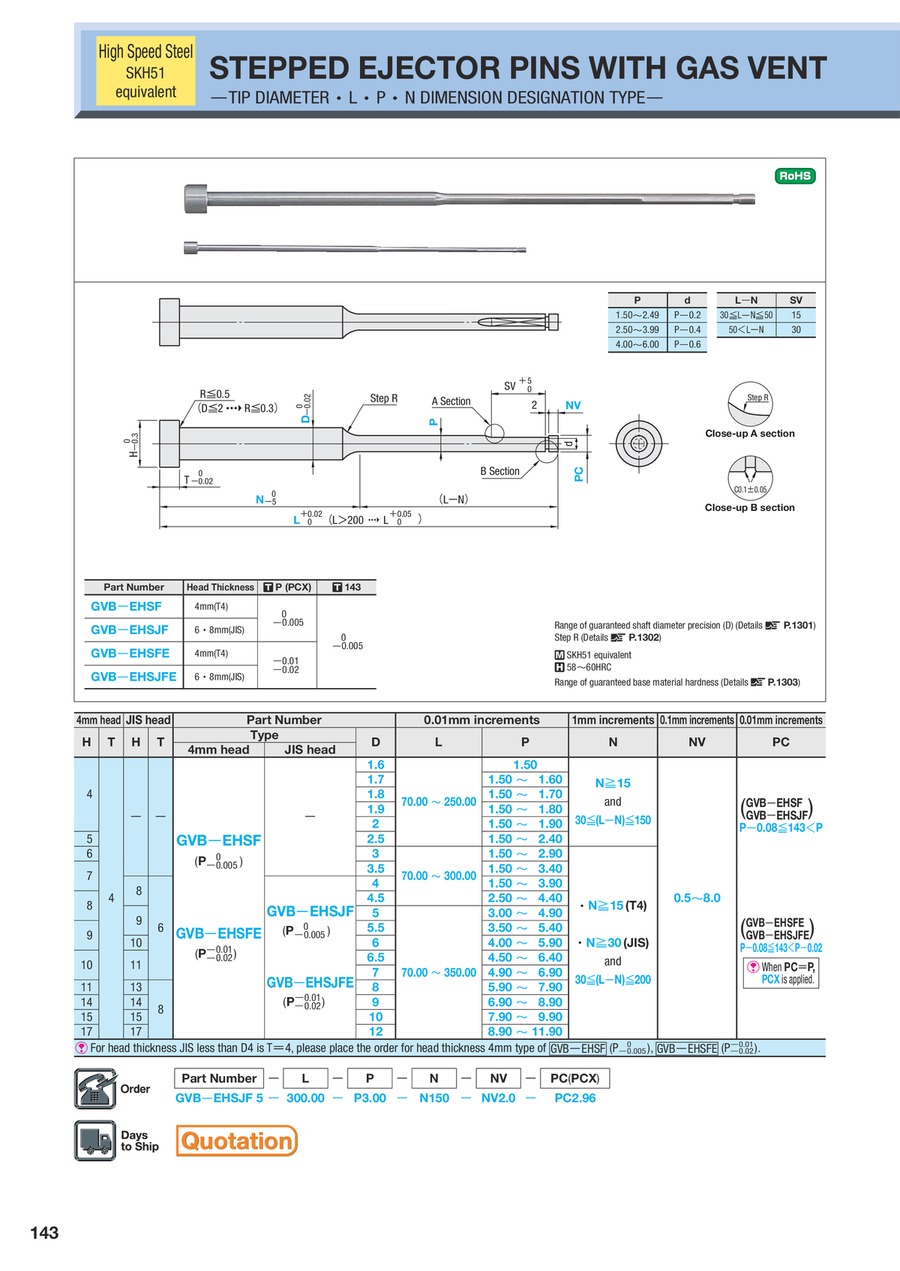

Ejector pins / head shape selectable / EN 1.3343 Equiv. / stepped / gas venting / tip with annular groove / dimensions Configurable

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Part Number:

    3D preview is not available, because the part number has not yet been determined.

  • In order to open the 3D preview, the part number must be fixed.
Loading...
Part Number
GVB-EHSF1.6-[70-250/0.01]-P1.5-N[15-235/1]-NV[0.5-8/0.1]-PC[1.42-1.59/0.01]
GVB-EHSF1.6-[70-250/0.01]-P1.5-N[15-235/1]-NV[0.5-8/0.1]-PCX
GVB-EHSF1.7-[70-250/0.01]-P[1.5-1.6/0.01]-N[15-235/1]-NV[0.5-8/0.1]-PC[1.42-1.69/0.01]
GVB-EHSF1.7-[70-250/0.01]-P[1.5-1.6/0.01]-N[15-235/1]-NV[0.5-8/0.1]-PCX
GVB-EHSF1.8-[70-250/0.01]-P[1.5-1.7/0.01]-N[15-235/1]-NV[0.5-8/0.1]-PC[1.42-1.79/0.01]
GVB-EHSF1.8-[70-250/0.01]-P[1.5-1.7/0.01]-N[15-235/1]-NV[0.5-8/0.1]-PCX
GVB-EHSF1.9-[70-250/0.01]-P[1.5-1.8/0.01]-N[15-235/1]-NV[0.5-8/0.1]-PC[1.42-1.89/0.01]
GVB-EHSF1.9-[70-250/0.01]-P[1.5-1.8/0.01]-N[15-235/1]-NV[0.5-8/0.1]-PCX
GVB-EHSF2-[70-250/0.01]-P[1.5-1.9/0.01]-N[15-235/1]-NV[0.5-8/0.1]-PC[1.42-1.99/0.01]
GVB-EHSF2-[70-250/0.01]-P[1.5-1.9/0.01]-N[15-235/1]-NV[0.5-8/0.1]-PCX
GVB-EHSF2.5-[70-250/0.01]-P[1.5-2.4/0.01]-N[15-235/1]-NV[0.5-8/0.1]-PC[1.42-2.49/0.01]
GVB-EHSF2.5-[70-250/0.01]-P[1.5-2.4/0.01]-N[15-235/1]-NV[0.5-8/0.1]-PCX
GVB-EHSF3-[70-300/0.01]-P[1.5-2.9/0.01]-N[15-280/1]-NV[0.5-8/0.1]-PC[1.42-2.99/0.01]
GVB-EHSF3-[70-300/0.01]-P[1.5-2.9/0.01]-N[15-280/1]-NV[0.5-8/0.1]-PCX
GVB-EHSF3.5-[70-300/0.01]-P[1.5-3.4/0.01]-N[15-280/1]-NV[0.5-8/0.1]-PC[1.42-3.49/0.01]
GVB-EHSF3.5-[70-300/0.01]-P[1.5-3.4/0.01]-N[15-280/1]-NV[0.5-8/0.1]-PCX
GVB-EHSF4-[70-300/0.01]-P[1.5-3.9/0.01]-N[15-280/1]-NV[0.5-8/0.1]-PC[1.42-3.99/0.01]
GVB-EHSF4-[70-300/0.01]-P[1.5-3.9/0.01]-N[15-280/1]-NV[0.5-8/0.1]-PCX
GVB-EHSF4.5-[70-300/0.01]-P[2.5-4.4/0.01]-N[15-280/1]-NV[0.5-8/0.1]-PC[2.42-4.39/0.01]
GVB-EHSF4.5-[70-300/0.01]-P[2.5-4.4/0.01]-N[15-280/1]-NV[0.5-8/0.1]-PCX
GVB-EHSF5-[70-350/0.01]-P[3-4.9/0.01]-N[15-330/1]-NV[0.5-8/0.1]-PC[2.92-4.99/0.01]
GVB-EHSF5-[70-350/0.01]-P[3-4.9/0.01]-N[15-330/1]-NV[0.5-8/0.1]-PCX
GVB-EHSF5.5-[70-350/0.01]-P[3.5-5.4/0.01]-N[15-330/1]-NV[0.5-8/0.1]-PC[3.42-5.49/0.01]
GVB-EHSF5.5-[70-350/0.01]-P[3.5-5.4/0.01]-N[15-330/1]-NV[0.5-8/0.1]-PCX
GVB-EHSF6-[70-350/0.01]-P[4-5.9/0.01]-N[15-330/1]-NV[0.5-8/0.1]-PC[3.92-5.99/0.01]
GVB-EHSF6-[70-350/0.01]-P[4-5.9/0.01]-N[15-330/1]-NV[0.5-8/0.1]-PCX
GVB-EHSF6.5-[70-350/0.01]-P[4.5-6.4/0.01]-N[15-330/1]-NV[0.5-8/0.1]-PC[4.42-6.49/0.01]
GVB-EHSF6.5-[70-350/0.01]-P[4.5-6.4/0.01]-N[15-330/1]-NV[0.5-8/0.1]-PCX
GVB-EHSF7-[70-350/0.01]-P[4.9-6.9/0.01]-N[15-330/1]-NV[0.5-8/0.1]-PC[4.82-6.99/0.01]
GVB-EHSF7-[70-350/0.01]-P[4.9-6.9/0.01]-N[15-330/1]-NV[0.5-8/0.1]-PCX
GVB-EHSF8-[70-350/0.01]-P[5.9-7.9/0.01]-N[15-330/1]-NV[0.5-8/0.1]-PC[5.82-7.99/0.01]
GVB-EHSF8-[70-350/0.01]-P[5.9-7.9/0.01]-N[15-330/1]-NV[0.5-8/0.1]-PCX
GVB-EHSF9-[70-350/0.01]-P[6.9-8.9/0.01]-N[15-330/1]-NV[0.5-8/0.1]-PC[6.82-8.99/0.01]
GVB-EHSF9-[70-350/0.01]-P[6.9-8.9/0.01]-N[15-330/1]-NV[0.5-8/0.1]-PCX
GVB-EHSF10-[70-350/0.01]-P[7.9-9.9/0.01]-N[15-330/1]-NV[0.5-8/0.1]-PC[7.82-9.99/0.01]
GVB-EHSF10-[70-350/0.01]-P[7.9-9.9/0.01]-N[15-330/1]-NV[0.5-8/0.1]-PCX
GVB-EHSF12-[70-350/0.01]-P[8.9-11.9/0.01]-N[15-300/1]-NV[0.5-8/0.1]-PC[8.82-11.99/0.01]
GVB-EHSF12-[70-350/0.01]-P[8.9-11.9/0.01]-N[15-300/1]-NV[0.5-8/0.1]-PCX
GVB-EHSFE1.6-[70-250/0.01]-P1.5-N[15-235/1]-NV[0.5-8/0.1]-PC[1.42-1.57/0.01]
GVB-EHSFE1.6-[70-250/0.01]-P1.5-N[15-235/1]-NV[0.5-8/0.1]-PCX
GVB-EHSFE1.7-[70-250/0.01]-P[1.5-1.6/0.01]-N[15-235/1]-NV[0.5-8/0.1]-PC[1.42-1.67/0.01]
GVB-EHSFE1.7-[70-250/0.01]-P[1.5-1.6/0.01]-N[15-235/1]-NV[0.5-8/0.1]-PCX
GVB-EHSFE1.8-[70-250/0.01]-P[1.5-1.7/0.01]-N[15-235/1]-NV[0.5-8/0.1]-PC[1.42-1.77/0.01]
GVB-EHSFE1.8-[70-250/0.01]-P[1.5-1.7/0.01]-N[15-235/1]-NV[0.5-8/0.1]-PCX
GVB-EHSFE1.9-[70-250/0.01]-P[1.5-1.8/0.01]-N[15-235/1]-NV[0.5-8/0.1]-PC[1.42-1.87/0.01]
GVB-EHSFE1.9-[70-250/0.01]-P[1.5-1.8/0.01]-N[15-235/1]-NV[0.5-8/0.1]-PCX
GVB-EHSFE2-[70-250/0.01]-P[1.5-1.9/0.01]-N[15-235/1]-NV[0.5-8/0.1]-PC[1.42-1.97/0.01]
GVB-EHSFE2-[70-250/0.01]-P[1.5-1.9/0.01]-N[15-235/1]-NV[0.5-8/0.1]-PCX
GVB-EHSFE2.5-[70-250/0.01]-P[1.5-2.4/0.01]-N[15-235/1]-NV[0.5-8/0.1]-PC[1.42-2.47/0.01]
GVB-EHSFE2.5-[70-250/0.01]-P[1.5-2.4/0.01]-N[15-235/1]-NV[0.5-8/0.1]-PCX
GVB-EHSFE3-[70-300/0.01]-P[1.5-2.9/0.01]-N[15-280/1]-NV[0.5-8/0.1]-PC[1.42-2.97/0.01]
GVB-EHSFE3-[70-300/0.01]-P[1.5-2.9/0.01]-N[15-280/1]-NV[0.5-8/0.1]-PCX
GVB-EHSFE3.5-[70-300/0.01]-P[1.5-3.4/0.01]-N[15-280/1]-NV[0.5-8/0.1]-PC[1.42-3.47/0.01]
GVB-EHSFE3.5-[70-300/0.01]-P[1.5-3.4/0.01]-N[15-280/1]-NV[0.5-8/0.1]-PCX
GVB-EHSFE4-[70-300/0.01]-P[1.5-3.9/0.01]-N[15-280/1]-NV[0.5-8/0.1]-PC[1.42-3.97/0.01]
GVB-EHSFE4-[70-300/0.01]-P[1.5-3.9/0.01]-N[15-280/1]-NV[0.5-8/0.1]-PCX
GVB-EHSFE4.5-[70-300/0.01]-P[2.5-4.4/0.01]-N[15-280/1]-NV[0.5-8/0.1]-PC[2.42-4.37/0.01]
GVB-EHSFE4.5-[70-300/0.01]-P[2.5-4.4/0.01]-N[15-280/1]-NV[0.5-8/0.1]-PCX
GVB-EHSFE5-[70-350/0.01]-P[3-4.9/0.01]-N[15-330/1]-NV[0.5-8/0.1]-PC[2.92-4.97/0.01]
GVB-EHSFE5-[70-350/0.01]-P[3-4.9/0.01]-N[15-330/1]-NV[0.5-8/0.1]-PCX
Part Number
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
RoHSHead thickness D (Shaft diameter)
(mm)
P (Tip diameter)
(mm)
P (PCX) tolerance L (L dimension)
(mm)
N
(mm)
NV (Gas release groove position)
(mm)
PC (Tip diameter)
(mm)
When PC=P, PCX is applied

-

1 Quote 104mm(T4)1.61.50/-0.00570 ~ 25015 ~ 2350.5 ~ 81.42 ~ 1.59-

-

1 Quote 104mm(T4)1.61.50/-0.00570 ~ 25015 ~ 2350.5 ~ 8-PCX

-

1 Quote 104mm(T4)1.71.5 ~ 1.60/-0.00570 ~ 25015 ~ 2350.5 ~ 81.42 ~ 1.69-

-

1 Quote 104mm(T4)1.71.5 ~ 1.60/-0.00570 ~ 25015 ~ 2350.5 ~ 8-PCX

-

1 Quote 104mm(T4)1.81.5 ~ 1.70/-0.00570 ~ 25015 ~ 2350.5 ~ 81.42 ~ 1.79-

-

1 Quote 104mm(T4)1.81.5 ~ 1.70/-0.00570 ~ 25015 ~ 2350.5 ~ 8-PCX

-

1 Quote 104mm(T4)1.91.5 ~ 1.80/-0.00570 ~ 25015 ~ 2350.5 ~ 81.42 ~ 1.89-

-

1 Quote 104mm(T4)1.91.5 ~ 1.80/-0.00570 ~ 25015 ~ 2350.5 ~ 8-PCX

-

1 Quote 104mm(T4)21.5 ~ 1.90/-0.00570 ~ 25015 ~ 2350.5 ~ 81.42 ~ 1.99-

-

1 Quote 104mm(T4)21.5 ~ 1.90/-0.00570 ~ 25015 ~ 2350.5 ~ 8-PCX

-

1 Quote 104mm(T4)2.51.5 ~ 2.40/-0.00570 ~ 25015 ~ 2350.5 ~ 81.42 ~ 2.49-

-

1 Quote 104mm(T4)2.51.5 ~ 2.40/-0.00570 ~ 25015 ~ 2350.5 ~ 8-PCX

-

1 Quote 104mm(T4)31.5 ~ 2.90/-0.00570 ~ 30015 ~ 2800.5 ~ 81.42 ~ 2.99-

-

1 Quote 104mm(T4)31.5 ~ 2.90/-0.00570 ~ 30015 ~ 2800.5 ~ 8-PCX

-

1 Quote 104mm(T4)3.51.5 ~ 3.40/-0.00570 ~ 30015 ~ 2800.5 ~ 81.42 ~ 3.49-

-

1 Quote 104mm(T4)3.51.5 ~ 3.40/-0.00570 ~ 30015 ~ 2800.5 ~ 8-PCX

-

1 Quote 104mm(T4)41.5 ~ 3.90/-0.00570 ~ 30015 ~ 2800.5 ~ 81.42 ~ 3.99-

-

1 Quote 104mm(T4)41.5 ~ 3.90/-0.00570 ~ 30015 ~ 2800.5 ~ 8-PCX

-

1 Quote 104mm(T4)4.52.5 ~ 4.40/-0.00570 ~ 30015 ~ 2800.5 ~ 82.42 ~ 4.39-

-

1 Quote 104mm(T4)4.52.5 ~ 4.40/-0.00570 ~ 30015 ~ 2800.5 ~ 8-PCX

-

1 Quote 104mm(T4)53 ~ 4.90/-0.00570 ~ 35015 ~ 3300.5 ~ 82.92 ~ 4.99-

-

1 Quote 104mm(T4)53 ~ 4.90/-0.00570 ~ 35015 ~ 3300.5 ~ 8-PCX

-

1 Quote 104mm(T4)5.53.5 ~ 5.40/-0.00570 ~ 35015 ~ 3300.5 ~ 83.42 ~ 5.49-

-

1 Quote 104mm(T4)5.53.5 ~ 5.40/-0.00570 ~ 35015 ~ 3300.5 ~ 8-PCX

-

1 Quote 104mm(T4)64 ~ 5.90/-0.00570 ~ 35015 ~ 3300.5 ~ 83.92 ~ 5.99-

-

1 Quote 104mm(T4)64 ~ 5.90/-0.00570 ~ 35015 ~ 3300.5 ~ 8-PCX

-

1 Quote 104mm(T4)6.54.5 ~ 6.40/-0.00570 ~ 35015 ~ 3300.5 ~ 84.42 ~ 6.49-

-

1 Quote 104mm(T4)6.54.5 ~ 6.40/-0.00570 ~ 35015 ~ 3300.5 ~ 8-PCX

-

1 Quote 104mm(T4)74.9 ~ 6.90/-0.00570 ~ 35015 ~ 3300.5 ~ 84.82 ~ 6.99-

-

1 Quote 104mm(T4)74.9 ~ 6.90/-0.00570 ~ 35015 ~ 3300.5 ~ 8-PCX

-

1 Quote 104mm(T4)85.9 ~ 7.90/-0.00570 ~ 35015 ~ 3300.5 ~ 85.82 ~ 7.99-

-

1 Quote 104mm(T4)85.9 ~ 7.90/-0.00570 ~ 35015 ~ 3300.5 ~ 8-PCX

-

1 Quote 104mm(T4)96.9 ~ 8.90/-0.00570 ~ 35015 ~ 3300.5 ~ 86.82 ~ 8.99-

-

1 Quote 104mm(T4)96.9 ~ 8.90/-0.00570 ~ 35015 ~ 3300.5 ~ 8-PCX

-

1 Quote 104mm(T4)107.9 ~ 9.90/-0.00570 ~ 35015 ~ 3300.5 ~ 87.82 ~ 9.99-

-

1 Quote 104mm(T4)107.9 ~ 9.90/-0.00570 ~ 35015 ~ 3300.5 ~ 8-PCX

-

1 Quote 104mm(T4)128.9 ~ 11.90/-0.00570 ~ 35015 ~ 3000.5 ~ 88.82 ~ 11.99-

-

1 Quote 104mm(T4)128.9 ~ 11.90/-0.00570 ~ 35015 ~ 3000.5 ~ 8-PCX

-

1 Quote 104mm(T4)1.61.5-0.01/-0.0270 ~ 25015 ~ 2350.5 ~ 81.42 ~ 1.57-

-

1 Quote 104mm(T4)1.61.5-0.01/-0.0270 ~ 25015 ~ 2350.5 ~ 8-PCX

-

1 Quote 104mm(T4)1.71.5 ~ 1.6-0.01/-0.0270 ~ 25015 ~ 2350.5 ~ 81.42 ~ 1.67-

-

1 Quote 104mm(T4)1.71.5 ~ 1.6-0.01/-0.0270 ~ 25015 ~ 2350.5 ~ 8-PCX

-

1 Quote 104mm(T4)1.81.5 ~ 1.7-0.01/-0.0270 ~ 25015 ~ 2350.5 ~ 81.42 ~ 1.77-

-

1 Quote 104mm(T4)1.81.5 ~ 1.7-0.01/-0.0270 ~ 25015 ~ 2350.5 ~ 8-PCX

-

1 Quote 104mm(T4)1.91.5 ~ 1.8-0.01/-0.0270 ~ 25015 ~ 2350.5 ~ 81.42 ~ 1.87-

-

1 Quote 104mm(T4)1.91.5 ~ 1.8-0.01/-0.0270 ~ 25015 ~ 2350.5 ~ 8-PCX

-

1 Quote 104mm(T4)21.5 ~ 1.9-0.01/-0.0270 ~ 25015 ~ 2350.5 ~ 81.42 ~ 1.97-

-

1 Quote 104mm(T4)21.5 ~ 1.9-0.01/-0.0270 ~ 25015 ~ 2350.5 ~ 8-PCX

-

1 Quote 104mm(T4)2.51.5 ~ 2.4-0.01/-0.0270 ~ 25015 ~ 2350.5 ~ 81.42 ~ 2.47-

-

1 Quote 104mm(T4)2.51.5 ~ 2.4-0.01/-0.0270 ~ 25015 ~ 2350.5 ~ 8-PCX

-

1 Quote 104mm(T4)31.5 ~ 2.9-0.01/-0.0270 ~ 30015 ~ 2800.5 ~ 81.42 ~ 2.97-

-

1 Quote 104mm(T4)31.5 ~ 2.9-0.01/-0.0270 ~ 30015 ~ 2800.5 ~ 8-PCX

-

1 Quote 104mm(T4)3.51.5 ~ 3.4-0.01/-0.0270 ~ 30015 ~ 2800.5 ~ 81.42 ~ 3.47-

-

1 Quote 104mm(T4)3.51.5 ~ 3.4-0.01/-0.0270 ~ 30015 ~ 2800.5 ~ 8-PCX

-

1 Quote 104mm(T4)41.5 ~ 3.9-0.01/-0.0270 ~ 30015 ~ 2800.5 ~ 81.42 ~ 3.97-

-

1 Quote 104mm(T4)41.5 ~ 3.9-0.01/-0.0270 ~ 30015 ~ 2800.5 ~ 8-PCX

-

1 Quote 104mm(T4)4.52.5 ~ 4.4-0.01/-0.0270 ~ 30015 ~ 2800.5 ~ 82.42 ~ 4.37-

-

1 Quote 104mm(T4)4.52.5 ~ 4.4-0.01/-0.0270 ~ 30015 ~ 2800.5 ~ 8-PCX

-

1 Quote 104mm(T4)53 ~ 4.9-0.01/-0.0270 ~ 35015 ~ 3300.5 ~ 82.92 ~ 4.97-

-

1 Quote 104mm(T4)53 ~ 4.9-0.01/-0.0270 ~ 35015 ~ 3300.5 ~ 8-PCX

Loading...

Basic information

Material EN 1.3343 Equiv. Tip diameter tolerance (Reference tolerance) 0/-0.005 Shaft diameter tolerance (Reference tolerance) 0/-0.02
Surface treatment No Tip shape No Character engraving type No
Number of engraving characters No Gas release shape With gas vent
