  • Material
  • W (Width)(mm)
  • A (Bolt hole position)(mm)
      [6-150/0.5mm units]
    • B (Bolt hole position)(mm)
        [16-159.5/0.5mm units]
      • G (Angle)(°)
      • L (L dimension)(mm)
          [30-180/10mm units]
        • T (Thickness)(mm)
        • Type
        • CAD
        MISUMI

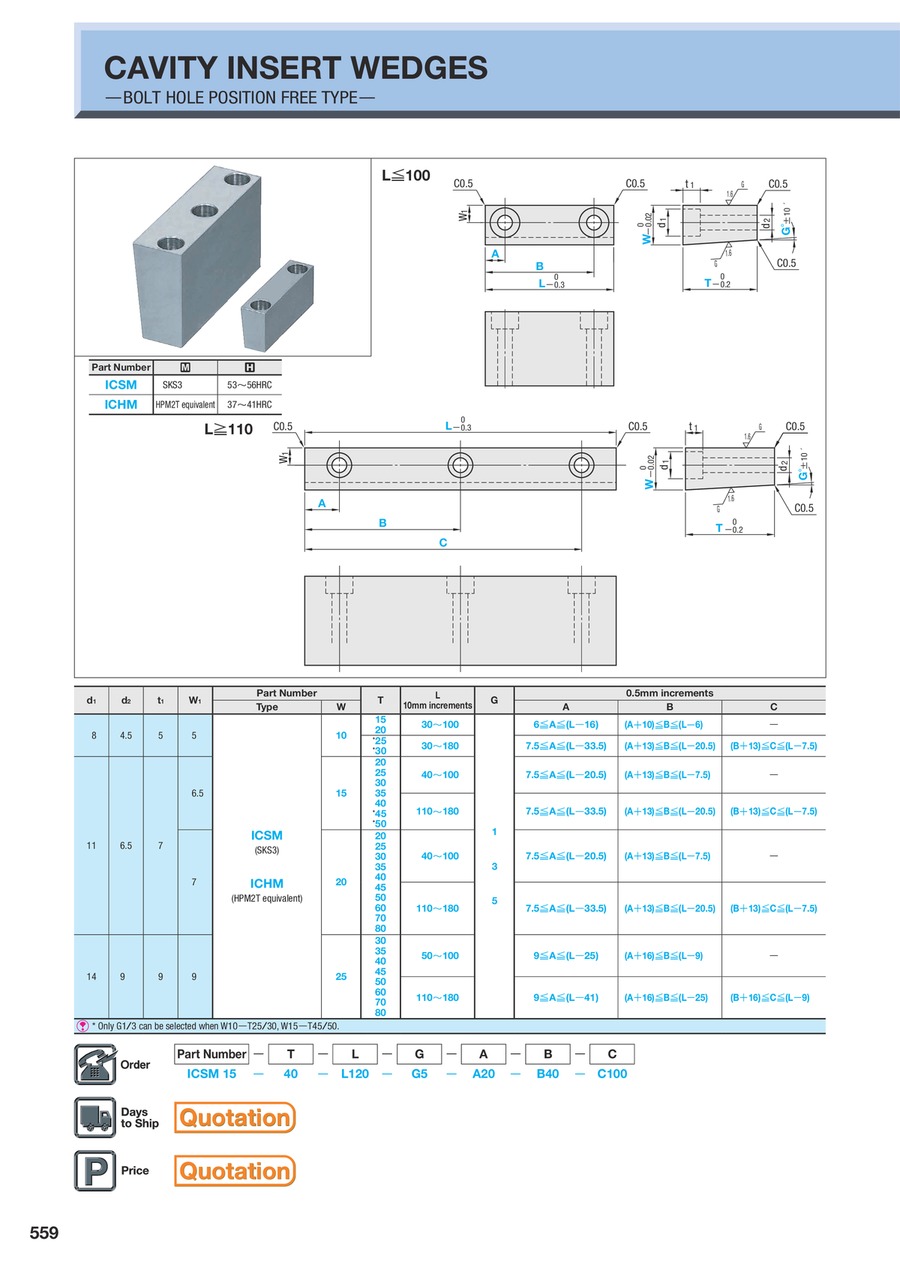

        Shape insert wedges / tool steel / counterbore with internal thread

        Shape insert wedges / tool steel / counterbore with internal thread

        Click image to view enlarged image

        Part number:

        Still undefined. 8 possible part numbers found.
        Quantity:

        Outline drawing

        Part number list

        Number of items
      • 1
        • Part number
        ICHM10-[15,20,25,30]-L[30-180/10]-G[1,3,5]-A[6-84/0.5]-B[16-159.5/0.5]
        ICHM15-[20,25,30,35,40,45,50]-L[40-180/10]-G[1,3,5]-A[7.5-146.5/0.5]-B[20.5-159.5/0.5]
        ICHM20-[20,25,30,35,40,45,50,60,70,80]-L[40-180/10]-G[1,3,5]-A[7.5-146.5/0.5]-B[20.5-159.5/0.5]
        ICHM25-[30,35,40,45,50,60,70,80]-L[50-180/10]-G[1,3,5]-A[9-150/0.5]-B[25-155/0.5]
        ICSM10-[15,20,25,30]-L[30-180/10]-G[1,3,5]-A[6-146.5/0.5]-B[16-159.5/0.5]
        ICSM15-[20,25,30,35,40,45,50]-L[40-180/10]-G[1,3,5]-A[7.5-146.5/0.5]-B[20.5-159.5/0.5]
        ICSM20-[20,25,30,35,40,45,50,60,70,80]-L[40-180/10]-G[1,3,5]-A[7.5-146.5/0.5]-B[20.5-159.5/0.5]
        ICSM25-[30,35,40,45,50,60,70,80]-L[50-180/10]-G[1,3,5]-A[9-150/0.5]-B[25-155/0.5]

        Material

        W (Width)

        (mm)

        A (Bolt hole position)

        (mm)

        B (Bolt hole position)

        (mm)

        G (Angle)

        (°)

        L (L dimension)

        (mm)

        T (Thickness)

        (mm)

        		RoHS?Minimum order quantity
        HPM2T comparable
        10
        6 ～ 84
        16 ～ 159.5
        1 ～ 5
        30 ～ 180
        15 ～ 30
        10
        1 pieces
        HPM2T comparable
        15
        7.5 ～ 146.5
        20.5 ～ 159.5
        1 ～ 5
        40 ～ 180
        20 ～ 50
        10
        1 pieces
        HPM2T comparable
        20
        7.5 ～ 146.5
        20.5 ～ 159.5
        1 ～ 5
        40 ～ 180
        20 ～ 80
        10
        1 pieces
        HPM2T comparable
        25
        9 ～ 150
        25 ～ 155
        1 ～ 5
        50 ～ 180
        30 ～ 80
        10
        1 pieces
        SKS3
        10
        6 ～ 146.5
        16 ～ 159.5
        1 ～ 5
        30 ～ 180
        15 ～ 30
        10
        1 pieces
        SKS3
        15
        7.5 ～ 146.5
        20.5 ～ 159.5
        1 ～ 5
        40 ～ 180
        20 ～ 50
        10
        1 pieces
        SKS3
        20
        7.5 ～ 146.5
        20.5 ～ 159.5
        1 ～ 5
        40 ～ 180
        20 ～ 80
        10
        1 pieces
        SKS3
        25
        9 ～ 150
        25 ～ 155
        1 ～ 5
        50 ～ 180
        30 ～ 80
        10
        1 pieces
