Configure

Shape
- Straight
- Stepped
D (Diameter)(mm)
- 4
- 5
- 6
- 8
- 10
- 12
- 13
- 15
- 16
- 20
- 25
- 30
- 32
- 35
- 40
- 50
L (Length)(mm)
[15-500/0.1mm units]
A (Taper angle)(°)
[0-30/1° units]
ATN
- ATN
N (Press-fit length)(mm)
- 0
[2-500/0.1mm units]
Type
- AP
- APS
CAD
- 2D
- 3D

Angular pins / with head / chamfered / rounded

Click image to view enlarged image

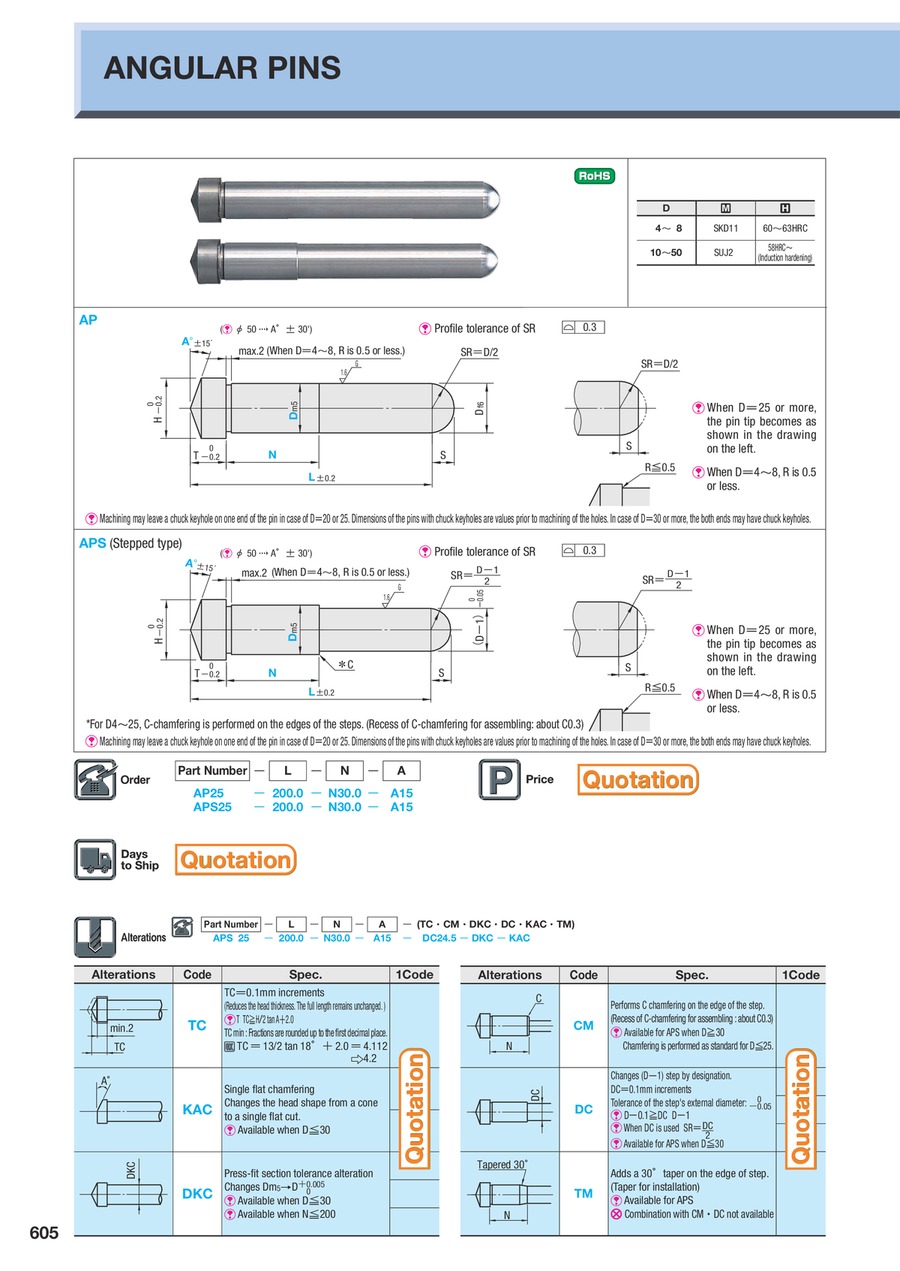

CatalogP.605

Part number:

Still undefined. 128 possible part numbers found.

Outline drawing
Part number list
More Information
Catalog

Outline drawing

Part number list

Number of items

Part number

AP4-[15-90/0.1]-N0-A[0-30/1]

AP4-[15-90/0.1]-N0-ATN

AP4-[15-90/0.1]-N[2-90/0.1]-A[0-30/1]

AP4-[15-90/0.1]-N[2-90/0.1]-ATN

AP5-[15-100/0.1]-N0-A[0-30/1]

AP5-[15-100/0.1]-N0-ATN

AP5-[15-100/0.1]-N[2-100/0.1]-A[0-30/1]

AP5-[15-100/0.1]-N[2-100/0.1]-ATN

AP6-[15-110/0.1]-N0-A[0-30/1]

AP6-[15-110/0.1]-N0-ATN

AP6-[15-110/0.1]-N[2-110/0.1]-A[0-30/1]

AP6-[15-110/0.1]-N[2-110/0.1]-ATN

AP8-[15-130/0.1]-N0-A[0-30/1]

AP8-[15-130/0.1]-N0-ATN

AP8-[15-130/0.1]-N[2-130/0.1]-A[0-30/1]

AP8-[15-130/0.1]-N[2-130/0.1]-ATN

AP10-[20-200/0.1]-N0-A[0-30/1]

AP10-[20-200/0.1]-N0-ATN

AP10-[20-200/0.1]-N[2-200/0.1]-A[0-30/1]

AP10-[20-200/0.1]-N[2-200/0.1]-ATN

AP12-[20-250/0.1]-N0-A[0-30/1]

AP12-[20-250/0.1]-N0-ATN

AP12-[20-250/0.1]-N[2-250/0.1]-A[0-30/1]

AP12-[20-250/0.1]-N[2-250/0.1]-ATN

AP13-[20-250/0.1]-N0-A[0-30/1]

AP13-[20-250/0.1]-N0-ATN

AP13-[20-250/0.1]-N[2-250/0.1]-A[0-30/1]

AP13-[20-250/0.1]-N[2-250/0.1]-ATN

AP15-[20-250/0.1]-N0-A[0-30/1]

AP15-[20-250/0.1]-N0-ATN

AP15-[20-250/0.1]-N[2-250/0.1]-A[0-30/1]

AP15-[20-250/0.1]-N[2-250/0.1]-ATN

AP16-[20-250/0.1]-N0-A[0-30/1]

AP16-[20-250/0.1]-N0-ATN

AP16-[20-250/0.1]-N[2-250/0.1]-A[0-30/1]

AP16-[20-250/0.1]-N[2-250/0.1]-ATN

AP20-[40-350/0.1]-N0-A[0-30/1]

AP20-[40-350/0.1]-N0-ATN

AP20-[40-350/0.1]-N[2-350/0.1]-A[0-30/1]

AP20-[40-350/0.1]-N[2-350/0.1]-ATN

AP25-[40-400/0.1]-N0-A[0-30/1]

AP25-[40-400/0.1]-N0-ATN

AP25-[40-400/0.1]-N[2-386/0.1]-A[0-30/1]

AP25-[40-400/0.1]-N[2-386/0.1]-ATN

AP30-[60-500/0.1]-N0-A[1-30/1]

AP30-[60-500/0.1]-N0-ATN

AP30-[60-500/0.1]-N[2-399.9/0.1]-A[1-30/1]

AP30-[60-500/0.1]-N[2-399.9/0.1]-ATN

AP32-[70-500/0.1]-N0-A[0-30/1]

AP32-[70-500/0.1]-N0-ATN

AP32-[70-500/0.1]-N[2-399.9/0.1]-A[0-30/1]

AP32-[70-500/0.1]-N[2-399.9/0.1]-ATN

AP35-[100-500/0.1]-N0-A[0-30/1]

AP35-[100-500/0.1]-N0-ATN

AP35-[100-500/0.1]-N[2-399.9/0.1]-A[0-30/1]

AP35-[100-500/0.1]-N[2-399.9/0.1]-ATN

AP40-[100-500/0.1]-N0-A[0-30/1]

AP40-[100-500/0.1]-N0-ATN

AP40-[100-500/0.1]-N[2-399.9/0.1]-A[0-30/1]

AP40-[100-500/0.1]-N[2-399.9/0.1]-ATN

Shape

D (Diameter)

(mm)

L (Length)

(mm)

A (Taper angle)

(°)

ATN

N (Press-fit length)

(mm)

RoHS?

Minimum order quantity

Straight	4	15 ～ 90	0 ～ 30	-	0	10	1 pieces
Straight	4	15 ～ 90	-	ATN	0	10	1 pieces
Straight	4	15 ～ 90	0 ～ 30	-	2 ～ 90	10	1 pieces
Straight	4	15 ～ 90	-	ATN	2 ～ 90	10	1 pieces
Straight	5	15 ～ 100	0 ～ 30	-	0	10	1 pieces
Straight	5	15 ～ 100	-	ATN	0	10	1 pieces
Straight	5	15 ～ 100	0 ～ 30	-	2 ～ 100	10	1 pieces
Straight	5	15 ～ 100	-	ATN	2 ～ 100	10	1 pieces
Straight	6	15 ～ 110	0 ～ 30	-	0	10	1 pieces
Straight	6	15 ～ 110	-	ATN	0	10	1 pieces
Straight	6	15 ～ 110	0 ～ 30	-	2 ～ 110	10	1 pieces
Straight	6	15 ～ 110	-	ATN	2 ～ 110	10	1 pieces
Straight	8	15 ～ 130	0 ～ 30	-	0	10	1 pieces
Straight	8	15 ～ 130	-	ATN	0	10	1 pieces
Straight	8	15 ～ 130	0 ～ 30	-	2 ～ 130	10	1 pieces
Straight	8	15 ～ 130	-	ATN	2 ～ 130	10	1 pieces
Straight	10	20 ～ 200	0 ～ 30	-	0	10	1 pieces
Straight	10	20 ～ 200	-	ATN	0	10	1 pieces
Straight	10	20 ～ 200	0 ～ 30	-	2 ～ 200	10	1 pieces
Straight	10	20 ～ 200	-	ATN	2 ～ 200	10	1 pieces
Straight	12	20 ～ 250	0 ～ 30	-	0	10	1 pieces
Straight	12	20 ～ 250	-	ATN	0	10	1 pieces
Straight	12	20 ～ 250	0 ～ 30	-	2 ～ 250	10	1 pieces
Straight	12	20 ～ 250	-	ATN	2 ～ 250	10	1 pieces
Straight	13	20 ～ 250	0 ～ 30	-	0	10	1 pieces
Straight	13	20 ～ 250	-	ATN	0	10	1 pieces
Straight	13	20 ～ 250	0 ～ 30	-	2 ～ 250	10	1 pieces
Straight	13	20 ～ 250	-	ATN	2 ～ 250	10	1 pieces
Straight	15	20 ～ 250	0 ～ 30	-	0	10	1 pieces
Straight	15	20 ～ 250	-	ATN	0	10	1 pieces
Straight	15	20 ～ 250	0 ～ 30	-	2 ～ 250	10	1 pieces
Straight	15	20 ～ 250	-	ATN	2 ～ 250	10	1 pieces
Straight	16	20 ～ 250	0 ～ 30	-	0	10	1 pieces
Straight	16	20 ～ 250	-	ATN	0	10	1 pieces
Straight	16	20 ～ 250	0 ～ 30	-	2 ～ 250	10	1 pieces
Straight	16	20 ～ 250	-	ATN	2 ～ 250	10	1 pieces
Straight	20	40 ～ 350	0 ～ 30	-	0	10	1 pieces
Straight	20	40 ～ 350	-	ATN	0	10	1 pieces
Straight	20	40 ～ 350	0 ～ 30	-	2 ～ 350	10	1 pieces
Straight	20	40 ～ 350	-	ATN	2 ～ 350	10	1 pieces
Straight	25	40 ～ 400	0 ～ 30	-	0	10	1 pieces
Straight	25	40 ～ 400	-	ATN	0	10	1 pieces
Straight	25	40 ～ 400	0 ～ 30	-	2 ～ 386	10	1 pieces
Straight	25	40 ～ 400	-	ATN	2 ～ 386	10	1 pieces
Straight	30	60 ～ 500	1 ～ 30	-	0	10	1 pieces
Straight	30	60 ～ 500	-	ATN	0	10	1 pieces
Straight	30	60 ～ 500	1 ～ 30	-	2 ～ 399.9	10	1 pieces
Straight	30	60 ～ 500	-	ATN	2 ～ 399.9	10	1 pieces
Straight	32	70 ～ 500	0 ～ 30	-	0	10	1 pieces
Straight	32	70 ～ 500	-	ATN	0	10	1 pieces
Straight	32	70 ～ 500	0 ～ 30	-	2 ～ 399.9	10	1 pieces
Straight	32	70 ～ 500	-	ATN	2 ～ 399.9	10	1 pieces
Straight	35	100 ～ 500	0 ～ 30	-	0	10	1 pieces
Straight	35	100 ～ 500	-	ATN	0	10	1 pieces
Straight	35	100 ～ 500	0 ～ 30	-	2 ～ 399.9	10	1 pieces
Straight	35	100 ～ 500	-	ATN	2 ～ 399.9	10	1 pieces
Straight	40	100 ～ 500	0 ～ 30	-	0	10	1 pieces
Straight	40	100 ～ 500	-	ATN	0	10	1 pieces
Straight	40	100 ～ 500	0 ～ 30	-	2 ～ 399.9	10	1 pieces
Straight	40	100 ～ 500	-	ATN	2 ～ 399.9	10	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
