Sprue bushes / without head / nickel alloy / sprue standard / dimension B selectable / tip shape selectable

Configure

Material
- Electroforming (Standard)
- Electroforming (High hardness)
Tip shape
- 1A
- 2A
- 3A
- 4A
- 5A
D (Outer diameter)(mm)
- 2
- 2.5
- 3
- 4
- 5
- 6
- 8
A (Secondary sprue angle)(°)
- 1
- 2
- 3
C (Tip length)(mm)
[0.2-1.5/0.1mm units]
L (L dimension)(mm)
[6-60/0.01mm units]
P (Tip diameter)(mm)
- 0.3
- 0.4
- 0.5
- 0.6
- 0.7
- 0.8
- 0.9
- 1
- 1.2
- 1.4
- 1.5
- 1.6
- 1.8
- 2
R (Tip R)(mm)
[0.4-4/0.1mm units]
S (Tip angle)(°)
[1-60/1° units]
V (Tip diameter)(mm)
[1.3-7.9/0.1mm units]
Type
CAD
- 2D
- 3D

Sprue bushes / without head / nickel alloy / sprue standard / dimension B selectable / tip shape selectable

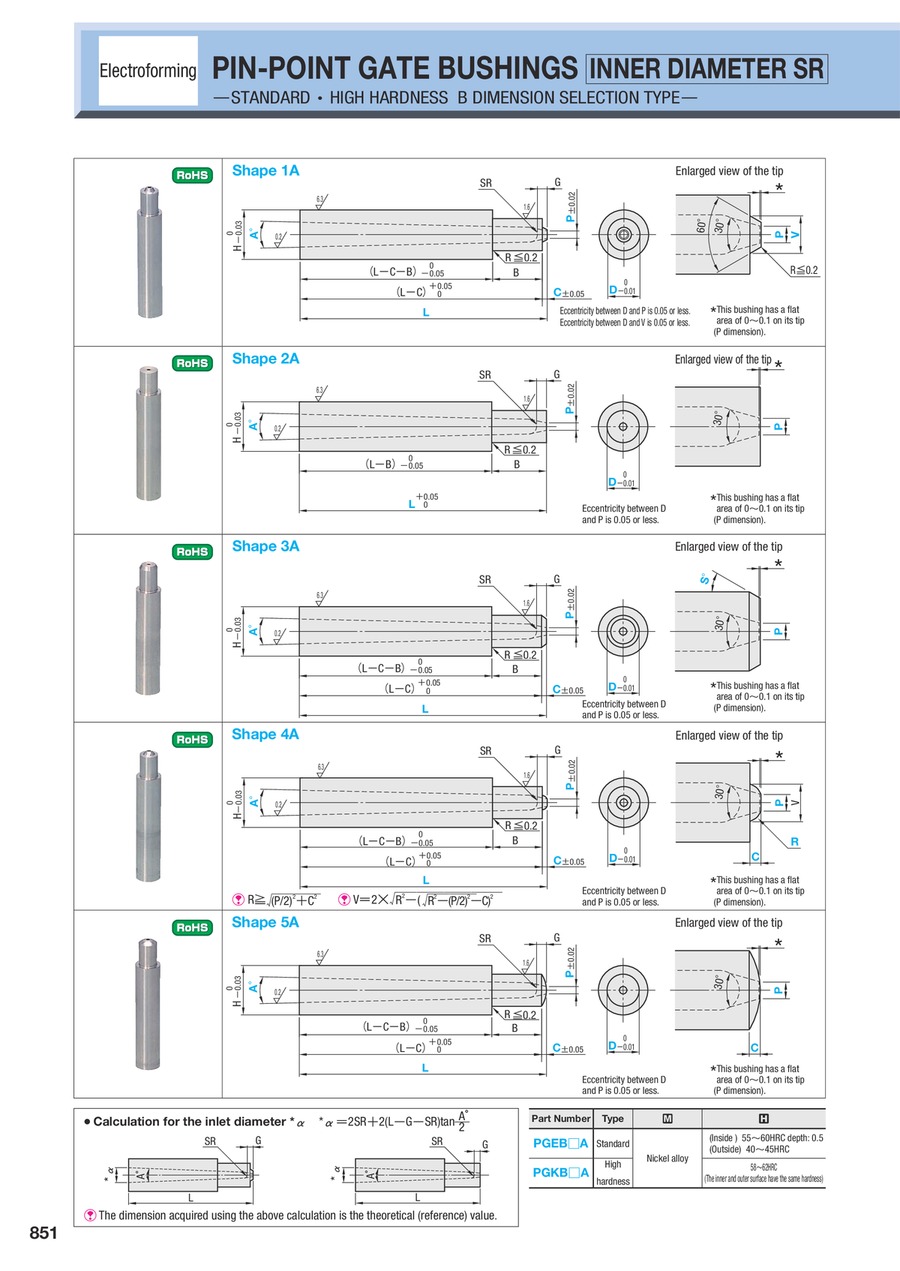

CatalogP.851

Part number:

Still undefined. 70 possible part numbers found.

Outline drawing
Part number list
More Information
Catalog

Outline drawing

Part number list

Number of items

Part number

PGEB1A2-[6-20/0.01]-P[0.3,0.4]-A[1,2,3]-C[0.2-0.4/0.1]-V[1.3-1.9/0.1]

PGEB1A2.5-[8-25/0.01]-P[0.3,0.4,0.5]-A[1,2,3]-C[0.2-0.5/0.1]-V[1.5-2.4/0.1]

PGEB1A3-[10-40/0.01]-P[0.5,0.6,0.7,0.8,0.9]-A[1,2,3]-C[0.3-0.8/0.1]-V[2-2.9/0.1]

PGEB1A4-[10-40/0.01]-P[0.6,0.7,0.8,0.9,1,1.2]-A[1,2,3]-C[0.3-0.8/0.1]-V[2.5-3.9/0.1]

PGEB1A5-[15-60/0.01]-P[0.8,0.9,1,1.2,1.4,1.5]-A[1,2,3]-C[0.5-1.5/0.1]-V[3.5-4.9/0.1]

PGEB1A6-[15-60/0.01]-P[1,1.2,1.4,1.5,1.6,1.8]-A[1,2,3]-C[0.5-1.5/0.1]-V[4-5.9/0.1]

PGEB1A8-[15-60/0.01]-P[1.2,1.4,1.5,1.6,1.8,2]-A[1,2,3]-C[0.5-1.5/0.1]-V[4.5-7.9/0.1]

PGEB2A2-[6-20/0.01]-P[0.3,0.4]-A[1,2,3]

PGEB2A2.5-[8-25/0.01]-P[0.3,0.4,0.5]-A[1,2,3]

PGEB2A3-[10-40/0.01]-P[0.5,0.6,0.7,0.8,0.9]-A[1,2,3]

PGEB2A4-[10-40/0.01]-P[0.6,0.7,0.8,0.9,1,1.2]-A[1,2,3]

PGEB2A5-[15-60/0.01]-P[0.8,0.9,1,1.2,1.4,1.5]-A[1,2,3]

PGEB2A6-[15-60/0.01]-P[1,1.2,1.4,1.5,1.6,1.8]-A[1,2,3]

PGEB2A8-[15-60/0.01]-P[1.2,1.4,1.5,1.6,1.8,2]-A[1,2,3]

PGEB3A2-[6-20/0.01]-P[0.3,0.4]-A[1,2,3]-C[0.2-0.4/0.1]-S[1-45/1]

PGEB3A2.5-[8-25/0.01]-P[0.3,0.4,0.5]-A[1,2,3]-C[0.2-0.5/0.1]-S[1-45/1]

PGEB3A3-[10-40/0.01]-P[0.5,0.6,0.7,0.8,0.9]-A[1,2,3]-C[0.3-0.8/0.1]-S[1-45/1]

PGEB3A4-[10-40/0.01]-P[0.6,0.7,0.8,0.9,1,1.2]-A[1,2,3]-C[0.3-0.8/0.1]-S[1-45/1]

PGEB3A5-[15-60/0.01]-P[0.8,0.9,1,1.2,1.4,1.5]-A[1,2,3]-C[0.5-1.5/0.1]-S[1-45/1]

PGEB3A6-[15-60/0.01]-P[1,1.2,1.4,1.5,1.6,1.8]-A[1,2,3]-C[0.5-1.5/0.1]-S[1-50/1]

PGEB3A8-[15-60/0.01]-P[1.2,1.4,1.5,1.6,1.8,2]-A[1,2,3]-C[0.5-1.5/0.1]-S[1-60/1]

PGEB4A2-[6-20/0.01]-P[0.3,0.4]-A[1,2,3]-C[0.2-0.4/0.1]-R[0.4-0.8/0.1]

PGEB4A2.5-[8-25/0.01]-P[0.3,0.4,0.5]-A[1,2,3]-C[0.2-0.5/0.1]-R[0.6-1/0.1]

PGEB4A3-[10-40/0.01]-P[0.5,0.6,0.7,0.8,0.9]-A[1,2,3]-C[0.3-0.8/0.1]-R[0.8-1.5/0.1]

PGEB4A4-[10-40/0.01]-P[0.6,0.7,0.8,0.9,1,1.2]-A[1,2,3]-C[0.3-0.8/0.1]-R[0.8-1.5/0.1]

PGEB4A5-[15-60/0.01]-P[0.8,0.9,1,1.2,1.4,1.5]-A[1,2,3]-C[0.5-1.5/0.1]-R[1-2/0.1]

PGEB4A6-[15-60/0.01]-P[1,1.2,1.4,1.5,1.6,1.8]-A[1,2,3]-C[0.5-1.5/0.1]-R[1.5-3/0.1]

PGEB4A8-[15-60/0.01]-P[1.2,1.4,1.5,1.6,1.8,2]-A[1,2,3]-C[0.5-1.5/0.1]-R[2-4/0.1]

PGEB5A2-[6-20/0.01]-P[0.3,0.4]-A[1,2,3]-C[0.2-0.4/0.1]

PGEB5A2.5-[8-25/0.01]-P[0.3,0.4,0.5]-A[1,2,3]-C[0.2-0.5/0.1]

PGEB5A3-[10-40/0.01]-P[0.5,0.6,0.7,0.8,0.9]-A[1,2,3]-C[0.3-0.8/0.1]

PGEB5A4-[10-40/0.01]-P[0.6,0.7,0.8,0.9,1,1.2]-A[1,2,3]-C[0.3-0.8/0.1]

PGEB5A5-[15-60/0.01]-P[0.8,0.9,1,1.2,1.4,1.5]-A[1,2,3]-C[0.5-1.5/0.1]

PGEB5A6-[15-60/0.01]-P[1,1.2,1.4,1.5,1.6,1.8]-A[1,2,3]-C[0.5-1.5/0.1]

PGEB5A8-[15-60/0.01]-P[1.2,1.4,1.5,1.6,1.8,2]-A[1,2,3]-C[0.5-1.5/0.1]

PGKB1A2-[6-20/0.01]-P[0.3,0.4]-A[1,2,3]-C[0.2-0.4/0.1]-V[1.3-1.9/0.1]

PGKB1A2.5-[8-25/0.01]-P[0.3,0.4,0.5]-A[1,2,3]-C[0.2-0.5/0.1]-V[1.5-2.4/0.1]

PGKB1A3-[10-40/0.01]-P[0.5,0.6,0.7,0.8,0.9]-A[1,2,3]-C[0.3-0.8/0.1]-V[2-2.9/0.1]

PGKB1A4-[10-40/0.01]-P[0.6,0.7,0.8,0.9,1,1.2]-A[1,2,3]-C[0.3-0.8/0.1]-V[2.5-3.9/0.1]

PGKB1A5-[15-60/0.01]-P[0.8,0.9,1,1.2,1.4,1.5]-A[1,2,3]-C[0.5-1.5/0.1]-V[3.5-4.9/0.1]

PGKB1A6-[15-60/0.01]-P[1,1.2,1.4,1.5,1.6]-A[1,2,3]-C[0.5-1.5/0.1]-V[4-5.9/0.1]

PGKB1A8-[15-60/0.01]-P[1.2,1.4,1.5,1.6]-A[1,2,3]-C[0.5-1.5/0.1]-V[4.5-7.9/0.1]

PGKB2A2-[6-20/0.01]-P[0.3,0.4]-A[1,2,3]

PGKB2A2.5-[8-25/0.01]-P[0.3,0.4,0.5]-A[1,2,3]

PGKB2A3-[10-40/0.01]-P[0.5,0.6,0.7,0.8,0.9]-A[1,2,3]

PGKB2A4-[10-40/0.01]-P[0.6,0.7,0.8,0.9,1,1.2]-A[1,2,3]

PGKB2A5-[15-60/0.01]-P[0.8,0.9,1,1.2,1.4,1.5]-A[1,2,3]

PGKB2A6-[15-60/0.01]-P[1,1.2,1.4,1.5,1.6]-A[1,2,3]

PGKB2A8-[15-60/0.01]-P[1.2,1.4,1.5,1.6]-A[1,2,3]

PGKB3A2-[6-20/0.01]-P[0.3,0.4]-A[1,2,3]-C[0.2-0.4/0.1]-S[1-45/1]

PGKB3A2.5-[8-25/0.01]-P[0.3,0.4,0.5]-A[1,2,3]-C[0.2-0.5/0.1]-S[1-45/1]

PGKB3A3-[10-40/0.01]-P[0.5,0.6,0.7,0.8,0.9]-A[1,2,3]-C[0.3-0.8/0.1]-S[1-45/1]

PGKB3A4-[10-40/0.01]-P[0.6,0.7,0.8,0.9,1,1.2]-A[1,2,3]-C[0.3-0.8/0.1]-S[1-45/1]

PGKB3A5-[15-60/0.01]-P[0.8,0.9,1,1.2,1.4,1.5]-A[1,2,3]-C[0.5-1.5/0.1]-S[1-45/1]

PGKB3A6-[15-60/0.01]-P[1,1.2,1.4,1.5,1.6]-A[1,2,3]-C[0.5-1.5/0.1]-S[1-50/1]

PGKB3A8-[15-60/0.01]-P[1.2,1.4,1.5,1.6]-A[1,2,3]-C[0.5-1.5/0.1]-S[1-60/1]

PGKB4A2-[6-20/0.01]-P[0.3,0.4]-A[1,2,3]-C[0.2-0.4/0.1]-R[0.4-0.8/0.1]

PGKB4A2.5-[8-25/0.01]-P[0.3,0.4,0.5]-A[1,2,3]-C[0.2-0.5/0.1]-R[0.6-1/0.1]

PGKB4A3-[10-40/0.01]-P[0.5,0.6,0.7,0.8,0.9]-A[1,2,3]-C[0.3-0.8/0.1]-R[0.8-1.5/0.1]

PGKB4A4-[10-40/0.01]-P[0.6,0.7,0.8,0.9,1,1.2]-A[1,2,3]-C[0.3-0.8/0.1]-R[0.8-1.5/0.1]

Material

Tip shape

D (Outer diameter)

(mm)

A (Secondary sprue angle)

(°)

C (Tip length)

(mm)

L (L dimension)

(mm)

P (Tip diameter)

(mm)

R (Tip R)

(mm)

S (Tip angle)

(°)

V (Tip diameter)

(mm)

RoHS?

Minimum order quantity

Electroforming (Standard)	1A	2	1 ～ 3	0.2 ～ 0.4	6 ～ 20	0.3 ～ 0.4	-	-	1.3 ～ 1.9	10	1 pieces
Electroforming (Standard)	1A	2.5	1 ～ 3	0.2 ～ 0.5	8 ～ 25	0.3 ～ 0.5	-	-	1.5 ～ 2.4	10	1 pieces
Electroforming (Standard)	1A	3	1 ～ 3	0.3 ～ 0.8	10 ～ 40	0.5 ～ 0.9	-	-	2 ～ 2.9	10	1 pieces
Electroforming (Standard)	1A	4	1 ～ 3	0.3 ～ 0.8	10 ～ 40	0.6 ～ 1.2	-	-	2.5 ～ 3.9	10	1 pieces
Electroforming (Standard)	1A	5	1 ～ 3	0.5 ～ 1.5	15 ～ 60	0.8 ～ 1.5	-	-	3.5 ～ 4.9	10	1 pieces
Electroforming (Standard)	1A	6	1 ～ 3	0.5 ～ 1.5	15 ～ 60	1 ～ 1.8	-	-	4 ～ 5.9	10	1 pieces
Electroforming (Standard)	1A	8	1 ～ 3	0.5 ～ 1.5	15 ～ 60	1.2 ～ 2	-	-	4.5 ～ 7.9	10	1 pieces
Electroforming (Standard)	2A	2	1 ～ 3	-	6 ～ 20	0.3 ～ 0.4	-	-	-	10	1 pieces
Electroforming (Standard)	2A	2.5	1 ～ 3	-	8 ～ 25	0.3 ～ 0.5	-	-	-	10	1 pieces
Electroforming (Standard)	2A	3	1 ～ 3	-	10 ～ 40	0.5 ～ 0.9	-	-	-	10	1 pieces
Electroforming (Standard)	2A	4	1 ～ 3	-	10 ～ 40	0.6 ～ 1.2	-	-	-	10	1 pieces
Electroforming (Standard)	2A	5	1 ～ 3	-	15 ～ 60	0.8 ～ 1.5	-	-	-	10	1 pieces
Electroforming (Standard)	2A	6	1 ～ 3	-	15 ～ 60	1 ～ 1.8	-	-	-	10	1 pieces
Electroforming (Standard)	2A	8	1 ～ 3	-	15 ～ 60	1.2 ～ 2	-	-	-	10	1 pieces
Electroforming (Standard)	3A	2	1 ～ 3	0.2 ～ 0.4	6 ～ 20	0.3 ～ 0.4	-	1 ～ 45	-	10	1 pieces
Electroforming (Standard)	3A	2.5	1 ～ 3	0.2 ～ 0.5	8 ～ 25	0.3 ～ 0.5	-	1 ～ 45	-	10	1 pieces
Electroforming (Standard)	3A	3	1 ～ 3	0.3 ～ 0.8	10 ～ 40	0.5 ～ 0.9	-	1 ～ 45	-	10	1 pieces
Electroforming (Standard)	3A	4	1 ～ 3	0.3 ～ 0.8	10 ～ 40	0.6 ～ 1.2	-	1 ～ 45	-	10	1 pieces
Electroforming (Standard)	3A	5	1 ～ 3	0.5 ～ 1.5	15 ～ 60	0.8 ～ 1.5	-	1 ～ 45	-	10	1 pieces
Electroforming (Standard)	3A	6	1 ～ 3	0.5 ～ 1.5	15 ～ 60	1 ～ 1.8	-	1 ～ 50	-	10	1 pieces
Electroforming (Standard)	3A	8	1 ～ 3	0.5 ～ 1.5	15 ～ 60	1.2 ～ 2	-	1 ～ 60	-	10	1 pieces
Electroforming (Standard)	4A	2	1 ～ 3	0.2 ～ 0.4	6 ～ 20	0.3 ～ 0.4	0.4 ～ 0.8	-	-	10	1 pieces
Electroforming (Standard)	4A	2.5	1 ～ 3	0.2 ～ 0.5	8 ～ 25	0.3 ～ 0.5	0.6 ～ 1	-	-	10	1 pieces
Electroforming (Standard)	4A	3	1 ～ 3	0.3 ～ 0.8	10 ～ 40	0.5 ～ 0.9	0.8 ～ 1.5	-	-	10	1 pieces
Electroforming (Standard)	4A	4	1 ～ 3	0.3 ～ 0.8	10 ～ 40	0.6 ～ 1.2	0.8 ～ 1.5	-	-	10	1 pieces
Electroforming (Standard)	4A	5	1 ～ 3	0.5 ～ 1.5	15 ～ 60	0.8 ～ 1.5	1 ～ 2	-	-	10	1 pieces
Electroforming (Standard)	4A	6	1 ～ 3	0.5 ～ 1.5	15 ～ 60	1 ～ 1.8	1.5 ～ 3	-	-	10	1 pieces
Electroforming (Standard)	4A	8	1 ～ 3	0.5 ～ 1.5	15 ～ 60	1.2 ～ 2	2 ～ 4	-	-	10	1 pieces
Electroforming (Standard)	5A	2	1 ～ 3	0.2 ～ 0.4	6 ～ 20	0.3 ～ 0.4	-	-	-	10	1 pieces
Electroforming (Standard)	5A	2.5	1 ～ 3	0.2 ～ 0.5	8 ～ 25	0.3 ～ 0.5	-	-	-	10	1 pieces
Electroforming (Standard)	5A	3	1 ～ 3	0.3 ～ 0.8	10 ～ 40	0.5 ～ 0.9	-	-	-	10	1 pieces
Electroforming (Standard)	5A	4	1 ～ 3	0.3 ～ 0.8	10 ～ 40	0.6 ～ 1.2	-	-	-	10	1 pieces
Electroforming (Standard)	5A	5	1 ～ 3	0.5 ～ 1.5	15 ～ 60	0.8 ～ 1.5	-	-	-	10	1 pieces
Electroforming (Standard)	5A	6	1 ～ 3	0.5 ～ 1.5	15 ～ 60	1 ～ 1.8	-	-	-	10	1 pieces
Electroforming (Standard)	5A	8	1 ～ 3	0.5 ～ 1.5	15 ～ 60	1.2 ～ 2	-	-	-	10	1 pieces
Electroforming (High hardness)	1A	2	1 ～ 3	0.2 ～ 0.4	6 ～ 20	0.3 ～ 0.4	-	-	1.3 ～ 1.9	10	1 pieces
Electroforming (High hardness)	1A	2.5	1 ～ 3	0.2 ～ 0.5	8 ～ 25	0.3 ～ 0.5	-	-	1.5 ～ 2.4	10	1 pieces
Electroforming (High hardness)	1A	3	1 ～ 3	0.3 ～ 0.8	10 ～ 40	0.5 ～ 0.9	-	-	2 ～ 2.9	10	1 pieces
Electroforming (High hardness)	1A	4	1 ～ 3	0.3 ～ 0.8	10 ～ 40	0.6 ～ 1.2	-	-	2.5 ～ 3.9	10	1 pieces
Electroforming (High hardness)	1A	5	1 ～ 3	0.5 ～ 1.5	15 ～ 60	0.8 ～ 1.5	-	-	3.5 ～ 4.9	10	1 pieces
Electroforming (High hardness)	1A	6	1 ～ 3	0.5 ～ 1.5	15 ～ 60	1 ～ 1.6	-	-	4 ～ 5.9	10	1 pieces
Electroforming (High hardness)	1A	8	1 ～ 3	0.5 ～ 1.5	15 ～ 60	1.2 ～ 1.6	-	-	4.5 ～ 7.9	10	1 pieces
Electroforming (High hardness)	2A	2	1 ～ 3	-	6 ～ 20	0.3 ～ 0.4	-	-	-	10	1 pieces
Electroforming (High hardness)	2A	2.5	1 ～ 3	-	8 ～ 25	0.3 ～ 0.5	-	-	-	10	1 pieces
Electroforming (High hardness)	2A	3	1 ～ 3	-	10 ～ 40	0.5 ～ 0.9	-	-	-	10	1 pieces
Electroforming (High hardness)	2A	4	1 ～ 3	-	10 ～ 40	0.6 ～ 1.2	-	-	-	10	1 pieces
Electroforming (High hardness)	2A	5	1 ～ 3	-	15 ～ 60	0.8 ～ 1.5	-	-	-	10	1 pieces
Electroforming (High hardness)	2A	6	1 ～ 3	-	15 ～ 60	1 ～ 1.6	-	-	-	10	1 pieces
Electroforming (High hardness)	2A	8	1 ～ 3	-	15 ～ 60	1.2 ～ 1.6	-	-	-	10	1 pieces
Electroforming (High hardness)	3A	2	1 ～ 3	0.2 ～ 0.4	6 ～ 20	0.3 ～ 0.4	-	1 ～ 45	-	10	1 pieces
Electroforming (High hardness)	3A	2.5	1 ～ 3	0.2 ～ 0.5	8 ～ 25	0.3 ～ 0.5	-	1 ～ 45	-	10	1 pieces
Electroforming (High hardness)	3A	3	1 ～ 3	0.3 ～ 0.8	10 ～ 40	0.5 ～ 0.9	-	1 ～ 45	-	10	1 pieces
Electroforming (High hardness)	3A	4	1 ～ 3	0.3 ～ 0.8	10 ～ 40	0.6 ～ 1.2	-	1 ～ 45	-	10	1 pieces
Electroforming (High hardness)	3A	5	1 ～ 3	0.5 ～ 1.5	15 ～ 60	0.8 ～ 1.5	-	1 ～ 45	-	10	1 pieces
Electroforming (High hardness)	3A	6	1 ～ 3	0.5 ～ 1.5	15 ～ 60	1 ～ 1.6	-	1 ～ 50	-	10	1 pieces
Electroforming (High hardness)	3A	8	1 ～ 3	0.5 ～ 1.5	15 ～ 60	1.2 ～ 1.6	-	1 ～ 60	-	10	1 pieces
Electroforming (High hardness)	4A	2	1 ～ 3	0.2 ～ 0.4	6 ～ 20	0.3 ～ 0.4	0.4 ～ 0.8	-	-	10	1 pieces
Electroforming (High hardness)	4A	2.5	1 ～ 3	0.2 ～ 0.5	8 ～ 25	0.3 ～ 0.5	0.6 ～ 1	-	-	10	1 pieces
Electroforming (High hardness)	4A	3	1 ～ 3	0.3 ～ 0.8	10 ～ 40	0.5 ～ 0.9	0.8 ～ 1.5	-	-	10	1 pieces
Electroforming (High hardness)	4A	4	1 ～ 3	0.3 ～ 0.8	10 ～ 40	0.6 ～ 1.2	0.8 ～ 1.5	-	-	10	1 pieces
