    Sprue bushes / with head / steel / sprue standard / small diameter / tip shape A4

    Sprue bushes / with head / steel / sprue standard / small diameter / tip shape A4

    Click image to view enlarged image

    Part number:

    Still undefined. 6 possible part numbers found.
    Quantity:

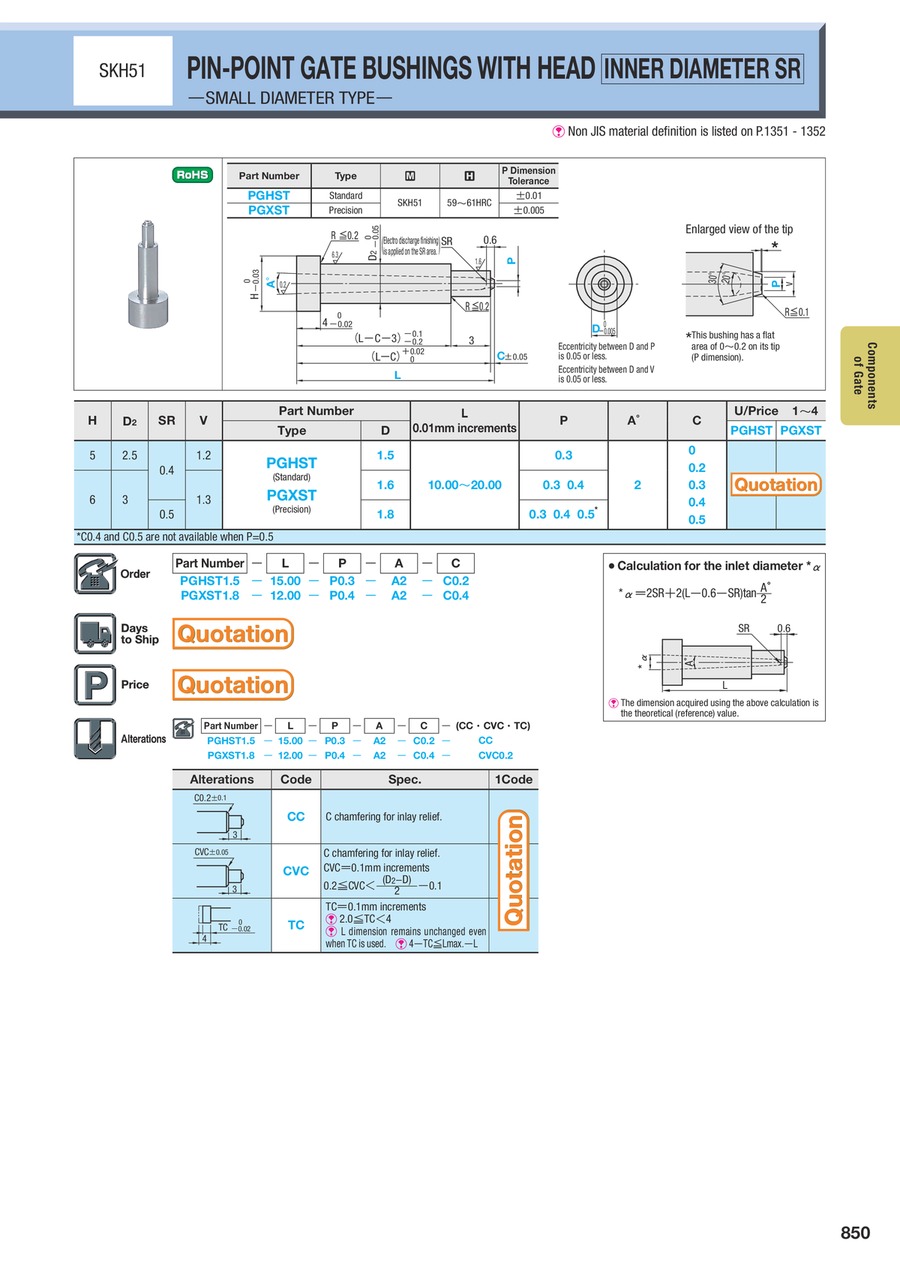

    Outline drawing

    Part number list

    Number of items
  • 1
    • Part number
    PGHST1.5-[10-20/0.01]-P0.3-A2-C[0,0.2,0.3,0.4,0.5]
    PGHST1.6-[10-20/0.01]-P[0.3,0.4]-A2-C[0,0.2,0.3,0.4,0.5]
    PGHST1.8-[10-20/0.01]-P[0.3,0.4,0.5]-A2-C[0,0.2,0.3,0.4,0.5]
    PGXST1.5-[10-20/0.01]-P0.3-A2-C[0,0.2,0.3,0.4,0.5]
    PGXST1.6-[10-20/0.01]-P[0.3,0.4]-A2-C[0,0.2,0.3,0.4,0.5]
    PGXST1.8-[10-20/0.01]-P[0.3,0.4,0.5]-A2-C[0,0.2,0.3,0.4,0.5]

    P dimension tolerance

    D (Outer diameter)

    (mm)

    A (Secondary sprue angle)

    (°)

    C (Tip length)

    (mm)

    L (L dimension)

    (mm)

    P (Tip diameter)

    (mm)

    		RoHS?Minimum order quantity
    ±0.01
    1.5
    2
    0 ～ 0.5
    10 ～ 20
    0.3
    10
    1 pieces
    ±0.01
    1.6
    2
    0 ～ 0.5
    10 ～ 20
    0.3 ～ 0.4
    10
    1 pieces
    ±0.01
    1.8
    2
    0 ～ 0.5
    10 ～ 20
    0.3 ～ 0.5
    10
    1 pieces
    ±0.005
    1.5
    2
    0 ～ 0.5
    10 ～ 20
    0.3
    10
    1 pieces
    ±0.005
    1.6
    2
    0 ～ 0.5
    10 ～ 20
    0.3 ～ 0.4
    10
    1 pieces
    ±0.005
    1.8
    2
    0 ～ 0.5
    10 ～ 20
    0.3 ～ 0.5
    10
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    -
    ( - )
    Quote
    -
    ( - )
    Quote
    -
    ( - )
    Quote
    -
    ( - )
    Quote
    -
    ( - )
    Quote
    -
    ( - )
    Quote
