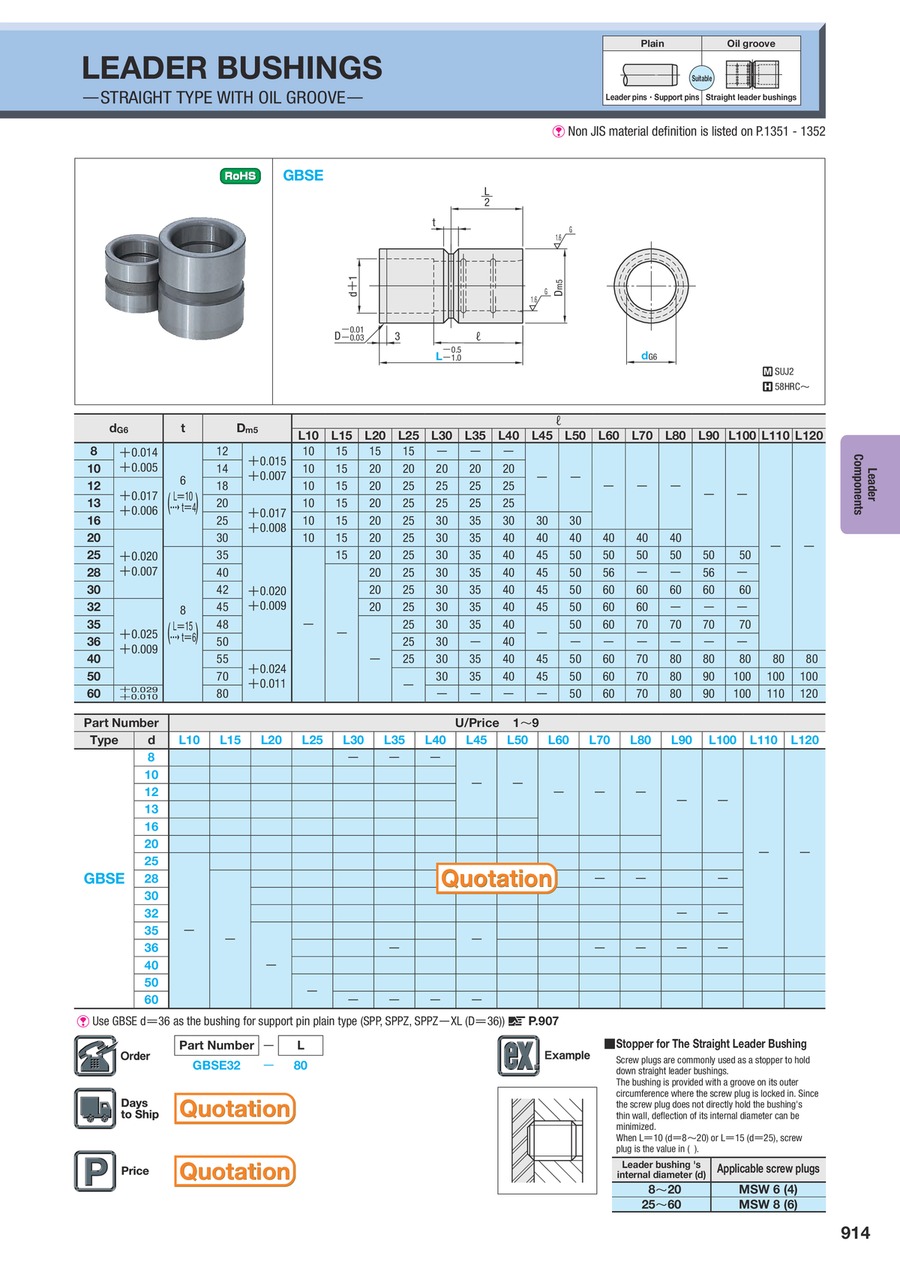

Guide bushes / without head / with oil groove

Guide bushes / without head / with oil groove

Click on this image to zoom in.

Click on this image to zoom in.

  • Volume Discount

MISUMI

MISUMI

Data sheet

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Part Number:

    3D preview is not available, because the part number has not yet been determined.

  • In order to open the 3D preview, the part number must be fixed.
Loading...

Plug-in is required for 3D Preview

CAD Download

Data to be displayed
30
45
60
  1. 1
  2. 2
  3. 3
  4. Next >>
Part Number
GBSE8-10
GBSE8-15
GBSE8-20
GBSE8-25
GBSE10-10
GBSE10-15
GBSE10-20
GBSE10-25
GBSE10-30
GBSE10-35
GBSE10-40
GBSE12-10
GBSE12-15
GBSE12-20
GBSE12-25
GBSE12-30
GBSE12-35
GBSE12-40
GBSE13-10
GBSE13-15
GBSE13-20
GBSE13-25
GBSE13-30
GBSE13-35
GBSE13-40
GBSE16-10
GBSE16-15
GBSE16-20
GBSE16-25
GBSE16-30
GBSE16-35
GBSE16-40
GBSE16-45
GBSE16-50
GBSE20-10
GBSE20-15
GBSE20-20
GBSE20-25
GBSE20-30
GBSE20-35
GBSE20-40
GBSE20-45
GBSE20-50
GBSE20-60
GBSE20-70
GBSE20-80
GBSE25-15
GBSE25-20
GBSE25-25
GBSE25-30
GBSE25-35
GBSE25-40
GBSE25-45
GBSE25-50
GBSE25-60
GBSE25-70
GBSE25-80
GBSE25-90
GBSE25-100
GBSE28-20
Part Number
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
RoHSd (Leader bushing inner diameter)
(mm) 		d dimension tolerance L (L dimension)
(mm)

-

1 Available Quote 108+0.014/+0.00510

-

1 Available Quote 108+0.014/+0.00515

-

1 Available Quote 108+0.014/+0.00520

-

1 Available Quote 108+0.014/+0.00525

-

1 Available Quote 1010+0.014/+0.00510

-

1 Available Quote 1010+0.014/+0.00515

-

1 Available Quote 1010+0.014/+0.00520

-

1 Available Quote 1010+0.014/+0.00525

-

1 Available Quote 1010+0.014/+0.00530

-

1 Available Quote 1010+0.014/+0.00535

-

1 Available Quote 1010+0.014/+0.00540

-

1 Available Quote 1012+0.017/+0.00610

-

1 Available Quote 1012+0.017/+0.00615

-

1 Available Quote 1012+0.017/+0.00620

-

1 Available Quote 1012+0.017/+0.00625

-

1 Available Quote 1012+0.017/+0.00630

-

1 Available Quote 1012+0.017/+0.00635

-

1 Available Quote 1012+0.017/+0.00640

-

1 Available Quote 1013+0.017/+0.00610

-

1 Available Quote 1013+0.017/+0.00615

-

1 Available Quote 1013+0.017/+0.00620

-

1 Available Quote 1013+0.017/+0.00625

-

1 Available Quote 1013+0.017/+0.00630

-

1 Available Quote 1013+0.017/+0.00635

-

1 Available Quote 1013+0.017/+0.00640

-

1 Available Quote 1016+0.017/+0.00610

-

1 Available Quote 1016+0.017/+0.00615

-

1 Available Quote 1016+0.017/+0.00620

-

1 Available Quote 1016+0.017/+0.00625

-

1 Available Quote 1016+0.017/+0.00630

-

1 Available Quote 1016+0.017/+0.00635

-

1 Available Quote 1016+0.017/+0.00640

-

1 Available Quote 1016+0.017/+0.00645

-

1 Available Quote 1016+0.017/+0.00650

-

1 Available Quote 1020+0.02/+0.00710

-

1 Available Quote 1020+0.02/+0.00715

-

1 Available Quote 1020+0.02/+0.00720

-

1 Available Quote 1020+0.02/+0.00725

-

1 Available Quote 1020+0.02/+0.00730

-

1 Available Quote 1020+0.02/+0.00735

-

1 Available Quote 1020+0.02/+0.00740

-

1 Available Quote 1020+0.02/+0.00745

-

1 Available Quote 1020+0.02/+0.00750

-

1 Available Quote 1020+0.02/+0.00760

-

1 Available Quote 1020+0.02/+0.00770

-

1 Available Quote 1020+0.02/+0.00780

-

1 Available Quote 1025+0.02/+0.00715

-

1 Available Quote 1025+0.02/+0.00720

-

1 Available Quote 1025+0.02/+0.00725

-

1 Available Quote 1025+0.02/+0.00730

-

1 Available Quote 1025+0.02/+0.00735

-

1 Available Quote 1025+0.02/+0.00740

-

1 Available Quote 1025+0.02/+0.00745

-

1 Available Quote 1025+0.02/+0.00750

-

1 Available Quote 1025+0.02/+0.00760

-

1 Available Quote 1025+0.02/+0.00770

-

1 Available Quote 1025+0.02/+0.00780

-

1 Available Quote 1025+0.02/+0.00790

-

1 Available Quote 1025+0.02/+0.007100

-

1 Available Quote 1028+0.02/+0.00720

Loading...

  1. 1
  2. 2
  3. 3
  4. Next >>


Basic information

Head Straight Oil groove Yes

Configure

Clear all

135Suggestion of an applicable part number.

View Part Numbers

Some specification is not specified yet.
The part number is completed.

Basic Attributes

  • d (Leader bushing inner diameter)(mm)

    • 8
    • 10
    • 12
    • 13
    • 16
    • 20
    • 25
    • 28
    • 30
    • 32
    • 35
    • 36
    • 40
    • 50
    • 60

    Clear

  • d dimension tolerance

    • +0.014/+0.005
    • +0.017/+0.006
    • +0.02/+0.007
    • +0.025/+0.009
    • +0.029/+0.01

    Clear

  • L (L dimension)(mm)

    • 10
    • 15
    • 20
    • 25
    • 30
    • 35
    • 40
    • 45
    • 50
    • 60
    • 70
    • 80
    • 90
    • 100
    • 110
    • 120

    Clear

  • Type

    • GBSE

    Clear

  • Filter by CAD data type

    • 2D
    • 3D

    Clear
