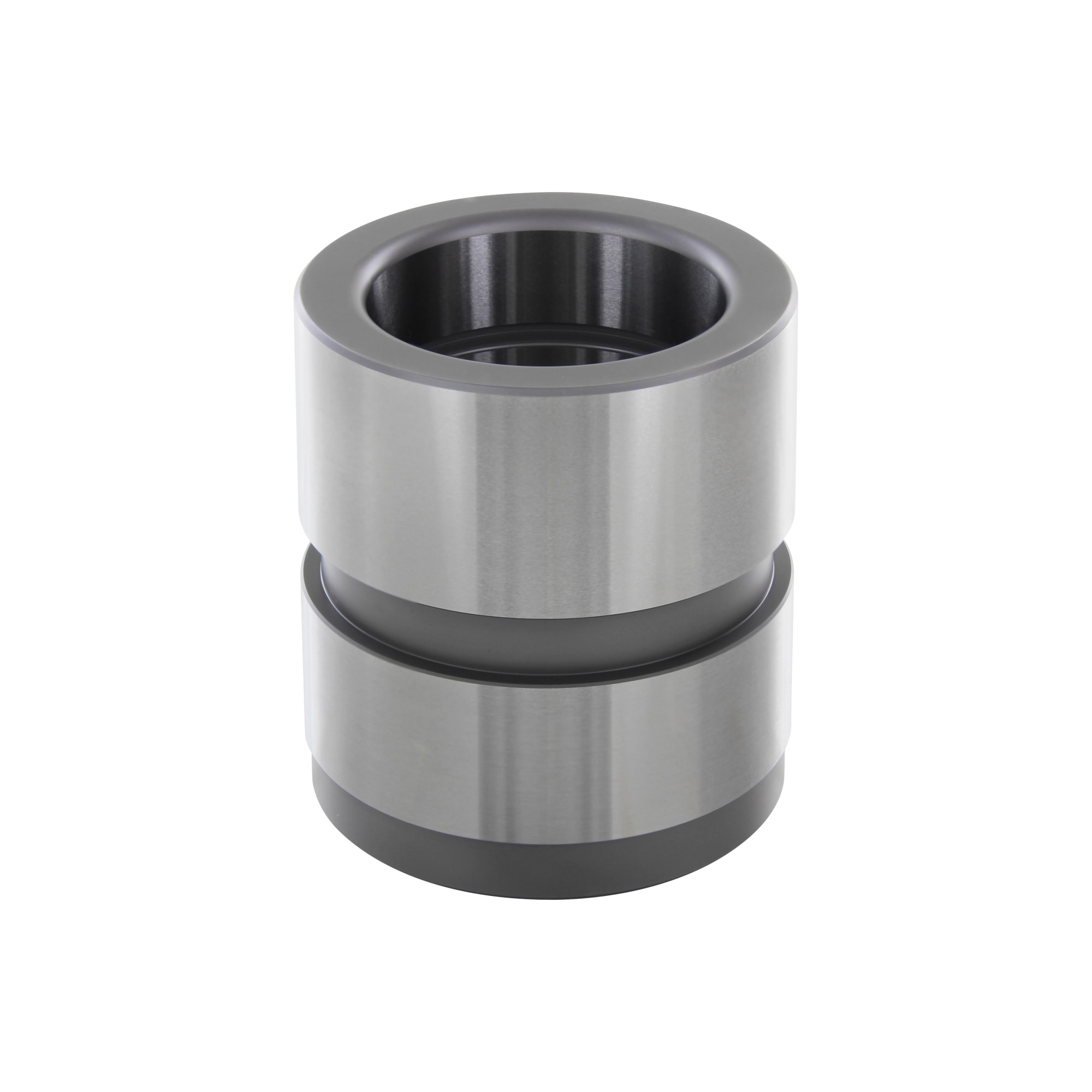

Guide bushes / without head / with oil groove / large inner diameter

Guide bushes / without head / with oil groove / large inner diameter

Mouse over image to enlarge

Part number:

Still undefined. 4 possible part numbers found.
Quantity:

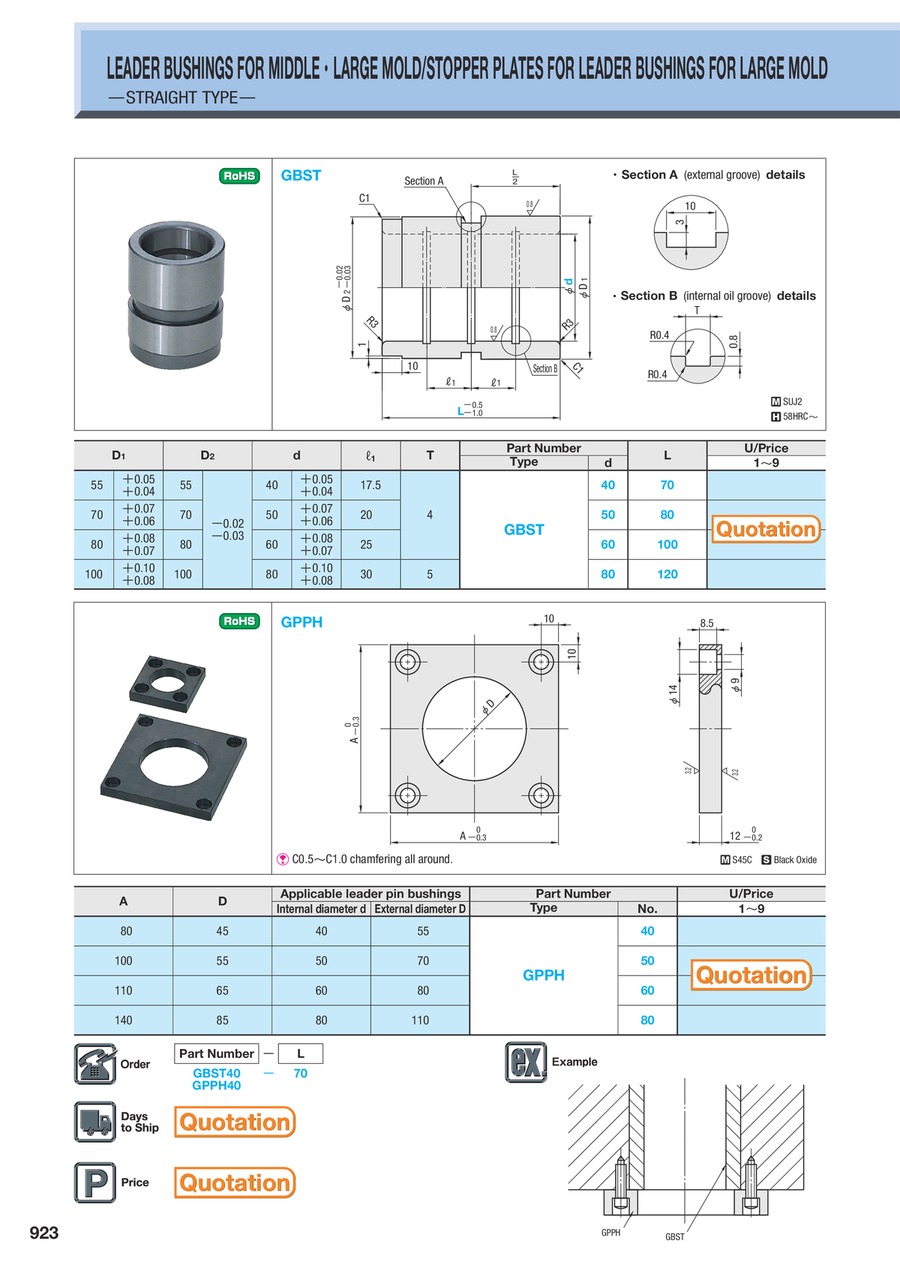

Outline drawing

Part number list

Number of items
  • 1
    • Part number
    GBST40-70
    GBST50-80
    GBST60-100
    GBST80-120

    d (Leader bushing inner diameter)

    (mm)

    d dimension tolerance

    L (L dimension)

    (mm)

    		RoHS?Minimum order quantity
    40
    +0.05/+0.04
    70
    10
    1 pieces
    50
    +0.07/+0.06
    80
    10
    1 pieces
    60
    +0.08/+0.07
    100
    10
    1 pieces
    80
    +0.10/+0.08
    120
    10
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    -
    ( - )
    Quote
    -
    ( - )
    Quote
    -
    ( - )
    Quote
    -
    ( - )
    Quote
