Return units for ejector plates

Return units for ejector plates

Click image to view enlarged image

Caution

  • Please check the content on our website as the PDF does not contain the most up-to-date information.

Part number:

Still undefined. 20 possible part numbers found.
Quantity:

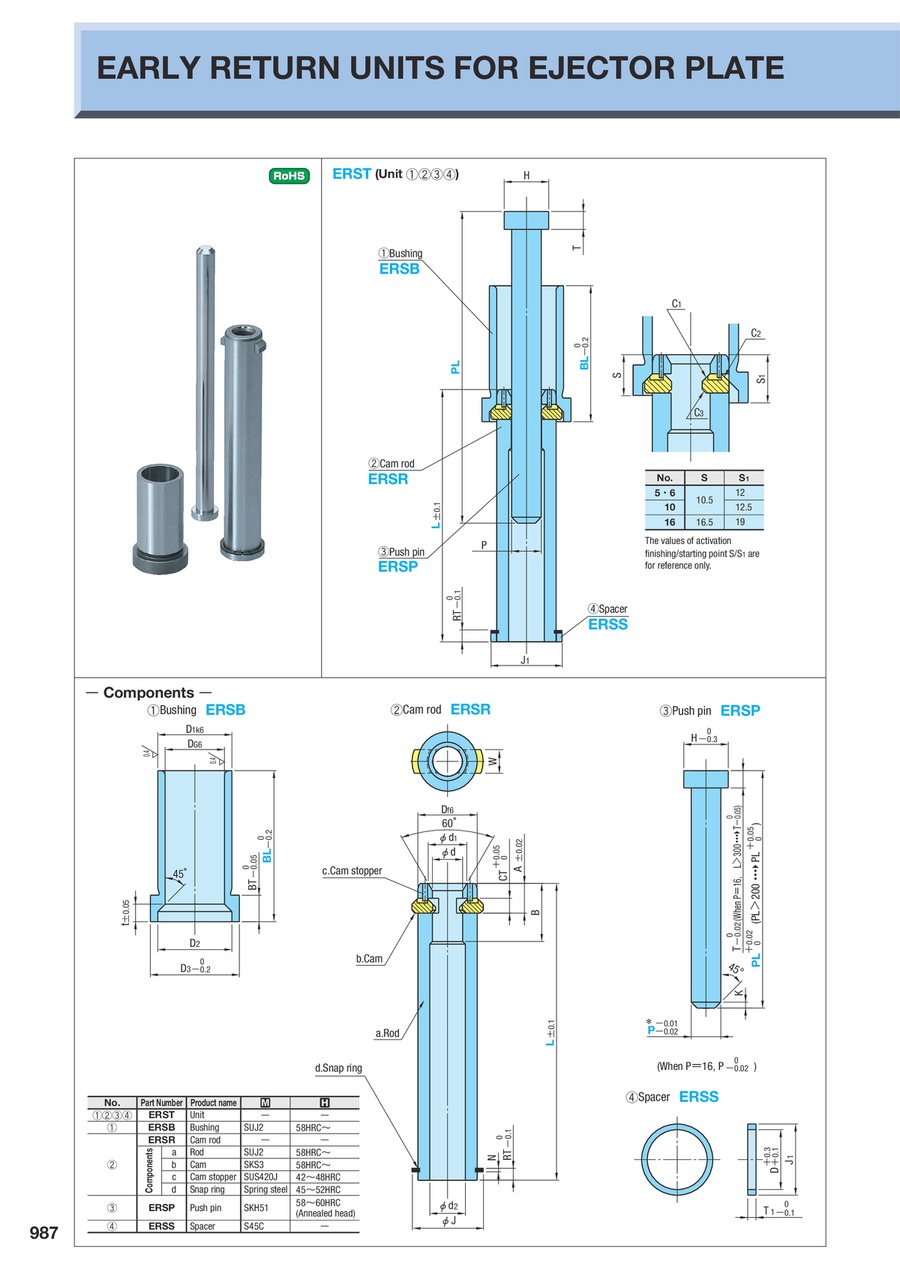

Outline drawing

■　Mechanism of early return　　　　　　　　　　　　　　　　　　　　■Mechanism of Two-Step ejection
　　
•Material Table
No.Part NumberProduct name[ M ][ H ]
(1)(2)(3)(4)ERSTUnit--
(1)ERSBBushingSUJ2(52100)(1.2067)58HRC~
(2)ERSRCam rod--
ComponentsaRodSUJ2(52100)(1.2067)58HRC~
bCamSKS3(Alloy tool steel)(1.2419)58HRC~
cCam stopperSpring steel45~50HRC
dSnap ringSpring steel45~52HRC
(3)ERSPPush pinSKH51(M2)(1.3343)58~60HRC
(Annealed head)
(4)ERSSSpacerS45C(1045)(1.0503)-

Early Return Units For Ejector Plate:Related Image

Early Return Units For Ejector Plate:Related Image



Part number list

Number of items
  • 1
    • Part number
    ERSB5-BL[20-50/1]
    ERSB6-BL[25-60/1]
    ERSB10-BL[35-100/1]
    ERSB16-BL[40-100/1]
    ERSP5-PL[50-150/0.01]
    ERSP6-PL[50-200/0.01]
    ERSP10-PL[50-300/0.01]
    ERSP16-PL[50-350/0.01]
    ERSR5-L[50-100/0.5]
    ERSR6-L[50-125/0.5]
    ERSR10-L[60-160/0.5]
    ERSR16-L[60-160/0.5]
    ERSS5
    ERSS6
    ERSS10
    ERSS16
    ERST5-BL[20-50/1]-L[50-100/0.5]-PL[50-150/0.01]
    ERST6-BL[25-60/1]-L[50-125/0.5]-PL[50-200/0.01]
    ERST10-BL[35-100/1]-L[60-160/0.5]-PL[50-300/0.01]
    ERST16-BL[40-100/1]-L[60-160/0.5]-PL[50-350/0.01]

    Sales form

    No. (Push pin diameter)

    (mm)

    BL (Bushing length)

    (mm)

    L (Cam rod length)

    (mm)

    PL (Push pin length)

    (mm)

    		RoHS?Minimum order quantity
    Bushing only
    5
    20 ～ 50
    -
    -
    10
    1 pieces
    Bushing only
    6
    25 ～ 60
    -
    -
    10
    1 pieces
    Bushing only
    10
    35 ～ 100
    -
    -
    10
    1 pieces
    Bushing only
    16
    40 ～ 100
    -
    -
    10
    1 pieces
    Push pin only
    5
    -
    -
    50 ～ 150
    10
    1 pieces
    Push pin only
    6
    -
    -
    50 ～ 200
    10
    1 pieces
    Push pin only
    10
    -
    -
    50 ～ 300
    10
    1 pieces
    Push pin only
    16
    -
    -
    50 ～ 350
    10
    1 pieces
    Cam rod only
    5
    -
    50 ～ 100
    -
    10
    1 pieces
    Cam rod only
    6
    -
    50 ～ 125
    -
    10
    1 pieces
    Cam rod only
    10
    -
    60 ～ 160
    -
    10
    1 pieces
    Cam rod only
    16
    -
    60 ～ 160
    -
    10
    1 pieces
    Spacer only
    5
    -
    -
    -
    10
    1 pieces
    Spacer only
    6
    -
    -
    -
    10
    1 pieces
    Spacer only
    10
    -
    -
    -
    10
    1 pieces
    Spacer only
    16
    -
    -
    -
    10
    1 pieces
    Unit (Bushing + Cam rod + Bushing pin + Spacer)
    5
    20 ～ 50
    50 ～ 100
    50 ～ 150
    10
    1 pieces
    Unit (Bushing + Cam rod + Bushing pin + Spacer)
    6
    25 ～ 60
    50 ～ 125
    50 ～ 200
    10
    1 pieces
    Unit (Bushing + Cam rod + Bushing pin + Spacer)
    10
    35 ～ 100
    60 ～ 160
    50 ～ 300
    10
    1 pieces
    Unit (Bushing + Cam rod + Bushing pin + Spacer)
    16
    40 ～ 100
    60 ～ 160
    50 ～ 350
    10
    1 pieces
