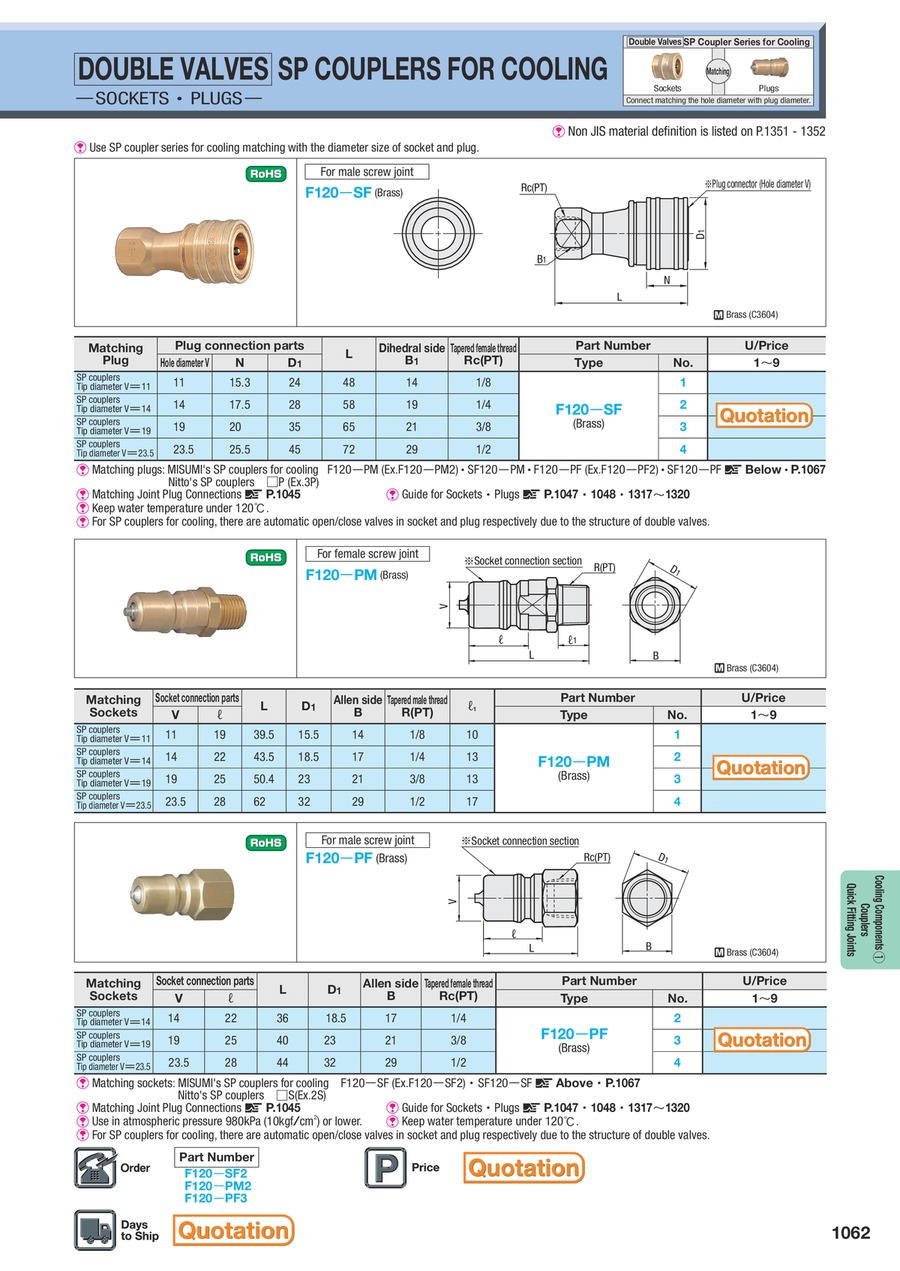

Quick release coupling plugs / nominal size selectable / Connection selectable / Shut-off
Click on this image to zoom in.
Click on this image to zoom in.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Loading...
Part Number
|
|---|
| F120-PF2 |
| F120-PF3 |
| F120-PF4 |
| F120-PM1 |
| F120-PM2 |
| F120-PM3 |
| F120-PM4 |
| Part Number | Minimum order quantity | Volume Discount | RoHS | Connecting parts | R/(PT) (Nominal) | Rc/(PT) (Nominal) | L (Length) (mm) | Socket connector diameter (mm) | |
|---|---|---|---|---|---|---|---|---|---|
| 1 | Available | Quote | 10 | Male thread | - | 1/4 | 36 | 14 | |
| 1 | Available | Quote | 10 | Male thread | - | 3/8 | 40 | 19 | |
| 1 | Available | Quote | 10 | Male thread | - | 1/2 | 44 | 23.5 | |
| 1 | Available | Quote | 10 | Female thread | 1/8 | - | 39.5 | 11 | |
| 1 | Available | Quote | 10 | Female thread | 1/4 | - | 43.5 | 14 | |
| 1 | Available | Quote | 10 | Female thread | 3/8 | - | 50.4 | 19 | |
| 1 | Available | Quote | 10 | Female thread | 1/2 | - | 62 | 23.5 |
Loading...
Basic information
| Material | Brass | Heat proof | 120℃ | With/without valve | Standard |
|---|---|---|---|---|---|
| Shape | Straight | Spanner installation section | Yes |
Configure
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
