Heat protection plates / without hole pattern / 220°C heat resistant

Heat protection plates / without hole pattern / 220°C heat resistant

Click on this image to zoom in.

Click on this image to zoom in.

MISUMI

MISUMI

(i)Remark

  • A dimension and B dimension tolerances are loose tolerances (0 to -2).
  • Avoid storing or using in high-humidity environments or in contact with water or steam, etc.

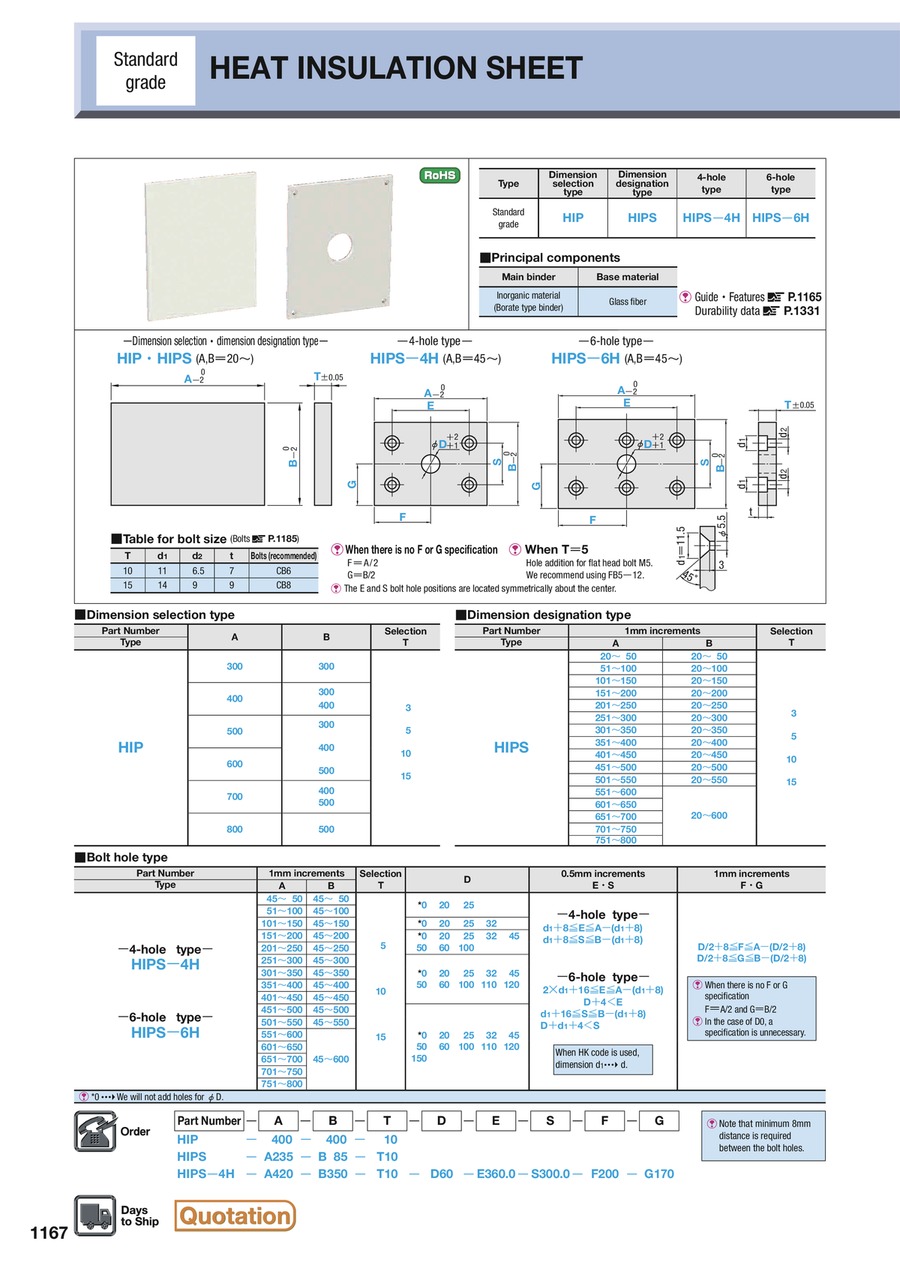

Data sheet

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Part Number:

    3D preview is not available, because the part number has not yet been determined.

  • In order to open the 3D preview, the part number must be fixed.
Loading...

Plug-in is required for 3D Preview

CAD Download

Data to be displayed
30
45
60
  1. 1
Part Number
HIP-[300-800/100]-[300,​400,​500]-[3,​5,​10,​15]
HIPS-4H-A[45-800/1]-B[45-600/1]-T[5,​10,​15]-D[0,​20,​25,​32,​45,​50,​60,​100,​110,​120,​150]-E[13.5,​14.5,​17,​783,​785.5,​786.5]-S[19-581/0.5]
HIPS-4H-A[45-800/1]-B[45-600/1]-T[5,​10,​15]-D[0,​20,​25,​32,​45,​50,​60,​100,​110,​120,​150]-E[13.5-786.5/0.5]-S[19-581/0.5]
HIPS-6H-A[45-800/1]-B[45-600/1]-T[5,​10,​15]-D[0,​20,​25,​32,​45,​50,​60,​100,​110,​120,​150]-E[13.5,​14.5,​17,​783,​785.5,​786.5]-S[19-785/0.5]
HIPS-6H-A[45-800/1]-B[45-600/1]-T[5,​10,​15]-D[0,​20,​25,​32,​45,​50,​60,​100,​110,​120,​150]-E[13.5-786.5/0.5]-S[19-785/0.5]
HIPS-A[20-800/1]-B[20-600/1]-T[3,​5,​10,​15]
Part NumberMinimum order quantityVolume Discount
Standard
Shipping Days
?
RoHSBolt hole machining A (Width)
(mm) 		B (Length)
(mm) 		T (Thickness)
(mm) 		Ejector rod boring Style D (Holes for ejector rods diameter)
(mm) 		E (Bolt holes for insulation sheet fixation pitch)
(mm) 		S (Bolt holes for insulation sheet fixation pitch)
(mm)
1 Quote 10No300 ～ 800300 ～ 5003 ～ 150DDimension selection type---
1 Quote 104-hole type45 ～ 80045 ～ 6005 ～ 151DBolt hole type0 ～ 150-19 ～ 581
1 Quote 104-hole type45 ～ 80045 ～ 6005 ～ 151DBolt hole type0 ～ 15013.5 ～ 786.519 ～ 581
1 Quote 106-hole type45 ～ 80045 ～ 6005 ～ 151DBolt hole type0 ～ 150-19 ～ 785
1 Quote 106-hole type45 ～ 80045 ～ 6005 ～ 151DBolt hole type0 ～ 15013.5 ～ 786.519 ～ 785
1 Quote 10No20 ～ 80020 ～ 6003 ～ 150DDimension designation type---

Loading...

  1. 1


Basic information

Grade Standard

Configure

Clear all

6Suggestion of an applicable part number.

View Part Numbers

Some specification is not specified yet.
The part number is completed.

Basic Attributes

  • Bolt hole machining

    • No
    • 4-hole type
    • 6-hole type

    Clear

  • A (Width)(mm)

     [300-800/100mm Unit(s)][20-800/1mm Unit(s)]

    Clear

  • B (Length)(mm)

    • 300
    • 400
    • 500

     [300-500/1mm Unit(s)]

    Clear

  • T (Thickness)(mm)

    • 3
    • 5
    • 10
    • 15

    Clear

  • Ejector rod boring

    • 0D
    • 1D

    Clear

  • Style

    • Bolt hole type
    • Dimension designation type
    • Dimension selection type

    Clear

  • D (Holes for ejector rods diameter)(mm)

    • 0
    • 20
    • 25
    • 32
    • 45
    • 50
    • 60
    • 100
    • 110
    • 120
    • 150

    Clear

  • E (Bolt holes for insulation sheet fixation pitch)(mm)

     [13.5-786.5/0.5mm Unit(s)]

    Clear

  • S (Bolt holes for insulation sheet fixation pitch)(mm)

     [19-785/0.5mm Unit(s)]

    Clear

  • Type

    • HIP
    • HIPS
    • HIPS-4H
    • HIPS-6H

    Clear

  • Filter by CAD data type

    • 2D
    • 3D

    Clear
