  • Bolt hole machining
  • A (Width)(mm)
      [20-800/1mm units]
    • B (Length)(mm)
        [20-600/1mm units]
      • T (Thickness)(mm)
      • Ejector rod boring
      • D (Holes for ejector rods diameter)(mm)
      • E (Bolt holes for insulation sheet fixation pitch)(mm)
          [13.5-786.5/0.5mm units]
        • S (Bolt holes for insulation sheet fixation pitch)(mm)
            [19-785/0.5mm units]
          • Type
          • CAD
          MISUMI

          Heat protection plates / without hole pattern / 400°C heat resistant

          Heat protection plates / without hole pattern / 400°C heat resistant

          Click image to view enlarged image

          Part number:

          Still undefined. 5 possible part numbers found.
          Quantity:

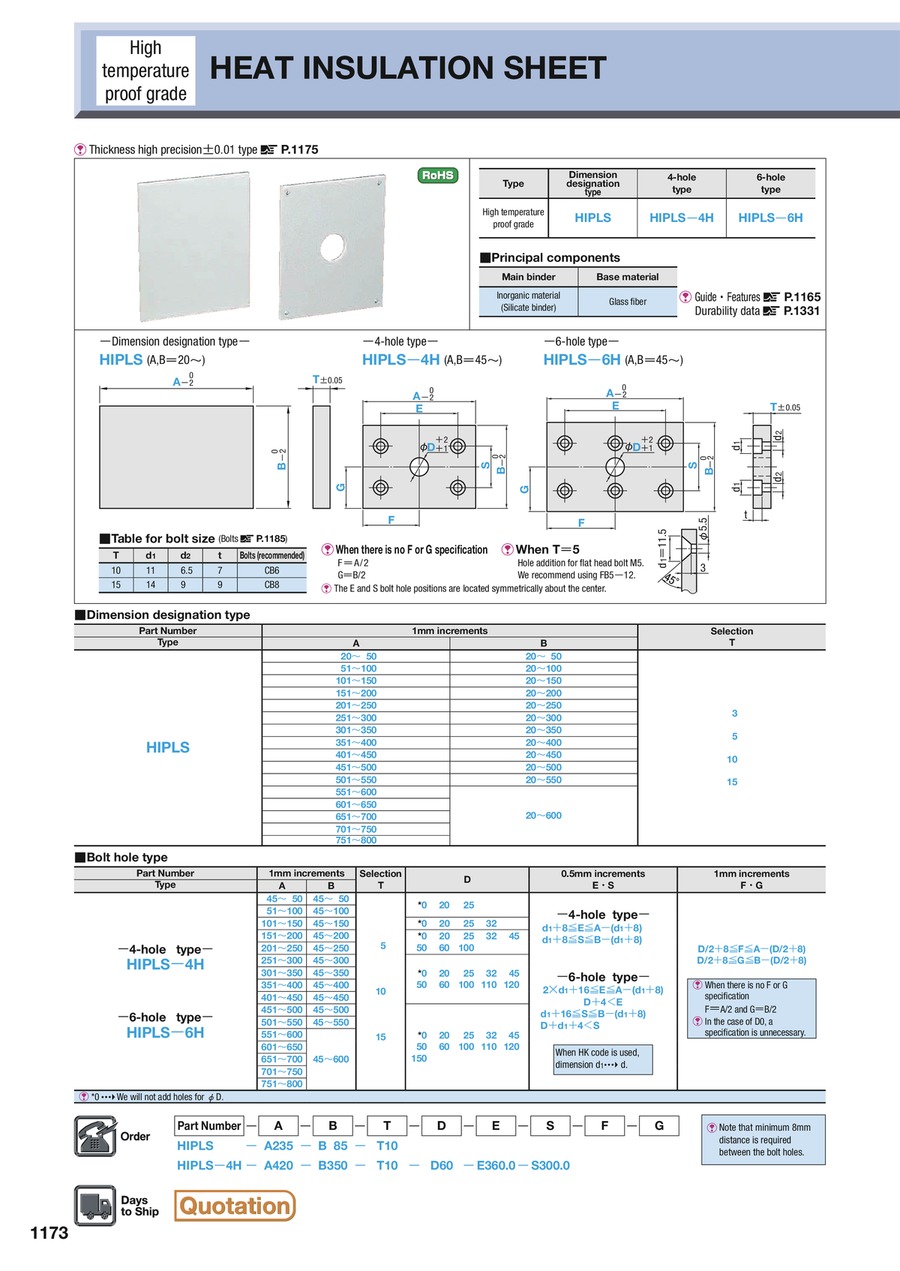

          Outline drawing

          Part number list

          Number of items
        • 1
          • Part number
          HIPLS-4H-A[45-800/1]-B[45-600/1]-T[5,10,15]-D[0,20,25,32,45,50,60,100,110,120,150]-E[13.5,14.5,17,783,785.5,786.5]-S[19-785/0.5]
          HIPLS-4H-A[45-800/1]-B[45-600/1]-T[5,10,15]-D[0,20,25,32,45,50,60,100,110,120,150]-E[13.5-786.5/0.5]-S[19-785/0.5]
          HIPLS-6H-A[45-800/1]-B[45-600/1]-T[5,10,15]-D[0,20,25,32,45,50,60,100,110,120,150]-E[13.5,14.5,17,783,785.5,786.5]-S[19-785/0.5]
          HIPLS-6H-A[45-800/1]-B[45-600/1]-T[5,10,15]-D[0,20,25,32,45,50,60,100,110,120,150]-E[13.5-786.5/0.5]-S[19-785/0.5]
          HIPLS-A[20-800/1]-B[20-600/1]-T[3,5,10,15]

          Bolt hole machining

          A (Width)

          (mm)

          B (Length)

          (mm)

          T (Thickness)

          (mm)

          Ejector rod boring

          D (Holes for ejector rods diameter)

          (mm)

          E (Bolt holes for insulation sheet fixation pitch)

          (mm)

          S (Bolt holes for insulation sheet fixation pitch)

          (mm)

          		RoHS?Minimum order quantity
          4-hole type
          45 ～ 800
          45 ～ 600
          5 ～ 15
          1D
          0 ～ 150
          -
          19 ～ 785
          10
          1 pieces
          4-hole type
          45 ～ 800
          45 ～ 600
          5 ～ 15
          1D
          0 ～ 150
          13.5 ～ 786.5
          19 ～ 785
          10
          1 pieces
          6-hole type
          45 ～ 800
          45 ～ 600
          5 ～ 15
          1D
          0 ～ 150
          -
          19 ～ 785
          10
          1 pieces
          6-hole type
          45 ～ 800
          45 ～ 600
          5 ～ 15
          1D
          0 ～ 150
          13.5 ～ 786.5
          19 ～ 785
          10
          1 pieces
          No
          20 ～ 800
          20 ～ 600
          3 ～ 15
          0D
          -
          -
          -
          10
          1 pieces
          Unit price (excluding VAT)(Unit price including VAT)
          Standard shipping days
          -
          ( - )
          Quote
          -
          ( - )
          Quote
          -
          ( - )
          Quote
          -
          ( - )
          Quote
          -
          ( - )
          Quote
