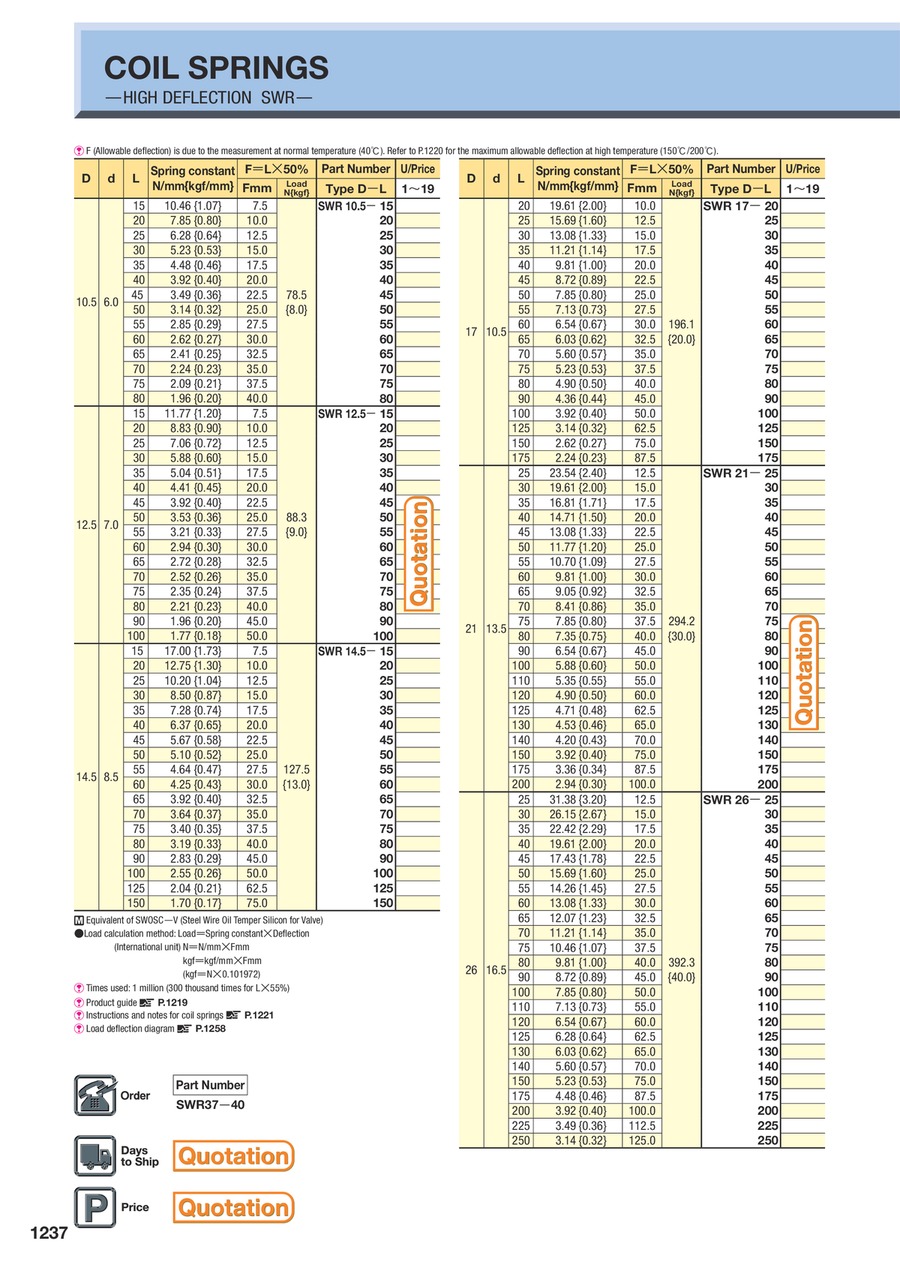

Compression springs / flat wire / painted, unpainted / 30% spring deflection / 200° heat resistant
- Promotional pricing
- Volume Discount
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Drawing
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- Catalog
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | D (Diameter) (mm) | L (L dimension) (mm) | d (Inner diameter - flat type only) | Spring constant (N/mm) | Load (N) | Allowable deflection (mm) | With/without paint peeling | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
- | 1 | Available | Quote | 10 | 10.5 | 15 | 6.0 | 10.46 | 78.5 | 7.5 | Yes | |
- | 1 | Available | Quote | 10 | 10.5 | 20 | 6.0 | 7.85 | 78.5 | 10 | Yes | |
- | 1 | Available | Quote | 10 | 10.5 | 25 | 6.0 | 6.28 | 78.5 | 12.5 | Yes | |
- | 1 | Available | Quote | 10 | 10.5 | 30 | 6.0 | 5.23 | 78.5 | 15 | Yes | |
- | 1 | Available | Quote | 10 | 10.5 | 35 | 6.0 | 4.48 | 78.5 | 17.5 | Yes | |
- | 1 | Available | Quote | 10 | 10.5 | 40 | 6.0 | 3.92 | 78.5 | 20 | Yes | |
- | 1 | Available | Quote | 10 | 10.5 | 45 | 6.0 | 3.49 | 78.5 | 22.5 | Yes | |
- | 1 | Available | Quote | 10 | 10.5 | 50 | 6.0 | 3.14 | 78.5 | 25 | Yes | |
- | 1 | Available | Quote | 10 | 10.5 | 55 | 6.0 | 2.85 | 78.5 | 27.5 | Yes | |
- | 1 | Available | Quote | 10 | 10.5 | 60 | 6.0 | 2.62 | 78.5 | 30 | Yes | |
- | 1 | Available | Quote | 10 | 10.5 | 65 | 6.0 | 2.41 | 78.5 | 32.5 | Yes | |
- | 1 | Available | Quote | 10 | 10.5 | 70 | 6.0 | 2.24 | 78.5 | 35 | Yes | |
- | 1 | Available | Quote | 10 | 10.5 | 75 | 6.0 | 2.09 | 78.5 | 37.5 | Yes | |
- | 1 | Available | Quote | 10 | 10.5 | 80 | 6.0 | 1.96 | 78.5 | 40 | Yes | |
- | 1 | Available | Quote | 10 | 12.5 | 15 | 7 | 11.77 | 88.3 | 7.5 | Yes | |
- | 1 | Available | Quote | 10 | 12.5 | 20 | 7 | 8.83 | 88.3 | 10 | Yes | |
- | 1 | Available | Quote | 10 | 12.5 | 25 | 7 | 7.06 | 88.3 | 12.5 | Yes | |
- | 1 | Available | Quote | 10 | 12.5 | 30 | 7 | 5.88 | 88.3 | 15 | Yes | |
- | 1 | Available | Quote | 10 | 12.5 | 35 | 7 | 5.04 | 88.3 | 17.5 | Yes | |
- | 1 | Available | Quote | 10 | 12.5 | 40 | 7 | 4.41 | 88.3 | 20 | Yes | |
- | 1 | Available | Quote | 10 | 12.5 | 45 | 7 | 3.92 | 88.3 | 22.5 | Yes | |
- | 1 | Available | Quote | 10 | 12.5 | 50 | 7 | 3.53 | 88.3 | 25 | Yes | |
- | 1 | Available | Quote | 10 | 12.5 | 55 | 7 | 3.21 | 88.3 | 27.5 | Yes | |
- | 1 | Available | Quote | 10 | 12.5 | 60 | 7 | 2.94 | 88.3 | 30 | Yes | |
- | 1 | Available | Quote | 10 | 12.5 | 65 | 7 | 2.72 | 88.3 | 32.5 | Yes | |
- | 1 | Available | Quote | 10 | 12.5 | 70 | 7 | 2.52 | 88.3 | 35 | Yes | |
- | 1 | Available | Quote | 10 | 12.5 | 75 | 7 | 2.35 | 88.3 | 37.5 | Yes | |
- | 1 | Available | Quote | 10 | 12.5 | 80 | 7 | 2.21 | 88.3 | 40 | Yes | |
- | 1 | Available | Quote | 10 | 12.5 | 90 | 7 | 1.96 | 88.3 | 45 | Yes | |
- | 1 | Available | Quote | 10 | 12.5 | 100 | 7 | 1.77 | 88.3 | 50 | Yes | |
- | 1 | Available | Quote | 10 | 14.5 | 15 | 8.5 | 17.00 | 127.5 | 7.5 | Yes | |
- | 1 | Available | Quote | 10 | 14.5 | 20 | 8.5 | 12.75 | 127.5 | 10 | Yes | |
- | 1 | Available | Quote | 10 | 14.5 | 25 | 8.5 | 10.20 | 127.5 | 12.5 | Yes | |
- | 1 | Available | Quote | 10 | 14.5 | 30 | 8.5 | 8.50 | 127.5 | 15 | Yes | |
- | 1 | Available | Quote | 10 | 14.5 | 35 | 8.5 | 7.28 | 127.5 | 17.5 | Yes | |
- | 1 | Available | Quote | 10 | 14.5 | 40 | 8.5 | 6.37 | 127.5 | 20 | Yes | |
- | 1 | Available | Quote | 10 | 14.5 | 45 | 8.5 | 5.67 | 127.5 | 22.5 | Yes | |
- | 1 | Available | Quote | 10 | 14.5 | 50 | 8.5 | 5.10 | 127.5 | 25 | Yes | |
- | 1 | Available | Quote | 10 | 14.5 | 55 | 8.5 | 4.64 | 127.5 | 27.5 | Yes | |
- | 1 | Available | Quote | 10 | 14.5 | 60 | 8.5 | 4.25 | 127.5 | 30 | Yes | |
- | 1 | Available | Quote | 10 | 14.5 | 65 | 8.5 | 3.92 | 127.5 | 32.5 | Yes | |
- | 1 | Available | Quote | 10 | 14.5 | 70 | 8.5 | 3.64 | 127.5 | 35 | Yes | |
- | 1 | Available | Quote | 10 | 14.5 | 75 | 8.5 | 3.40 | 127.5 | 37.5 | Yes | |
- | 1 | Available | Quote | 10 | 14.5 | 80 | 8.5 | 3.19 | 127.5 | 40 | Yes | |
- | 1 | Available | Quote | 10 | 14.5 | 90 | 8.5 | 2.83 | 127.5 | 45 | Yes | |
- | 1 | Available | Quote | 10 | 14.5 | 100 | 8.5 | 2.55 | 127.5 | 50 | Yes | |
- | 1 | Available | Quote | 10 | 14.5 | 125 | 8.5 | 2.04 | 127.5 | 62.5 | Yes | |
- | 1 | Available | Quote | 10 | 14.5 | 150 | 8.5 | 1.70 | 127.5 | 75.0 | Yes | |
- | 1 | Available | Quote | 10 | 17 | 20 | 10.5 | 19.61 | 196.1 | 10 | Yes | |
- | 1 | Available | Quote | 10 | 17 | 25 | 10.5 | 15.69 | 196.1 | 12.5 | Yes | |
- | 1 | Available | Quote | 10 | 17 | 30 | 10.5 | 13.08 | 196.1 | 15 | Yes | |
- | 1 | Available | Quote | 10 | 17 | 35 | 10.5 | 11.21 | 196.1 | 17.5 | Yes | |
- | 1 | Available | Quote | 10 | 17 | 40 | 10.5 | 9.81 | 196.1 | 20 | Yes | |
- | 1 | Available | Quote | 10 | 17 | 45 | 10.5 | 8.72 | 196.1 | 22.5 | Yes | |
- | 1 | Available | Quote | 10 | 17 | 50 | 10.5 | 7.85 | 196.1 | 25 | Yes | |
- | 1 | Available | Quote | 10 | 17 | 55 | 10.5 | 7.13 | 196.1 | 27.5 | Yes | |
- | 1 | Available | Quote | 10 | 17 | 60 | 10.5 | 6.54 | 196.1 | 30 | Yes | |
- | 1 | Available | Quote | 10 | 17 | 65 | 10.5 | 6.03 | 196.1 | 32.5 | Yes | |
- | 1 | Available | Quote | 10 | 17 | 70 | 10.5 | 5.60 | 196.1 | 35 | Yes | |
- | 1 | Available | Quote | 10 | 17 | 75 | 10.5 | 5.23 | 196.1 | 37.5 | Yes |
Loading...
Basic information
| Wire type | Flat | Heat resistance temperature | 200℃ |
|---|
Configure
Stock
-
- Show only stock items
Basic Attributes
-
D (Diameter)(mm)
-
L (L dimension)(mm)
-
d (Inner diameter - flat type only)
-
Spring constant(N/mm)
- 1.70
- 1.77
- 1.96
- 2.04
- 2.09
- 2.21
- 2.24
- 2.35
- 2.41
- 2.52
- 2.55
- 2.62
- 2.72
- 2.83
- 2.85
- 2.94
- 3.14
- 3.19
- 3.21
- 3.27
- 3.36
- 3.40
- 3.49
- 3.53
- 3.64
- 3.92
- 4.20
- 4.25
- 4.36
- 4.41
- 4.48
- 4.53
- 4.64
- 4.71
- 4.9
- 5.04
- 5.10
- 5.16
- 5.23
- 5.35
- 5.45
- 5.56
- 5.60
- 5.67
- 5.77
- 5.88
- 6.03
- 6.06
- 6.13
- 6.19
- 6.28
- 6.37
- 6.54
- 6.62
- 6.67
- 6.72
- 6.92
- 7
- 7.06
- 7.13
- 7.19
- 7.28
- 7.35
- 7.41
- 7.54
- 7.57
- 7.85
- 8.17
- 8.34
- 8.41
- 8.50
- 8.63
- 8.72
- 8.77
- 8.83
- 8.92
- 9.05
- 9.26
- 9.41
- 9.59
- 9.63
- 9.81
- 10.20
- 10.42
- 10.46
- 10.59
- 10.70
- 10.79
- 10.90
- 11.11
- 11.21
- 11.77
- 11.91
- 12.07
- 12.26
- 12.33
- 12.75
- 12.82
- 13.08
- 13.24
- 13.89
- 14.01
- 14.26
- 14.38
- 14.71
- 15.09
- 15.13
- 15.16
- 15.41
- 15.69
- 16.34
- 16.60
- 16.67
- 16.81
- 17.00
- 17.26
- 17.43
- 17.65
- 17.83
- 17.98
- 18.10
- 18.52
- 18.91
- 19.61
- 20.37
- 20.84
- 21.40
- 21.57
- 21.79
- 22.06
- 22.42
- 23.54
- 23.82
- 23.97
- 24.07
- 24.52
- 26.15
- 26.48
- 26.97
- 27.79
- 28.02
- 29.42
- 30.82
- 31.38
- 33.10
- 33.34
- 33.62
- 35.96
- 37.83
- 43.15
- 44.13
- 52.96
-
Load(N)
-
Allowable deflection(mm)
-
With/without paint peeling
- No
- Yes
-
Type
- NT-SWR
- SWR
-
Filter by CAD data type
- 2D
- 3D
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
