Core pins, cylindrical, front engraving
Contour core pins / head flattened on one side / HSS / D, L 0.01mm / engraved / inscription selectable

Configure

Shaft diameter tolerance
- 0/-0.005
- -0.01/-0.02
D/P (Shaft diameter)(mm)
- 0.6
- 0.7
- 0.8
- 0.9
- 1
- 1.1
- 1.2
- 1.3
- 1.4
- 1.5
- 1.6
- 1.7
- 1.8
- 1.9
- 2
- 2.5
- 3
- 3.5
- 4
- 4.5
- 5
- 5.5
- 6
- 6.5
- 7
- 8
- 10
[0.6-9.99/0.01mm units]
No. (Nominal diameter)(mm)
- 0.8
- 1
- 1.5
- 2
- 2.5
- 3
- 3.5
- 4
- 4.5
- 5
- 5.5
- 6
- 6.5
- 7
- 8
- 10
L (L dimension)(mm)
[10-150/0.01mm units]
Engraving character designation
- ※Designation by WOS
Type
CAD
- 2D
- 3D

Contour core pins / head flattened on one side / HSS / D, L 0.01mm / engraved / inscription selectable

0/-0.005	0.6	-	10 ～ 100	※Designation by WOS	10	1 pieces
0/-0.005	0.7	-	10 ～ 100	※Designation by WOS	10	1 pieces
0/-0.005	0.8	-	10 ～ 100	※Designation by WOS	10	1 pieces
0/-0.005	0.9	-	10 ～ 100	※Designation by WOS	10	1 pieces
0/-0.005	1	-	10 ～ 100	※Designation by WOS	10	1 pieces
0/-0.005	1.1	-	10 ～ 100	※Designation by WOS	10	1 pieces
0/-0.005	1.2	-	10 ～ 100	※Designation by WOS	10	1 pieces
0/-0.005	1.3	-	10 ～ 100	※Designation by WOS	10	1 pieces
0/-0.005	1.4	-	10 ～ 100	※Designation by WOS	10	1 pieces
0/-0.005	1.5	-	10 ～ 100	※Designation by WOS	10	1 pieces
0/-0.005	1.6	-	10 ～ 100	※Designation by WOS	10	1 pieces
0/-0.005	1.7	-	10 ～ 100	※Designation by WOS	10	1 pieces
0/-0.005	1.8	-	10 ～ 100	※Designation by WOS	10	1 pieces
0/-0.005	1.9	-	10 ～ 100	※Designation by WOS	10	1 pieces
0/-0.005	2	-	10 ～ 100	※Designation by WOS	10	1 pieces
0/-0.005	2.5	-	10 ～ 100	※Designation by WOS	10	1 pieces
0/-0.005	3	-	10 ～ 100	※Designation by WOS	10	1 pieces
0/-0.005	3.5	-	10 ～ 120	※Designation by WOS	10	1 pieces
0/-0.005	4	-	10 ～ 120	※Designation by WOS	10	1 pieces
0/-0.005	4.5	-	10 ～ 120	※Designation by WOS	10	1 pieces
0/-0.005	5	-	10 ～ 150	※Designation by WOS	10	1 pieces
0/-0.005	5.5	-	10 ～ 150	※Designation by WOS	10	1 pieces
0/-0.005	6	-	10 ～ 150	※Designation by WOS	10	1 pieces
0/-0.005	6.5	-	10 ～ 150	※Designation by WOS	10	1 pieces
0/-0.005	7	-	10 ～ 150	※Designation by WOS	10	1 pieces
0/-0.005	8	-	10 ～ 150	※Designation by WOS	10	1 pieces
0/-0.005	10	-	10 ～ 150	※Designation by WOS	10	1 pieces
0/-0.005	0.6 ～ 0.79	0.8	10 ～ 100	※Designation by WOS	10	1 pieces
0/-0.005	0.8 ～ 0.99	1	10 ～ 100	※Designation by WOS	10	1 pieces
0/-0.005	1 ～ 1.49	1.5	10 ～ 100	※Designation by WOS	10	1 pieces
0/-0.005	1.5 ～ 1.99	2	10 ～ 100	※Designation by WOS	10	1 pieces
0/-0.005	2 ～ 2.49	2.5	10 ～ 100	※Designation by WOS	10	1 pieces
0/-0.005	2.5 ～ 2.99	3	10 ～ 100	※Designation by WOS	10	1 pieces
0/-0.005	3 ～ 3.49	3.5	10 ～ 120	※Designation by WOS	10	1 pieces
0/-0.005	3.5 ～ 3.99	4	10 ～ 120	※Designation by WOS	10	1 pieces
0/-0.005	4 ～ 4.49	4.5	10 ～ 120	※Designation by WOS	10	1 pieces
0/-0.005	4.5 ～ 4.99	5	10 ～ 150	※Designation by WOS	10	1 pieces
0/-0.005	5 ～ 5.49	5.5	10 ～ 150	※Designation by WOS	10	1 pieces
0/-0.005	5.5 ～ 5.99	6	10 ～ 150	※Designation by WOS	10	1 pieces
0/-0.005	6 ～ 6.49	6.5	10 ～ 150	※Designation by WOS	10	1 pieces
0/-0.005	6.5 ～ 6.99	7	10 ～ 150	※Designation by WOS	10	1 pieces
0/-0.005	7 ～ 7.99	8	10 ～ 150	※Designation by WOS	10	1 pieces
0/-0.005	8 ～ 9.99	10	10 ～ 150	※Designation by WOS	10	1 pieces
-0.01/-0.02	0.6	-	10 ～ 100	※Designation by WOS	10	1 pieces
-0.01/-0.02	0.7	-	10 ～ 100	※Designation by WOS	10	1 pieces
-0.01/-0.02	0.8	-	10 ～ 100	※Designation by WOS	10	1 pieces
-0.01/-0.02	0.9	-	10 ～ 100	※Designation by WOS	10	1 pieces
-0.01/-0.02	1	-	10 ～ 100	※Designation by WOS	10	1 pieces
-0.01/-0.02	1.1	-	10 ～ 100	※Designation by WOS	10	1 pieces
-0.01/-0.02	1.2	-	10 ～ 100	※Designation by WOS	10	1 pieces
-0.01/-0.02	1.3	-	10 ～ 100	※Designation by WOS	10	1 pieces
-0.01/-0.02	1.4	-	10 ～ 100	※Designation by WOS	10	1 pieces
-0.01/-0.02	1.5	-	10 ～ 100	※Designation by WOS	10	1 pieces
-0.01/-0.02	1.6	-	10 ～ 100	※Designation by WOS	10	1 pieces
-0.01/-0.02	1.7	-	10 ～ 100	※Designation by WOS	10	1 pieces
-0.01/-0.02	1.8	-	10 ～ 100	※Designation by WOS	10	1 pieces
-0.01/-0.02	1.9	-	10 ～ 100	※Designation by WOS	10	1 pieces
-0.01/-0.02	2	-	10 ～ 100	※Designation by WOS	10	1 pieces
-0.01/-0.02	2.5	-	10 ～ 100	※Designation by WOS	10	1 pieces
-0.01/-0.02	3	-	10 ～ 100	※Designation by WOS	10	1 pieces

- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote
- ( - )	Quote

Contour core pins / head flattened on one side / HSS / D, L 0.01mm / engraved / inscription selectable

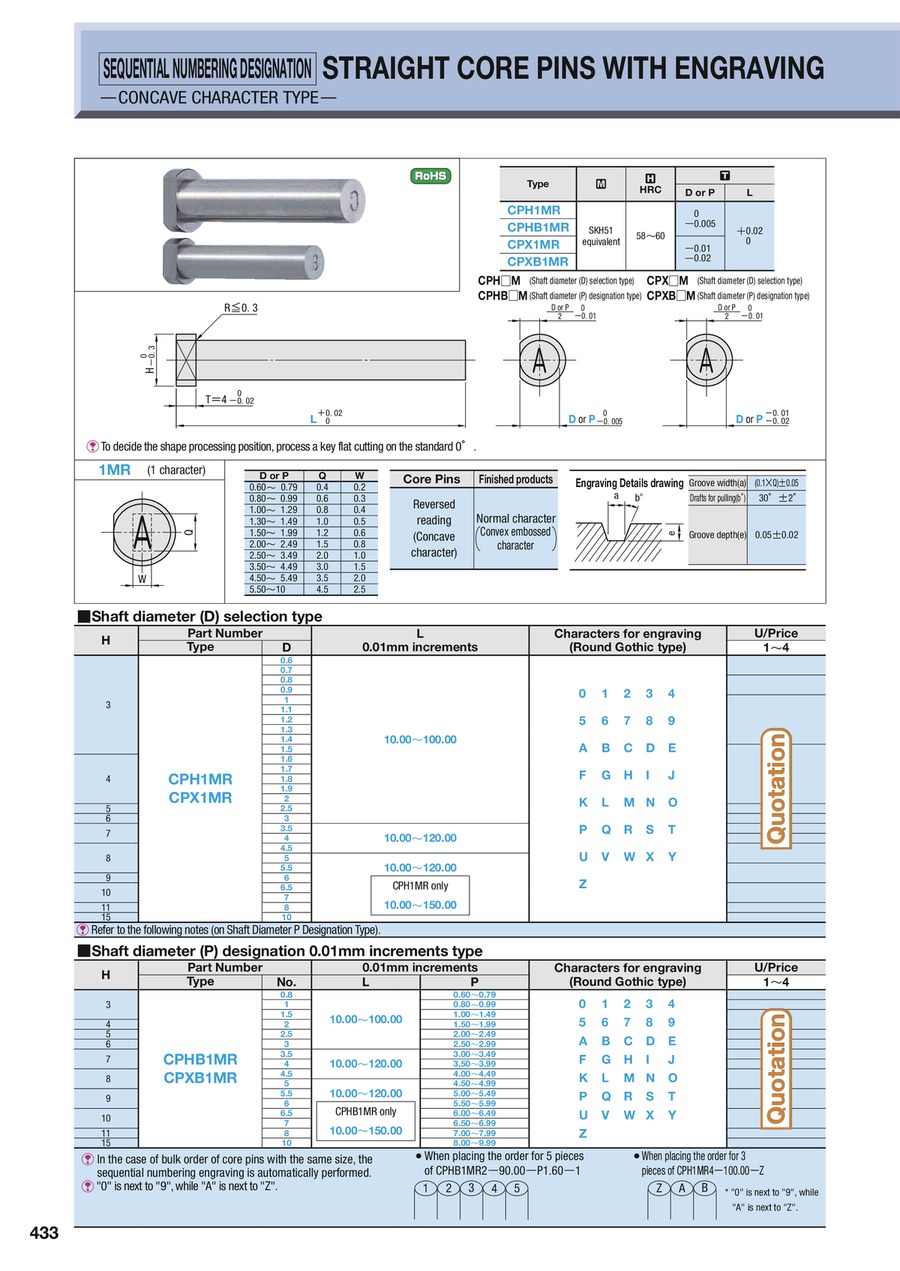

Outline drawing

Part number list
