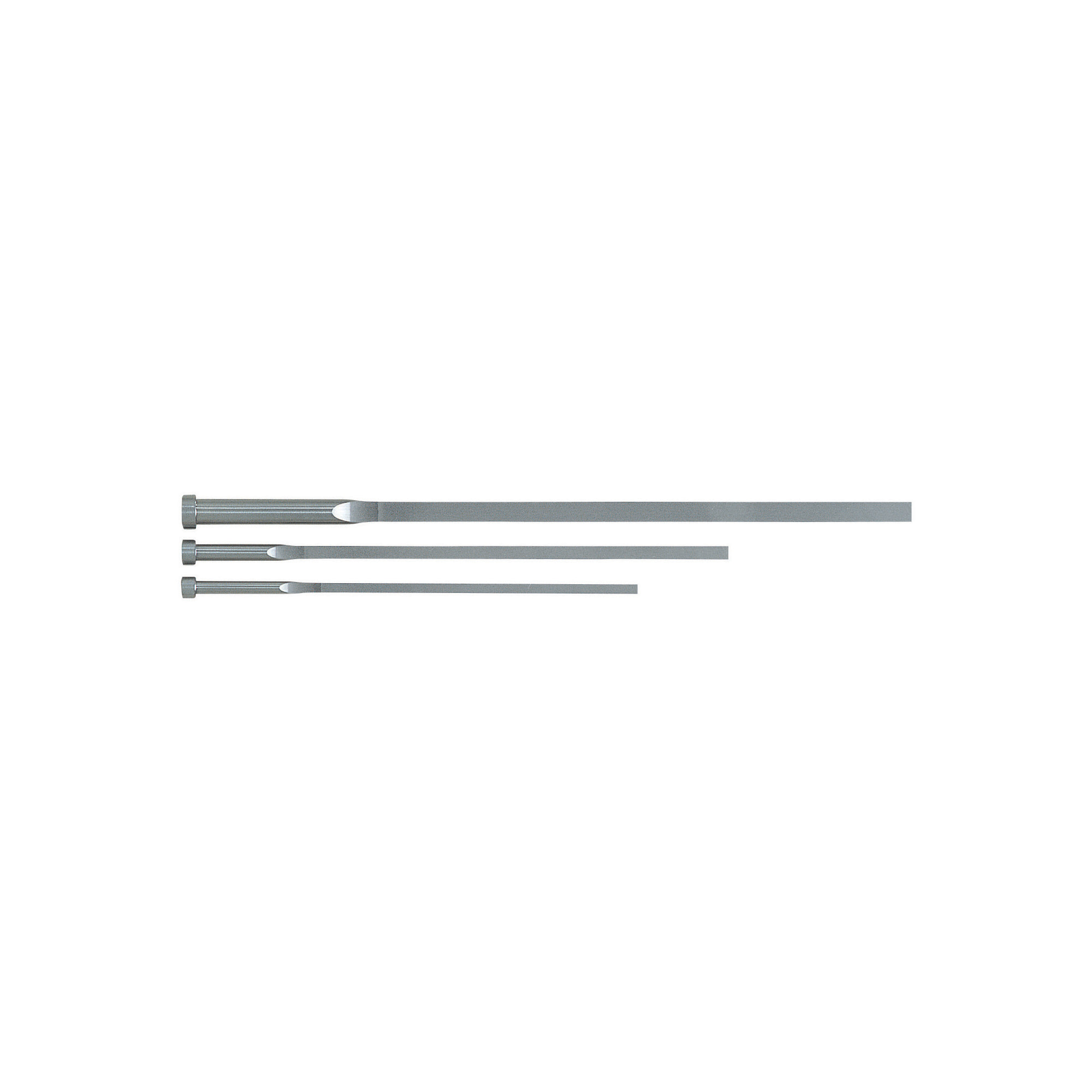

Flat ejector pins / head shape selectable / EN 1.2344 Equiv. / nitrided / dimensions Configurable / large version

Mouse over image to enlarge

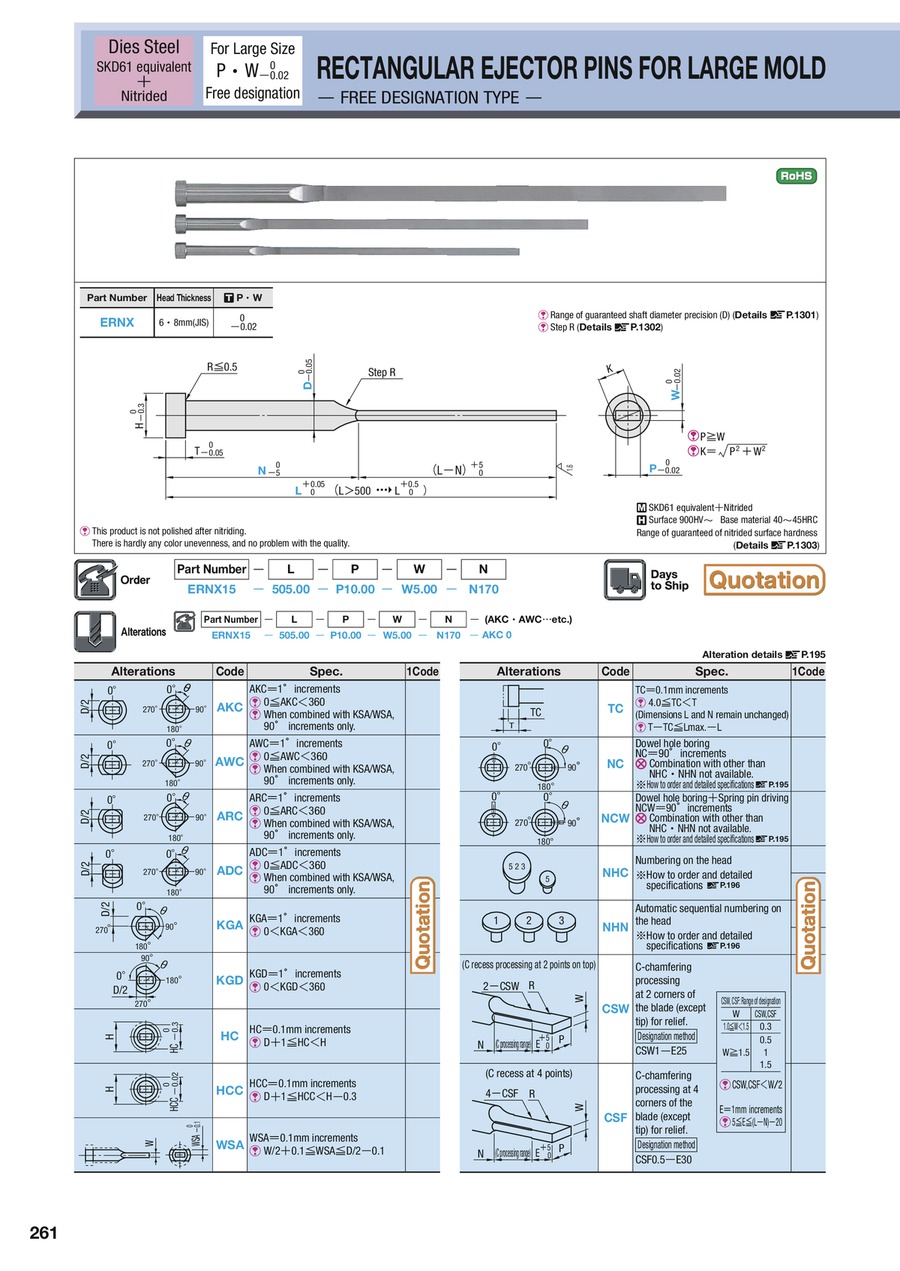

• CatalogP.261

• Outline drawing
• Part number list
• More Information
• Catalog

Outline drawing

Part number list

Number of items

30 items60 items90 items

1

Part number

ERNX4-[200-350/0.01]-P[2-3.7/0.01]-W[0.8-3.34/0.01]-N[40-349/1]

ERNX5-[200-350/0.01]-P[2.5-4.7/0.01]-W[1-4.21/0.01]-N[40-349/1]

ERNX6-[200-500/0.01]-P[3-5.5/0.01]-W[2-5.8/0.01]-N[45-490/1]

ERNX7-[200-500/0.01]-P[3.3-6.6/0.01]-W[2-6.05/0.01]-N[45-499/1]

ERNX8-[200-500/0.01]-P[3.3-7.6/0.01]-W[2-7.8/0.01]-N[45-490/1]

ERNX10-[200-500/0.01]-P[5-9.6/0.01]-W[2-9.8/0.01]-N[50-490/1]

ERNX12-[200-500/0.01]-P[6-11.7/0.01]-W[2-11.8/0.01]-N[50-490/1]

ERNX13-[200-500/0.01]-P[6-12.7/0.01]-W[2-12.8/0.01]-N[50-490/1]

ERNX15-[200-500/0.01]-P[8-14.7/0.01]-W[2-14.8/0.01]-N[50-490/1]

ERNX16-[200-500/0.01]-P[8-15.7/0.01]-W[2-15.8/0.01]-N[55-490/1]

ERNX20-[200-500/0.01]-P[10-19.7/0.01]-W[2-19.8/0.01]-N[55-490/1]

ERNX25-[200-500/0.01]-P[13-24.7/0.01]-W[2.5-24.8/0.01]-N[55-490/1]

Head thickness	P (Tip) (mm)	W (Tip) (mm)	D (Shaft diameter) (mm)	L (L dimension) (mm)	N (mm)	RoHS?	Minimum order quantity

6mm(JIS)	2 ～ 3.7	0.8 ～ 3.34	4	200 ～ 350	40 ～ 349	10	1 pieces
6mm(JIS)	2.5 ～ 4.7	1 ～ 4.21	5	200 ～ 350	40 ～ 349	10	1 pieces
6mm(JIS)	3 ～ 5.5	2 ～ 5.8	6	200 ～ 500	45 ～ 490	10	1 pieces
6mm(JIS)	3.3 ～ 6.6	2 ～ 6.05	7	200 ～ 500	45 ～ 499	10	1 pieces
8mm(JIS)	3.3 ～ 7.6	2 ～ 7.8	8	200 ～ 500	45 ～ 490	10	1 pieces
8mm(JIS)	5 ～ 9.6	2 ～ 9.8	10	200 ～ 500	50 ～ 490	10	1 pieces
8mm(JIS)	6 ～ 11.7	2 ～ 11.8	12	200 ～ 500	50 ～ 490	10	1 pieces
8mm(JIS)	6 ～ 12.7	2 ～ 12.8	13	200 ～ 500	50 ～ 490	10	1 pieces
8mm(JIS)	8 ～ 14.7	2 ～ 14.8	15	200 ～ 500	50 ～ 490	10	1 pieces
8mm(JIS)	8 ～ 15.7	2 ～ 15.8	16	200 ～ 500	55 ～ 490	10	1 pieces
8mm(JIS)	10 ～ 19.7	2 ～ 19.8	20	200 ～ 500	55 ～ 490	10	1 pieces
8mm(JIS)	13 ～ 24.7	2.5 ～ 24.8	25	200 ～ 500	55 ～ 490	10	1 pieces
