Ejector pins, square, unmachined end face
Flat ejector pins / head shape selectable / EN 1.2344 Equiv. / nitrided / corners rounded / dimensions Configurable / large version

Configure

Head thickness
- 6mm(JIS)
- 8mm(JIS)
P (Tip)(mm)
[2-19.7/0.01mm units]
W (Tip)(mm)
[1-19.8/0.01mm units]
D (Shaft diameter)(mm)
- 4
- 5
- 6
- 7
- 8
- 10
- 12
- 13
- 15
- 16
- 20
R-Chamfered rectangular position
- WR
- FR
L (L dimension)(mm)
[200-450/0.01mm units]
N(mm)
[40-499/1mm units]
R (Corner R of the tip corner)(mm)
- 0.1
Type
- ERNXFR
- ERNXWR
CAD
- 2D
- 3D

Flat ejector pins / head shape selectable / EN 1.2344 Equiv. / nitrided / corners rounded / dimensions Configurable / large version

Mouse over image to enlarge

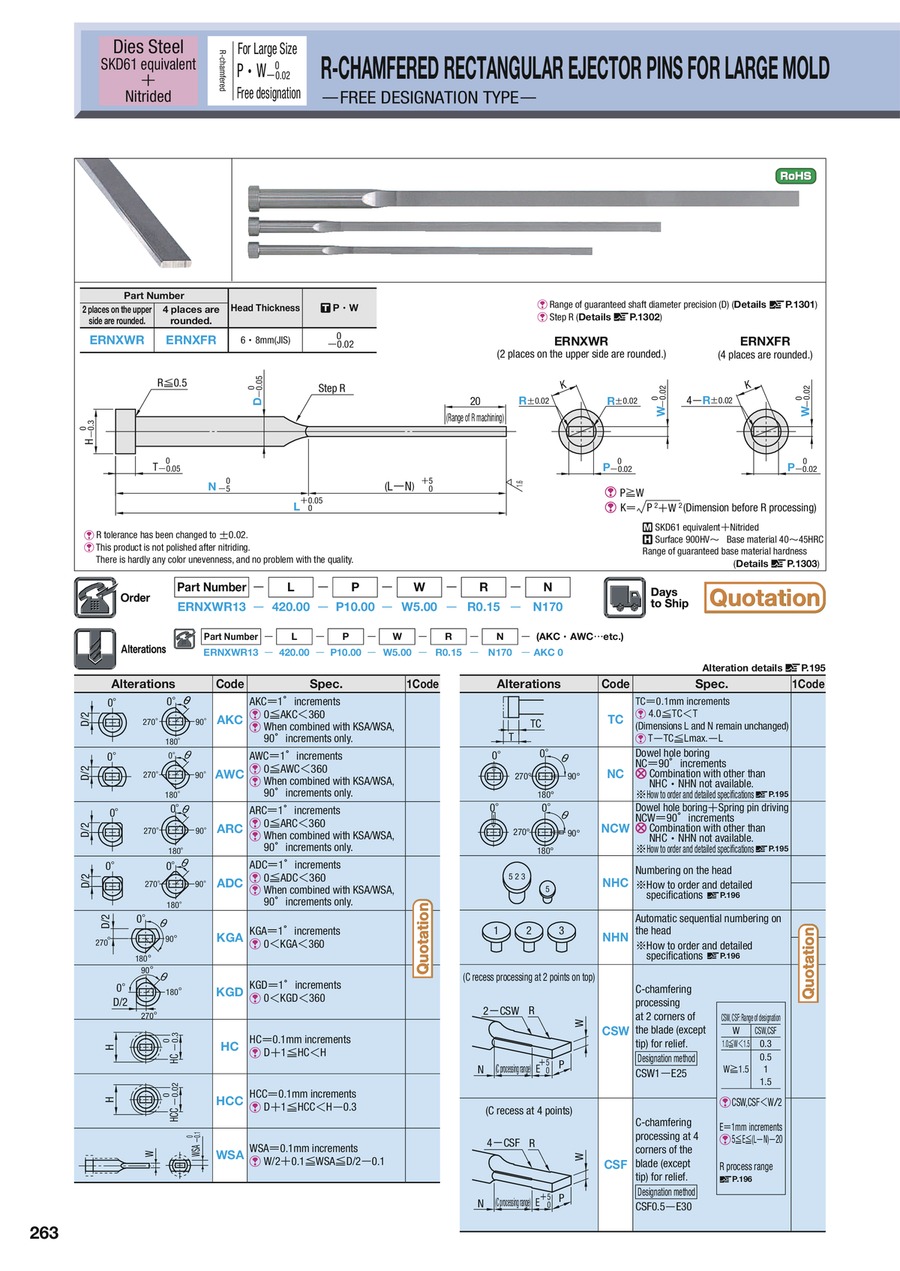

CatalogP.263

Part number:

Still undefined. 22 possible part numbers found.

Outline drawing
Part number list
More Information
Catalog

Outline drawing

Part number list

Number of items

Part number

ERNXFR4-[200-350/0.01]-P[2-3.7/0.01]-W[1-3.34/0.01]-R0.1-N[40-349/1]

ERNXFR5-[200-350/0.01]-P[2.5-4.7/0.01]-W[1-4.21/0.01]-R0.1-N[40-349/1]

ERNXFR6-[200-450/0.01]-P[3-5.5/0.01]-W[2-5.08/0.01]-R0.1-N[45-499/1]

ERNXFR7-[200-450/0.01]-P[3.3-6.6/0.01]-W[2-6.05/0.01]-R0.1-N[45-499/1]

ERNXFR8-[200-450/0.01]-P[3.3-7.6/0.01]-W[2-7.17/0.01]-R0.1-N[45-499/1]

ERNXFR10-[200-450/0.01]-P[5-9.6/0.01]-W[2-9.8/0.01]-R0.1-N[50-440/1]

ERNXFR12-[200-450/0.01]-P[6-11.7/0.01]-W[2-11.8/0.01]-R0.1-N[50-440/1]

ERNXFR13-[200-450/0.01]-P[6-12.7/0.01]-W[2-12.8/0.01]-R0.1-N[50-440/1]

ERNXFR15-[200-450/0.01]-P[8-14.7/0.01]-W[2-14.8/0.01]-R0.1-N[50-440/1]

ERNXFR16-[200-450/0.01]-P[8-15.7/0.01]-W[2-15.8/0.01]-R0.1-N[50-440/1]

ERNXFR20-[200-450/0.01]-P[10-19.7/0.01]-W[2-19.7/0.01]-R0.1-N[55-440/1]

ERNXWR4-[200-350/0.01]-P[2-3.7/0.01]-W[1-3.34/0.01]-R0.1-N[40-349/1]

ERNXWR5-[200-350/0.01]-P[2.5-4.7/0.01]-W[1-4.21/0.01]-R0.1-N[40-349/1]

ERNXWR6-[200-450/0.01]-P[3-5.5/0.01]-W[2-5.08/0.01]-R0.1-N[45-499/1]

ERNXWR7-[200-450/0.01]-P[3.3-6.6/0.01]-W[2-6.05/0.01]-R0.1-N[45-499/1]

ERNXWR8-[200-450/0.01]-P[3.3-7.6/0.01]-W[2-7.17/0.01]-R0.1-N[45-499/1]

ERNXWR10-[200-450/0.01]-P[5-9.6/0.01]-W[2-9.8/0.01]-R0.1-N[50-440/1]

ERNXWR12-[200-450/0.01]-P[6-11.7/0.01]-W[2-11.8/0.01]-R0.1-N[50-440/1]

ERNXWR13-[200-450/0.01]-P[6-12.7/0.01]-W[2-12.8/0.01]-R0.1-N[50-440/1]

ERNXWR15-[200-450/0.01]-P[8-14.7/0.01]-W[2-14.8/0.01]-R0.1-N[50-440/1]

ERNXWR16-[200-450/0.01]-P[8-15.7/0.01]-W[2-15.8/0.01]-R0.1-N[50-440/1]

ERNXWR20-[200-450/0.01]-P[10-19.7/0.01]-W[2-19.8/0.01]-R0.1-N[55-440/1]

Head thickness

P (Tip)

(mm)

W (Tip)

(mm)

D (Shaft diameter)

(mm)

R-Chamfered rectangular position

L (L dimension)

(mm)

R (Corner R of the tip corner)

(mm)

RoHS?

Minimum order quantity

6mm(JIS)	2 ～ 3.7	1 ～ 3.34	4	FR	200 ～ 350	40 ～ 349	0.1	10	1 pieces
6mm(JIS)	2.5 ～ 4.7	1 ～ 4.21	5	FR	200 ～ 350	40 ～ 349	0.1	10	1 pieces
6mm(JIS)	3 ～ 5.5	2 ～ 5.08	6	FR	200 ～ 450	45 ～ 499	0.1	10	1 pieces
6mm(JIS)	3.3 ～ 6.6	2 ～ 6.05	7	FR	200 ～ 450	45 ～ 499	0.1	10	1 pieces
8mm(JIS)	3.3 ～ 7.6	2 ～ 7.17	8	FR	200 ～ 450	45 ～ 499	0.1	10	1 pieces
8mm(JIS)	5 ～ 9.6	2 ～ 9.8	10	FR	200 ～ 450	50 ～ 440	0.1	10	1 pieces
8mm(JIS)	6 ～ 11.7	2 ～ 11.8	12	FR	200 ～ 450	50 ～ 440	0.1	10	1 pieces
8mm(JIS)	6 ～ 12.7	2 ～ 12.8	13	FR	200 ～ 450	50 ～ 440	0.1	10	1 pieces
8mm(JIS)	8 ～ 14.7	2 ～ 14.8	15	FR	200 ～ 450	50 ～ 440	0.1	10	1 pieces
8mm(JIS)	8 ～ 15.7	2 ～ 15.8	16	FR	200 ～ 450	50 ～ 440	0.1	10	1 pieces
8mm(JIS)	10 ～ 19.7	2 ～ 19.7	20	FR	200 ～ 450	55 ～ 440	0.1	10	1 pieces
6mm(JIS)	2 ～ 3.7	1 ～ 3.34	4	WR	200 ～ 350	40 ～ 349	0.1	10	1 pieces
6mm(JIS)	2.5 ～ 4.7	1 ～ 4.21	5	WR	200 ～ 350	40 ～ 349	0.1	10	1 pieces
6mm(JIS)	3 ～ 5.5	2 ～ 5.08	6	WR	200 ～ 450	45 ～ 499	0.1	10	1 pieces
6mm(JIS)	3.3 ～ 6.6	2 ～ 6.05	7	WR	200 ～ 450	45 ～ 499	0.1	10	1 pieces
8mm(JIS)	3.3 ～ 7.6	2 ～ 7.17	8	WR	200 ～ 450	45 ～ 499	0.1	10	1 pieces
8mm(JIS)	5 ～ 9.6	2 ～ 9.8	10	WR	200 ～ 450	50 ～ 440	0.1	10	1 pieces
8mm(JIS)	6 ～ 11.7	2 ～ 11.8	12	WR	200 ～ 450	50 ～ 440	0.1	10	1 pieces
8mm(JIS)	6 ～ 12.7	2 ～ 12.8	13	WR	200 ～ 450	50 ～ 440	0.1	10	1 pieces
8mm(JIS)	8 ～ 14.7	2 ～ 14.8	15	WR	200 ～ 450	50 ～ 440	0.1	10	1 pieces
8mm(JIS)	8 ～ 15.7	2 ～ 15.8	16	WR	200 ～ 450	50 ～ 440	0.1	10	1 pieces
8mm(JIS)	10 ～ 19.7	2 ～ 19.8	20	WR	200 ～ 450	55 ～ 440	0.1	10	1 pieces
