Sprue bushes / material selectable / cooling channel / flange thickness 10mm

Sprue bushes / material selectable / cooling channel / flange thickness 10mm

Click image to view enlarged image

Part number:

Still undefined. 12 possible part numbers found.
Quantity:

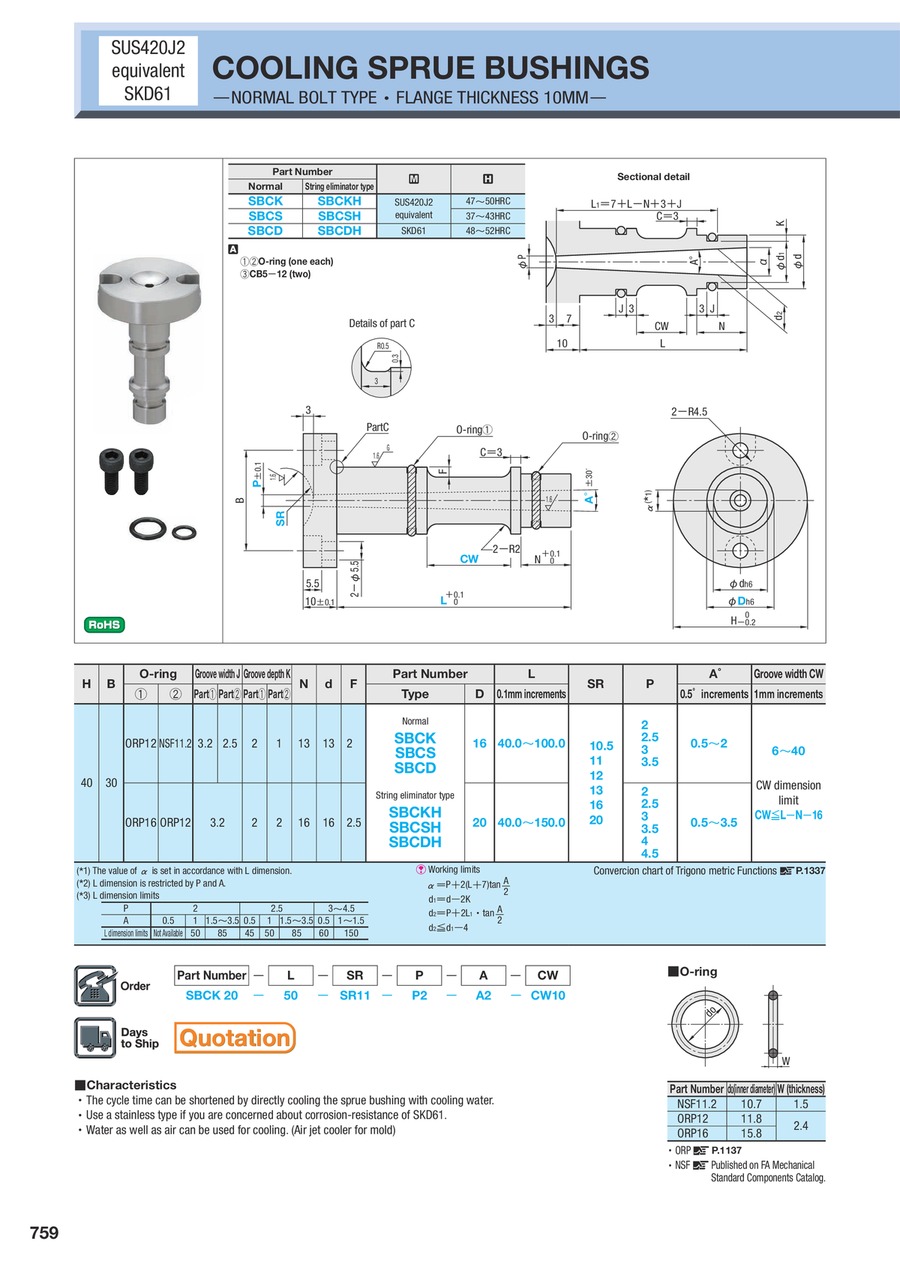

Outline drawing

Part number list

Number of items
  • 1
    • Part number
    SBCD16-[40-100/0.1]-SR[10.5,11,12,13,16,20]-P[2,2.5,3,3.5]-A[0.5-2/0.5]-CW[6-40/1]
    SBCD20-[40-150/0.1]-SR[10.5,11,12,13,16,20]-P[2,2.5,3,3.5,4,4.5]-A[0.5-3.5/0.5]-CW[6-40/1]
    SBCDH16-[40-100/0.1]-SR[10.5,11,12,13,16,20]-P[2,2.5,3,3.5]-A[0.5-2/0.5]-CW[6-40/1]
    SBCDH20-[40-150/0.1]-SR[10.5,11,12,13,16,20]-P[2,2.5,3,3.5,4,4.5]-A[0.5-3.5/0.5]-CW[6-40/1]
    SBCK16-[40-100/0.1]-SR[10.5,11,12,13,16,20]-P[2,2.5,3,3.5]-A[0.5-2/0.5]-CW[6-40/1]
    SBCK20-[40-150/0.1]-SR[10.5,11,12,13,16,20]-P[2,2.5,3,3.5,4,4.5]-A[0.5-3.5/0.5]-CW[6-40/1]
    SBCKH16-[40-100/0.1]-SR[10.5,11,12,13,16,20]-P[2,2.5,3,3.5]-A[0.5-2/0.5]-CW[6-40/1]
    SBCKH20-[40-150/0.1]-SR[10.5,11,12,13,16,20]-P[2,2.5,3,3.5,4,4.5]-A[0.5-3.5/0.5]-CW[6-40/1]
    SBCS16-[40-100/0.1]-SR[10.5,11,12,13,16,20]-P[2,2.5,3,3.5]-A[0.5-2/0.5]-CW[6-40/1]
    SBCS20-[40-150/0.1]-SR[10.5,11,12,13,16,20]-P[2,2.5,3,3.5,4,4.5]-A[0.5-3.5/0.5]-CW[6-40/1]
    SBCSH16-[40-100/0.1]-SR[10.5,11,12,13,16,20]-P[2,2.5,3,3.5]-A[0.5-2/0.5]-CW[6-40/1]
    SBCSH20-[40-150/0.1]-SR[10.5,11,12,13,16,20]-P[2,2.5,3,3.5,4,4.5]-A[0.5-3.5/0.5]-CW[6-40/1]

    Material

    Nozzle touch part specification

    D (Shaft diameter)

    (mm)

    L (Bearing bore length)

    (mm)

    A (Taper angle at sprue)

    (°)

    Hardness

    CW (Groove width)

    (mm)

    P (Sprue diameter)

    (mm)

    SR (Nozzle part)

    (mm)

    		RoHS?Minimum order quantity
    SKD61
    Normal
    16
    40 ～ 100
    0.5 ～ 2
    -
    6 ～ 40
    2 ～ 3.5
    10.5 ～ 20
    10
    1 pieces
    SKD61
    Normal
    20
    40 ～ 150
    0.5 ～ 3.5
    -
    6 ～ 40
    2 ～ 4.5
    10.5 ～ 20
    10
    1 pieces
    SKD61
    String eliminator
    16
    40 ～ 100
    0.5 ～ 2
    -
    6 ～ 40
    2 ～ 3.5
    10.5 ～ 20
    10
    1 pieces
    SKD61
    String eliminator
    20
    40 ～ 150
    0.5 ～ 3.5
    -
    6 ～ 40
    2 ～ 4.5
    10.5 ～ 20
    10
    1 pieces
    SUS420J2 Equivalent
    Normal
    16
    40 ～ 100
    0.5 ～ 2
    47～50HRC
    6 ～ 40
    2 ～ 3.5
    10.5 ～ 20
    10
    1 pieces
    SUS420J2 Equivalent
    Normal
    20
    40 ～ 150
    0.5 ～ 3.5
    47～50HRC
    6 ～ 40
    2 ～ 4.5
    10.5 ～ 20
    10
    1 pieces
    SUS420J2 Equivalent
    String eliminator
    16
    40 ～ 100
    0.5 ～ 2
    47～50HRC
    6 ～ 40
    2 ～ 3.5
    10.5 ～ 20
    10
    1 pieces
    SUS420J2 Equivalent
    String eliminator
    20
    40 ～ 150
    0.5 ～ 3.5
    47～50HRC
    6 ～ 40
    2 ～ 4.5
    10.5 ～ 20
    10
    1 pieces
    SUS420J2 Equivalent
    Normal
    16
    40 ～ 100
    0.5 ～ 2
    37～43HRC
    6 ～ 40
    2 ～ 3.5
    10.5 ～ 20
    10
    1 pieces
    SUS420J2 Equivalent
    Normal
    20
    40 ～ 150
    0.5 ～ 3.5
    37～43HRC
    6 ～ 40
    2 ～ 4.5
    10.5 ～ 20
    10
    1 pieces
    SUS420J2 Equivalent
    String eliminator
    16
    40 ～ 100
    0.5 ～ 2
    37～43HRC
    6 ～ 40
    2 ～ 3.5
    10.5 ～ 20
    10
    1 pieces
    SUS420J2 Equivalent
    String eliminator
    20
    40 ～ 150
    0.5 ～ 3.5
    37～43HRC
    6 ～ 40
    2 ～ 4.5
    10.5 ～ 20
    10
    1 pieces
