Telescopic Slide Rails / With Lock Mechanism
- Order quantities extended (D-JIT)
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- Catalog
Material: Steel Surface Treatment: Bright Chromate (Trivalent Chromium)
Specifications
| Part Number |
| SRR3620 SRH15012 SRRH15028 |

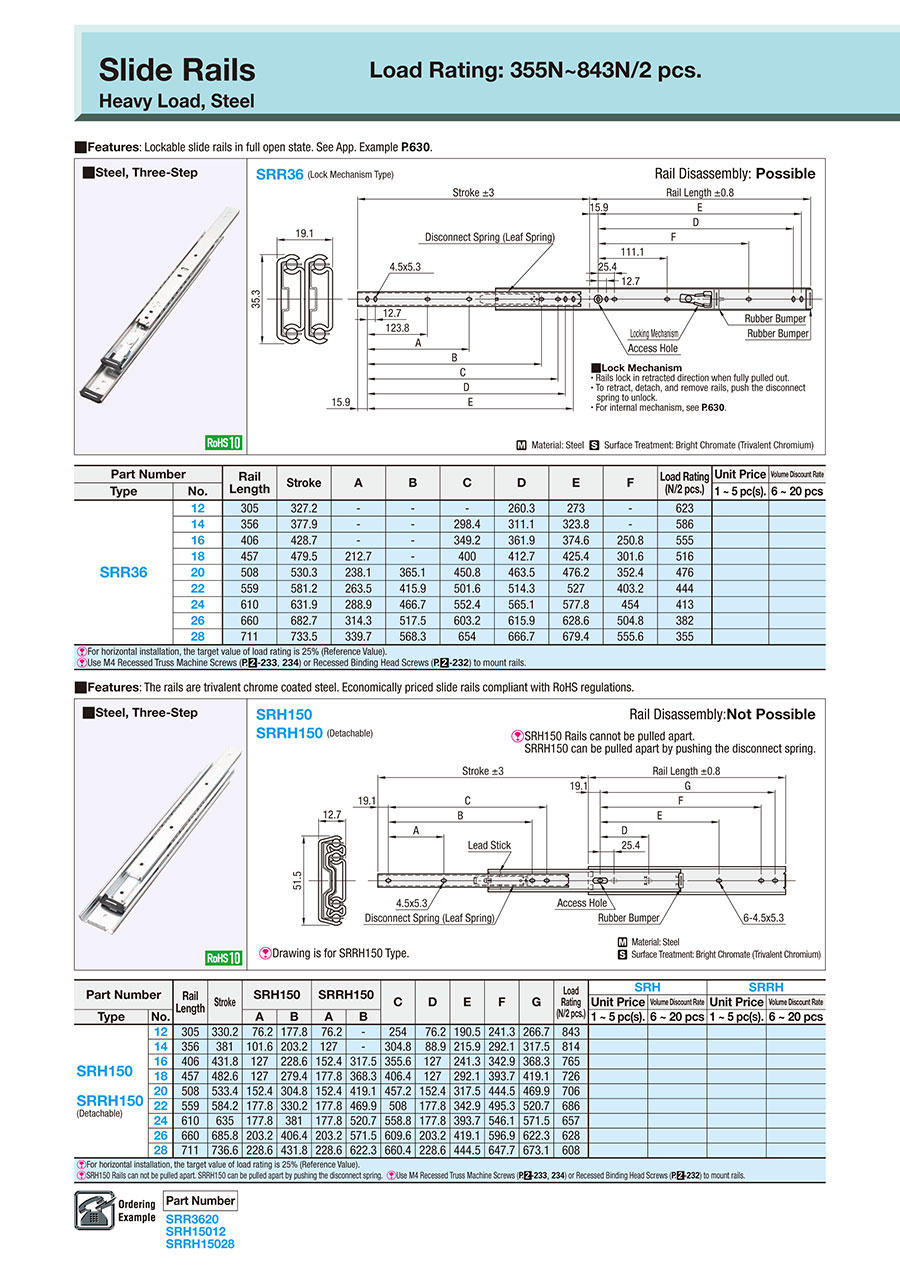

| Part Number | Rail Length | Stroke | A | B | C | D | E | F | Load Rating (N/2 pcs.) | Unit Price | Volume Discount Rate | |
| Type | No. | 1 ~ 5 pc(s). | 6 ~ 20 pcs | |||||||||
| SRR36 | 12 | 305 | 327.2 | - | - | - | 260.3 | 273 | - | 623 | ||
| 14 | 356 | 377.9 | - | - | 298.4 | 311.1 | 323.8 | - | 586 | |||
| 16 | 406 | 428.7 | - | - | 349.2 | 361.9 | 374.6 | 250.8 | 555 | |||
| 18 | 457 | 479.5 | 212.7 | - | 400 | 412.7 | 425.4 | 301.6 | 516 | |||
| 20 | 508 | 530.3 | 238.1 | 365.1 | 450.8 | 463.5 | 476.2 | 352.4 | 476 | |||
| 22 | 559 | 581.2 | 263.5 | 415.9 | 501.6 | 514.3 | 527 | 403.2 | 444 | |||
| 24 | 610 | 631.9 | 288.9 | 466.7 | 552.4 | 565.1 | 577.8 | 454 | 413 | |||
| 26 | 660 | 682.7 | 314.3 | 517.5 | 603.2 | 615.9 | 628.6 | 504.8 | 382 | |||
| 28 | 711 | 733.5 | 339.7 | 568.3 | 654 | 666.7 | 679.4 | 555.6 | 355 | |||
| For horizontal installation, the target value of load rating is 25% (Reference Value). Use M4 Recessed Truss Machine Screws (P. 2-233, 234) or Recessed Binding Head Screws (P. 2-232) to mount rails. | ||||||||||||
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Part Number
|
|---|
| SRR3612 |
| SRR3614 |
| SRR3616 |
| SRR3618 |
| SRR3620 |
| SRR3622 |
| SRR3624 |
| SRR3626 |
| SRR3628 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Stroke (mm) | Rail Length (mm) | Load Rating (N/2 pcs.) (N) | |
|---|---|---|---|---|---|---|---|---|
47.10 € | 1 | 5 Days | 10 | 327.2 | 305 | 623 | ||
49.37 € | 1 | 5 Days | 10 | 377.9 | 356 | 586 | ||
52.40 € | 1 | 5 Days | 10 | 428.7 | 406 | 555 | ||
55.40 € | 1 | 5 Days | 10 | 479.5 | 457 | 516 | ||
58.80 € | 1 |
Same day
Stock | 10 | 530.3 | 508 | 476 | ||
61.83 € | 1 |
Same day
Stock | 10 | 581.2 | 559 | 444 | ||
65.36 € | 1 | 5 Days | 10 | 631.9 | 610 | 413 | ||
68.90 € | 1 | 5 Days | 10 | 682.7 | 660 | 382 | ||
71.78 € | 1 | 5 Days | 10 | 733.5 | 711 | 355 |
Loading...
Basic information
| Type | Slide Type | Material | Steel | Rail Qty. | Three-Step Slide |
|---|---|---|---|---|---|
| Height(mm) | 19.1 | Width(mm) | 35.3 | Surface Treatment | Glossy Chromate Treatment (Trivalent Chromium) |
Configure
Stock
-
- Show only stock items
Basic Attributes
-
Stroke(mm)
-
Rail Length(mm)
-
Load Rating (N/2 pcs.)(N)
-
Type
- SRR36
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- Same day
- 5 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
Complementary Products
-
stopper bolts / hexagon socket at head / regular thread / MC-Nylon locking head / steel / chromated
MISUMI Standard Price : 7.79 € Shipping Days: Same day
