Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.

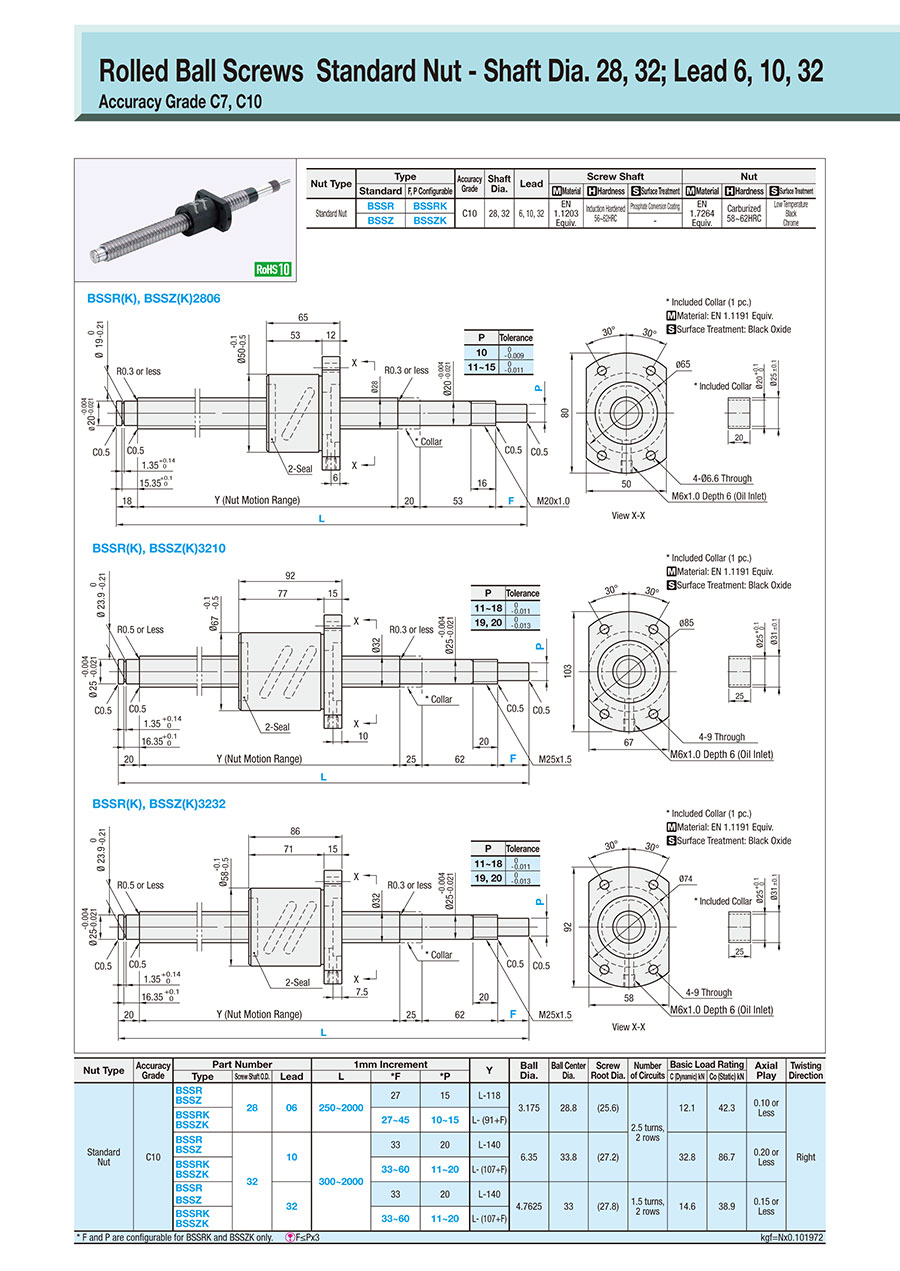

Nut Type | Type | Accuracy Grade | Shaft Dia. | Lead | Screw Shaft | Nut | |||||
Standard | F, P Configurable | Material | Hardness | Surface Treatment | Material | Hardness | Surface Treatment | ||||
Standard Nut | BSSR | BSSRK | C10 | 28, 32 | 6, 10, 32 | EN 1.1203 Equiv. | Induction Hardened 56~62HRC | Phosphate Conversion Coating | EN 1.7264 Equiv. | Carburized 58~62HRC | Low Temperature Black Chrome |
BSSZ | BSSZK | - |
Part Number | - | L | - | F | - | P |
BSSR2806 BSSZK3232 BSSR3210L BSSR3232G | - - - - | 270 270 370 370 | ||||
- | F40 | - | P15 | |||
(L Type Greased) | ||||||
(G Type Greased) |
Nut Type | Accuracy Grade | Part Number | 1mm Increment | Y | Ball Dia. | Ball Center Dia. | Screw Root Dia. | Number of Circuits | Basic Load Rating | Axial Play | Twisting Direction | |||||
Type | Screw Shaft O.D. | Lead | L | *F | *P | C (Dynamic) kN | Co (Static) kN | |||||||||
Standard Nut | C10 | BSSR BSSZ | 28 | 06 | 250~2000 | 27 | 15 | L-118 | 3.175 | 28.8 | (25.6) | 2.5 turns, 2 rows | 12.1 | 42.3 | 0.10 or Less | Right |
BSSRK BSSZK | 27~45 | 10~15 | L- (91+F) | |||||||||||||
BSSR BSSZ | 32 | 10 | 300~2000 | 33 | 20 | L-140 | 6.35 | 33.8 | (27.2) | 32.8 | 86.7 | 0.20 or Less | ||||
BSSRK BSSZK | 33~60 | 11~20 | L- (107+F) | |||||||||||||
BSSR | 32 | 33 | 20 | L-140 | 4.7625 | 33 | (27.8) | 1.5 turns, 2 rows | 14.6 | 38.9 | 0.15 or Less | |||||
BSSZ | ||||||||||||||||
BSSRK BSSZK | 33~60 | 11~20 | L- (107+F) | |||||||||||||
* F and P are configurable for BSSRK and BSSZK only. F≤Px3 kgf=Nx0.101972 |
3D preview is not available, because the part number has not yet been determined.
Part Number | Minimum order quantity | Volume Discount | RoHS | Screw Shaft O.D. (mm) | Lead (mm) | Axial Play | Number of Circuits (Rows x Windings) | Shaft Overall Length L (mm) | Basic Load Rating Dynamic Rating (N) | Basic Load Rating Static Rating (N) | Grease Type | Shaft End Length F (mm) | Shaft Dia. P (Ø) | Screw Shaft Surface Treatment | Shaft End Dimension (Fixed, Configurable) | Shaft Dia. P (φ) | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1 | 7 Days | 10 | 28 | 6 | [0.10 or Less] 0.10 or Less | 2 x 2.5 | 250 ~ 2000 | 12100 | 42300 | Standard | 27 | 15 | Phosphate Coating | Stationary | - | ||
1 | 9 Days | 10 | 28 | 6 | [0.10 or Less] 0.10 or Less | 2 x 2.5 | 250 ~ 2000 | 12100 | 72300 | Type G | 27 | 15 | Phosphate Coating | Stationary | - | ||
1 | 9 Days | 10 | 28 | 6 | [0.10 or Less] 0.10 or Less | 2 x 2.5 | 250 ~ 2000 | 12100 | 72300 | Type L | 27 | 15 | Phosphate Coating | Stationary | - | ||
1 | 7 Days | 10 | 32 | 10 | [0.2 or Less] 0.20 or Less | 2 x 2.5 | 300 ~ 2000 | 32800 | 86700 | Standard | 33 | 20 | Phosphate Coating | Stationary | - | ||
1 | 9 Days | 10 | 32 | 10 | [0.2 or Less] 0.20 or Less | 2 x 2.5 | 300 ~ 2000 | 32800 | 86700 | Type G | 33 | 20 | Phosphate Coating | Stationary | - | ||
1 | 9 Days | 10 | 32 | 10 | [0.2 or Less] 0.20 or Less | 2 x 2.5 | 300 ~ 2000 | 32800 | 86700 | Type L | 33 | 20 | Phosphate Coating | Stationary | - | ||
1 | 7 Days | 10 | 32 | 32 | [0.2 or Less] 0.15 or Less | 2 x 1.5 | 300 ~ 2000 | 14600 | 38900 | Standard | 33 | 20 | Phosphate Coating | Stationary | - | ||
1 | 9 Days | 10 | 32 | 32 | [0.2 or Less] 0.15 or Less | 2 x 1.5 | 300 ~ 2000 | 14600 | 38900 | Type G | 33 | 20 | Phosphate Coating | Stationary | - | ||
1 | 9 Days | 10 | 32 | 32 | [0.2 or Less] 0.15 or Less | 2 x 1.5 | 300 ~ 2000 | 14600 | 38900 | Type L | 33 | 20 | Phosphate Coating | Stationary | - | ||
1 | 7 Days | 10 | 28 | 6 | [0.10 or Less] 0.10 or Less | 2 x 2.5 | 250 ~ 2000 | 12100 | 42300 | Standard | 27 ~ 45 | - | Phosphate Coating | Configuration | 10 ~ 15 | ||
1 | 9 Days | 10 | 28 | 6 | [0.10 or Less] 0.10 or Less | 2 x 2.5 | 250 ~ 2000 | 12100 | 42300 | Type G | 27 ~ 45 | - | Phosphate Coating | Configuration | 10 ~ 15 | ||
1 | 9 Days | 10 | 28 | 6 | [0.10 or Less] 0.10 or Less | 2 x 2.5 | 250 ~ 2000 | 12100 | 42300 | Type L | 27 ~ 45 | - | Phosphate Coating | Configuration | 10 ~ 15 | ||
1 | 7 Days | 10 | 32 | 10 | [0.2 or Less] 0.20 or Less | 2 x 2.5 | 300 ~ 2000 | 32800 | 86700 | Standard | 33 ~ 60 | - | Phosphate Coating | Configuration | 11 ~ 20 | ||
1 | 9 Days | 10 | 32 | 10 | [0.2 or Less] 0.20 or Less | 2 x 2.5 | 300 ~ 2000 | 32800 | 86700 | Type G | 33 ~ 60 | - | Phosphate Coating | Configuration | 11 ~ 20 | ||
1 | 9 Days | 10 | 32 | 10 | [0.2 or Less] 0.20 or Less | 2 x 2.5 | 300 ~ 2000 | 32800 | 86700 | Type L | 33 ~ 60 | - | Phosphate Coating | Configuration | 11 ~ 20 | ||
1 | 7 Days | 10 | 32 | 32 | [0.2 or Less] 0.15 or Less | 2 x 1.5 | 300 ~ 2000 | 14600 | 38900 | Standard | 33 ~ 60 | - | Phosphate Coating | Configuration | 11 ~ 20 | ||
1 | 9 Days | 10 | 32 | 32 | [0.2 or Less] 0.15 or Less | 2 x 1.5 | 300 ~ 2000 | 14600 | 38900 | Type G | 33 ~ 60 | - | Phosphate Coating | Configuration | 11 ~ 20 | ||
1 | 9 Days | 10 | 32 | 32 | [0.2 or Less] 0.15 or Less | 2 x 1.5 | 300 ~ 2000 | 14600 | 38900 | Type L | 33 ~ 60 | - | Phosphate Coating | Configuration | 11 ~ 20 | ||
1 | 7 Days | 10 | 28 | 6 | [0.10 or Less] 0.10 or Less | 2 x 2.5 | 250 ~ 2000 | 12100 | 42300 | Standard | 27 | 15 | Not Provided | Stationary | - | ||
1 | 9 Days | 10 | 28 | 6 | [0.10 or Less] 0.10 or Less | 2 x 2.5 | 250 ~ 2000 | 12100 | 42300 | Type G | 27 | 15 | Not Provided | Stationary | - | ||
1 | 9 Days | 10 | 28 | 6 | [0.10 or Less] 0.10 or Less | 2 x 2.5 | 250 ~ 2000 | 12100 | 42300 | Type L | 27 | 15 | Not Provided | Stationary | - | ||
1 | 7 Days | 10 | 32 | 10 | [0.2 or Less] 0.20 or Less | 2 x 2.5 | 300 ~ 2000 | 32800 | 86700 | Standard | 33 | 20 | Not Provided | Stationary | - | ||
1 | 9 Days | 10 | 32 | 10 | [0.2 or Less] 0.20 or Less | 2 x 2.5 | 300 ~ 2000 | 32800 | 86700 | Type G | 33 | 20 | Not Provided | Stationary | - | ||
1 | 9 Days | 10 | 32 | 10 | [0.2 or Less] 0.20 or Less | 2 x 2.5 | 300 ~ 2000 | 32800 | 86700 | Type L | 33 | 20 | Not Provided | Stationary | - | ||
1 | 7 Days | 10 | 32 | 32 | [0.2 or Less] 0.15 or Less | 2 x 1.5 | 300 ~ 2000 | 14600 | 38900 | Standard | 33 | 20 | Not Provided | Stationary | - | ||
1 | 9 Days | 10 | 32 | 32 | [0.2 or Less] 0.15 or Less | 2 x 1.5 | 300 ~ 2000 | 14600 | 38900 | Type G | 33 | 20 | Not Provided | Stationary | - | ||
1 | 9 Days | 10 | 32 | 32 | [0.2 or Less] 0.15 or Less | 2 x 1.5 | 300 ~ 2000 | 14600 | 38900 | Type L | 33 | 20 | Not Provided | Stationary | - | ||
1 | 7 Days | 10 | 28 | 6 | [0.10 or Less] 0.10 or Less | 2 x 2.5 | 250 ~ 2000 | 12100 | 42300 | Standard | 27 ~ 45 | - | Not Provided | Configuration | 10 ~ 15 | ||
1 | 9 Days | 10 | 28 | 6 | [0.10 or Less] 0.10 or Less | 2 x 2.5 | 250 ~ 2000 | 12100 | 42300 | Type G | 27 ~ 45 | - | Not Provided | Configuration | 10 ~ 15 | ||
1 | 9 Days | 10 | 28 | 6 | [0.10 or Less] 0.10 or Less | 2 x 2.5 | 250 ~ 2000 | 12100 | 42300 | Type L | 27 ~ 45 | - | Not Provided | Configuration | 10 ~ 15 | ||
1 | 7 Days | 10 | 32 | 10 | [0.2 or Less] 0.20 or Less | 2 x 2.5 | 300 ~ 2000 | 32800 | 86700 | Standard | 33 ~ 60 | - | Not Provided | Configuration | 11 ~ 20 | ||
1 | 9 Days | 10 | 32 | 10 | [0.2 or Less] 0.20 or Less | 2 x 2.5 | 300 ~ 2000 | 32800 | 86700 | Type G | 33 ~ 60 | - | Not Provided | Configuration | 11 ~ 20 | ||
1 | 9 Days | 10 | 32 | 10 | [0.2 or Less] 0.20 or Less | 2 x 2.5 | 300 ~ 2000 | 32800 | 86700 | Type L | 33 ~ 60 | - | Not Provided | Configuration | 11 ~ 20 | ||
1 | 7 Days | 10 | 32 | 32 | [0.2 or Less] 0.15 or Less | 2 x 1.5 | 300 ~ 2000 | 14600 | 38900 | Standard | 33 ~ 60 | - | Not Provided | Configuration | 11 ~ 20 | ||
1 | 9 Days | 10 | 32 | 32 | [0.2 or Less] 0.15 or Less | 2 x 1.5 | 300 ~ 2000 | 14600 | 38900 | Type G | 33 ~ 60 | - | Not Provided | Configuration | 11 ~ 20 | ||
1 | 9 Days | 10 | 32 | 32 | [0.2 or Less] 0.15 or Less | 2 x 1.5 | 300 ~ 2000 | 14600 | 38900 | Type L | 33 ~ 60 | - | Not Provided | Configuration | 11 ~ 20 |
Loading...
Type | Rolled | Nut Type | Standard Nuts | Flange Shape | Round Shape 2 Sides Machined |
---|---|---|---|---|---|
Accuracy Grade | C10 | Preload | Not Preloaded | Conditions of Use | Standard |
Twisting Direction | Right | Nut structure | 1-fach | Circuit System | Tube Type |
Nut Size | Standard |
