MISUMI

MISUMI

[Specifications]
・Bearing Type: Angular Contact Bearing
・Bearing Precision: Grade 5
・Material: EN 1.1191 Equiv.
・Mounting Method: Side Mount

Support Units - Fixed Side, Round, Standard.
  • Order quantities extended (D-JIT)
  • Stock

Data sheet

Unit еxample related to this product
High accuracy XY table unit
Search for оther еxamples

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Support Units/Round/Fixed Side:Related Image

TypeMaterialSurface Treatment
Fixed Side onlyFixed Side and Support Side SET
BRWBRW-SETEN 1.1191 Equiv.EN 1.0038 Equiv.Black Oxide
BRWNBRWN-SETElectroless Nickel Plating
BRWRBRWR-SETLTBC Plating

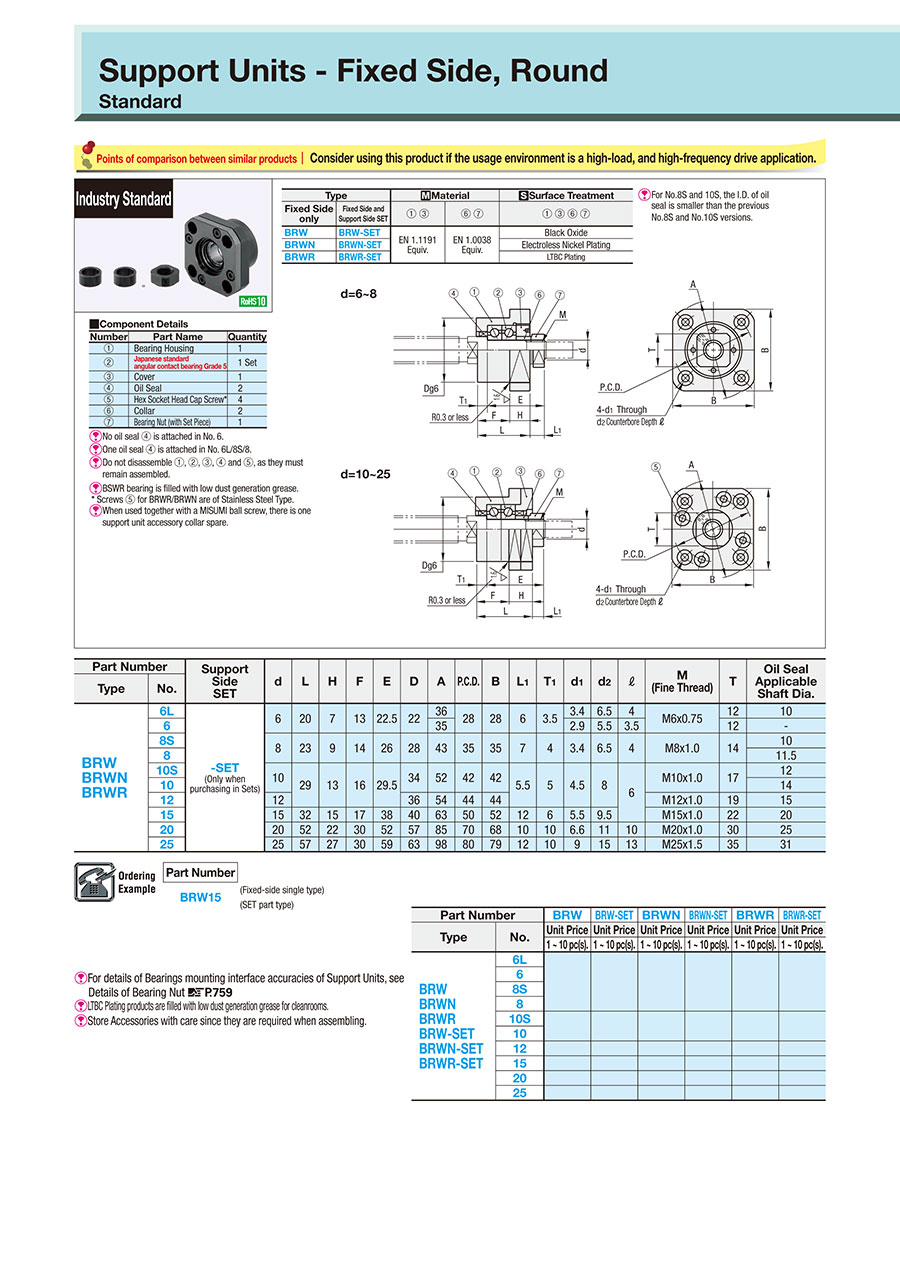

Specifications

Part Number
BRW15(Fixed-side single type)
(SET part type)
■Component Details
NumberPart NameQuantity
Bearing Housing1
Japanese standard
angular contact bearing Grade 5		1 Set
Cover1
Oil Seal2
Hex Socket Head Cap Screw*4
Collar2
Bearing Nut (with Set Piece)1

No oil seal is attached in No. 6.
One oil seal is attached in No. 6L/8S/8.
Do not disassemble , , , and , as they must remain assembled.
BSWR bearing is filled with low dust generation grease.
* Screws for BRWR/BRWN are of Stainless Steel Type.
When used together with a MISUMI ball screw, there is one support unit accessory collar spare.

Part NumberSupport Side
SET		dLHFEDAP.C.D.BL1T1d1d2ℓM
(Fine Thread)		TOil Seal
Applicable Shaft Dia.
TypeNo.
BRW
BRWN
BRWR		6L-SET
(Only when purchasing in Sets)		62071322.52236282863.53.46.54M6x0.751210
6352.95.53.512-
8S8239142628433535743.46.54M8x1.01410
811.5
10S1029131629.5345242425.554.586M10x1.01712
1014
121236544444M12x1.01915
151532151738406350521265.59.5M15x1.02220
2020522230525785706810106.61110M20x1.03025
25255727305963988079121091513M25x1.53531

Part Number:

    3D preview is not available, because the part number has not yet been determined.

  • In order to open the 3D preview, the part number must be fixed.
Loading...

Plug-in is required for 3D Preview

CAD Download

Data to be displayed
30
45
60
  1. 1
Part Number
BRW6
BRW6-SET
BRW6L
BRW6L-SET
BRW8
BRW8-SET
BRW8S
BRW8S-SET
BRW10
BRW10-SET
BRW10S
BRW10S-SET
BRW12
BRW12-SET
BRW15
BRW15-SET
BRW20
BRW20-SET
BRW25
BRW25-SET
BRWN6
BRWN6-SET
BRWN6L
BRWN6L-SET
BRWN8
BRWN8-SET
BRWN8S
BRWN8S-SET
BRWN10
BRWN10-SET
BRWN10S
BRWN10S-SET
BRWN12
BRWN12-SET
BRWN15
BRWN15-SET
BRWN20
BRWN20-SET
BRWN25
BRWN25-SET
BRWR6
BRWR6-SET
BRWR6L
BRWR6L-SET
BRWR8
BRWR8-SET
BRWR8S
BRWR8S-SET
BRWR10
BRWR10-SET
BRWR10S
BRWR10S-SET
BRWR12
BRWR12-SET
BRWR15
BRWR15-SET
BRWR20
BRWR20-SET
BRWR25
BRWR25-SET
Part Number
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
RoHSShaft Dia. d
(φ) 		Surface Treatment Thickness of Square Type L / Round Type F (mm)
(mm) 		Outer Dia. A
(φ) 		Width B
(mm) 		Basic Load Rating Dynamic Rating
(N) 		Basic Load Rating Static Rating
(N) 		Oil Seal Applicable Shaft Dia.
(Ø) 		Set

88.79 €

1 Available Same day

Stock

106Black Oxide13352826702410-Fixed Side Support Units Only

104.66 €

1 Available 5 Days 106Black Oxide13352826702410-Fixed Side: Support Side Support Unit Sets

88.79 €

1 Available Same day

Stock

106Black Oxide1336282670241010Fixed Side Support Units Only

104.66 €

1 Available 5 Days 106Black Oxide1336282670241010Fixed Side: Support Side Support Unit Sets

88.79 €

1 Available Same day

Stock

108Black Oxide1443354400440011.5Fixed Side Support Units Only

104.66 €

1 Available 5 Days 108Black Oxide1443354400440011.5Fixed Side: Support Side Support Unit Sets

88.79 €

1 Available Same day

Stock

108Black Oxide1443354400440010Fixed Side Support Units Only

104.66 €

1 Available 5 Days 108Black Oxide1443354400440010Fixed Side: Support Side Support Unit Sets

77.70 €

1 Available Same day

Stock

1010Black Oxide1652426100415014Fixed Side Support Units Only

96.47 €

1 Available 5 Days 1010Black Oxide1652426100415014Fixed Side: Support Side Support Unit Sets

77.70 €

1 Available Same day

Stock

1010Black Oxide1652426100415012Fixed Side Support Units Only

96.47 €

1 Available 5 Days 1010Black Oxide1652426100415012Fixed Side: Support Side Support Unit Sets

79.72 €

1 Available Same day

Stock

1012Black Oxide1654446650490015Fixed Side Support Units Only

99.62 €

1 Available Same day

Stock

1012Black Oxide1654446650490015Fixed Side: Support Side Support Unit Sets

93.32 €

1 Available Same day

Stock

1015Black Oxide1763527600630020Fixed Side Support Units Only

117.26 €

1 Available Same day

Stock

1015Black Oxide1763527600630020Fixed Side: Support Side Support Unit Sets

118.13 €

1 Available Same day

Stock

1020Black Oxide308568179001680025Fixed Side Support Units Only

142.06 €

1 Available Same day

Stock

1020Black Oxide308568179001680025Fixed Side: Support Side Support Unit Sets

137.77 €

1 Available Same day

Stock

1025Black Oxide309879202002060031Fixed Side Support Units Only

165.49 €

1 Available Same day

Stock

1025Black Oxide309879202002060031Fixed Side: Support Side Support Unit Sets

103.53 €

1 Available 5 Days 106Electroless Nickel Plating13352826702410-Fixed Side Support Units Only

122.54 €

1 Available 5 Days 106Electroless Nickel Plating13352826702410-Fixed Side: Support Side Support Unit Sets

103.53 €

1 Available 5 Days 106Electroless Nickel Plating1336282670241010Fixed Side Support Units Only

122.54 €

1 Available 5 Days 106Electroless Nickel Plating1336282670241010Fixed Side: Support Side Support Unit Sets

103.53 €

1 Available 5 Days 108Electroless Nickel Plating1443354400440011.5Fixed Side Support Units Only

122.54 €

1 Available 5 Days 108Electroless Nickel Plating1443354400440011.5Fixed Side: Support Side Support Unit Sets

103.53 €

1 Available Same day

Stock

108Electroless Nickel Plating1443354400440010Fixed Side Support Units Only

122.54 €

1 Available 5 Days 108Electroless Nickel Plating1443354400440010Fixed Side: Support Side Support Unit Sets

90.31 €

1 Available 5 Days 1010Electroless Nickel Plating1652426100415014Fixed Side Support Units Only

113.22 €

1 Available 5 Days 1010Electroless Nickel Plating1652426100415014Fixed Side: Support Side Support Unit Sets

90.31 €

1 Available 5 Days 1010Electroless Nickel Plating1652426100415012Fixed Side Support Units Only

113.22 €

1 Available 5 Days 1010Electroless Nickel Plating1652426100415012Fixed Side: Support Side Support Unit Sets

91.80 €

1 Available 5 Days 1012Electroless Nickel Plating1654446650490015Fixed Side Support Units Only

115.61 €

1 Available 5 Days 1012Electroless Nickel Plating1654446650490015Fixed Side: Support Side Support Unit Sets

108.31 €

1 Available Same day

Stock

1015Electroless Nickel Plating1763527600630020Fixed Side Support Units Only

135.13 €

1 Available 5 Days 1015Electroless Nickel Plating1763527600630020Fixed Side: Support Side Support Unit Sets

134.51 €

1 Available Same day

Stock

1020Electroless Nickel Plating308568179001680025Fixed Side Support Units Only

166.74 €

1 Available 5 Days 1020Electroless Nickel Plating308568179001680025Fixed Side: Support Side Support Unit Sets

168.13 €

1 Available 5 Days 1025Electroless Nickel Plating309879202002060031Fixed Side Support Units Only

204.40 €

1 Available 5 Days 1025Electroless Nickel Plating309879202002060031Fixed Side: Support Side Support Unit Sets

114.98 €

1 Available 5 Days 106LTBC Plating13352826702410-Fixed Side Support Units Only

138.78 €

1 Available 5 Days 106LTBC Plating13352826702410-Fixed Side: Support Side Support Unit Sets

114.98 €

1 Available 5 Days 106LTBC Plating1336282670241010Fixed Side Support Units Only

138.78 €

1 Available 5 Days 106LTBC Plating1336282670241010Fixed Side: Support Side Support Unit Sets

114.98 €

1 Available 5 Days 108LTBC Plating1443354400440011.5Fixed Side Support Units Only

138.78 €

1 Available 5 Days 108LTBC Plating1443354400440011.5Fixed Side: Support Side Support Unit Sets

114.98 €

1 Available 5 Days 108LTBC Plating1443354400440010Fixed Side Support Units Only

138.78 €

1 Available 5 Days 108LTBC Plating1443354400440010Fixed Side: Support Side Support Unit Sets

100.24 €

1 Available 5 Days 1010LTBC Plating1652426100415014Fixed Side Support Units Only

129.85 €

1 Available 5 Days 1010LTBC Plating1652426100415014Fixed Side: Support Side Support Unit Sets

100.24 €

1 Available 5 Days 1010LTBC Plating1652426100415012Fixed Side Support Units Only

129.85 €

1 Available 5 Days 1010LTBC Plating1652426100415012Fixed Side: Support Side Support Unit Sets

102.13 €

1 Available 5 Days 1012LTBC Plating1654446650490015Fixed Side Support Units Only

137.28 €

1 Available 5 Days 1012LTBC Plating1654446650490015Fixed Side: Support Side Support Unit Sets

120.39 €

1 Available 5 Days 1015LTBC Plating1763527600630020Fixed Side Support Units Only

163.10 €

1 Available 5 Days 1015LTBC Plating1763527600630020Fixed Side: Support Side Support Unit Sets

149.49 €

1 Available 5 Days 1020LTBC Plating308568179001680025Fixed Side Support Units Only

202.52 €

1 Available 5 Days 1020LTBC Plating308568179001680025Fixed Side: Support Side Support Unit Sets

176.94 €

1 Available 5 Days 1025LTBC Plating309879202002060031Fixed Side Support Units Only

239.03 €

1 Available 5 Days 1025LTBC Plating309879202002060031Fixed Side: Support Side Support Unit Sets
