Support Units / Round / Fixed Side / Radial Bearings / Economy
Click image to view enlarged image
Part number:

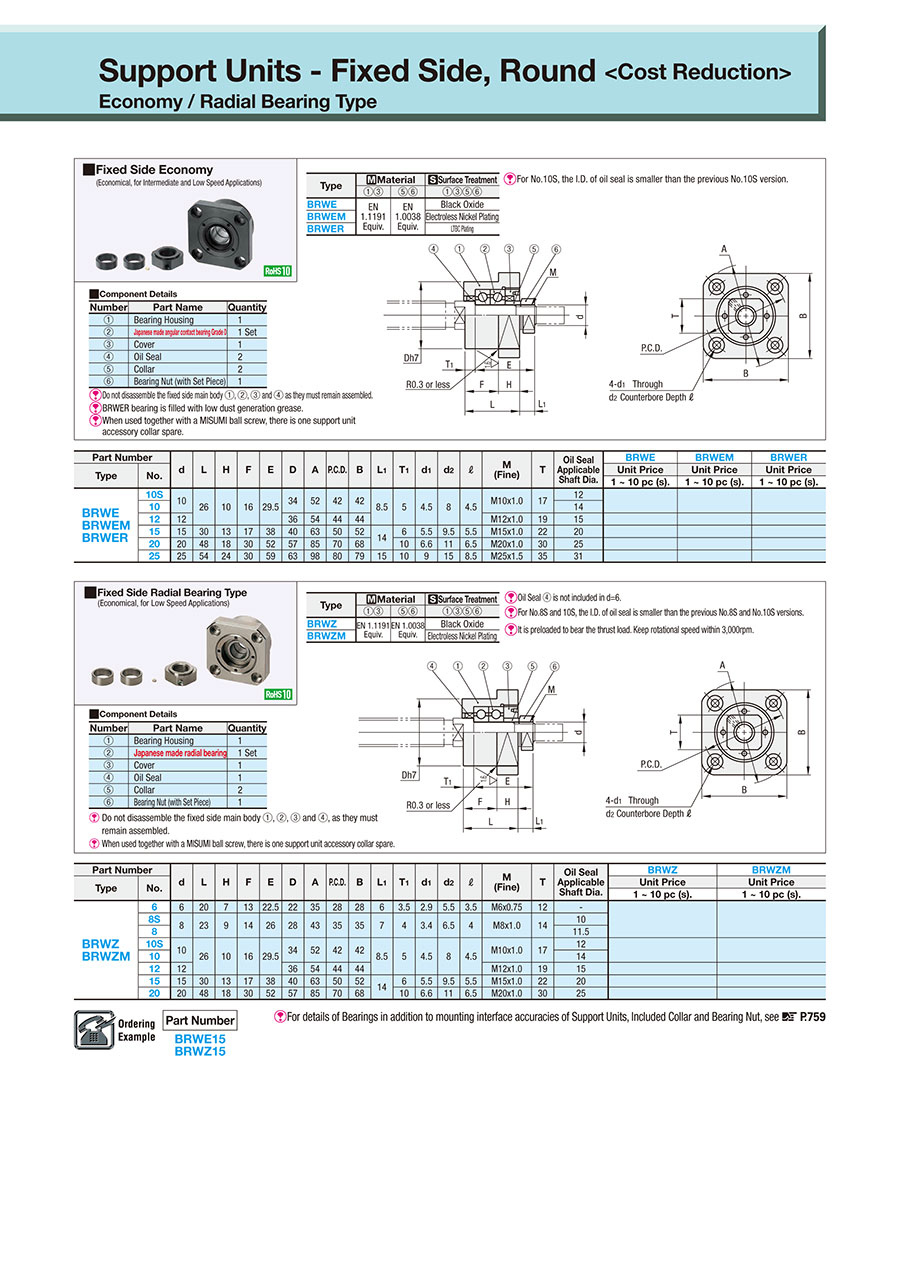

possible part numbers found.Outline drawing and specifications table
[ ! ] For No.8S and 10S, the I.D. of oil seal is smaller than the previous No.8S and No.10S versions.
| Type | [M] Material | [S] Surface Treatment | |
| (1)(3) | (5)(6) | (1)(3)(5)(6) | |
| BRWZ | EN 1.1191 Equiv. | EN 1.0038 Equiv. | Black Oxide |
| BRWZM | Electroless Nickel Plating | ||
Specification Table
| Part Number |
| BRWE15 BRWZ15 |
■ Component Details
[ ! ] Do not disassemble (1), (2), (3) and (4) as they must remain as an assembled unit.
[ ! ] Oil Seal (4) is not included in d = 6.
[ ! ] When used together with a MISUMI ball screw, there is 1 support unit accessory collar spare.
| Number | Part Name | Quantity |
| (1) | Bearing Housing | 1 |
| (2) | Japanese made radial bearing | 1 Set |
| (3) | Cover | 1 |
| (4) | Oil Seal | 1 |
| (5) | Collar | 2 |
| (6) | Bearing Nut (with Set Piece) | 1 |
[ ! ] Oil Seal (4) is not included in d = 6.
[ ! ] When used together with a MISUMI ball screw, there is 1 support unit accessory collar spare.
| Part Number | d | L | H | F | E | D | A | P.C.D. | B | L1 | T1 | d1 | d2 | ℓ | M (Fine) | T | Oil Seal Applicable Shaft Dia. | |
| Type | No. | |||||||||||||||||
| BRWZ BRWZM | 6 | 6 | 20 | 7 | 13 | 22.5 | 22 | 35 | 28 | 28 | 6 | 3.5 | 2.9 | 5.5 | 3.5 | M6 × 0.75 | 12 | — |
| 8S | 8 | 23 | 9 | 14 | 26 | 28 | 43 | 35 | 35 | 7 | 4 | 3.4 | 6.5 | 4 | M8 × 1.0 | 14 | 10 | |
| 8 | 11.5 | |||||||||||||||||
| 10S | 10 | 26 | 10 | 16 | 29.5 | 34 | 52 | 42 | 42 | 8.5 | 5 | 4.5 | 8 | 4.5 | M10 × 1.0 | 17 | 12 | |
| 10 | 14 | |||||||||||||||||
| 12 | 12 | 36 | 54 | 44 | 44 | M12 × 1.0 | 19 | 15 | ||||||||||
| 15 | 15 | 30 | 13 | 17 | 38 | 40 | 63 | 50 | 52 | 14 | 6 | 5.5 | 9.5 | 5.5 | M15 × 1.0 | 22 | 20 | |
| 20 | 20 | 48 | 18 | 30 | 52 | 57 | 85 | 70 | 68 | 10 | 6.6 | 11 | 6.5 | M20 × 1.0 | 30 | 25 | ||
Part number list
Number of items
| Part number |
|---|
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
60.33 € ( 71.79 € ) | Stock item: 1 working dayAvailable for same-day shipping |
60.33 € ( 71.79 € ) | 5 working days |
60.33 €31.37 € ( 37.33 € ) | Stock item: 1 working dayAvailable for same-day shipping |
49.62 € ( 59.05 € ) | 5 working days |
49.62 € ( 59.05 € ) | 5 working days |
51.00 € ( 60.69 € ) | 5 working days |
59.70 € ( 71.04 € ) | 5 working days |
75.69 € ( 90.07 € ) | 5 working days |
72.42 € ( 86.18 € ) | 5 working days |
72.42 € ( 86.18 € ) | 5 working days |
69.27 € ( 82.43 € ) | 5 working days |
56.93 € ( 67.75 € ) | 5 working days |
56.93 € ( 67.75 € ) | 5 working days |
57.93 € ( 68.94 € ) | 5 working days |
68.64 € ( 81.68 € ) | 5 working days |
90.41 € ( 107.59 € ) | 5 working days |
