Bearing Covers / Round Flange

Click image to view enlarged image

CatalogP.1-1032

Part number:

Still undefined. 207 possible part numbers found.

Outline drawing and specifications table
Part number list
More Information
Catalog

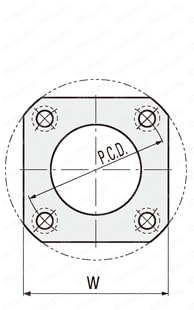

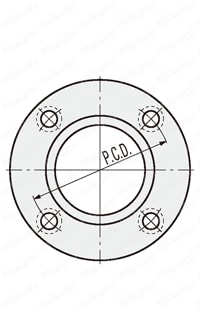

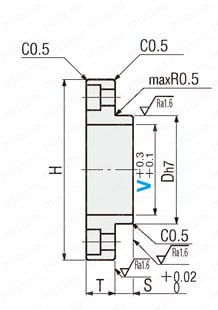

Outline drawing and specifications table

Flat			Pilot
	(Round Flanged)	(Square Flanged)		(Round Flanged)	(Square Flanged)

[ ! ] Unless otherwise specified, the dimension tolerance conforms to JIS B 0405 Class m.

Flat		Pilot		[M] Material	[S] Surface Treatment
Round Flanged	Square Flanged	Round Flanged	Square Flanged	[M] Material	[S] Surface Treatment
—	BVFS	—	BVIS	EN 1.1191 Equiv.	—
BVFCM	BVFSM	BVICM	BVISM	EN 1.1191 Equiv.	Electroless Nickel Plating
—	—	BVICA	BVISA	EN AW−5052 Equiv.	Clear Anodize
BVFCS	—	—	—	EN 1.4301 Equiv.	—

Specification Table

Part Number

BVFS10
[oil]SF-BVFCM10

Degreasing Service

Part Number		Applicable Bearing	Applicable Screw	H	P.C.D.	W	T	d	d₁	D	S
Type	V
Flat (Round Flanged) BVFCM BVFCS (Square Flanged) BVFS BVFSM Pilot (Round Flanged) BVICM BVICA (Square Flanged) BVIS BVISM BVISA	4	673	M3	26	16	21	5	3.5	6.5	6	1.5
	5	674								7
	6	693								8
	8	623·694		29	19	23				10	2.0
	10	624·695	M4	35	24	28	6	4.5	8.0	13
	11	605·696								14
	12	625		39	28	31				16
	13	606								17
	15	626·698								19
	18	608·6900		46	35	36				22
	20	628·6901								24
	21	6000								26
	23	6001·6902	M5	51	38	41	7	5.5	9.5	28
	25	6200·6903		58	45	45				30
	26	6201·6002								32
	30	6202·6003								35
	32	6904·6203		63	50	48				37
	35	6004·6905		70	57	54				42
	40	6204·6005·6906								47
	46	6205	M6	89	75	68	8	6.5	11.0	52
	47	6006·6907								55
	56	6206·6007·6908								62
	64	6008·6207·6208		107	93	81				68

Alterations

Part number list

Number of items

Part number

Material

Surface Treatment

Shape

I.D. V

(Ø)

RoHS?

Minimum order quantity

EN 1.1191 Equiv.	Electroless Nickel Plating	Flat Round Flanged Type	4	10	1 pieces
EN 1.1191 Equiv.	Electroless Nickel Plating	Flat Round Flanged Type	5	10	1 pieces
EN 1.1191 Equiv.	Electroless Nickel Plating	Flat Round Flanged Type	6	10	1 pieces
EN 1.1191 Equiv.	Electroless Nickel Plating	Flat Round Flanged Type	8	10	1 pieces
EN 1.1191 Equiv.	Electroless Nickel Plating	Flat Round Flanged Type	10	10	1 pieces
EN 1.1191 Equiv.	Electroless Nickel Plating	Flat Round Flanged Type	11	10	1 pieces
EN 1.1191 Equiv.	Electroless Nickel Plating	Flat Round Flanged Type	12	10	1 pieces
EN 1.1191 Equiv.	Electroless Nickel Plating	Flat Round Flanged Type	13	10	1 pieces
EN 1.1191 Equiv.	Electroless Nickel Plating	Flat Round Flanged Type	15	10	1 pieces
EN 1.1191 Equiv.	Electroless Nickel Plating	Flat Round Flanged Type	18	10	1 pieces
EN 1.1191 Equiv.	Electroless Nickel Plating	Flat Round Flanged Type	20	10	1 pieces
EN 1.1191 Equiv.	Electroless Nickel Plating	Flat Round Flanged Type	21	10	1 pieces
EN 1.1191 Equiv.	Electroless Nickel Plating	Flat Round Flanged Type	23	10	1 pieces
EN 1.1191 Equiv.	Electroless Nickel Plating	Flat Round Flanged Type	25	10	1 pieces
EN 1.1191 Equiv.	Electroless Nickel Plating	Flat Round Flanged Type	26	10	1 pieces
EN 1.1191 Equiv.	Electroless Nickel Plating	Flat Round Flanged Type	30	10	1 pieces
EN 1.1191 Equiv.	Electroless Nickel Plating	Flat Round Flanged Type	32	10	1 pieces
EN 1.1191 Equiv.	Electroless Nickel Plating	Flat Round Flanged Type	35	10	1 pieces
EN 1.1191 Equiv.	Electroless Nickel Plating	Flat Round Flanged Type	40	10	1 pieces
EN 1.1191 Equiv.	Electroless Nickel Plating	Flat Round Flanged Type	46	10	1 pieces
EN 1.1191 Equiv.	Electroless Nickel Plating	Flat Round Flanged Type	47	10	1 pieces
EN 1.1191 Equiv.	Electroless Nickel Plating	Flat Round Flanged Type	56	10	1 pieces
EN 1.1191 Equiv.	Electroless Nickel Plating	Flat Round Flanged Type	64	10	1 pieces
EN 1.4301 Equiv.	-	Flat Round Flanged Type	4	10	1 pieces
EN 1.4301 Equiv.	-	Flat Round Flanged Type	5	10	1 pieces
EN 1.4301 Equiv.	-	Flat Round Flanged Type	6	10	1 pieces
EN 1.4301 Equiv.	-	Flat Round Flanged Type	8	10	1 pieces
EN 1.4301 Equiv.	-	Flat Round Flanged Type	10	10	1 pieces
EN 1.4301 Equiv.	-	Flat Round Flanged Type	11	10	1 pieces
EN 1.4301 Equiv.	-	Flat Round Flanged Type	12	10	1 pieces
EN 1.4301 Equiv.	-	Flat Round Flanged Type	13	10	1 pieces
EN 1.4301 Equiv.	-	Flat Round Flanged Type	15	10	1 pieces
EN 1.4301 Equiv.	-	Flat Round Flanged Type	18	10	1 pieces
EN 1.4301 Equiv.	-	Flat Round Flanged Type	20	10	1 pieces
EN 1.4301 Equiv.	-	Flat Round Flanged Type	21	10	1 pieces
EN 1.4301 Equiv.	-	Flat Round Flanged Type	23	10	1 pieces
EN 1.4301 Equiv.	-	Flat Round Flanged Type	25	10	1 pieces
EN 1.4301 Equiv.	-	Flat Round Flanged Type	26	10	1 pieces
EN 1.4301 Equiv.	-	Flat Round Flanged Type	30	10	1 pieces
EN 1.4301 Equiv.	-	Flat Round Flanged Type	32	10	1 pieces
EN 1.4301 Equiv.	-	Flat Round Flanged Type	35	10	1 pieces
EN 1.4301 Equiv.	-	Flat Round Flanged Type	40	10	1 pieces
EN 1.4301 Equiv.	-	Flat Round Flanged Type	46	10	1 pieces
EN 1.4301 Equiv.	-	Flat Round Flanged Type	47	10	1 pieces
EN 1.4301 Equiv.	-	Flat Round Flanged Type	56	10	1 pieces
EN 1.4301 Equiv.	-	Flat Round Flanged Type	64	10	1 pieces
EN 1.1191 Equiv.	Not Provided	Flat Square Flanged Type	4	10	1 pieces
EN 1.1191 Equiv.	Not Provided	Flat Square Flanged Type	5	10	1 pieces
EN 1.1191 Equiv.	Not Provided	Flat Square Flanged Type	6	10	1 pieces
EN 1.1191 Equiv.	Not Provided	Flat Square Flanged Type	8	10	1 pieces
EN 1.1191 Equiv.	Not Provided	Flat Square Flanged Type	10	10	1 pieces
EN 1.1191 Equiv.	Not Provided	Flat Square Flanged Type	11	10	1 pieces
EN 1.1191 Equiv.	Not Provided	Flat Square Flanged Type	12	10	1 pieces
EN 1.1191 Equiv.	Not Provided	Flat Square Flanged Type	13	10	1 pieces
EN 1.1191 Equiv.	Not Provided	Flat Square Flanged Type	15	10	1 pieces
EN 1.1191 Equiv.	Not Provided	Flat Square Flanged Type	18	10	1 pieces
EN 1.1191 Equiv.	Not Provided	Flat Square Flanged Type	20	10	1 pieces
EN 1.1191 Equiv.	Not Provided	Flat Square Flanged Type	21	10	1 pieces
EN 1.1191 Equiv.	Not Provided	Flat Square Flanged Type	23	10	1 pieces
EN 1.1191 Equiv.	Not Provided	Flat Square Flanged Type	25	10	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

16.40 € ( 19.52 € )	7 working days
16.40 € ( 19.52 € )	7 working days
16.40 € ( 19.52 € )	7 working days
16.40 € ( 19.52 € )	7 working days
19.83 € ( 23.60 € )	7 working days
19.83 € ( 23.60 € )	7 working days
19.83 € ( 23.60 € )	7 working days
19.83 € ( 23.60 € )	7 working days
19.83 € ( 23.60 € )	7 working days
19.83 € ( 23.60 € )	7 working days
23.24 € ( 27.66 € )	7 working days
23.24 € ( 27.66 € )	7 working days
27.15 € ( 32.31 € )	7 working days
27.15 € ( 32.31 € )	7 working days
27.15 € ( 32.31 € )	7 working days
34.17 € ( 40.66 € )	7 working days
34.17 € ( 40.66 € )	7 working days
34.17 € ( 40.66 € )	7 working days
34.17 € ( 40.66 € )	7 working days
37.92 € ( 45.12 € )	7 working days
37.92 € ( 45.12 € )	7 working days
37.92 € ( 45.12 € )	7 working days
41.68 € ( 49.60 € )	7 working days
25.11 € ( 29.88 € )	7 working days
25.11 € ( 29.88 € )	7 working days
25.11 € ( 29.88 € )	7 working days
25.11 € ( 29.88 € )	7 working days
36.55 € ( 43.49 € )	7 working days
36.55 € ( 43.49 € )	7 working days
36.55 € ( 43.49 € )	7 working days
36.55 € ( 43.49 € )	7 working days
36.55 € ( 43.49 € )	7 working days
36.55 € ( 43.49 € )	7 working days
41.84 € ( 49.79 € )	7 working days
41.84 € ( 49.79 € )	7 working days
47.82 € ( 56.91 € )	7 working days
47.82 € ( 56.91 € )	7 working days
47.82 € ( 56.91 € )	7 working days
55.85 € ( 66.46 € )	7 working days
55.85 € ( 66.46 € )	7 working days
55.85 € ( 66.46 € )	7 working days
55.85 € ( 66.46 € )	7 working days
61.49 € ( 73.17 € )	7 working days
61.49 € ( 73.17 € )	7 working days
61.49 € ( 73.17 € )	7 working days
67.82 € ( 80.71 € )	7 working days
27.15 € ( 32.31 € )	7 working days
27.15 € ( 32.31 € )	7 working days
27.15 € ( 32.31 € )	7 working days
27.15 € ( 32.31 € )	7 working days
29.73 € ( 35.38 € )	7 working days
29.73 € ( 35.38 € )	7 working days
29.73 € ( 35.38 € )	7 working days
29.73 € ( 35.38 € )	7 working days
29.73 € ( 35.38 € )	7 working days
29.73 € ( 35.38 € )	7 working days
32.12 € ( 38.22 € )	7 working days
32.12 € ( 38.22 € )	7 working days
34.51 € ( 41.07 € )	7 working days
34.51 € ( 41.07 € )	7 working days
