Bearing Shaft Screws / with Retaining Ring Groove / Bolt

Configure

Material
- EN 1.1191 Equiv.
- EN 1.4301 Equiv.
Surface Treatment
- Black Oxide
- Electroless Nickel Plating
Pin Dia. D(φ)
- 4
- 5
- 6
- 8
- 10
- 12
O.D. H(φ)
- 7
- 8
- 9
- 11
- 13
- 14
- 15
- 16
- 17
- 18
F(mm)
[4-45/1mm units]
L(mm)
[15-50/1mm units]
S(mm)
- 5
- 10
- 15
- 20
- 22
- 25
Type
CAD
- 2D
- 3D
Est. shipping days
- All
- Within 9 working days

Bearing Shaft Screws / with Retaining Ring Groove / Bolt

CatalogP.1-1040

Part number:

Still undefined. 30 possible part numbers found.

Outline drawing and specifications table
Part number list
More Information
Catalog

Outline drawing and specifications table

M	α
M 4	2.1
M 5	2.3
M 6	2.7
M 8	3.4
M10	4.15
M12	4.65

[ ! ] Unless otherwise specified, the dimension tolerance conforms to JIS B 0405 Class m. However, chamfer tolerances are excluded.
[!] When F ≥ L - S - a, Retaining Ring grooves are machined into incomplete threads. Please select carefully.

Type	[M] Material	[S] Surface Treatment	[A] Accessory
BGPW	EN 1.1191 Equiv.	Black oxide	Retaining Ring 1 pc. (EN 1.4301 Equiv.)
BGPMW	EN 1.1191 Equiv.	Electroless Nickel Plating
BGPSW	EN 1.4301 Equiv.	—

Specification Table

Part Number	—	H	—	L	—	S	—	F
BGPMW5 BGSPW8	— —	8 11	— —	L25 L27	— —	S15 S10	—	F8

Part Number		H Selectable	L 1 mm Increments	S Selectable					F 1 mm Increments	T	B	M (Coarse)	m		d		Ds	Applicable Bearing	Included Retaining Ring
Type	D	H Selectable	L 1 mm Increments	S Selectable					F 1 mm Increments	T	B	M (Coarse)	m	Tolerance	d	Tolerance	Ds	Applicable Bearing	Shape	JIS Nominal ^*
BGPW BGPMW BGPSW	4	7	15 to 25	5	10	15			F ≥ M F ≤ L−S−2	2	2	M4	0.7	+ 0.1 0	3	+ 0.06 0	6	674 694 624	E Type	No.3
	5	8	15 to 25	5	10	15					2.5	M5			4	+ 0.075 0	7	695 605 625 675		No. 4
	6	9	20 to 30		10	15	20				3	M6			5	+ 0.075 0	8	696 606 626 676		No. 5
	8	11	20 to 30		10	15	20		F ≥ M F ≤ L−S−3	3	4	M8	0.9		7	+ 0.09 0	10	698 608 628 678		No.7
	10	13	20 to 30		10	15	20				5	M10	1.15	+ 0.14 0	9.6	0 － 0.09	12	6800	C Type	No. 10
		14	20 to 30		10	15	20										13	6900 6000
		17	25 to 40			15	20	25									16	6200
	12	15	20 to 30		10	15	20				6	M12			11.5	0 － 0.11	14	6801		No. 12
		16	25 to 40		10	15	20										15	6901 6001
		18	30 to 50			15	20	25									17	6201

Part number list

Number of items

Part number

BGPMW4-7-L[15-25/1]-S[5,10,15]-F[4-20/1]

BGPMW5-8-L[15-25/1]-S[5,10,15]-F[5-20/1]

BGPMW6-9-L[20-30/1]-S[10,15,20]-F[6-25/1]

BGPMW8-11-L[20-30/1]-S[10,15,20]-F[8-25/1]

BGPMW10-13-L[20-30/1]-S[10,15,20]-F[10-25/1]

BGPMW10-14-L[20-30/1]-S[10,15,20]-F[10-25/1]

BGPMW10-17-L[25-40/1]-S[15,20,25]-F[10-35/1]

BGPMW12-15-L[20-30/1]-S[10,15,20]-F[12-25/1]

BGPMW12-16-L[25-40/1]-S[10,15,20]-F[12-35/1]

BGPMW12-18-L[30-50/1]-S[10,15,20]-F[12-45/1]

BGPSW4-7-L[15-25/1]-S[5,10,15]-F[4-20/1]

BGPSW5-8-L[15-25/1]-S[5,10,15]-F[5-20/1]

BGPSW6-9-L[20-30/1]-S[10,15,20]-F[6-25/1]

BGPSW8-11-L[20-30/1]-S[10,15,20]-F[8-25/1]

BGPSW10-13-L[20-30/1]-S[10,15,20]-F[10-25/1]

BGPSW10-14-L[20-30/1]-S[10,15,20]-F[10-25/1]

BGPSW10-17-L[25-40/1]-S[15,20,25]-F[10-35/1]

BGPSW12-15-L[20-30/1]-S[10,15,20]-F[12-25/1]

BGPSW12-16-L[25-40/1]-S[10,15,20]-F[12-35/1]

BGPSW12-18-L[30-50/1]-S[10,15,20,25]-F[12-45/1]

BGPW4-7-L[15-25/1]-S[5,10,15]-F[4-20/1]

BGPW5-8-L[15-25/1]-S[5,10,15]-F[4-20/1]

BGPW6-9-L[20-30/1]-S[5,10,15,20]-F[4-20/1]

BGPW8-11-L[20-30/1]-S[10,15,20]-F[4-20/1]

BGPW10-13-L[20-30/1]-S[5,10,15]-F[4-20/1]

BGPW10-14-L[20-30/1]-S[5,10,15]-F[4-20/1]

BGPW10-17-L[25-40/1]-S[15,20,22,25]-F[10-27/1]

BGPW12-15-L[20-30/1]-S[5,10,15]-F[4-20/1]

BGPW12-16-L[25-40/1]-S[5,10,15]-F[12-27/1]

BGPW12-18-L[30-50/1]-S[15,20,25]-F[4-32/1]

Material

Surface Treatment

Pin Dia. D

(φ)

O.D. H

(φ)

(mm)

RoHS?

Minimum order quantity

EN 1.1191 Equiv.	Electroless Nickel Plating	4	7	4 ～ 20	15 ～ 25	5 ～ 15	10	1 pieces
EN 1.1191 Equiv.	Electroless Nickel Plating	5	8	5 ～ 20	15 ～ 25	5 ～ 15	10	1 pieces
EN 1.1191 Equiv.	Electroless Nickel Plating	6	9	6 ～ 25	20 ～ 30	10 ～ 20	10	1 pieces
EN 1.1191 Equiv.	Electroless Nickel Plating	8	11	8 ～ 25	20 ～ 30	10 ～ 20	10	1 pieces
EN 1.1191 Equiv.	Electroless Nickel Plating	10	13	10 ～ 25	20 ～ 30	10 ～ 20	10	1 pieces
EN 1.1191 Equiv.	Electroless Nickel Plating	10	14	10 ～ 25	20 ～ 30	10 ～ 20	10	1 pieces
EN 1.1191 Equiv.	Electroless Nickel Plating	10	17	10 ～ 35	25 ～ 40	15 ～ 25	10	1 pieces
EN 1.1191 Equiv.	Electroless Nickel Plating	12	15	12 ～ 25	20 ～ 30	10 ～ 20	10	1 pieces
EN 1.1191 Equiv.	Electroless Nickel Plating	12	16	12 ～ 35	25 ～ 40	10 ～ 20	10	1 pieces
EN 1.1191 Equiv.	Electroless Nickel Plating	12	18	12 ～ 45	30 ～ 50	10 ～ 20	10	1 pieces
EN 1.4301 Equiv.	-	4	7	4 ～ 20	15 ～ 25	5 ～ 15	10	1 pieces
EN 1.4301 Equiv.	-	5	8	5 ～ 20	15 ～ 25	5 ～ 15	10	1 pieces
EN 1.4301 Equiv.	-	6	9	6 ～ 25	20 ～ 30	10 ～ 20	10	1 pieces
EN 1.4301 Equiv.	-	8	11	8 ～ 25	20 ～ 30	10 ～ 20	10	1 pieces
EN 1.4301 Equiv.	-	10	13	10 ～ 25	20 ～ 30	10 ～ 20	10	1 pieces
EN 1.4301 Equiv.	-	10	14	10 ～ 25	20 ～ 30	10 ～ 20	10	1 pieces
EN 1.4301 Equiv.	-	10	17	10 ～ 35	25 ～ 40	15 ～ 25	10	1 pieces
EN 1.4301 Equiv.	-	12	15	12 ～ 25	20 ～ 30	10 ～ 20	10	1 pieces
EN 1.4301 Equiv.	-	12	16	12 ～ 35	25 ～ 40	10 ～ 20	10	1 pieces
EN 1.4301 Equiv.	-	12	18	12 ～ 45	30 ～ 50	10 ～ 25	10	1 pieces
EN 1.1191 Equiv.	Black Oxide	4	7	4 ～ 20	15 ～ 25	5 ～ 15	10	1 pieces
EN 1.1191 Equiv.	Black Oxide	5	8	4 ～ 20	15 ～ 25	5 ～ 15	10	1 pieces
EN 1.1191 Equiv.	Black Oxide	6	9	4 ～ 20	20 ～ 30	5 ～ 20	10	1 pieces
EN 1.1191 Equiv.	Black Oxide	8	11	4 ～ 20	20 ～ 30	10 ～ 20	10	1 pieces
EN 1.1191 Equiv.	Black Oxide	10	13	4 ～ 20	20 ～ 30	5 ～ 15	10	1 pieces
EN 1.1191 Equiv.	Black Oxide	10	14	4 ～ 20	20 ～ 30	5 ～ 15	10	1 pieces
EN 1.1191 Equiv.	Black Oxide	10	17	10 ～ 27	25 ～ 40	15 ～ 25	10	1 pieces
EN 1.1191 Equiv.	Black Oxide	12	15	4 ～ 20	20 ～ 30	5 ～ 15	10	1 pieces
EN 1.1191 Equiv.	Black Oxide	12	16	12 ～ 27	25 ～ 40	5 ～ 15	10	1 pieces
EN 1.1191 Equiv.	Black Oxide	12	18	4 ～ 32	30 ～ 50	15 ～ 25	10	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days

More Information

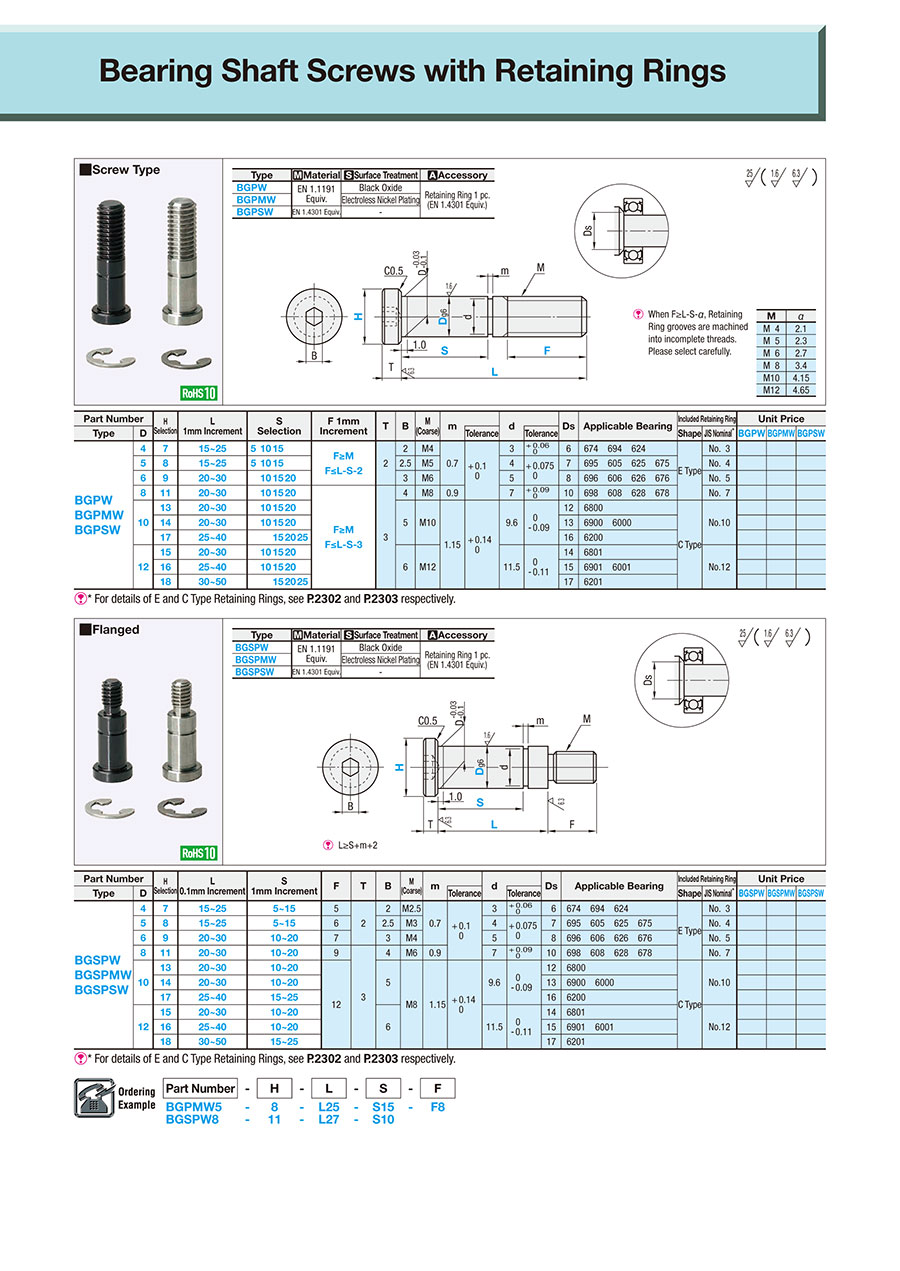

Catalog
