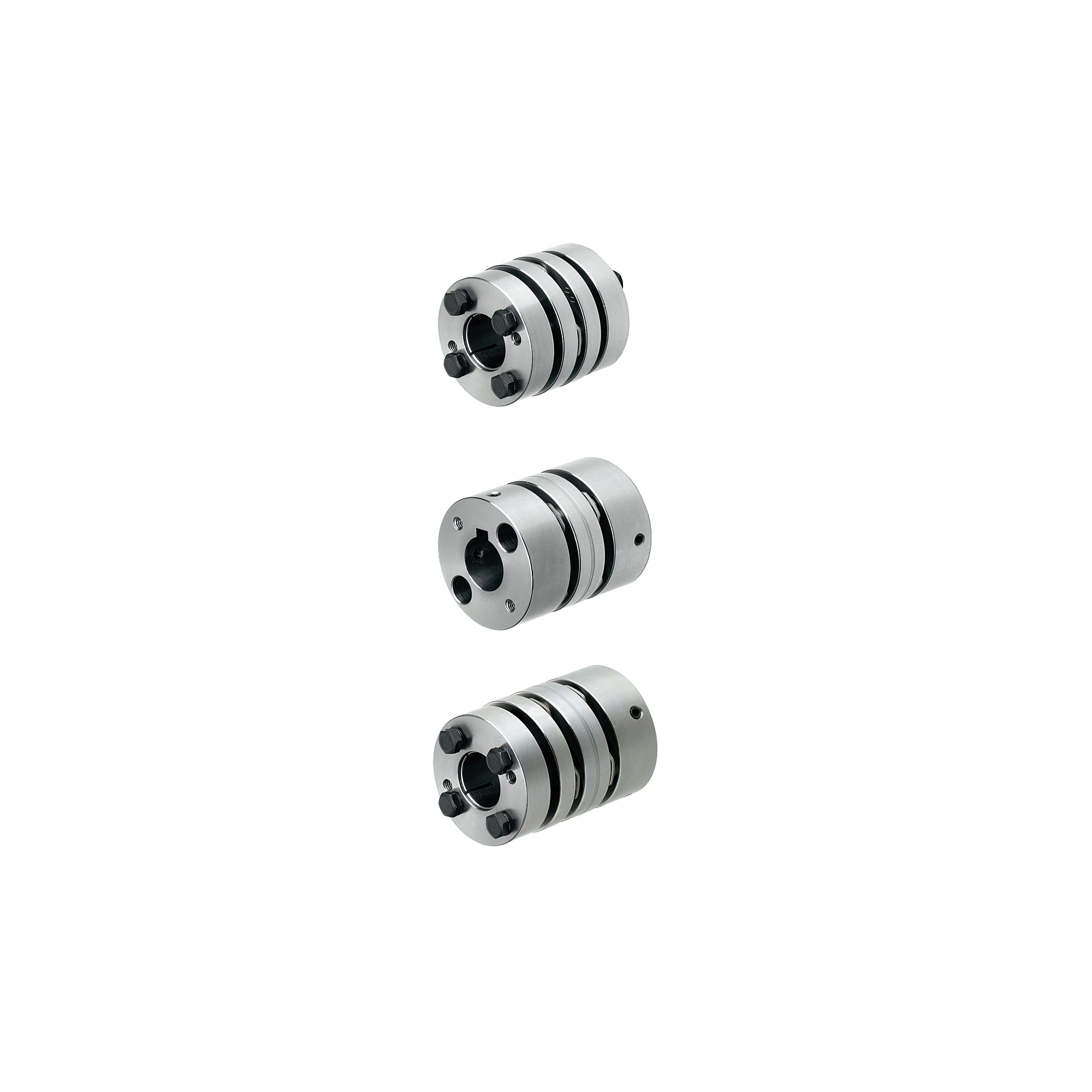

Servo couplings / mounting selectable / 1 disc, 2 discs: steel / body: aluminium, steel, Ø 40

Servo couplings / mounting selectable / 1 disc, 2 discs: steel / body: aluminium, steel, Ø 40

Mouse over image to enlarge

Part number:

Still undefined. 6 possible part numbers found.
Quantity:

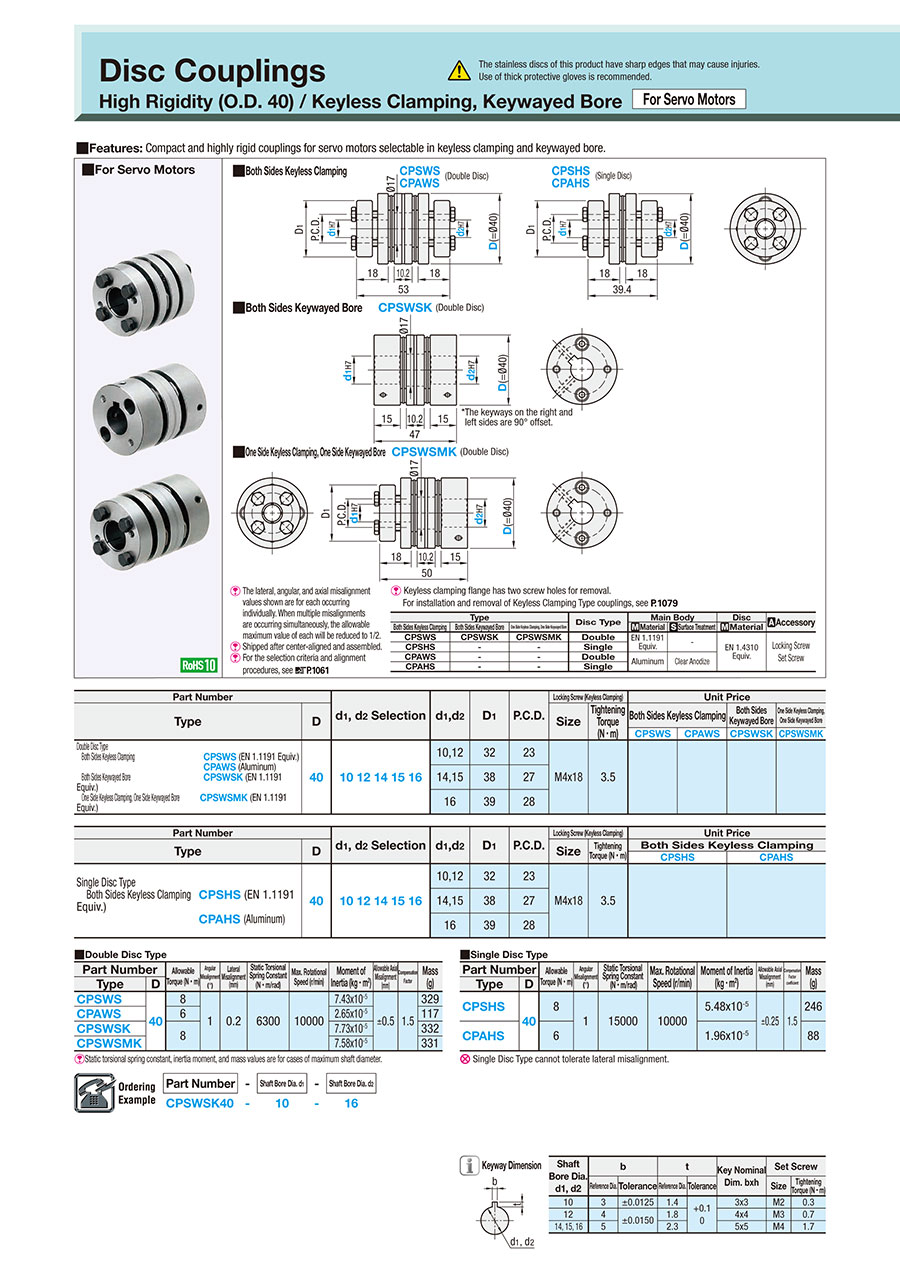

Outline drawing and specifications table

Back to the Category Shaft Couplings

Technical Drawing - Claw Couplings

Couplings/High Rigidity Disc/O.D.40mm:Related Image
Open the technical drawing in the new window



Available dimensions and tolerances can be found under the tab More information.

Basic Properties (e.g., material, hardness, coating, tolerance) - Claw Couplings

The lateral, angular, and axial misalignment values shown are for each occurring individually. When multiple misalignments are occurring simultaneously, the allowable maximum value of each will be reduced to 1/2.
Shipped after center-aligned and assembled.
For the selection criteria and alignment procedures, see >> P.1061

Keyless clamping fl ange has two screw holes for removal.
For installation and removal of Keyless Clamping Type couplings, see P.1079
TypeDisc TypeMain BodyDiscAccessory
Both Sides Keyless ClampingBoth Sides Keywayed BoreOne Side Keyless Clamping, One Side Keywayed BoreMaterialSurface TreatmentMaterial
CPSWSCPSWSKCPSWSMKDoubleEN 1.1191 Equiv.-EN 1.4310 Equiv.Locking Screw
Set Screw
CPSHS--Single
CPAWS--DoubleAluminumClear Anodize
CPAHS--Single

Further specifications can be found under the tab More information.

Composition of a Product Code - Claw Couplings

Part Number-Shaft Bore Dia. d1-Shaft Bore Dia. d2
CPSWSK40-10-16

General Information - Claw Couplings

Shaft coupling - compensation coupling - Oldham coupling - slit coupling - chain coupling - disc coupling - bellow coupling - product assortment



Shaft Coupling Selection Details

- Material: aluminum, aluminum alloy, steel, stainless steel, plastic

- Coupling buffer material: polyacetal, polyurethane, nylon, aluminum bronze, carbon fibre reinforced polymer (CFRP)

- Disc material: stainless steel, polyimide, carbon fibre (carbon)

- Fastening: hub clamping, half shell clamping, threaded pin clamping, clamping sleeve, keyway

- Design: slit coupling, disc coupling (servo coupling), Oldham coupling, dog coupling, jaw coupling, bellow coupling, metal bellow coupling, elastomer coupling

- ISO tolerances: H8

- Shaft diameter: 1 to 45 mm

- Outer diameter: 6 to 95 mm

- Length: 8.4 to 100 mm

- Offset: angle offset, radial offset, axial offset

Design Overview



Description/Basics

A shaft coupling, also called a compensating coupling, is generally used for the transmission of torque for mechanical engineering. Flexible shaft couplings (non-rigid) can compensate for lateral, axial and angular offsets (misalignment). Therefore, these are common connecting elements between motors and axles/shafts or even ball screws.

There are various types of designs, such as the jaw couplings, disc couplings (servo couplings), slit couplings, bellow couplings, Oldham couplings and many others, which are selected depending on the type of misalignment. You can determine which design is the right one for transmission in your application with the Coupling Selection Method available as a PDF.

When the shaft coupling is professionally installed, the transmission of rotational forces should be slip-free. To do this, the appropriate shaft coupling must be selected depending on the application. Here, it is important to observe the degree of misalignment, the maximum speed of rotation and the permissible torque of the compensation coupling and not to exceed these values during operation. If several misalignments occur at the same time, it is recommended to reduce the maximum value of the specified misalignment by approximately half.

The most commonly used elastomer coupling is the jaw coupling, which consists of a plastic buffer with damping properties. As a result, shocks and vibrations in a drive system can be damped, which protects adjacent components in the transmission of force. Our product range offers you alternative materials for the elastomers. These include among others aluminum bronze and carbon fibre-reinforced plastic.

The different shaft connections on the compensation couplings allow various connection variants for assembly. For this purpose, hub clamping, half shell clamping, slot clamping, threaded pin clamping, chip sleeve and keyways are available.
If a keyway is selected for a MISUMI shaft coupling, it is recommended obtaining the MISUMI machine key, as it is best to combine these.

A shaft coupling can be used for precise positioning. These are often combined together with slide screws or ball screws. A disc clutch (servo coupling) is suitable for this application, since it has a high torsional rigidity.

In addition to the standardized diameter of the shaft bore, MISUMI offers the option LDC and RDC, which allows the drill diameter to be adjusted to the shaft end in 0.1 mm increments.



Application Examples - Claw Couplings

Application example: shaft coupling - disc coupling with servo motor - disc coupling with ball screw drive - shaft clutch with servo motor - shaft clutch with ball screw drive

Shaft coupling with servo motor and ball screw
(1) Servo motor, (2) disc coupling (servo coupling), (3) ball screw

Application example: shaft coupling with encoder - shaft coupling with bearing housing - slit coupling with encoder - slit coupling with bearing housing -

Slit coupling with encoder
(1) Bearing with housing, (2) shaft coupling, (3) motor, (4) axles/shafts

Application example - Performance test stand with shaft coupling - Oldham coupling with engine - test stand with Oldham coupling

Engine test stand with Oldham coupling
(1) X-axis positioning stage, (2) performance test station, (3) shaft coupling, (4) brackets, L-shaped

Application example: synchronous pulley with shaft coupling - shaft coupling with motor and gearbox

Shaft coupling with motor and gearbox
(1) Motor, (2) Shaft coupling, (3) Conversion/Reducing gears, (4) Timing pulleys / Idlers



Industrial Applications

3D printer industry
Automotive industry
Pharmaceutical industry
Packaging industry

Part number list

Number of items

Allowable Misalignment

Shaft Bore Dia. 1 d1 (or d)

(mm)

Shaft Bore Dia. 2 d2 (or d)

(mm)

Overall Length

(mm)

Features

Body Material

Allowable Torque

(Nm)

Allowable Lateral Misalignment Range

(mm)

Allowable Lateral Misalignment

(mm)

Allowable Axial Misalignment

(mm)

Moment of Inertia

(kg・m2)

Single/Double

Shaft Bore Shape

RoHS?Minimum order quantity
Angular Misalignment / Axial Misalignment
10 ~ 16
10 ~ 16
39.4
High Torsional Rigidity / High Torque Type / Zero Backlash / Low Moment of Inertia / Small
[Aluminum] Aluminum
6
-
-
+0.25/-0.25
1.96x10-5
1-fach
Both Ends Surface Pressure
10
1 pieces
Angular Misalignment / Eccentricity / Axial Misalignment
10 ~ 16
10 ~ 16
53
High Torsional Rigidity / High Torque Type / Zero Backlash / Low Moment of Inertia / Small
[Aluminum] Aluminum
6
0.02 to 0.2
0.2
+0.5/-0.5
2.65x10-5
Double
Both Ends Surface Pressure
10
1 pieces
Angular Misalignment / Axial Misalignment
10 ~ 16
10 ~ 16
39.4
High Torsional Rigidity / High Torque Type / Zero Backlash / Small
[Steel] EN 1.1191 Equiv.
8
-
-
+0.25/-0.25
5.48x10-5
1-fach
Both Ends Surface Pressure
10
1 pieces
Angular Misalignment / Eccentricity / Axial Misalignment
10 ~ 16
10 ~ 16
53
High Torsional Rigidity / High Torque Type / Zero Backlash / Small
[Steel] EN 1.1191 Equiv.
8
0.02 to 0.2
0.2
+0.5/-0.5
7.43x10-5
1-fach
Both Ends Surface Pressure
10
1 pieces
Angular Misalignment / Eccentricity / Axial Misalignment
10 ~ 16
10 ~ 16
47
High Torsional Rigidity / High Torque Type / Zero Backlash / Small
[Steel] EN 1.1191 Equiv.
8
0.02 to 0.2
0.2
+0.5/-0.5
7.73x10-5
Double
Both Sides with Keyway Holes
10
1 pieces
Angular Misalignment / Eccentricity / Axial Misalignment
10 ~ 16
10 ~ 16
50
High Torsional Rigidity / High Torque Type / Zero Backlash / Small
[Steel] EN 1.1191 Equiv.
8
0.02 to 0.2
0.2
+0.5/-0.5
7.58x10-5
Double
One End with Surface Pressure, One End with Keyway Holes
10
1 pieces
Unit price (excluding VAT)(Unit price including VAT)
Standard shipping days
-
( - )
7 working days
-
( - )
7 working days
-
( - )
7 working days
-
( - )
7 working days
-
( - )
7 working days
-
( - )
7 working days

More Information

Basic information

It has a compact size, and the high rigidity surface pressure and keyway can be selected.

Outline and specifications

Back to the Category Shaft Couplings

Technical Drawing - Claw Couplings

Couplings/High Rigidity Disc/O.D.40mm:Related Image
The lateral, angular, and axial misalignment values shown are for each occurring individually. When multiple misalignments are occurring simultaneously, the allowable maximum value of each will be reduced to 1/2.
Shipped after center-aligned and assembled.
For the selection criteria and alignment procedures, see >> P.1061

Keyless clamping fl ange has two screw holes for removal.
  For installation and removal of Keyless Clamping Type couplings, see P.1079
Open the technical drawing in the new window

Specification Tables - Claw Couplings

Part Numberd1, d2 Selectiond1,d2D1P.C.D.Locking Screw (Keyless Clamping)Unit Price
 Type DSizeTightening Torque
(N • m)
Both Sides Keyless ClampingBoth Sides Keywayed BoreOne Side Keyless Clamping, One Side Keywayed Bore
CPSWSCPAWSCPSWSKCPSWSMK
Double Disc Type
Both Sides Keyless Clamping
CPSWS (EN 1.1191 Equiv.)
CPAWS (Aluminum)
Both Sides Keywayed Bore
CPSWSK (EN 1.1191 Equiv.)
One Side Keyless Clamping,
One Side Keywayed Bore
CPSWSMK (EN 1.1191 Equiv.)
4010 12 14 15 1610,123223M4x183.5
14,153827
163928
Part Numberd1, d2 Selectiond1,d2D1P.C.D.Locking Screw (Keyless Clamping)Unit Price
TypeDSizeTightening Torque (N • m)Both Sides Keyless Clamping
CPSHSCPAHS
Single Disc Type
Both Sides Keyless Clamping
CPSHS (EN 1.1191 Equiv.)
CPAHS (Aluminum)
4010 12 14 15 1610,123223M4x183.5
14,153827
163928
■Double Disc Type
Part NumberAllowable Torque (N • m)Angular Misalignment (°)Lateral Misalignment (mm)Static Torsional Spring Constant (N • m/rad)Max. Rotational Speed (r/min)Moment of Inertia (kg • m2)Allowable Axial Misalignment (mm)Compensation FactorMass (g)
TypeD
CPSWS40810.26300100007.43x10-5±0.51.5329
CPAWS62.65x10-5117
CPSWSK87.73x10-5332
CPSWSMK7.58x10-5331
Static torsional spring constant, inertia moment, and mass values are for cases of maximum shaft diameter.

■Single Disc Type
Part NumberAllowable Torque (N • m)Angular Misalignment (°)Static Torsional Spring Constant
(N • m/rad)
Max. Rotational Speed (r/min)Moment of Inertia (kg • m2)Allowable Axial Misalignment
(mm)
Compensation Factor
coefficient
Mass (g)
TypeD
CPSHS408115000100005.48x10-5±0.251.5246
CPAHS61.96x10-588
Single Disc Type cannot tolerate lateral misalignment.
