Locating Pins, Bushings
Drill Bushes / Positioning Bushes / Centring Bushes
Flanged drill bushes / groove / Bore +0.01 / steel, stainless steel / 50HRC, 60HRC

Configure

Inner Diameter(mm)
[4-25/0.01mm units]
Outer Diameter(mm)
- 8
- 10
- 12
- 15
- 18
- 20
- 22
- 25
- 26
- 30
- 35
Outer Diameter Tolerance
- p6
- m6
- h6
Material
Steel
EN 1.2510 Equiv.
Stainless Steel
EN 1.4037 Equiv.
Surface Treatment
- Not Provided
- Electroless Nickel Plating
Length L(mm)
[8-50/0.1mm units]
Type
CAD
- 2D
- 3D
Est. shipping days
- All
- Within 14 working days

Flanged drill bushes / groove / Bore +0.01 / steel, stainless steel / 50HRC, 60HRC

CatalogP.1-1683

Part number:

Still undefined. 88 possible part numbers found.

Outline drawing and specifications table
Part number list
More Information
Catalog

Outline drawing and specifications table

[ ! ]

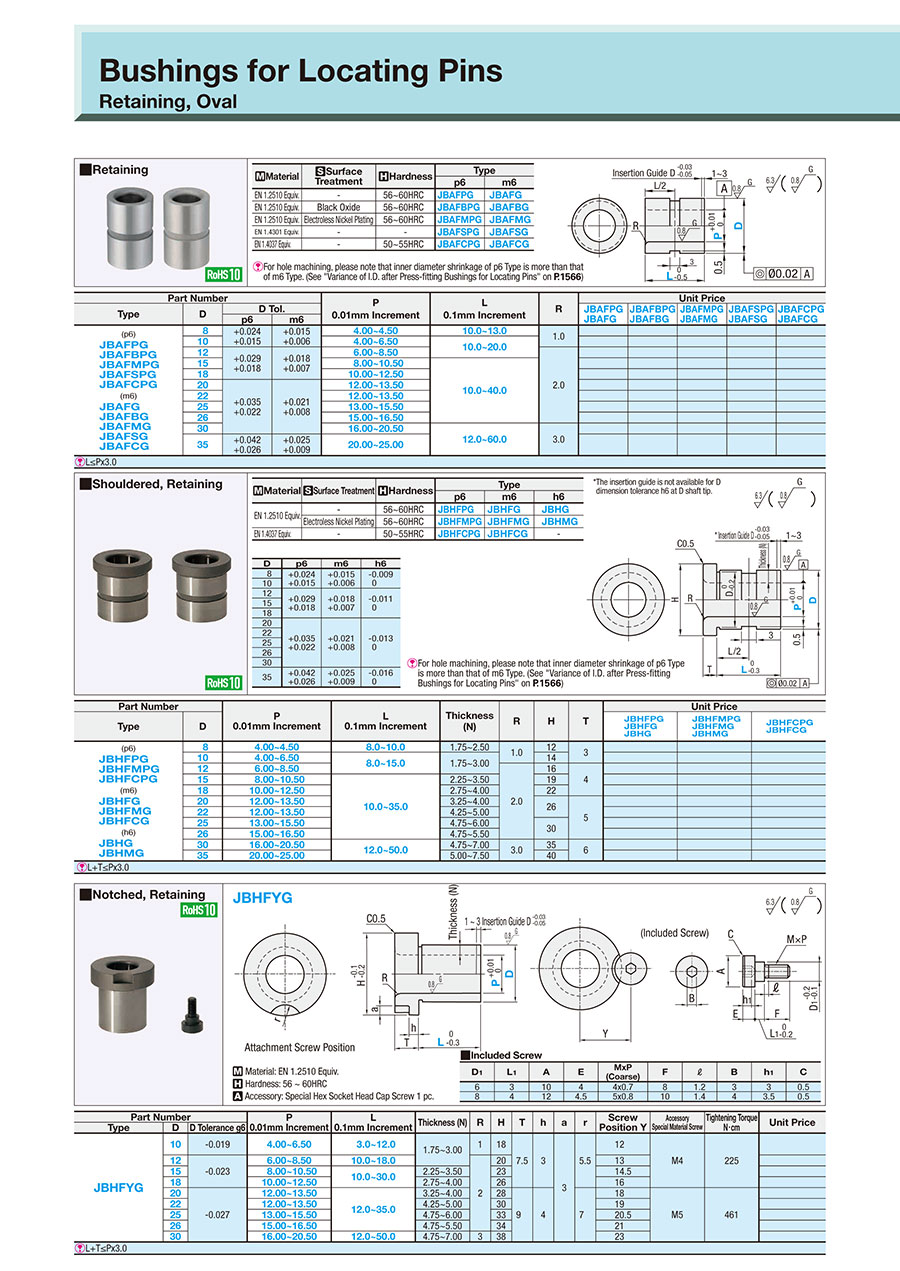

Bushing for Locating Pin - Shouldered, Retaining: Related Image

D	p6	m6	h6
8	+0.024 +0.015	+0.015 +0.006	0 －0.009
10
12	+0.029 +0.018	+0.018 +0.007	0 －0.011
15
18
20	+0.035 +0.022	+0.021 +0.008	0 －0.013
22
25
26
30
35	+0.042 +0.026	+0.025 +0.009	0 －0.016

* The insertion guide is not available for D dimension tolerance h6 at D shaft tip.

[ ! ] For hole machining, please note that inner diameter shrinkage of p6 Type is larger than that of m6 Type.

[M] Material	[S] Surface Treatment	[H] Hardness	Type
[M] Material	[S] Surface Treatment	[H] Hardness	p6	m6	h6
EN 1.2510 Equiv.	—	56 to 60HRC	JBHFPG	JBHFG	JBHG
EN 1.2510 Equiv.	Electroless Nickel Plating	56 to 60HRC	JBHFMPG	JBHFMG	JBHMG
EN 1.4037 Equiv.	—	50 to 55HRC	JBHFCPG	JBHFCG	—

Specification Table

Part Number	—	P	—	W	—	L
JBAFG8 JBHG20 JBHFYG18 JBFR10 JBPE10	— — — — —	P4.1 P13.0 P12.00 P6.0 P6.8	— —	W4.5 W4.8	— — — — —	L11 L20 L18.0 L10 L15

Part Number		P 0.01 mm Increments	L 0.1 mm Increments	Thickness (N)	R	H	T
Type	D
(p6) JBHFPG JBHFMPG JBHFCPG (m6) JBHFG JBHFMG JBHFCG (h6) JBHG JBHMG	8	4.00 to 4.50	8.0 to 10.0	1.75 to 2.50	1.0	12	3
	10	4.00 to 6.50	8.0 to 15.0	1.75 to 3.00		14
	12	6.00 to 8.50			2.0	16	4
	15	8.00 to 10.50	10.0 to 35.0	2.25 to 3.50		19
	18	10.00 to 12.50		2.75 to 4.00		22
	20	12.00 to 13.50		3.25 to 4.00		26	5
	22	12.00 to 13.50		4.25 to 5.00
	25	13.00 to 15.50		4.75 to 6.00		30
	26	15.00 to 16.50		4.75 to 5.50
	30	16.00 to 20.50	12.0 to 50.0	4.75 to 7.00	3.0	35	6
	35	20.00 to 25.00		5.00 to 7.50		40
[ ! ]L+T ≤ P × 3.0

Alterations

Part Number	—	P	—	W	—	L	—	(HC·RH)
JBAFPG18 JBFR10	— —	P8.00 P6.0	—	W4.5	— —	L15.0 L10	— —	HC RH

Alterations	Code	Spec.
Set Screw Groove Depth	HC	Changes the depth of set screw groove depth from 0.5 mm to 1.0 mm. Ordering Code HC [ ! ] Applicable to Retaining Straight only [ ! ] Applicable to D dimension 18 or more
I.D. Radius R	RH	Changes the inner diameter radius R from shoulder side to D dimension end face. Size of R will be the same as R on shoulder side. Ordering Code RH [ ! ] Applicable to Compact Flange, Economy Type only [ ! ] (D−P)/2−R ≥ 1.7

Part number list

Number of items

Part number

JBHFCG8-P[4-4.5/0.01]-L[8-10/0.1]

JBHFCG10-P[4-6.5/0.01]-L[8-15/0.1]

JBHFCG12-P[6-8.5/0.01]-L[8-15/0.1]

JBHFCG15-P[8-10.5/0.01]-L[10-35/0.1]

JBHFCG18-P[10-12.5/0.01]-L[10-35/0.1]

JBHFCG20-P[12-13.5/0.01]-L[10-35/0.1]

JBHFCG22-P[12-13.5/0.01]-L[10-35/0.1]

JBHFCG25-P[13-15.5/0.01]-L[10-35/0.1]

JBHFCG26-P[15-16.5/0.01]-L[10-35/0.1]

JBHFCG30-P[16-20.5/0.01]-L[12-50/0.1]

JBHFCG35-P[20-25/0.01]-L[12-50/0.1]

JBHFCPG8-P[4-4.5/0.01]-L[8-10/0.1]

JBHFCPG10-P[4-6.5/0.01]-L[8-15/0.1]

JBHFCPG12-P[6-8.5/0.01]-L[8-15/0.1]

JBHFCPG15-P[8-10.5/0.01]-L[10-35/0.1]

JBHFCPG18-P[10-12.5/0.01]-L[10-35/0.1]

JBHFCPG20-P[12-13.5/0.01]-L[10-35/0.1]

JBHFCPG22-P[12-13.5/0.01]-L[10-35/0.1]

JBHFCPG25-P[13-15.5/0.01]-L[10-35/0.1]

JBHFCPG26-P[15-16.5/0.01]-L[10-35/0.1]

JBHFCPG30-P[16-20.5/0.01]-L[12-50/0.1]

JBHFCPG35-P[20-25/0.01]-L[12-50/0.1]

JBHFG8-P[4-4.5/0.01]-L[8-10/0.1]

JBHFG10-P[4-6.5/0.01]-L[8-15/0.1]

JBHFG12-P[6-8.5/0.01]-L[8-15/0.1]

JBHFG15-P[8-10.5/0.01]-L[10-35/0.1]

JBHFG18-P[10-12.5/0.01]-L[10-35/0.1]

JBHFG20-P[12-13.5/0.01]-L[10-35/0.1]

JBHFG22-P[12-13.5/0.01]-L[10-35/0.1]

JBHFG25-P[13-15.5/0.01]-L[10-35/0.1]

JBHFG26-P[15-16.5/0.01]-L[10-35/0.1]

JBHFG30-P[16-20.5/0.01]-L[12-50/0.1]

JBHFG35-P[20-25/0.01]-L[12-50/0.1]

JBHFMG8-P[4-4.5/0.01]-L[8-10/0.1]

JBHFMG10-P[4-6.5/0.01]-L[8-15/0.1]

JBHFMG12-P[6-8.5/0.01]-L[8-15/0.1]

JBHFMG15-P[8-10.5/0.01]-L[10-35/0.1]

JBHFMG18-P[10-12.5/0.01]-L[10-35/0.1]

JBHFMG20-P[12-13.5/0.01]-L[10-35/0.1]

JBHFMG22-P[12-13.5/0.01]-L[10-35/0.1]

JBHFMG25-P[13-15.5/0.01]-L[10-35/0.1]

JBHFMG26-P[15-16.5/0.01]-L[10-35/0.1]

JBHFMG30-P[16-20.5/0.01]-L[12-50/0.1]

JBHFMG35-P[20-25/0.01]-L[12-50/0.1]

JBHFMPG8-P[4-4.5/0.01]-L[8-10/0.1]

JBHFMPG10-P[4-6.5/0.01]-L[8-15/0.1]

JBHFMPG12-P[6-8.5/0.01]-L[8-15/0.1]

JBHFMPG15-P[8-10.5/0.01]-L[10-35/0.1]

JBHFMPG18-P[10-12.5/0.01]-L[10-35/0.1]

JBHFMPG20-P[12-13.5/0.01]-L[10-35/0.1]

JBHFMPG22-P[12-13.5/0.01]-L[10-35/0.1]

JBHFMPG25-P[13-15.5/0.01]-L[10-35/0.1]

JBHFMPG26-P[15-16.5/0.01]-L[10-35/0.1]

JBHFMPG30-P[16-20.5/0.01]-L[12-50/0.1]

JBHFMPG35-P[20-25/0.01]-L[12-50/0.1]

JBHFPG8-P[4-4.5/0.01]-L[8-10/0.1]

JBHFPG10-P[4-6.5/0.01]-L[8-15/0.1]

JBHFPG12-P[6-8.5/0.01]-L[8-15/0.1]

JBHFPG15-P[8-10.5/0.01]-L[10-35/0.1]

JBHFPG18-P[10-12.5/0.01]-L[10-35/0.1]

Inner Diameter

(mm)

Outer Diameter

(mm)

Outer Diameter Tolerance

Material

Surface Treatment

Length L

(mm)

RoHS?

Minimum order quantity

4 ～ 4.5	8	m6	[Stainless Steel] EN 1.4037 Equiv.	Not Provided	8 ～ 10	10	1 pieces
4 ～ 6.5	10	m6	[Stainless Steel] EN 1.4037 Equiv.	Not Provided	8 ～ 15	10	1 pieces
6 ～ 8.5	12	m6	[Stainless Steel] EN 1.4037 Equiv.	Not Provided	8 ～ 15	10	1 pieces
8 ～ 10.5	15	m6	[Stainless Steel] EN 1.4037 Equiv.	Not Provided	10 ～ 35	10	1 pieces
10 ～ 12.5	18	m6	[Stainless Steel] EN 1.4037 Equiv.	Not Provided	10 ～ 35	10	1 pieces
12 ～ 13.5	20	m6	[Stainless Steel] EN 1.4037 Equiv.	Not Provided	10 ～ 35	10	1 pieces
12 ～ 13.5	22	m6	[Stainless Steel] EN 1.4037 Equiv.	Not Provided	10 ～ 35	10	1 pieces
13 ～ 15.5	25	m6	[Stainless Steel] EN 1.4037 Equiv.	Not Provided	10 ～ 35	10	1 pieces
15 ～ 16.5	26	m6	[Stainless Steel] EN 1.4037 Equiv.	Not Provided	10 ～ 35	10	1 pieces
16 ～ 20.5	30	m6	[Stainless Steel] EN 1.4037 Equiv.	Not Provided	12 ～ 50	10	1 pieces
20 ～ 25	35	m6	[Stainless Steel] EN 1.4037 Equiv.	Not Provided	12 ～ 50	10	1 pieces
4 ～ 4.5	8	p6	[Stainless Steel] EN 1.4037 Equiv.	Not Provided	8 ～ 10	10	1 pieces
4 ～ 6.5	10	p6	[Stainless Steel] EN 1.4037 Equiv.	Not Provided	8 ～ 15	10	1 pieces
6 ～ 8.5	12	p6	[Stainless Steel] EN 1.4037 Equiv.	Not Provided	8 ～ 15	10	1 pieces
8 ～ 10.5	15	p6	[Stainless Steel] EN 1.4037 Equiv.	Not Provided	10 ～ 35	10	1 pieces
10 ～ 12.5	18	p6	[Stainless Steel] EN 1.4037 Equiv.	Not Provided	10 ～ 35	10	1 pieces
12 ～ 13.5	20	p6	[Stainless Steel] EN 1.4037 Equiv.	Not Provided	10 ～ 35	10	1 pieces
12 ～ 13.5	22	p6	[Stainless Steel] EN 1.4037 Equiv.	Not Provided	10 ～ 35	10	1 pieces
13 ～ 15.5	25	p6	[Stainless Steel] EN 1.4037 Equiv.	Not Provided	10 ～ 35	10	1 pieces
15 ～ 16.5	26	p6	[Stainless Steel] EN 1.4037 Equiv.	Not Provided	10 ～ 35	10	1 pieces
