Tapered Pin Locating Block Sets / Counterbored
Part number:

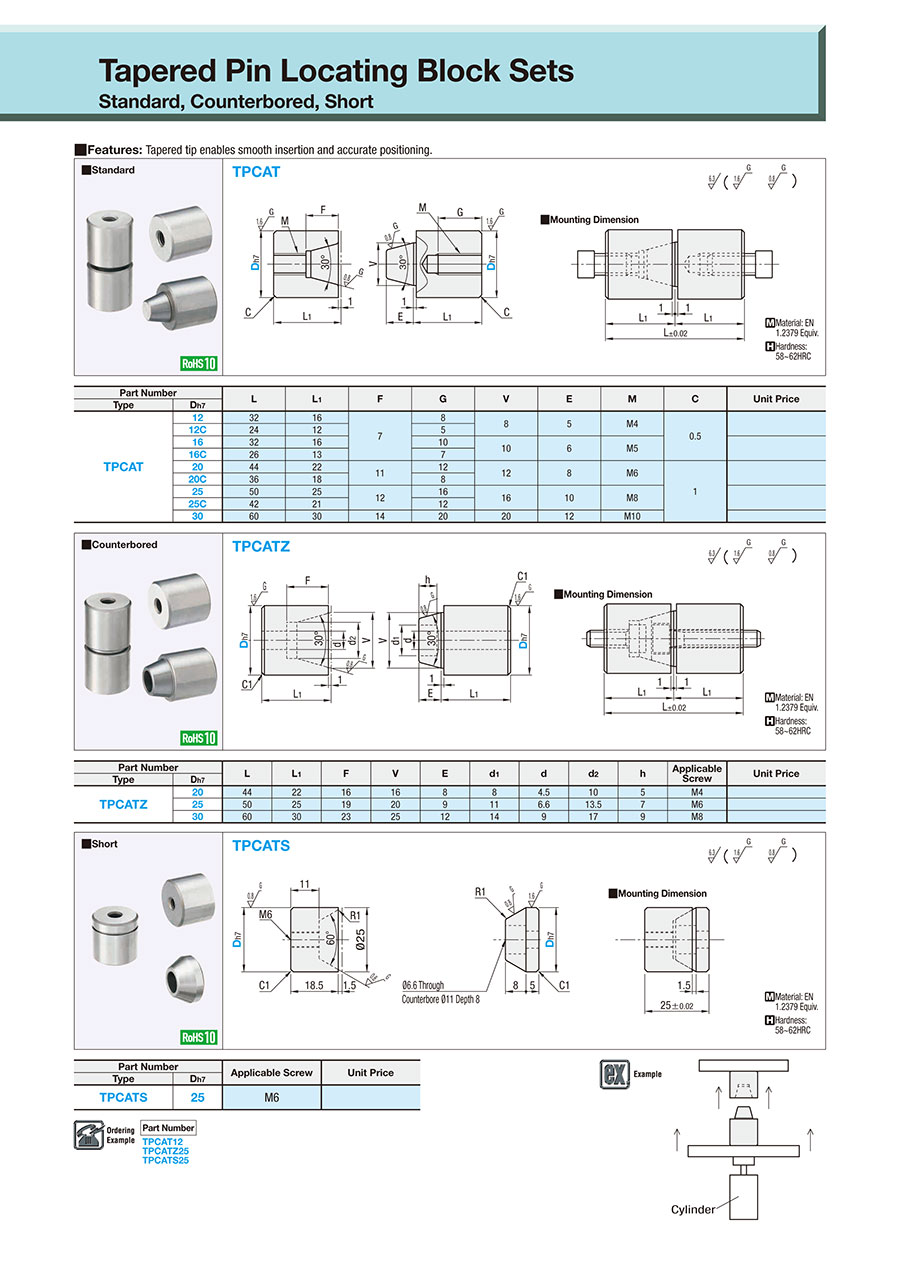

possible part numbers found.Outline drawing and specifications table
TPCATZ | ■Mounting dimension |
[M] Material
EN 1.2379 Equiv.
[ H ] Hardness
58 to 62HRC
Specification Table
| Part number |
| TPCATZ25 |
| Part number | L | L1 | F | V | E | d1 | d | d2 | h | Applicable Screw | Mass (g) (Reference Value) | |
| Type | Dh7 | |||||||||||
| TPCATZ | 20 | 44 | 22 | 16 | 16 | 8 | 8 | 4.5 | 10 | 5 | M4 | 92 |
| 25 | 50 | 25 | 19 | 20 | 9 | 11 | 6.6 | 13.5 | 7 | M6 | 158 | |
| 30 | 60 | 30 | 23 | 25 | 12 | 14 | 9 | 17 | 9 | M8 | 269 | |
Part number list
Number of items
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
77.69 € ( 92.45 € ) | Stock item: 1 working dayAvailable for same-day shipping |
87.93 € ( 104.64 € ) | Stock item: 1 working dayAvailable for same-day shipping |
97.80 € ( 116.38 € ) | Stock item: 1 working dayAvailable for same-day shipping |
