    Locating Block Sets / V-Shaped / Plate Holding / Standard

    Locating Block Sets / V-Shaped / Plate Holding / Standard

    Part number:

    Still undefined. 10 possible part numbers found.
    Quantity:

    Outline drawing and specifications table

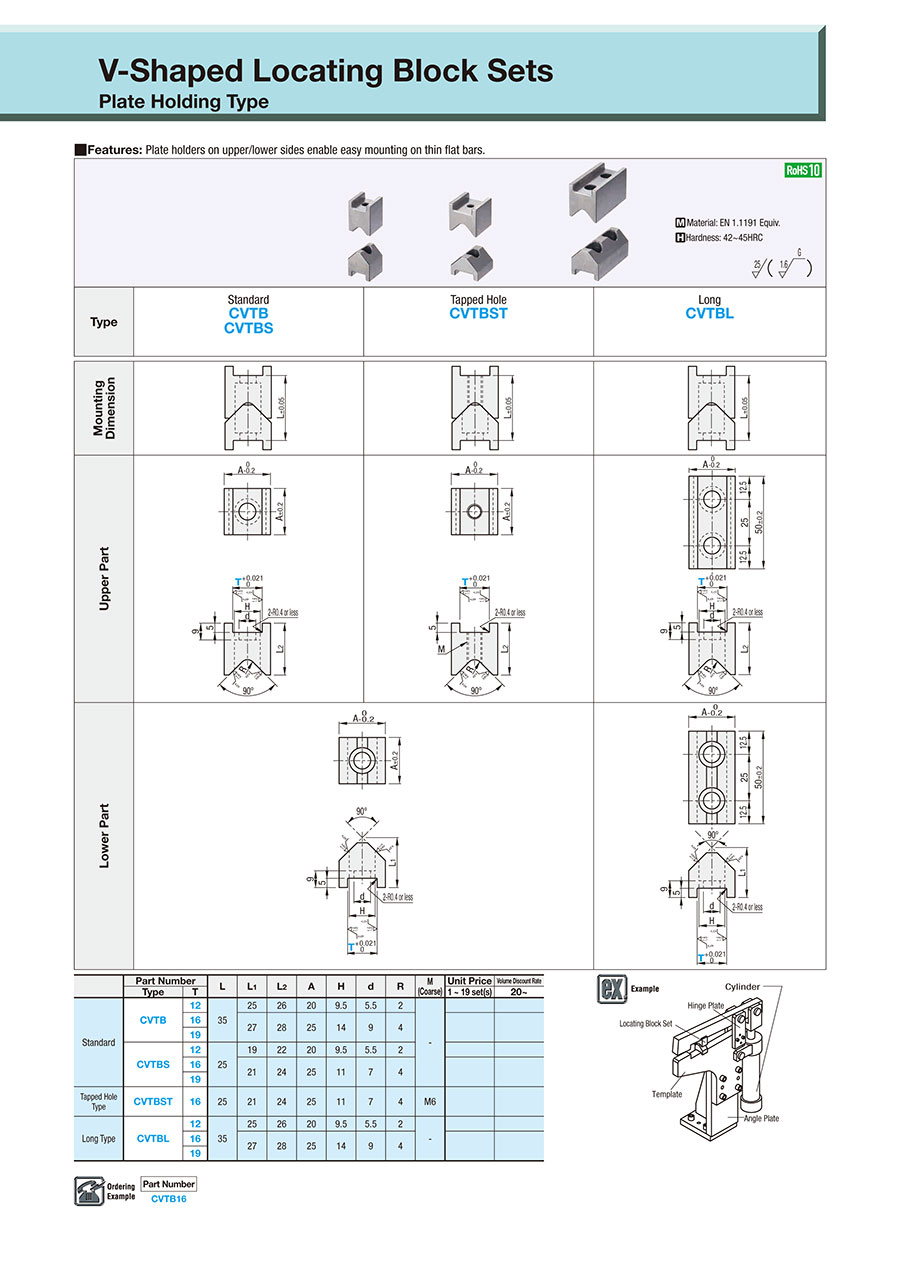

    V-Groove Catcher, Plate Holding Dimensional Drawing
    TypeStandard
    CVTB
    CVTBS    		Tapped Hole Type
    CVTBST    		Long Type
    CVTBL
    Mounting DimensionV-Groove Catcher, Plate Holding Dimensional DrawingV-Groove Catcher, Plate Holding Dimensional DrawingV-Groove Catcher, Plate Holding Dimensional Drawing
    Upper PartV-Groove Catcher, Plate Holding Dimensional DrawingV-Groove Catcher, Plate Holding Dimensional DrawingV-Groove Catcher, Plate Holding Dimensional Drawing
    Lower PartV-Groove Catcher, Plate Holding Dimensional DrawingV-Groove Catcher, Plate Holding Dimensional Drawing
    [ ! ] Unless otherwise specified, the dimension tolerance conforms to JIS B 0405 Class m.

    [M]Material: EN 1.1191 Equiv.
    [H]Hardness: 42 to 51HRC

    Specification Table

    Part number
    CVTB16
     Part numberLL1L2AHdRM
    (Coarse)    		Mass (g)
    (Reference Value)
    TypeT
    Standard
    Type    		CVTB12352526209.55.52—102
    162728251494147
    19140
    CVTBS12251922209.55.5275
    162124251174121
    19115
    With Tapped Holes
    Type    		CVTBST16252124251174M6126
    Long TypeCVTBL12352526209.55.52—259
    162728251494295
    19284

    Part number list

    Number of items
  • 1
    • Part number
    CVTB12
    CVTB16
    CVTB19
    CVTBL12
    CVTBL16
    CVTBL19
    CVTBS12
    CVTBS16
    CVTBS19
    CVTBST16

    Type

    T Dimension

    (mm)

    L Mounting Dimension

    (mm)

    		RoHS?Minimum order quantity
    Standard Type
    12
    35
    10
    1 pieces
    Standard Type
    16
    35
    10
    1 pieces
    Standard Type
    19
    35
    10
    1 pieces
    Long Type
    12
    35
    10
    1 pieces
    Long Type
    16
    35
    10
    1 pieces
    Long Type
    19
    35
    10
    1 pieces
    Standard Type
    12
    25
    10
    1 pieces
    Standard Type
    16
    25
    10
    1 pieces
    Standard Type
    19
    25
    10
    1 pieces
    Tapped Hole Type
    16
    25
    10
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    41.52 €
    ( 49.41 € )
    Stock item: 1 working dayAvailable for same-day shipping
    35.51 €
    ( 42.26 € )
    Stock item: 1 working dayAvailable for same-day shipping
    33.66 €
    ( 40.06 € )
    Stock item: 1 working dayAvailable for same-day shipping
    37.08 €
    ( 44.13 € )
    Stock item: 1 working dayAvailable for same-day shipping
    39.10 €
    ( 46.53 € )
    Stock item: 1 working dayAvailable for same-day shipping
    39.10 €
    ( 46.53 € )
    Stock item: 1 working dayAvailable for same-day shipping
    38.40 €
    ( 45.70 € )
    Stock item: 1 working dayAvailable for same-day shipping
    33.66 €
    ( 40.06 € )
    Stock item: 1 working dayAvailable for same-day shipping
    33.66 €
    ( 40.06 € )
    Stock item: 1 working dayAvailable for same-day shipping
    34.30 €
    ( 40.82 € )
    5 working days
  • 1

    • More Information

    Outline and specifications

    App. Example

    V-Groove Catcher, Plate Holding: Related Image
