Configure

Machined Hole
- 1-Hole Type
- 2-Hole Type
Width A(mm)
- 12
- 15
- 16
- 19
- 25
Hole Selection (Counterbored Hole Nominal Dia.) [Z]
- 4
- 5
- 6
Hole Selection (Tapped Hole Dia.) [M](mm)
- 4
- 5
- 6
L(mm)
[12-100/1mm units]
T(mm)
[10-20/1mm units]
X(mm)
[10-30/1mm units]
Type
- FSWNSF
- FSWNWF
CAD
- 2D
- 3D
Est. shipping days
- All
- Within 9 working days

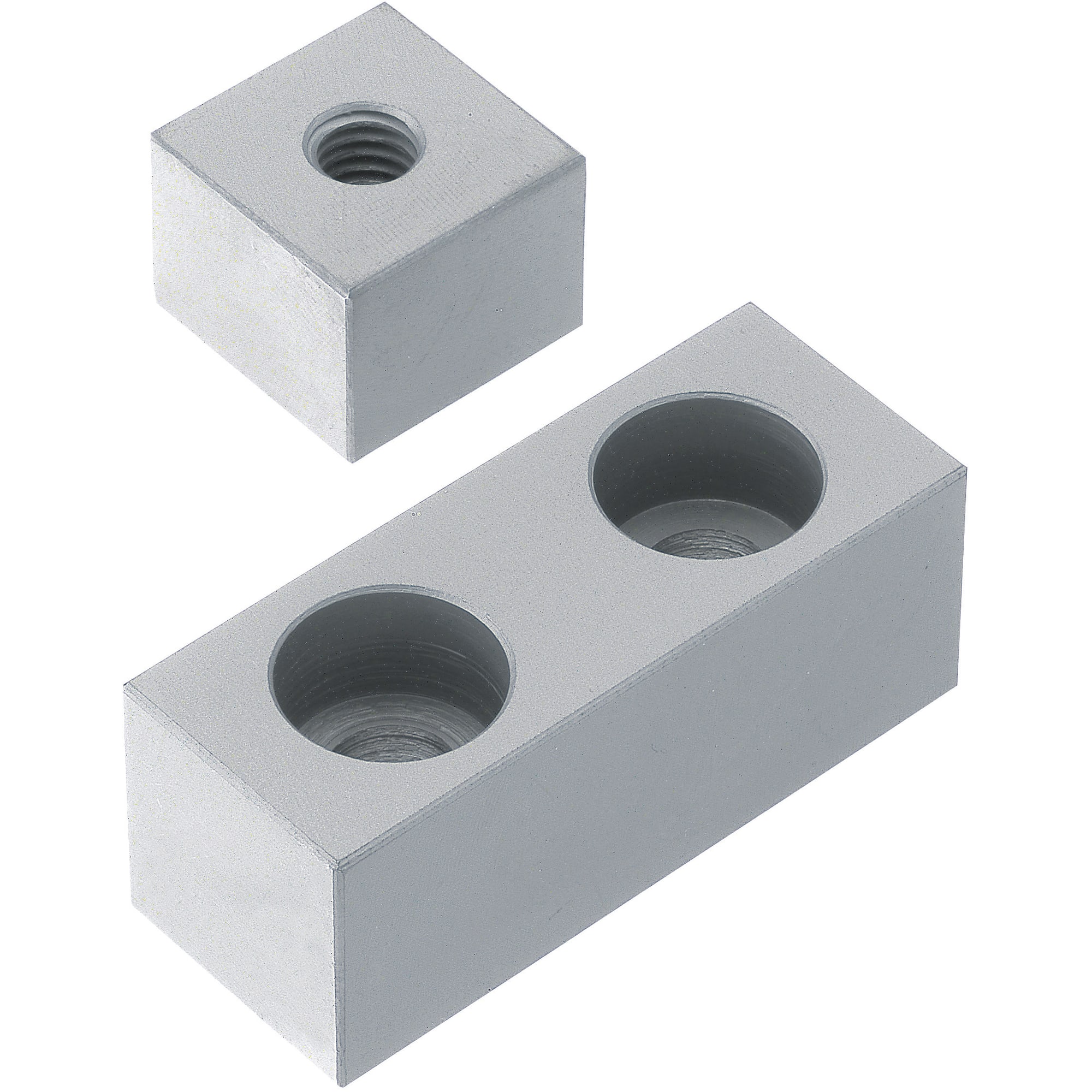

Flat Stoppers / Holes Selectable

Mouse over image to enlarge

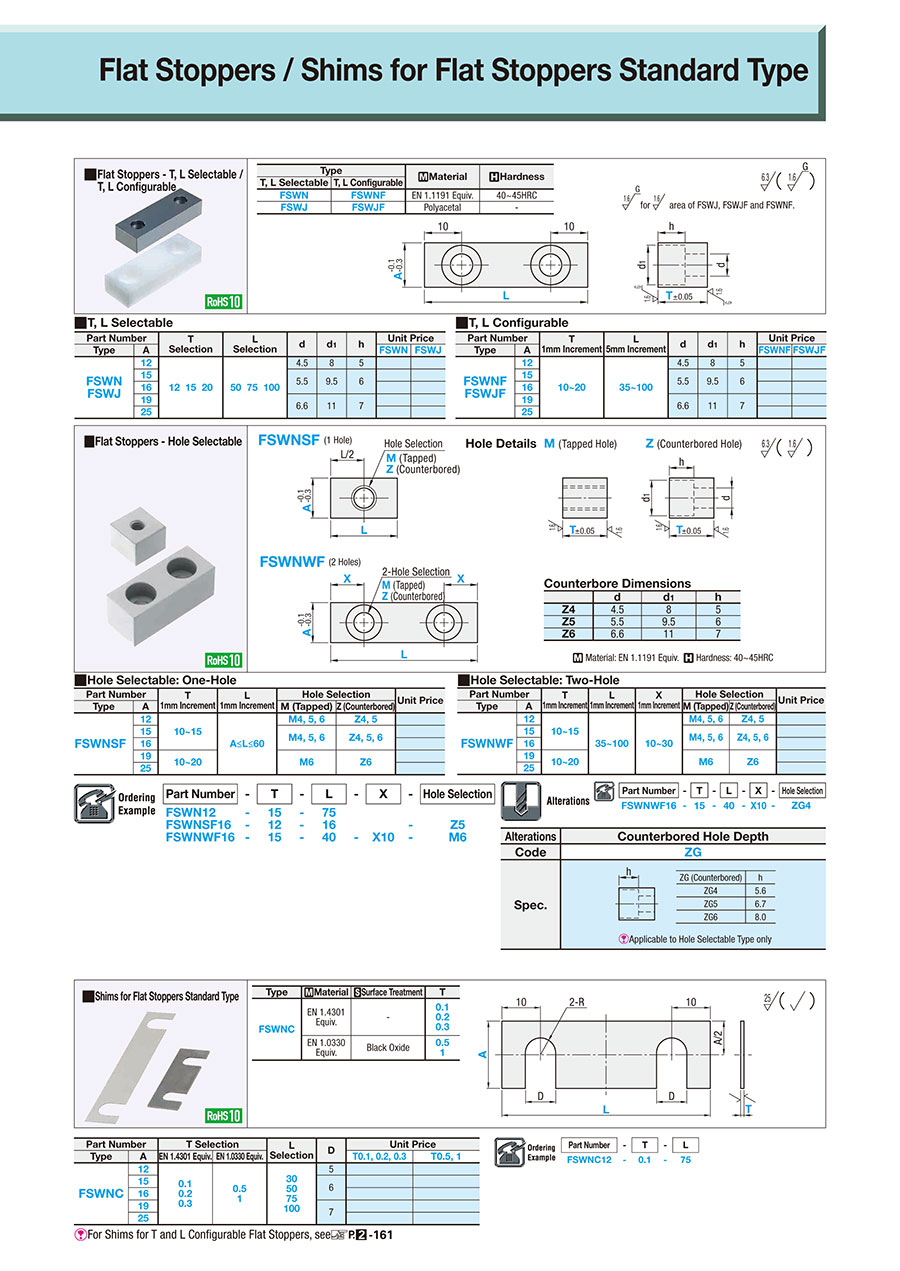

CatalogP.1-1752

Part number:

Still undefined. 30 possible part numbers found.

Outline drawing and specifications table
Part number list
More Information
Catalog

Outline drawing and specifications table

Flat Stoppers/Holes Selectable:Related Image

Material: EN 1.1191 Equiv. Hardness: 40~45HRC

Specifications

Part Number	-	T	-	L	-	X	-	Hole Selection
FSWN12 FSWNSF16 FSWNWF16	- - -	15 12 15	- - -	75 16 40	-	X10	- -	Z5 M6

Counterbore Dimensions

	d	d₁	h
Z4	4.5	8	5
Z5	5.5	9.5	6
Z6	6.6	11	7

■ Hole Selectable: One-Hole

Part Number		T 1mm Increment	L 1mm Increment	Hole Selection		Unit Price
Type	A			M (Tapped)	Z (Counterbored)
FSWNSF	12	10~15	A≤L≤60	M4, 5, 6	Z4, 5
	15			M4, 5, 6	Z4, 5, 6
	16
	19	10~20		M6	Z6
	25

■ Hole Selectable: Two-Hole

Part Number		T 1mm Increment	L 1mm Increment	X 1mm Increment	Hole Selection		Unit Price
Type	A				M (Tapped)	Z (Counterbored)
FSWNWF	12	10~15	35~100	10~30	M4, 5, 6	Z4, 5
	15				M4, 5, 6	Z4, 5, 6
	16
	19	10~20			M6	Z6
	25

Alterations

Flat Stoppers/Holes Selectable:Related Image

Part number list

Number of items

Part number

FSWNSF12-[10-15/1]-[12-60/1]-M[4,5,6]

FSWNSF12-[10-15/1]-[12-60/1]-Z[4,5]

FSWNSF12-[10-15/1]-[12-60/1]-ZG[4,5]

FSWNSF15-[10-15/1]-[15-60/1]-M[4,5,6]

FSWNSF15-[10-15/1]-[15-60/1]-Z[4,5,6]

FSWNSF15-[10-15/1]-[15-60/1]-ZG[4,5]

FSWNSF16-[10-15/1]-[16-60/1]-M[4,5,6]

FSWNSF16-[10-15/1]-[16-60/1]-Z[4,5,6]

FSWNSF16-[10-15/1]-[16-60/1]-ZG[4,5]

FSWNSF19-[10-20/1]-[19-60/1]-M6

FSWNSF19-[10-20/1]-[19-60/1]-Z6

FSWNSF19-[10-20/1]-[19-60/1]-ZG[4,5]

FSWNSF25-[10-20/1]-[25-60/1]-M6

FSWNSF25-[10-20/1]-[25-60/1]-Z6

FSWNSF25-[10-20/1]-[25-60/1]-ZG[4,5]

FSWNWF12-[10-15/1]-[35-100/1]-X[10-30/1]-M[4,5,6]

FSWNWF12-[10-15/1]-[35-100/1]-X[10-30/1]-Z[4,5]

FSWNWF12-[10-15/1]-[35-100/1]-X[10-30/1]-ZG[4,5]

FSWNWF15-[10-15/1]-[35-100/1]-X[10-30/1]-M[4,5,6]

FSWNWF15-[10-15/1]-[35-100/1]-X[10-30/1]-Z[4,5,6]

FSWNWF15-[10-15/1]-[35-100/1]-X[10-30/1]-ZG[4,5]

FSWNWF16-[10-15/1]-[35-100/1]-X[10-30/1]-M[4,5,6]

FSWNWF16-[10-15/1]-[35-100/1]-X[10-30/1]-Z[4,5,6]

FSWNWF16-[10-15/1]-[35-100/1]-X[10-30/1]-ZG[4,5]

FSWNWF19-[10-20/1]-[35-100/1]-X[10-30/1]-M6

FSWNWF19-[10-20/1]-[35-100/1]-X[10-30/1]-Z6

FSWNWF19-[10-20/1]-[35-100/1]-X[10-30/1]-ZG[4,5]

FSWNWF25-[10-20/1]-[35-100/1]-X[10-30/1]-M6

FSWNWF25-[10-20/1]-[35-100/1]-X[10-30/1]-Z6

FSWNWF25-[10-20/1]-[35-100/1]-X[10-30/1]-ZG[4,5]

Machined Hole

Width A

(mm)

Hole Selection (Counterbored Hole Nominal Dia.) [Z]

Hole Selection (Tapped Hole Dia.) [M]

(mm)

RoHS?

Minimum order quantity

1-Hole Type	12	-	4 ～ 6	12 ～ 60	10 ～ 15	-	10	1 pieces
1-Hole Type	12	4 ～ 5	-	12 ～ 60	10 ～ 15	-	10	1 pieces
1-Hole Type	12	-	-	12 ～ 60	10 ～ 15	-	10	1 pieces
1-Hole Type	15	-	4 ～ 6	15 ～ 60	10 ～ 15	-	10	1 pieces
1-Hole Type	15	4 ～ 6	-	15 ～ 60	10 ～ 15	-	10	1 pieces
1-Hole Type	15	-	-	15 ～ 60	10 ～ 15	-	10	1 pieces
1-Hole Type	16	-	4 ～ 6	16 ～ 60	10 ～ 15	-	10	1 pieces
1-Hole Type	16	4 ～ 6	-	16 ～ 60	10 ～ 15	-	10	1 pieces
1-Hole Type	16	-	-	16 ～ 60	10 ～ 15	-	10	1 pieces
1-Hole Type	19	-	6	19 ～ 60	10 ～ 20	-	10	1 pieces
1-Hole Type	19	6	-	19 ～ 60	10 ～ 20	-	10	1 pieces
1-Hole Type	19	-	-	19 ～ 60	10 ～ 20	-	10	1 pieces
1-Hole Type	25	-	6	25 ～ 60	10 ～ 20	-	10	1 pieces
1-Hole Type	25	6	-	25 ～ 60	10 ～ 20	-	10	1 pieces
1-Hole Type	25	-	-	25 ～ 60	10 ～ 20	-	10	1 pieces
2-Hole Type	12	-	4 ～ 6	35 ～ 100	10 ～ 15	10 ～ 30	10	1 pieces
2-Hole Type	12	4 ～ 5	-	35 ～ 100	10 ～ 15	10 ～ 30	10	1 pieces
2-Hole Type	12	-	-	35 ～ 100	10 ～ 15	10 ～ 30	10	1 pieces
2-Hole Type	15	-	4 ～ 6	35 ～ 100	10 ～ 15	10 ～ 30	10	1 pieces
2-Hole Type	15	4 ～ 6	-	35 ～ 100	10 ～ 15	10 ～ 30	10	1 pieces
2-Hole Type	15	-	-	35 ～ 100	10 ～ 15	10 ～ 30	10	1 pieces
2-Hole Type	16	-	4 ～ 6	35 ～ 100	10 ～ 15	10 ～ 30	10	1 pieces
2-Hole Type	16	4 ～ 6	-	35 ～ 100	10 ～ 15	10 ～ 30	10	1 pieces
2-Hole Type	16	-	-	35 ～ 100	10 ～ 15	10 ～ 30	10	1 pieces
2-Hole Type	19	-	6	35 ～ 100	10 ～ 20	10 ～ 30	10	1 pieces
2-Hole Type	19	6	-	35 ～ 100	10 ～ 20	10 ～ 30	10	1 pieces
2-Hole Type	19	-	-	35 ～ 100	10 ～ 20	10 ～ 30	10	1 pieces
2-Hole Type	25	-	6	35 ～ 100	10 ～ 20	10 ～ 30	10	1 pieces
2-Hole Type	25	6	-	35 ～ 100	10 ～ 20	10 ～ 30	10	1 pieces
2-Hole Type	25	-	-	35 ～ 100	10 ～ 20	10 ～ 30	10	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
- ( - )	9 working days
