MISUMI

UHMW Guide Rails

CatalogP.1-1183

Caution

Please check the content on our website as the PDF does not contain the most up-to-date information.

Part number:

Still undefined. 22 possible part numbers found.

Outline drawing and specifications table
Part number list
More Information
Catalog

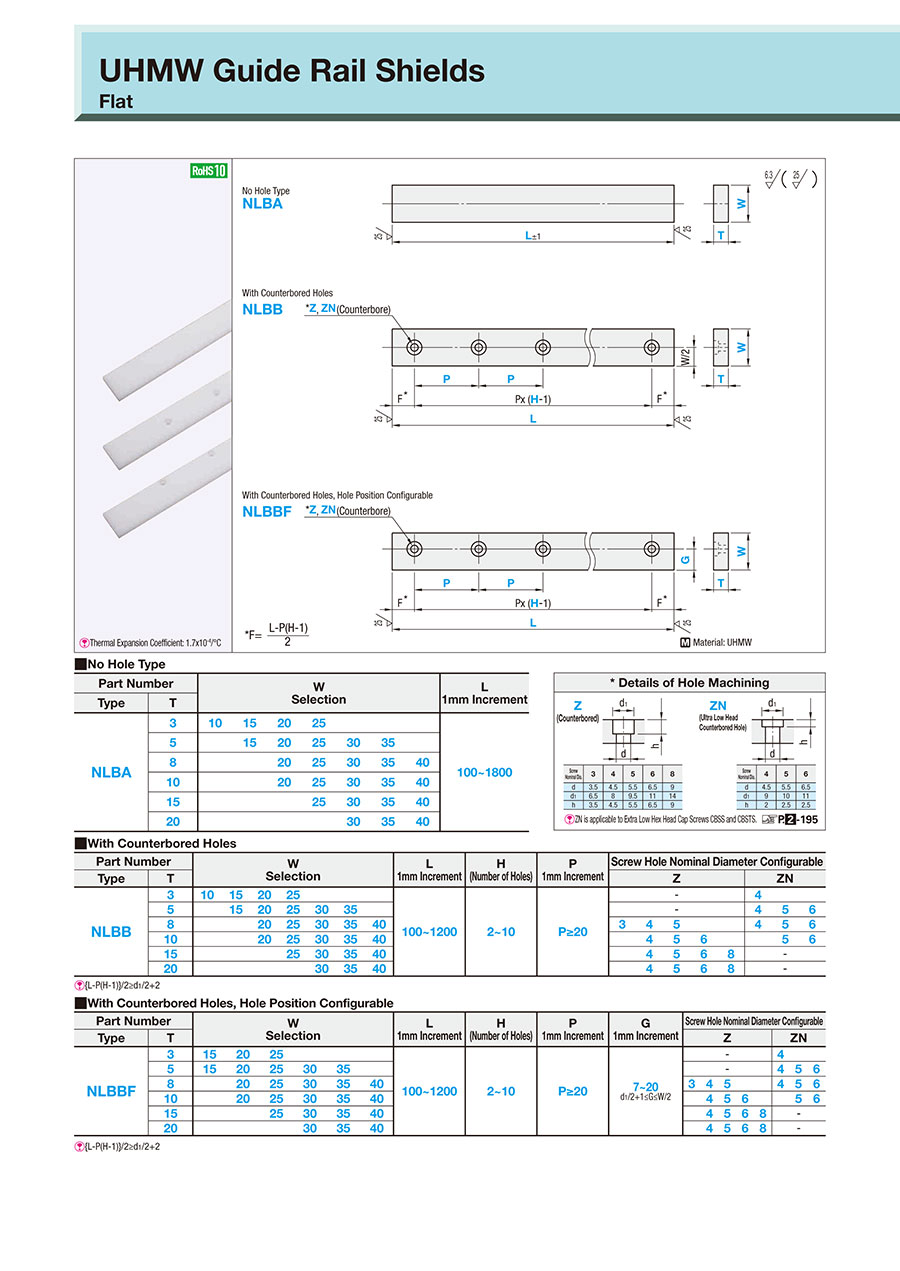

Outline drawing and specifications table

NLBA No Hole Type
Engineering Plastic Rail - With Counterbored Holes, Hole Position Configurable: Related Image

NLBB Counterbored Type
Engineering Plastic Rail - With Counterbored Holes, Hole Position Configurable: Related Image

NLBBF Counterbored, Hole Position Configurable
Engineering Plastic Rail - With Counterbored Holes, Hole Position Configurable: Related Image

[!] Thermal Expansion Coefficient: 1.7 × 10⁻⁴/°C
[M]Material: Ultra High-Molecular-Weight Polyethylene

* Hole Machining Details

Z
(Counterbored Hole)

ZN
(Extra Low Head Counterbored Hole)
　

Bolt Nominal Dia.	3	4	5	6	8
d	3.5	4.5	5.5	6.5	9
d₁	6.5	8	9.5	11	14
h	3.5	4.5	5.5	6.5	9

Bolt Nominal Dia.	4	5	6
d	4.5	5.5	6.5
d₁	9	10	11
h	2	2.5	2.5

[!] ZN is applicable to Extra Low Hex Head Cap Screws (CBSS and CBSTS).

Specification Table

Part Number	—	W	—	L	—	H	—	P	—	G	—	Screw Nominal Dia.
NLBA5 NLBB8 NLBBF10	— — —	25 20 25	— — —	1200 500 1100	— —	H4 H4	— —	P115 P115	—	G12	— —	Z5 Z5

■No Hole Type

Part Number		W Selection							L 1 mm Increments
Type	T	W Selection							L 1 mm Increments
NLBA	3	10	15	20	25				100 to 1800
	5		15	20	25	30	35
	8			20	25	30	35	40
	10			20	25	30	35	40
	15				25	30	35	40
	20					30	35	40

■ Counterbored Hole

Part Number		W Selection							L 1 mm Increments	H (Holes)	P 1 mm Increments	Screw Hole Nominal Diameter Configurable
Type	T	W Selection							L 1 mm Increments	H (Holes)	P 1 mm Increments	Z					ZN
NLBB	3	10	15	20	25				100 to 1200	2 to 10	P ≥ 20	—					4
	5		15	20	25	30	35					—					4	5	6
	8			20	25	30	35	40				3	4	5			4	5	6
	10			20	25	30	35	40					4	5	6			5	6
	15				25	30	35	40					4	5	6	8	—
	20					30	35	40					4	5	6	8	—

[ ! ] (L - P (H−1)) /2 ≥ d₁/2 + 2

■With Counterbored Holes, Hole Position Configurable

Part Number		W Selection						L 1 mm Increments	H (Holes)	P 1 mm Increments	G 1 mm Increments	Screw Hole Nominal Diameter Configurable
Type	T	W Selection						L 1 mm Increments	H (Holes)	P 1 mm Increments	G 1 mm Increments	Z					ZN
NLBBF	3	15	20	25				100 to 1200	2 to 10	P ≥ 20	7 to 20 d₁/2 + 1 ≤ G ≤ W/2	—					4
	5	15	20	25	30	35						—					4	5	6
	8		20	25	30	35	40					3	4	5			4	5	6
	10		20	25	30	35	40						4	5	6			5	6
	15			25	30	35	40						4	5	6	8	—
	20				30	35	40						4	5	6	8	—

[ ! ] (L - P (H−1)) /2 ≥ d₁/2 + 2

■Features of UHMW
(1) Abrasion Resistance: Approx. 6x of Fluorinated Resin.
　　　　　　　Approx. 5x of Nylon Resin.
　　　　　　　Approx. 6x of Polyurethane.
(2) Self-lubricaty: Tribological property is the same as that of fluororesin.
(3) Non-toxic: Passed standard test No. 20 of Health and Welfare Ministry.
■Characteristic Values (Reference Values)

Item	Unit	Ultrahigh molecular weight polyethylene	Nylon 6	Fluororesin
Specific Gravity	—	0.94	1.08	2.2
Tensile Strength	MPa	44	64	25
Tensile Elongation	%	450	210	300
Hardness	Rockwell R Scale	40	95	32
Impact Strength	Izod Notch kJ/m	> 137	13	16
Thermal Expansion Coefficient	10⁻⁴/°C	1.7	0.8	1.0
Heat Resistance Temperature	°C	80	80 to 120	260 to 278
Water Absorption Ratio	%	< 0.01	1.5	< 0.01
Dielectric Constant	—	2.3	4.0	2.1
Breakdown Voltage	kV/mm	50	20	20
Strong Acid Resistance	—	◎	×	◎
Alkali Resistance	—	◎	○	◎
Organic Solvent Resistance	—	◎	○	◎

Alterations

Alterations Code	Description		Applicable Conditions	Ordering Example
TCC		Corner Cut (End Upper Face) Selection: TCC5·TCC10	[ ! ] TCC < F - d1/2 - 2	NLBB8-20-500-H4-P115-Z5-TCC5
LCC RCC		Corner Cut (End Side Faces) LCC: Left Side, RCC: Right Side Selection: LCC5·LCC10, RCC5·RCC10	[ ! ] LCC (RCC) < F - d1/2	NLBBF15-30-1000-H4-P110-G7-Z5-LCC5

[ ! ] Alteration TCC cannot be selected together with alteration LCC or RCC.

Part number list

Number of items

Part number

NLBA3-[10,15,20,25]-[100-1800/1]

NLBA5-[15,20,25,30,35]-[100-1800/1]

NLBA8-[20,25,30,35,40]-[100-1800/1]

NLBA10-[20,25,30,35,40]-[100-1800/1]

NLBA15-[25,30,35,40]-[100-1800/1]

NLBA20-[30,35,40]-[100-1800/1]

NLBB3-[10,15,20,25]-[100-1200/1]-H[2,3,4,5,6,7,8,9,10]-P[20-1186/1]-ZN4

NLBB5-[15,20,25,30,35]-[100-1200/1]-H[2,3,4,5,6,7,8,9,10]-P[20-1186/1]-ZN[4,5,6]

NLBB8-[20,25,30,35,40]-[100-1200/1]-H[2,3,4,5,6,7,8,9,10]-P[20-1186/1]-Z[3,4,5]

NLBB8-[20,25,30,35,40]-[100-1200/1]-H[2,3,4,5,6,7,8,9,10]-P[20-1186/1]-ZN[4,5,6]

NLBB10-[20,25,30,35,40]-[100-1200/1]-H[2,3,4,5,6,7,8,9,10]-P[20-1189/1]-Z[4,5,6]

NLBB10-[20,25,30,35,40]-[100-1200/1]-H[2,3,4,5,6,7,8,9,10]-P[20-1189/1]-ZN[5,6]

NLBB15-[25,30,35,40]-[100-1200/1]-H[2,3,4,5,6,7,8,9,10]-P[20-1189/1]-Z[4,5,6,8]

NLBB20-[30,35,40]-[100-1200/1]-H[2,3,4,5,6,7,8,9,10]-P[20-1189/1]-Z[4,5,6,8]

NLBBF3-[15,20,25]-[100-1200/1]-H[2,3,4,5,6,7,8,9,10]-P[15-1180/1]-G[7-20/1]-ZN4

NLBBF5-[15,20,25,30,35]-[100-1200/1]-H[2,3,4,5,6,7,8,9,10]-P[15-595/1]-G[7-20/1]-ZN[4,5,6]

NLBBF8-[20,25,30,35,40]-[100-1200/1]-H[2,3,4,5,6,7,8,9,10]-P[15-595/1]-G[7-20/1]-Z[3,4,5]

NLBBF8-[20,25,30,35,40]-[100-1200/1]-H[2,3,4,5,6,7,8,9,10]-P[15-595/1]-G[7-20/1]-ZN[4,5,6]

NLBBF10-[20,25,30,35,40]-[100-1200/1]-H[2,3,4,5,6,7,8,9,10]-P[15-595/1]-G[7-20/1]-Z[4,5,6]

NLBBF10-[20,25,30,35,40]-[100-1200/1]-H[2,3,4,5,6,7,8,9,10]-P[15-595/1]-G[7-20/1]-ZN[5,6]

NLBBF15-[25,30,35,40]-[100-1200/1]-H[2,3,4,5,6,7,8,9,10]-P[15-1100/1]-G[7-20/1]-Z[4,5,6,8]

NLBBF20-[30,35,40]-[100-1200/1]-H[2,3,4,5,6,7,8,9,10]-P[15-595/1]-G[7-20/1]-Z[4,5,6,8]

Hole Machining

Thickness T Dimension

(mm)

Counterbored Hole Nominal Dia. [Z]

Extra Low Head Counterbored Hole Nominal Dia. [ZN]

(mm)

Number of Holes [H]

(pc(s).)

(mm)

RoHS?

Minimum order quantity

No Hole Type	3	-	-	-	100 ～ 1800	-	-	10 ～ 25	10	1 pieces
No Hole Type	5	-	-	-	100 ～ 1800	-	-	15 ～ 35	10	1 pieces
No Hole Type	8	-	-	-	100 ～ 1800	-	-	20 ～ 40	10	1 pieces
No Hole Type	10	-	-	-	100 ～ 1800	-	-	20 ～ 40	10	1 pieces
No Hole Type	15	-	-	-	100 ～ 1800	-	-	25 ～ 40	10	1 pieces
No Hole Type	20	-	-	-	100 ～ 1800	-	-	30 ～ 40	10	1 pieces
Counterbored Hole Type	3	-	4	-	100 ～ 1200	2 ～ 10	20 ～ 1186	10 ～ 25	10	1 pieces
Counterbored Hole Type	5	-	4 ～ 6	-	100 ～ 1200	2 ～ 10	20 ～ 1186	15 ～ 35	10	1 pieces
Counterbored Hole Type	8	3 ～ 5	-	-	100 ～ 1200	2 ～ 10	20 ～ 1186	20 ～ 40	10	1 pieces
Counterbored Hole Type	8	-	4 ～ 6	-	100 ～ 1200	2 ～ 10	20 ～ 1186	20 ～ 40	10	1 pieces
Counterbored Hole Type	10	4 ～ 6	-	-	100 ～ 1200	2 ～ 10	20 ～ 1189	20 ～ 40	10	1 pieces
Counterbored Hole Type	10	-	5 ～ 6	-	100 ～ 1200	2 ～ 10	20 ～ 1189	20 ～ 40	10	1 pieces
Counterbored Hole Type	15	4 ～ 8	-	-	100 ～ 1200	2 ～ 10	20 ～ 1189	25 ～ 40	10	1 pieces
Counterbored Hole Type	20	4 ～ 8	-	-	100 ～ 1200	2 ～ 10	20 ～ 1189	30 ～ 40	10	1 pieces
Counterbored Holes, Hole Position Configurable Type	3	-	4	7 ～ 20	100 ～ 1200	2 ～ 10	15 ～ 1180	15 ～ 25	10	1 pieces
Counterbored Holes, Hole Position Configurable Type	5	-	4 ～ 6	7 ～ 20	100 ～ 1200	2 ～ 10	15 ～ 595	15 ～ 35	10	1 pieces
Counterbored Holes, Hole Position Configurable Type	8	3 ～ 5	-	7 ～ 20	100 ～ 1200	2 ～ 10	15 ～ 595	20 ～ 40	10	1 pieces
Counterbored Holes, Hole Position Configurable Type	8	-	4 ～ 6	7 ～ 20	100 ～ 1200	2 ～ 10	15 ～ 595	20 ～ 40	10	1 pieces
Counterbored Holes, Hole Position Configurable Type	10	4 ～ 6	-	7 ～ 20	100 ～ 1200	2 ～ 10	15 ～ 595	20 ～ 40	10	1 pieces
Counterbored Holes, Hole Position Configurable Type	10	-	5 ～ 6	7 ～ 20	100 ～ 1200	2 ～ 10	15 ～ 595	20 ～ 40	10	1 pieces
Counterbored Holes, Hole Position Configurable Type	15	4 ～ 8	-	7 ～ 20	100 ～ 1200	2 ～ 10	15 ～ 1100	25 ～ 40	10	1 pieces
Counterbored Holes, Hole Position Configurable Type	20	4 ～ 8	-	7 ～ 20	100 ～ 1200	2 ～ 10	15 ～ 595	30 ～ 40	10	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

- ( - )	6 working days
- ( - )	6 working days
- ( - )	6 working days
- ( - )	6 working days
- ( - )	6 working days
- ( - )	6 working days
- ( - )	7 working days
- ( - )	7 working days
- ( - )	7 working days
- ( - )	7 working days
- ( - )	7 working days
- ( - )	7 working days
- ( - )	7 working days
- ( - )	7 working days
- ( - )	7 working days
- ( - )	7 working days
- ( - )	7 working days
- ( - )	7 working days
- ( - )	7 working days
- ( - )	7 working days
- ( - )	7 working days
- ( - )	7 working days

More Information

Basic information

Basic information

[Features] It is a rail for which the hole position can be fixed. [Material] It is resin.
