Guide Rails

Guide Rails

Part number:

Still undefined. 10 possible part numbers found.
Quantity:

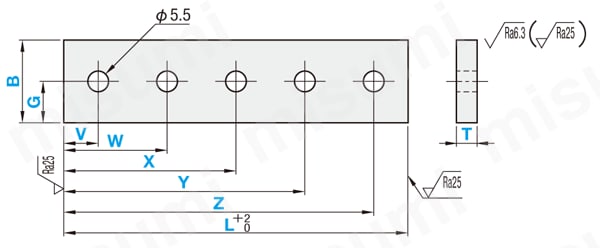

Outline drawing and specifications table


Type[M] Material[S] Surface Treatment
SGLEN 1.0038 Equiv.(Black)
SGLMElectroless Nickel Plating



Specification Table

Part Number—B—T—L—G—V—W—X—Y—Z

Type H
(Holes)
SGL
SGLM		 N
5H		—
—		22
25		—
—		3
5		—
—		300
800
—
G14
—
V15
—
W265
—
X480
—
Y600
—
Z785
Part NumberB
Selection		T
Selection		L
1 mm Increments		G·V·W·X·Y·Z
0.5 mm Increments
TypeH (Number of Holes)
SGL
SGLM		 N (No Hole)
2H
3H
4H
5H		222532383561050 to 10005 to 995
[ ! ] When N is selected, no hole will be machined.

Part number list

Number of items
  • 1
    • Part number
    SGL2H-[22,25,32,38]-[3,5,6,10]-[50-1000/1]-G[5-33/0.5]-V[5-995/0.5]-W[5-995/0.5]
    SGL3H-[22,25,32,38]-[3,5,6,10]-[50-1000/1]-G[5-33/0.5]-V[5-995/0.5]-W[5-995/0.5]-X[5-995/0.5]
    SGL4H-[22,25,32,38]-[3,5,6,10]-[50-1000/1]-G[5-33/0.5]-V[5-995/0.5]-W[5-995/0.5]-X[5-995/0.5]-Y[5-995/0.5]
    SGL5H-[22,25,32,38]-[3,5,6,10]-[50-1000/1]-G[5-33/0.5]-V[5-995/0.5]-W[5-995/0.5]-X[5-995/0.5]-Y[5-995/0.5]-Z[5-995/0.5]
    SGLM2H-[22,25,32,38]-[3,5,6,10]-[50-1000/1]-G[5-33/0.5]-V[5-995/0.5]-W[5-995/0.5]
    SGLM3H-[22,25,32,38]-[3,5,6,10]-[50-1000/1]-G[5-33/0.5]-V[5-995/0.5]-W[5-995/0.5]-X[5-995/0.5]
    SGLM4H-[22,25,32,38]-[3,5,6,10]-[50-1000/1]-G[5-33/0.5]-V[5-995/0.5]-W[5-995/0.5]-X[5-995/0.5]-Y[5-995/0.5]
    SGLM5H-[22,25,32,38]-[3,5,6,10]-[50-1000/1]-G[5-33/0.5]-V[5-995/0.5]-W[5-995/0.5]-X[5-995/0.5]-Y[5-995/0.5]-Z[5-995/0.5]
    SGLMN-[22,25,32,38]-[3,5,6,10]-[50-1000/1]
    SGLN-[22,25,32,38]-[3,5,6,10]-[50-1000/1]

    H (Number of Holes)

    Surface Treatment

    B

    (mm)

    G

    (mm)

    L

    (mm)

    T

    (mm)

    V

    (mm)

    W

    (mm)

    X

    (mm)

    Y

    (mm)

    Z

    (mm)

    		RoHS?Minimum order quantity
    2H (Two Holes)
    (Black)
    22 ～ 38
    5 ～ 33
    50 ～ 1000
    3 ～ 10
    5 ～ 995
    5 ～ 995
    -
    -
    -
    10
    1 pieces
    3H (Three Holes)
    (Black)
    22 ～ 38
    5 ～ 33
    50 ～ 1000
    3 ～ 10
    5 ～ 995
    5 ～ 995
    5 ～ 995
    -
    -
    10
    1 pieces
    4H (Four Holes)
    (Black)
    22 ～ 38
    5 ～ 33
    50 ～ 1000
    3 ～ 10
    5 ～ 995
    5 ～ 995
    5 ～ 995
    5 ～ 995
    -
    10
    1 pieces
    5H (5-Hole)
    (Black)
    22 ～ 38
    5 ～ 33
    50 ～ 1000
    3 ～ 10
    5 ～ 995
    5 ～ 995
    5 ～ 995
    5 ～ 995
    5 ～ 995
    10
    1 pieces
    2H (Two Holes)
    Electroless Nickel Plating
    22 ～ 38
    5 ～ 33
    50 ～ 1000
    3 ～ 10
    5 ～ 995
    5 ～ 995
    -
    -
    -
    10
    1 pieces
    3H (Three Holes)
    Electroless Nickel Plating
    22 ～ 38
    5 ～ 33
    50 ～ 1000
    3 ～ 10
    5 ～ 995
    5 ～ 995
    5 ～ 995
    -
    -
    10
    1 pieces
    4H (Four Holes)
    Electroless Nickel Plating
    22 ～ 38
    5 ～ 33
    50 ～ 1000
    3 ～ 10
    5 ～ 995
    5 ～ 995
    5 ～ 995
    5 ～ 995
    -
    10
    1 pieces
    5H (5-Hole)
    Electroless Nickel Plating
    22 ～ 38
    5 ～ 33
    50 ～ 1000
    3 ～ 10
    5 ～ 995
    5 ～ 995
    5 ～ 995
    5 ～ 995
    5 ～ 995
    10
    1 pieces
    N (No Hole)
    Electroless Nickel Plating
    22 ～ 38
    -
    50 ～ 1000
    3 ～ 10
    -
    -
    -
    -
    -
    10
    1 pieces
    N (No Hole)
    (Black)
    22 ～ 38
    -
    50 ～ 1000
    3 ～ 10
    -
    -
    -
    -
    -
    10
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    -
    ( - )
    10 working days
    -
    ( - )
    10 working days
    -
    ( - )
    10 working days
    -
    ( - )
    10 working days
    -
    ( - )
    9 working days
    -
    ( - )
    9 working days
    -
    ( - )
    9 working days
    -
    ( - )
    9 working days
    -
    ( - )
    9 working days
    -
    ( - )
    10 working days
  • 1

    • More Information

    Basic information

    [Features] This is a guide (guide rail) part for conveyors and transfer lines.

    Outline and specifications

    App. Example
