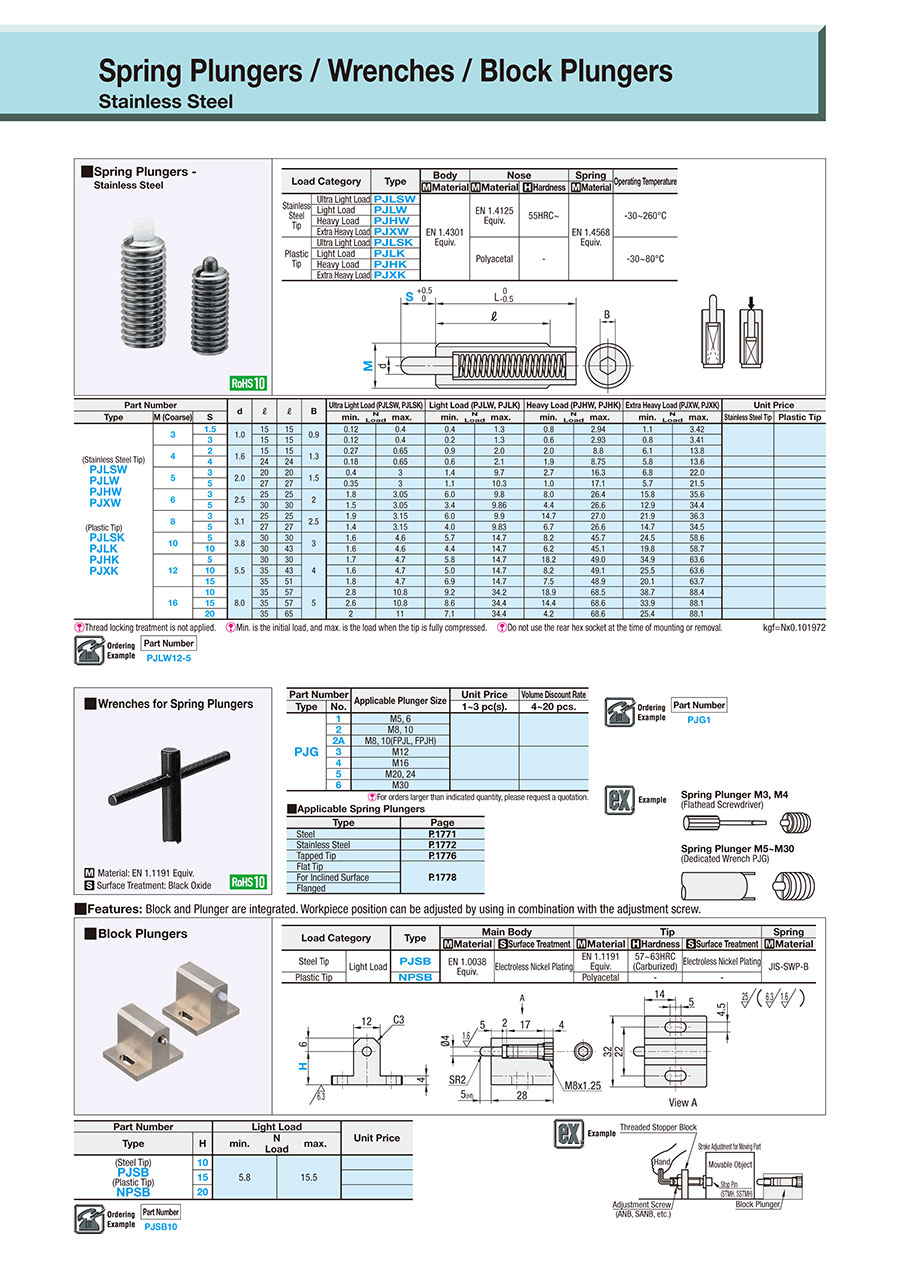

Spring Plungers / Stainless Steel

Load Category		Type	Body	Nose		Spring	Operating Temperature
			Material	Material	Hardness	Material
Stainless Steel Tip	Ultra Light Load	PJLSW	EN 1.4301 Equiv.	EN 1.4125 Equiv.	55HRC~	EN 1.4568 Equiv.	-30~260°C
	Light Load	PJLW
	Heavy Load	PJHW
	Extra Heavy Load	PJXW
Plastic Tip	Ultra Light Load	PJLSK		Polyacetal	-		-30~80°C
	Light Load	PJLK
	Heavy Load	PJHK
	Extra Heavy Load	PJXK

Part Number

PJLW12-5

Part Number			d	ℓ	L	B	Ultra Light Load (PJLSW, PJLSK)				Light Load (PJLW, PJLK)				Heavy Load (PJHW, PJHK)				Extra Heavy Load (PJXW, PJXK)				Unit Price
Type	M (Coarse)	S					min.	N Load		max.	min.	N Load		max.	min.	N Load		max.	min.	N Load		max.	Stainless Steel Tip	Plastic Tip
(Stainless Steel Tip) PJLSW PJLW PJHW PJXW (Plastic Tip) PJLSK PJLK PJHK PJXK	3	1.5	1.0	15	15	0.9	0.12		0.4		0.4		1.3		0.8		2.94		1.1		3.42
		3		15	15		0.12		0.4		0.2		1.3		0.6		2.93		0.8		3.41
	4	2	1.6	15	15	1.3	0.27		0.65		0.9		2.0		2.0		8.8		6.1		13.8
		4		24	24		0.18		0.65		0.6		2.1		1.9		8.75		5.8		13.6
	5	3	2.0	20	20	1.5	0.4		3		1.4		9.7		2.7		16.3		6.8		22.0
		5		27	27		0.35		3		1.1		10.3		1.0		17.1		5.7		21.5
	6	3	2.5	25	25	2	1.8		3.05		6.0		9.8		8.0		26.4		15.8		35.6
		5		30	30		1.5		3.05		3.4		9.86		4.4		26.6		12.9		34.4
	8	3	3.1	25	25	2.5	1.9		3.15		6.0		9.9		14.7		27.0		21.9		36.3
		5		27	27		1.4		3.15		4.0		9.83		6.7		26.6		14.7		34.5
	10	5	3.8	30	30	3	1.6		4.6		5.7		14.7		8.2		45.7		24.5		58.6
		10		30	43		1.6		4.6		4.4		14.7		6.2		45.1		19.8		58.7
	12	5	5.5	30	30	4	1.7		4.7		5.8		14.7		18.2		49.0		34.9		63.6
		10		35	43		1.6		4.7		5.0		14.7		8.2		49.1		25.5		63.6
		15		35	51		1.8		4.7		6.9		14.7		7.5		48.9		20.1		63.7
	16	10	8.0	35	57	5	2.8		10.8		9.2		34.2		18.9		68.5		38.7		88.4
		15		35	57		2.6		10.8		8.6		34.4		14.4		68.6		33.9		88.1
		20		35	65		2		11		7.1		34.4		4.2		68.6		25.4		88.1

Thread locking treatment is not applied. Min. is the initial load, and max. is the load when the tip is fully compressed. Do not use the rear hex socket at the time of mounting or removal.
kgf=Nx0.101972
