    Guide Plungers / With Hexagon Socket

    Guide Plungers / With Hexagon Socket

    Part number:

    Still undefined. 6 possible part numbers found.
    Quantity:

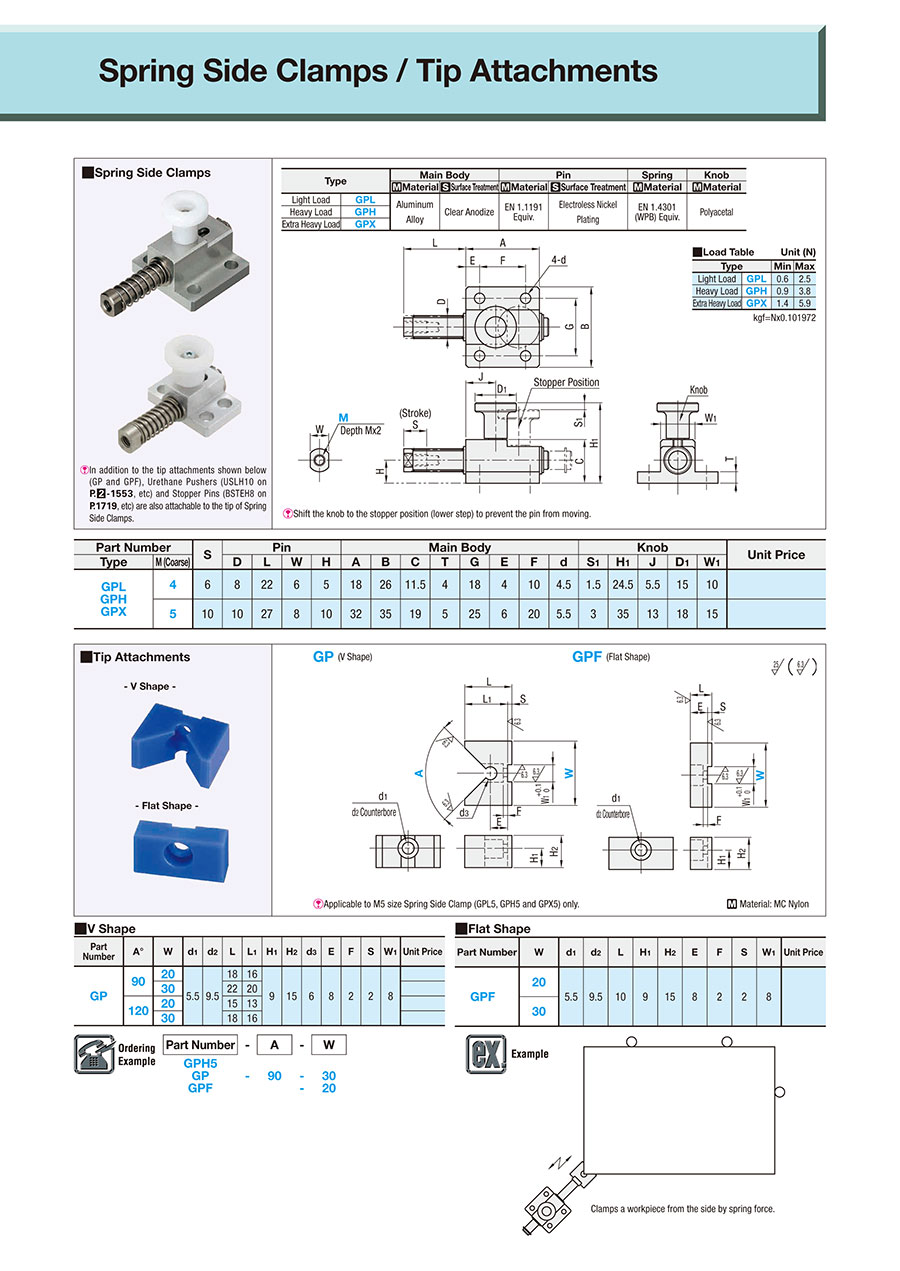

    Outline drawing and specifications table


    ■Load Table　 Unit (N)
    TypeminMax
    Light LoadGPL0.62.5
    Heavy LoadGPH0.93.8
    Extra Heavy LoadGPX1.45.9
    kgf = N × 0.101972







    [ ! ] Shift the knob to the stopper position (lower step) to prevent the pin from moving.

    TypeMain BodyPinSpringKnob
    [M] Material[S] Surface Treatment[M] Material[S] Surface Treatment[M] Material[M] Material
    Light LoadGPLAluminum AlloyClear AnodizeEN 1.1191 Equiv.Electroless Nickel PlatingEN 1.4301 Equiv. (WPB)Polyacetal
    Heavy LoadGPH
    Extra Heavy LoadGPX



    Specification Table

    Part Number—A—W
    GPH5
    GP
    GPF
    —
    90
    —
    —
    30
    20
    Part NumberSPinMain BodyKnob
    TypeM (Coarse)DLWHABCTGEFdS1H1JD1W1
    GPL
    GPH
    GPX    		4682265182611.54184104.51.524.55.51510
    51010278103235195256205.5335131815

    Part number list

    Number of items
  • 1
    • Part number
    GPH4
    GPH5
    GPL4
    GPL5
    GPX4
    GPX5

    Spring Force

    Screw Dia. (M)

    (mm)

    		RoHS?Minimum order quantity
    Heavy Load
    4
    10
    1 pieces
    Heavy Load
    5
    10
    1 pieces
    Light Load
    4
    10
    1 pieces
    Light Load
    5
    10
    1 pieces
    Extra Heavy Load
    4
    10
    1 pieces
    Extra Heavy Load
    5
    10
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    50.13 €
    ( 59.65 € )
    Stock item: 1 working dayAvailable for same-day shipping
    58.94 €
    ( 70.14 € )
    5 working days
    50.13 €
    ( 59.65 € )
    Stock item: 1 working dayAvailable for same-day shipping
    58.94 €
    ( 70.14 € )
    5 working days
    50.13 €
    ( 59.65 € )
    5 working days
    58.94 €
    ( 70.14 € )
    Stock item: 1 working dayAvailable for same-day shipping
  • 1

    • More Information

    Basic information

    [Features] The spring force clamps the workpiece from the side.

    Outline and specifications

    App. Example


    Clamps a workpiece from the side by spring force.
