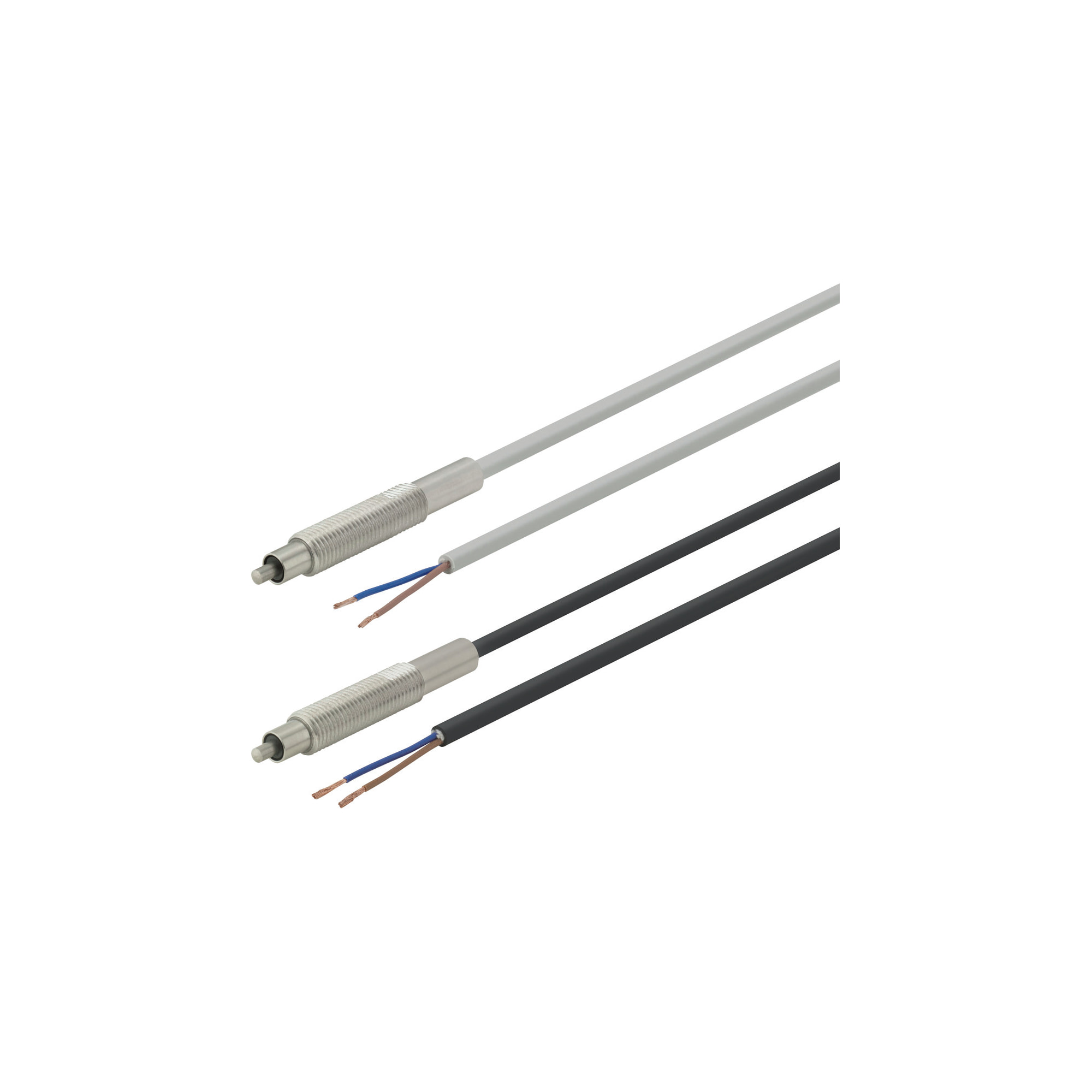

    Contact Switches / Bolt / L-Shaped Bolt Switches

    Contact Switches / Bolt / L-Shaped Bolt Switches

    Mouse over image to enlarge

    • Contact Switches / Bolt / L-Shaped Bolt Switches
    • Contact Switches / Bolt / L-Shaped Bolt Switches

    Part number:

    Still undefined. 8 possible part numbers found.
    Quantity:

    Outline drawing and specifications table

    MSTKD－JL N－MSTKD－JDL (With LED)   

    (M5)    		Switch body

    MSTKD－B
    N－MSTKD－BD    (With LED)    		  MSTKD－BF
    N－MSTKD－BFD    (With LED)    		 MSTKD－BB
    N－MSTKD－BBD    (With LED)

    (M6·8)    		Switch body
      

    [ ! ] Use under 24 V DC/10 mA or less.
    [ ! ] Use within the contact ratings.
    [ ! ] Do not pull or twist the cable with 30 N or more.

    Contact PartMain BodyCableAccessory
    MaterialHardnessMaterial
    EN 1.4029 Equiv.45 to 50HRCEN 1.4305 Equiv.Cable 3 m, 2-Conductors ø3, Oil Resistant
    Min. Bending Radius R7    		Hex Nut 2 pcs.·M5: Thickness 2.4, Hex Size 7, M6: Thickness 3.2, Hex Size 8
    ·M8: Thickness 3.2, Hex Size 10

    Specification Table

    Part Number
    MSTKD−JL
    MSTKD−EL
    MSTKG−F
    Part NumberM × P
    (Fine)    		StrokeOperating PointContact Force
    N    		Switch Contact
    Structure    		LℓB
    MSTKD−JL
    N−MSTKD−JDL    		M5 × 0.52.80.3 from Tip
    (Repeatability 0.005)    		1NO
    (Normally Open)    		22—4.4
    MSTKD−B
    N−MSTKD−BD    		M6 × 0.752211.55
    MSTKD−BF
    N−MSTKD−BFD    		0.5
    MSTKD−BB
    N−MSTKD−BBD    		1NC
    (Normally Closed)    		2211.5

    Part number list

    Number of items
  • 1
    • Part number
    MSTKD-B
    MSTKD-BB
    MSTKD-BF
    MSTKD-JL
    N-MSTKD-BBD
    N-MSTKD-BD
    N-MSTKD-BFD
    N-MSTKD-JDL

    Contact Point Type

    Screw Nominal (M)

    Contact Force

    (N)

    LED

    		RoHS?Minimum order quantity
    Contact Type NO
    M6x0.75
    1
    W/o LED
    10
    1 pieces
    Contact Type NC
    M6x0.75
    1
    W/o LED
    10
    1 pieces
    Contact Type NO
    M6x0.75
    0.5
    W/o LED
    10
    1 pieces
    Contact Type NO
    M5x0.5
    1
    W/o LED
    10
    1 pieces
    Contact Type NC
    M6x0.75
    1
    With LED
    10
    1 pieces
    Contact Type NO
    M6x0.75
    1
    With LED
    10
    1 pieces
    Contact Type NO
    M6x0.75
    0.5
    With LED
    10
    1 pieces
    Contact Type NO
    M5x0.5
    1
    With LED
    10
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    44.08 €
    ( 52.46 € )
    Stock item: 1 working dayAvailable for same-day shipping
    44.08 €
    ( 52.46 € )
    Stock item: 1 working dayAvailable for same-day shipping
    44.08 €
    ( 52.46 € )
    Stock item: 1 working dayAvailable for same-day shipping
    38.79 €
    ( 46.16 € )
    Stock item: 1 working dayAvailable for same-day shipping
    46.84 €
    ( 55.74 € )
    5 working days
    46.84 €
    ( 55.74 € )
    Stock item: 1 working dayAvailable for same-day shipping
    46.84 €
    ( 55.74 € )
    Stock item: 1 working dayAvailable for same-day shipping
    43.45 €
    ( 51.71 € )
    Stock item: 1 working dayAvailable for same-day shipping
  • 1

    • More Information

    Basic information

    [Features] Position switch with threaded main body.

    Outline and specifications

    Specifications/Overview


    [!] Straightly hold a detected object against the tip of switch. (Declination within ±3°)
