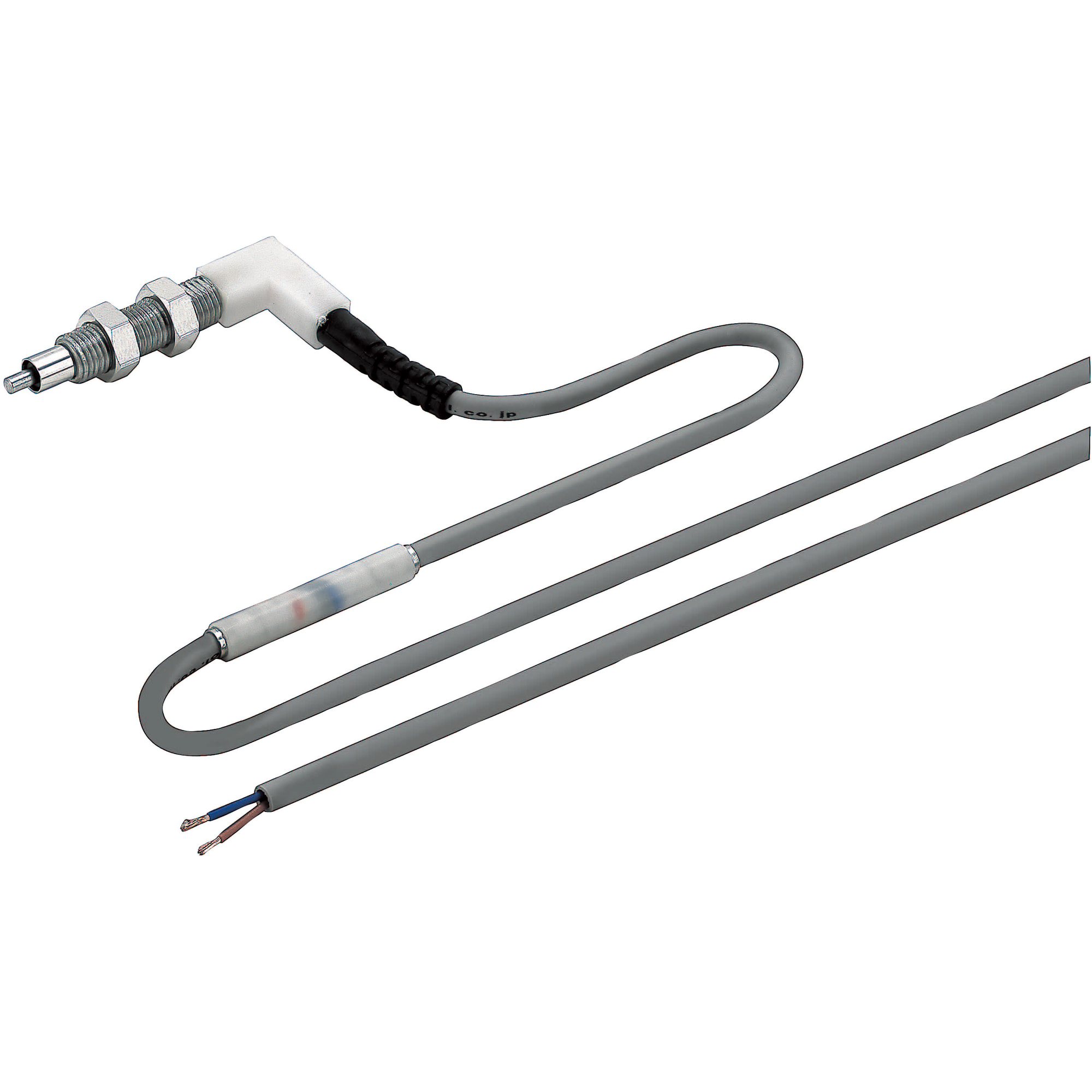

Contact Switches / L-Shaped Bolt Type With LED
Mouse over image to enlarge
Part number:

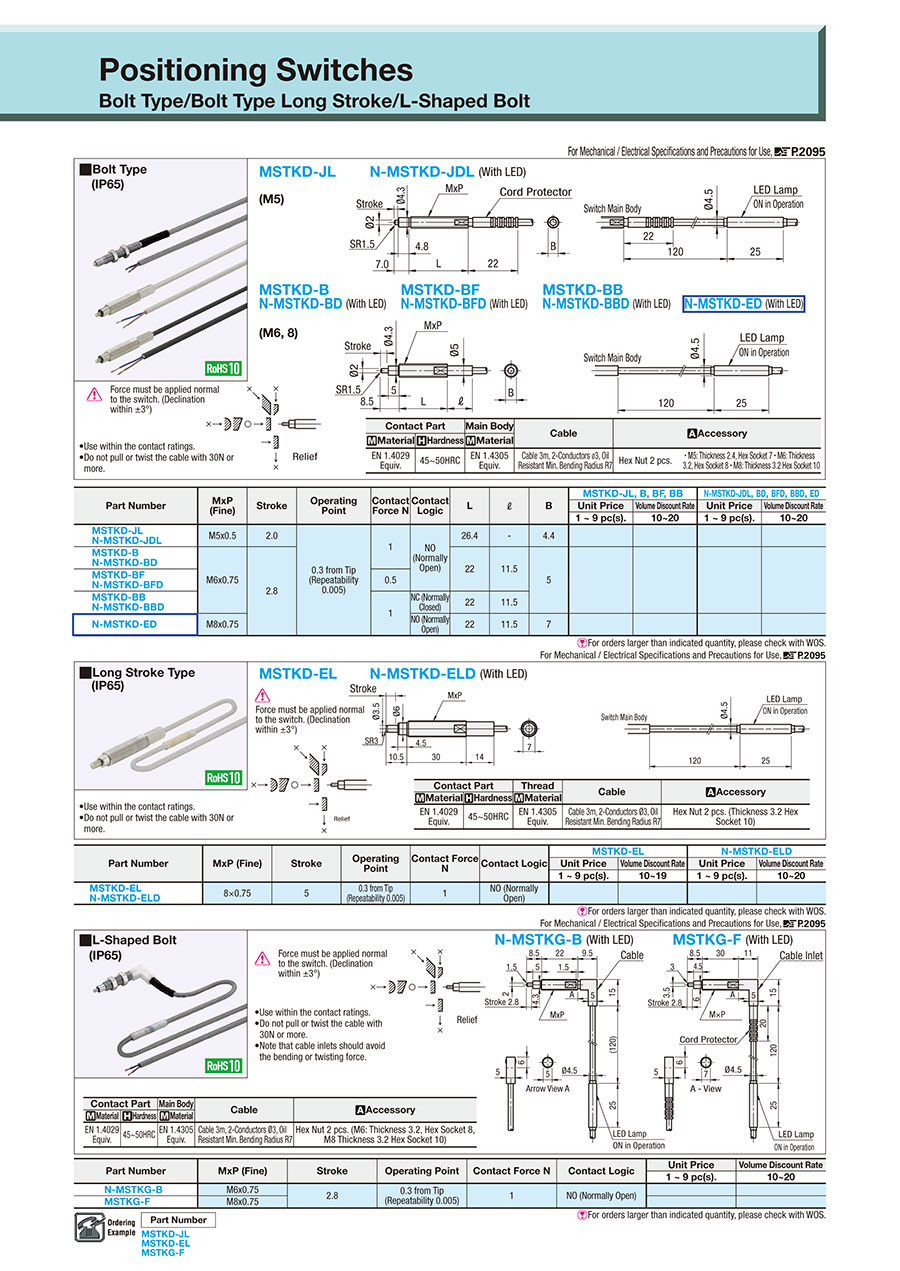

possible part numbers found.Outline drawing and specifications table
| N－MSTKG－B (With LED) | MSTKG－F (With LED) | |
 |  |
[ ! ] Use under 24 V DC/10 mA or less.
[ ! ] Use within the contact ratings.
[ ! ] Do not pull or twist the cable with 30 N or more.
[ ! ] Note that cable inlets should avoid the bending or twisting force.
| Contact Part | Main Body | Cable | Accessory | |
| Material | Hardness | Material | ||
| EN 1.4029 Equiv. | 45 to 50HRC | EN 1.4305 Equiv. | Cable 3 m, 2-Conductors ø3, Oil Resistant Min. Bending Radius R7 | Hex Nut 2 pcs. (M6: Thickness 3.2, Hex Size 8, M8 Thickness 3.2 Hex Socket 10) |
Specification Table
| Part Number |
| MSTKD−JL MSTKD−EL MSTKG−F |
| Part Number | M × P (Fine) | Stroke | Operating Point | Contact Force N | Contact Logic |
| N−MSTKG−B | M6 × 0.75 | 2.8 | 0.3 from tip (Repeatability 0.005) | 1 | NO (Normally Open) |
| MSTKG−F | M8 × 0.75 |
More Information
Basic information
[Contact part type] Needle type [Main body material] EN 1.4305 Equiv. [Contact part material] EN 1.4029 Equiv.
Outline and specifications
Specifications/Overview
[!] Straightly hold a detected object against the tip of switch. (Declination within ±3°)
