Contact Switches / Water / Resisting / End Shape Selection
Click on this image to zoom in.
Click on this image to zoom in.
- Volume Discount
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
MSTKD-ND
- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers

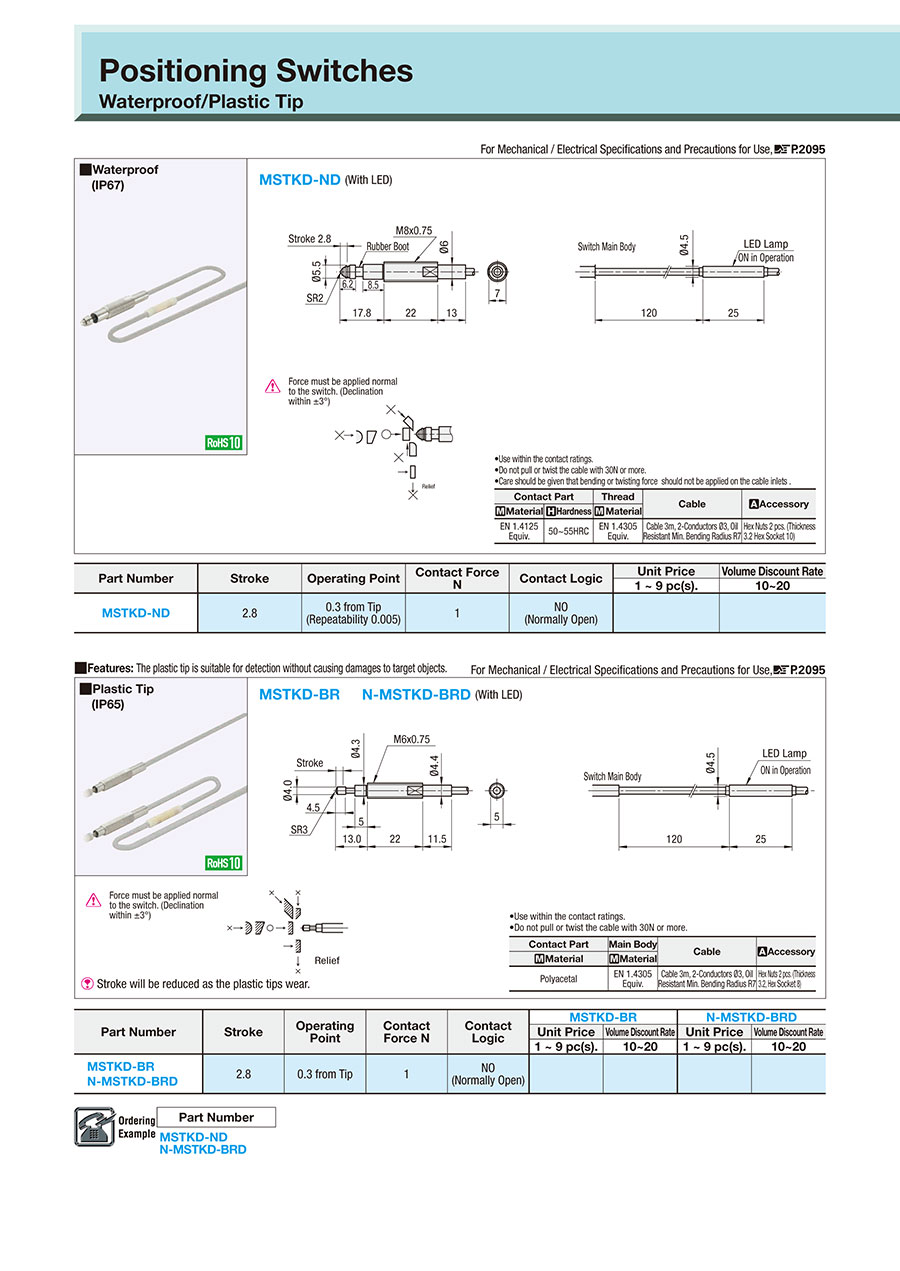

- Catalog
| Contact Part | Thread | Cable | Accessory | |
| Material | Hardness | Material | ||
| EN 1.4125 Equiv. | 50~55HRC | EN 1.4305 Equiv. | Cable 3m, 2-Conductors Ø3, Oil Resistant Min. Bending Radius R7 | Hex Nuts 2 pcs. (Thickness 3.2 Hex Socket 10) |
Specifications
| Part Number |
| MSTKD-ND N-MSTKD-BRD |
| Part Number | Stroke | Operating Point | Contact Force N | Contact Logic | Unit Price | Volume Discount Rate |
| 1 ~ 9 pc(s). | 10~20 | |||||
| MSTKD-ND | 2.8 | 0.3 from Tip (Repeatability 0.005) | 1 | NO (Normally Open) |
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Part Number
|
|---|
| MSTKD-ND |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | |
|---|---|---|---|---|---|
62.10 € | 1 | Available | 5 Days | 10 |
Loading...
Basic information

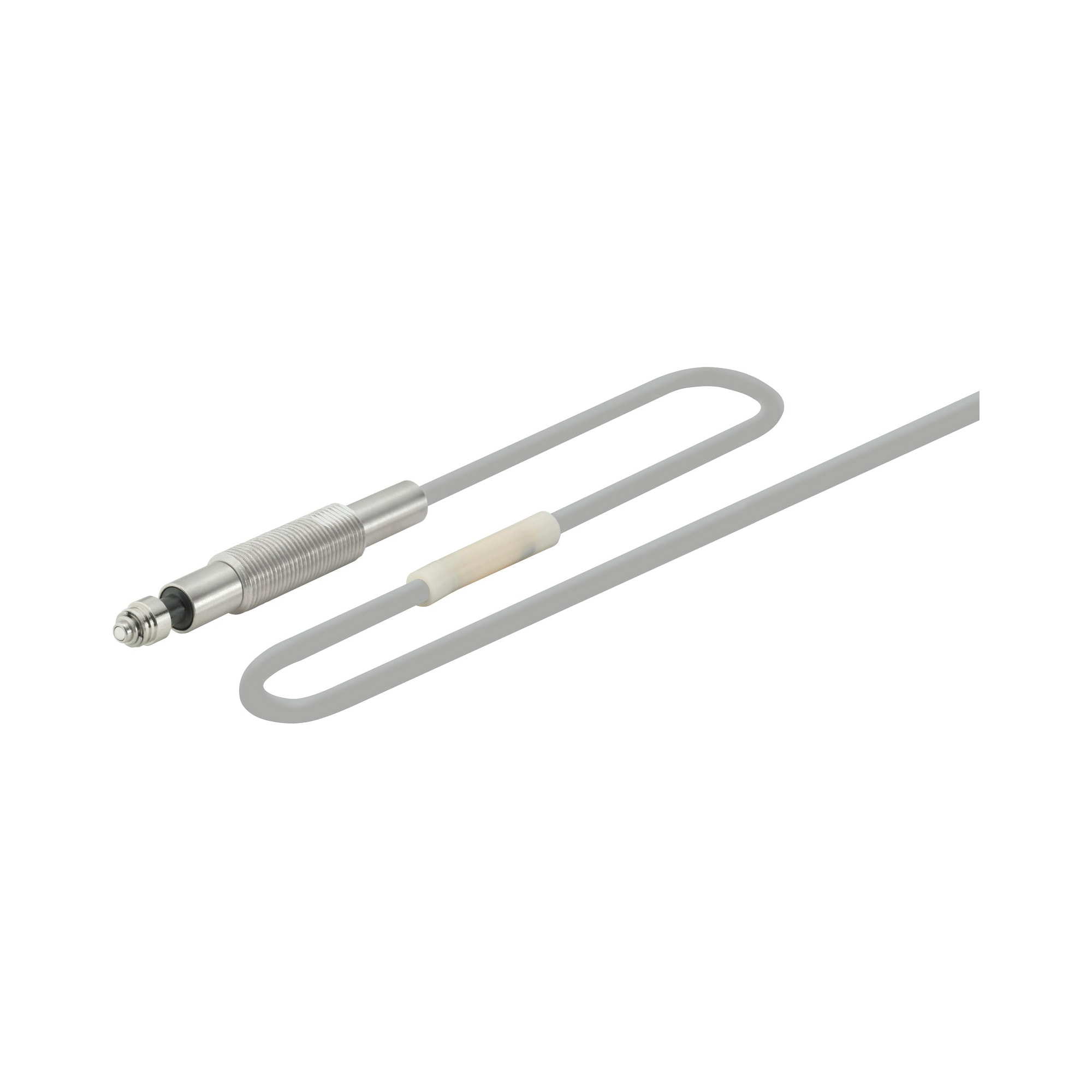

| Type | Pin Stroke, Spring Plunger Type | Main Body Shape | Screw Type | Tip Shape | Needle Type |
|---|---|---|---|---|---|
| Environment | Waterproof Type | Body Material | EN 1.4305 Equiv. | Contact Material | EN 1.4125 Equiv. |
| Stroke(mm) | 2.8 | Contact Point Type | Contact Type NO | Screw Nominal (M) | M8x0.75 |
| Operating Temperature Range(°C) | 0::80 | Operating Point(mm) | 0.3 | Repeatability | 0.005mm |
| Contact Force(N) | 1 | Contact Point Accuracy Life(x 10K times) | 1000 | Tip Dia. | Ø4 |
| Protection Structure | IP67 | LED | With LED |
This page is Contact Switches / Water / Resisting / End Shape Selection, part number MSTKD-ND.
You can find the detail information about specifications and dimensions on part number MSTKD-ND.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
