Contact Switches with Stoppers / Ball Contact Screw / IP44
Part number:
possible part numbers found.Outline drawing and specifications table
| MSPM－S MSPM－SD(With LED) | MSPM－L MSPM－LD(With LED) | |||
 |  | |||
| Cable: Loose Wire (without SUMITUBE) 2 Conductors - ø0.6, L 0.5 m Oil Resistant | Cable: Cab Tire 2 Conductors - ø3, L 2 m, Oil Resistant Min. Bending Radius 7R | |||
Material Main Body: EN 1.4005 Equiv.(45HRC)
Ball: EN 1.4125 Equiv.(50HRC)
Ball: EN 1.4125 Equiv.(50HRC)
Accessories (MSPM-L, LD only): Hex Nut 2 pcs. (Thickness 3, Hex Socket 13)
Toothed Washer 1 pc.
Toothed Washer 1 pc.
Specification Table
| Part Number |
| MSTW−SD MSTF−L MSN−S MSNF−L MSPM−LD MSNW−L MSNWF−S |
| Part Number | Stroke | Operating Point | Contact Force | Allowable Static Load | Shock Resistance Energy | Contact Logic |
| Type | ||||||
| MSTW | 0.5 | Stroke Center Vicinity (Repeatability 0.01) | 0.8 N | 3000 N | 0.2J | NO (Normally Open) |
| MSTF | ||||||
| MSN | ||||||
| MSNF | ||||||
| MSPM |
Part number list
Number of items
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
34.13 € ( 40.61 € ) | Stock item: 1 working dayAvailable for same-day shipping |
47.73 € ( 56.80 € ) | 5 working days |
31.61 € ( 37.62 € ) | Stock item: 1 working dayAvailable for same-day shipping |
44.58 €23.63 € ( 28.12 € ) | Stock item: 1 working dayAvailable for same-day shipping |
More Information
Basic information
[Features] This is a ball contact, ball plunger type, with a plug. [Material] EN 1.4005 Equiv.
Outline and specifications
Specifications/Overview
| (Common to "with LED" Type) | ||
| Switch body | Switch body | |
 |  | |
| Cable: Loose Wire (－SD) | Cable: Cab Tire (－LD) |
[ ! ] Use under 24 V DC/10 mA or less.
[ ! ] Use within the contact ratings.
[ ! ] Do not pull or twist the loose wires with 15 N or more. Also do not pull or twist the cab tire cords with 30 N or more.
" ! " Contact Method of Detected Subject (Common)
| ·Except Ball Contact Type (Declination within ±3°) | ·Ball Contact Type (All Orientations) | |
 |  |
App. Example

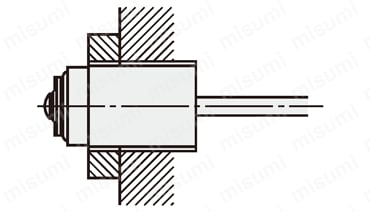

Set Screw(MSWF)

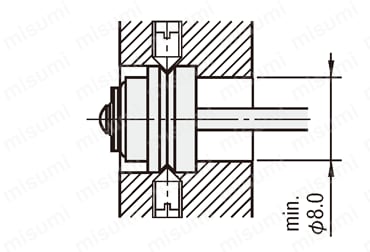

Double Nut Tightened
(MSNW)

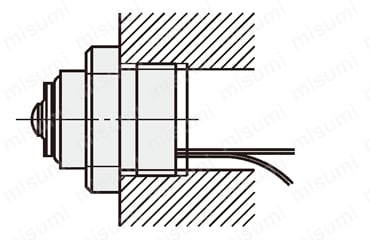

Screw-In
(MSNWF)
■Structure of Waterproof Type (IP67)
·Use within the contact ratings.
·Do not pull or twist the loose wires with 15 N or more. Also do not pull or twist the cab tire cords with 30 N or more.
