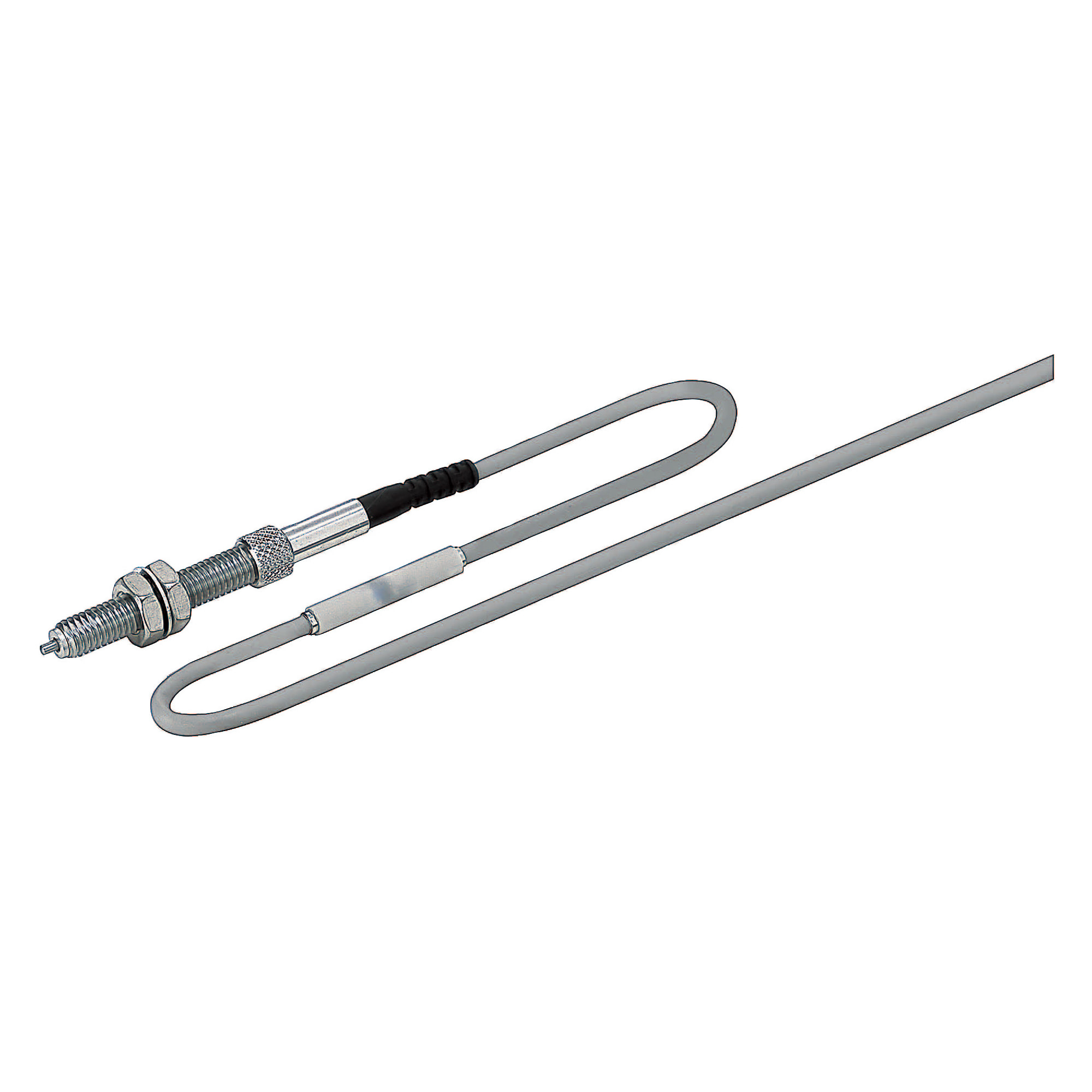

Contact Switches with Stoppers / Long Stroke / IP40
Mouse over image to enlarge

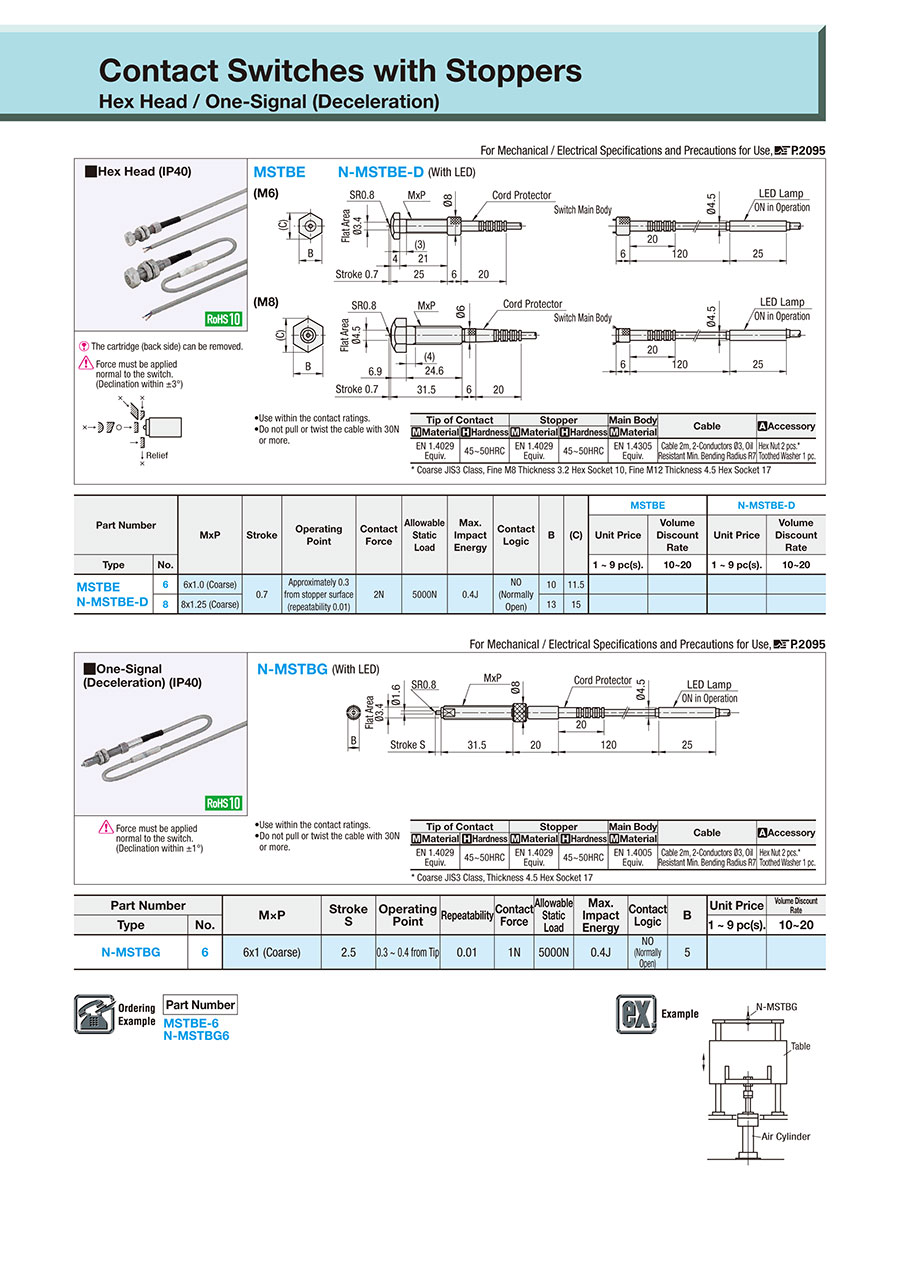

Outline drawing and specifications table
N－MSTBG (With LED)
[ ! ] Use under 24 V DC/10 mA or less.
[ ! ] Use within the contact ratings.
[ ! ] Do not pull or twist the cable with 30 N or more.
* JIS Class 3, Thickness 3.6 Hex Size 10
[ ! ] Use under 24 V DC/10 mA or less.
[ ! ] Use within the contact ratings.
[ ! ] Do not pull or twist the cable with 30 N or more.
| Tip of Contact | Stopper | Main Body | Cable | Accessory | ||
| Material | Hardness | Material | Hardness | Material | ||
| EN 1.4029 Equiv. | 45 to 50HRC | EN 1.4029 Equiv. | 45 to 50HRC | EN 1.4005 Equiv. | Cable 2 m, 2-Conductors ø3, Oil Resistant Min. Bending Radius R7 | Hex Nut 2 pcs.* Toothed Washer 1 pc. |
Specification Table
| Part Number |
| N−MSTBB−D6 N−MSTBG6 |
| Part Number | M × P (Coarse) | Stroke S | Operating Point | Operating Point Repeatability | Contact Force | Anti-Static Load | Shock Resistance Energy | Switch Contact Structure | B | |
| Type | No. | |||||||||
| N−MSTBG | 6 | 6 × 1 | 2.5 | 0.3 to 0.4 from tip | 0.01 | 1 N | 5000 N | 0.4J | NO (Normally Open) | 5 |
More Information
Basic information
This is a position switch with a stopper, 1 signal (delay) type.
Outline and specifications
Specifications/Overview
[!] Straightly hold a detected object against the tip of switch. (Declination within ±1°)App. Example
Similar ProductsSee all similar products
No similar products found for this item. Part number has been confirmed
