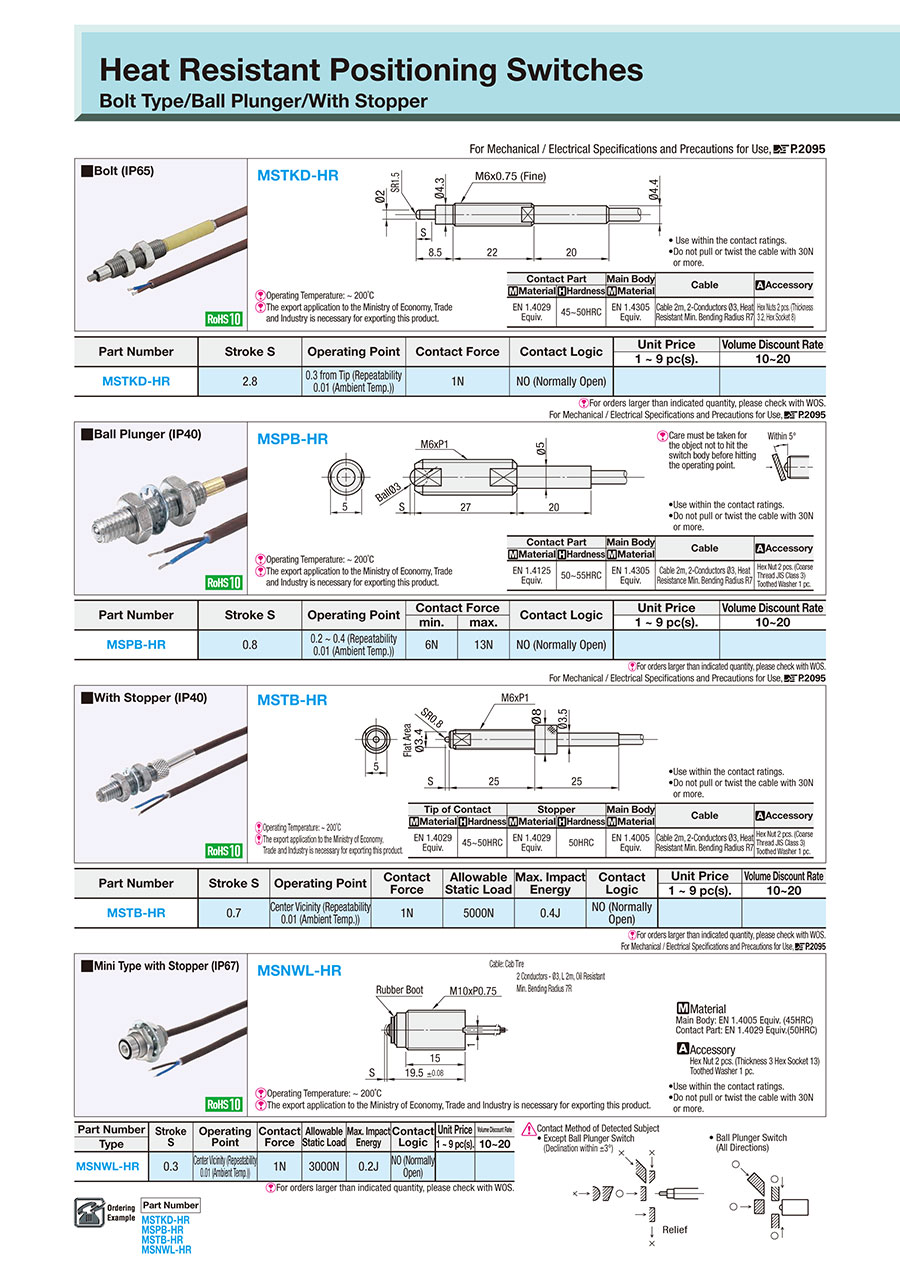

Mini Contact Switches with Stopper / Heat-Resistant / IP67
Click on this image to zoom in.
Click on this image to zoom in.
- Volume Discount
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
MSNWL-HR
- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- Catalog
Material
Main Body: EN 1.4005 Equiv. (45HRC)
Contact Part: EN 1.4029 Equiv.(50HRC)
Accessory
Hex Nut 2 pcs. (Thickness 3 Hex Socket 13)
Toothed Washer 1 pc.
Specifications
| Part Number |
| MSTKD-HR MSPB-HR MSTB-HR MSNWL-HR |
| Part Number | Stroke S | Operating Point | Contact Force | Allowable Static Load | Max. Impact Energy | Contact Logic | Unit Price | Volume Discount Rate |
| Type | 1 ~ 9 pc(s). | 10~20 | ||||||
| MSNWL-HR | 0.3 | Center Vicinity (Repeatability 0.01 (Ambient Temp.)) | 1N | 3000N | 0.2J | NO (Normally Open) |
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Part Number
|
|---|
| MSNWL-HR |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | |
|---|---|---|---|---|---|
198.86 € | 1 | Available | 5 Days | 10 |
Loading...
Basic information
| Type | Pin Stroke, Spring Plunger Type / With Stopper | Main Body Shape | Screw Type | Tip Shape | Needle Type |
|---|---|---|---|---|---|
| Environment | Heat-Resisting | Body Material | EN 1.4005 Equiv. | Contact Material | EN 1.4029 Equiv. |
| Stroke(mm) | 0.3 | Contact Point Type | Contact Type NO | Screw Nominal (M) | M10x0.75 |
| Operating Temperature Range(°C) | 0::200 | Operating Point(mm) | 0.15 | Repeatability | 0.01mm |
| Contact Force(N) | 1 | Contact Point Accuracy Life(x 10K times) | 50 | Allowable Static Load(N) | 3000 |
| Impact Resistant Energy(J) | 0.2 | Protection Structure | IP67 |
This page is Mini Contact Switches with Stopper / Heat-Resistant / IP67, part number MSNWL-HR.
You can find the detail information about specifications and dimensions on part number MSNWL-HR.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
