[Precision] X-Axis / Dovetail / Rack&Pinion / Handle Extension
![[Precision] X-Axis / Dovetail / Rack&Pinion / Handle Extension](http://content.misumi-ec.com/image/upload/f_auto,t_product_main/v1/p/jp/product/series/110300192530/110300192530_001.jpg)
Click on this image to zoom in.
Click on this image to zoom in.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- Catalog
- Technical Information

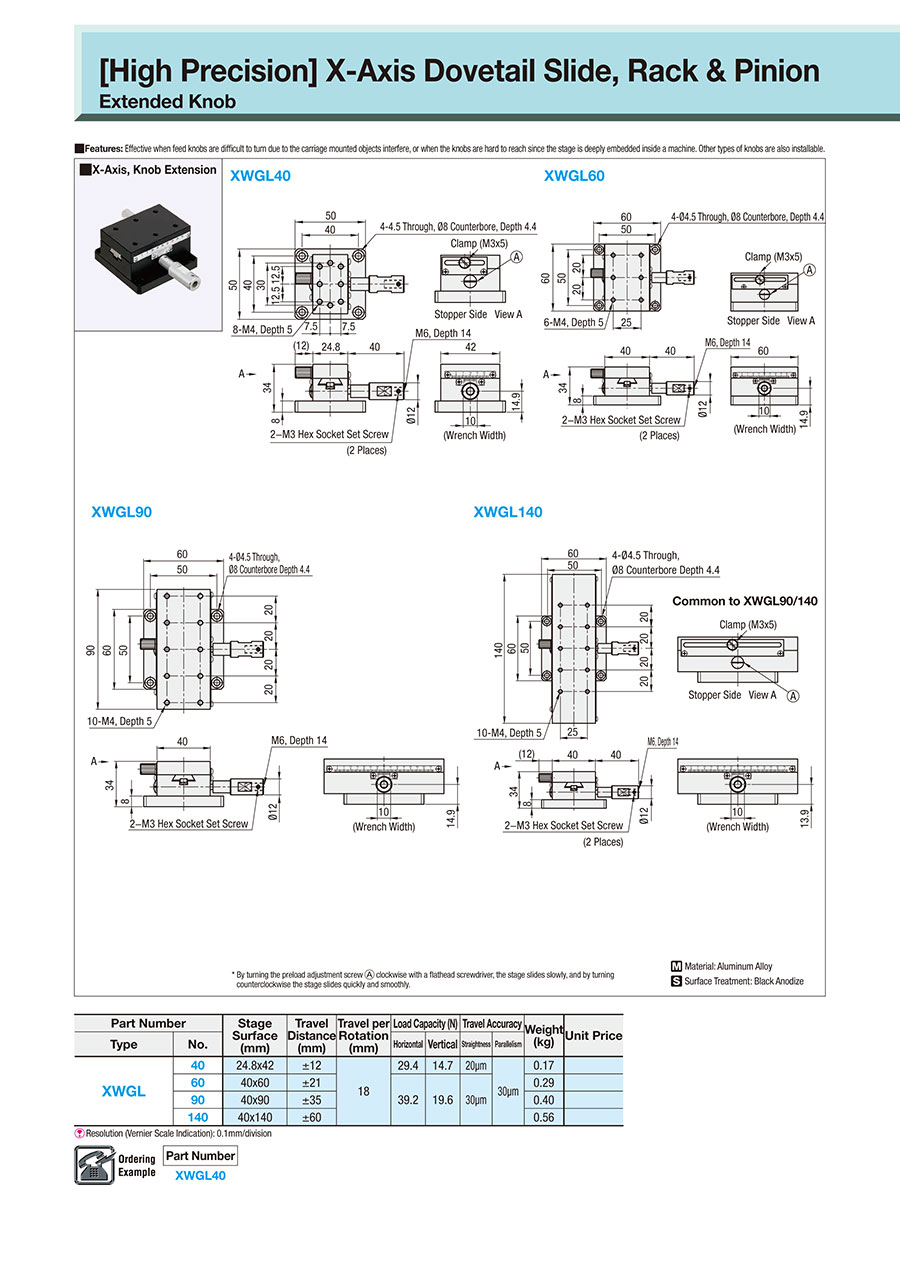

![[Precision] X-Axis/Dovetail/Rack&Pinion/Handle Extension:Related Image](http://uk.misumi-ec.com/linked/item/10300192530/img/drw_02.gif)
Material: Aluminum Alloy
Surface Treatment : Black Anodize
Specifications
| Part Number |
| XWGL40 |
| Part Number | Stage Surface (mm) | Travel Distance (mm) | Travel per Rotation (mm) | Load Capacity (N) | Travel Accuracy | Weight (kg) | Unit Price | |||
| Type | No. | Horizontal | Vertical | Straightness | Parallelism | |||||
| XWGL | 40 | 24.8x42 | ±12 | 18 | 29.4 | 14.7 | 20µm | 30µm | 0.17 | |
| 60 | 40x60 | ±21 | 39.2 | 19.6 | 30µm | 0.29 | ||||
| 90 | 40x90 | ±35 | 0.40 | |||||||
| 140 | 40x140 | ±60 | 0.56 | |||||||
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Part Number
|
|---|
| XWGL40 |
| XWGL60 |
| XWGL90 |
| XWGL140 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Table Size (Length) L (Range Selectable) (mm) | Table Size (Width) W (Range Selectable) (mm) | Load Capacity (Range Selectable) (N) | Travel Distance (Range Selectable) | Table Size (Length) L (mm) | Table Size (Width) W (mm) | Allowable Load (N) | Travel Distance (X-Axis) (mm) | Table Straightness (µm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
266.87 € | 1 | 9 Days | 10 | 41~60 | ~25 | 5~30 | ±10~30mm | 42 | 24.8 | 29.4 | ±12 | 20 | ||
277.51 € | 1 | 9 Days | 10 | 41~60 | 26~40 | 30.1~50 | ±10~30mm | 60 | 40 | 39.2 | ±21 | 30 | ||
376.57 € | 1 | 9 Days | 10 | 61~90 | 26~40 | 30.1~50 | ±30mm~ | 90 | 40 | 39.2 | ±35 | 30 | ||
458.42 € | 1 | 9 Days | 10 | 121 or More | 26~40 | 30.1~50 | ±30mm~ | 140 | 40 | 39.2 | ±60 | 30 |
Loading...
Basic information
| Feeding Method | Rack & Pinion | Table Material | Aluminum Alloy | Table Surface Treatment | Black Anodized Aluminum |
|---|---|---|---|---|---|
| Guiding Mechanism | Dovetail Slide | Table Size (Thickness) H (Range Selectable)(mm) | 30.1~35 | Category | Main Body |
| Table Size (Thickness) H(mm) | 34 | Type | X-Axis | Table Parallelism(µm) | 30 |
| Feed Knob Position | Side | Clamp | Standard | Reversed | Standard |
| Through Hole (Table Center Hole) | No | Feeding Method (Rack & Pinion Type) | Standard | Feeding Method (with Vernier Scale) | With Vernier Scale |
Configure
Basic Attributes
-
Table Size (Length) L (Range Selectable)(mm)
-
Table Size (Width) W (Range Selectable)(mm)
-
Load Capacity (Range Selectable)(N)
- 5~30
- 30.1~50
-
Travel Distance (Range Selectable)
- ±10~30mm
- ±30mm~
-
Table Size (Length) L(mm)
-
Table Size (Width) W(mm)
-
Allowable Load(N)
-
Travel Distance (X-Axis)(mm)
-
Type
- XWGL
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 9 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
Complementary Products
