[Simplified Adjustments] Tilt Stages

[Simplified Adjustments] Tilt Stages TLSG

Part number:

TLSG
Clear
  • Unit price (excl. VAT)
    409.30 €
  • Total (excl. VAT)
    409.30 €
    Price including VAT: 487.07 €
  • Expected shipping days
    9 working days
    Expected shipping date: 15.05.2025
Quantity:
Quantity available for order?10
Quantity
?
1 - 1011+
Unit price (excluding VAT)
(Unit price including VAT)
409.30 €
(487.07 €)
409.30 €
(487.07 €)
Shipping days9 daysQuote

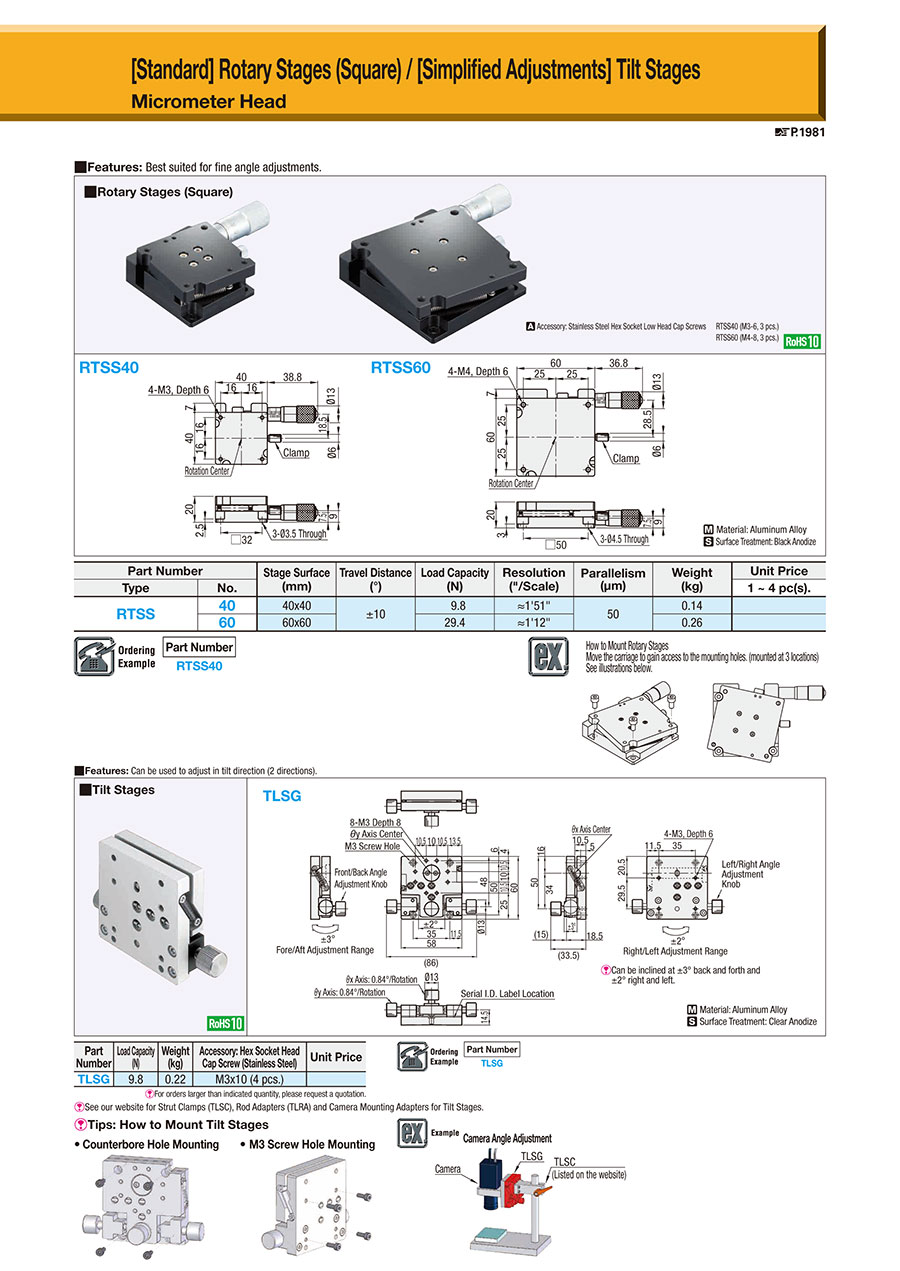

Outline drawing and specifications table

TLSG


[ ! ] Can be inclined at ±3° back and forth and ±2° right and left using an adjustment screw.

[M]Material: Aluminum Alloy
[S]Surface treatment: Clear Anodize


Specification Table

Part Number
TLSG
Part NumberLoad Capacity
(N)		Weight
(kg)		Accessories
Hex Socket Head Cap Screw (Stainless Steel)
TLSG9.80.22M3 × 10 (4 pcs.)
[ ! ] See our website for Strut Clamps (TLSC), Rod Adapters (TLRA) and Camera Mounting Adapters for Tilt Stages.

Part number list

Number of items
  • 1
    • Part number
    TLSG
    RoHS?Minimum order quantity
    10
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    409.30 €
    ( 487.07 € )
    9 working days
  • 1

    • More Information

    Basic information

    Technical information

    Outline and specifications

    Specifications/Overview

    [ ! ] One Point: Tilt Stage Mounting Method

    ·Counterbore Hole Mounting
    ·M3 Screw Hole Mounting
    Camera Angle Adjustment

    App. Example

    Camera Angle Adjustment
