[Precision] Post Locating / 3 Axis Slide Type with Shaft
![[Precision] Post Locating / 3 Axis Slide Type with Shaft](http://content.misumi-ec.com/image/upload/f_auto,t_product_main/v1/p/jp/product/series/110300203210/110300203210_001.jpg)
Click on this image to zoom in.
Click on this image to zoom in.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
STLXYZ35
- Drawing / Specifications
- 3D Preview 3D preview is available after complete configuration
- Part Numbers
- More Information
- Catalog
- Technical Information

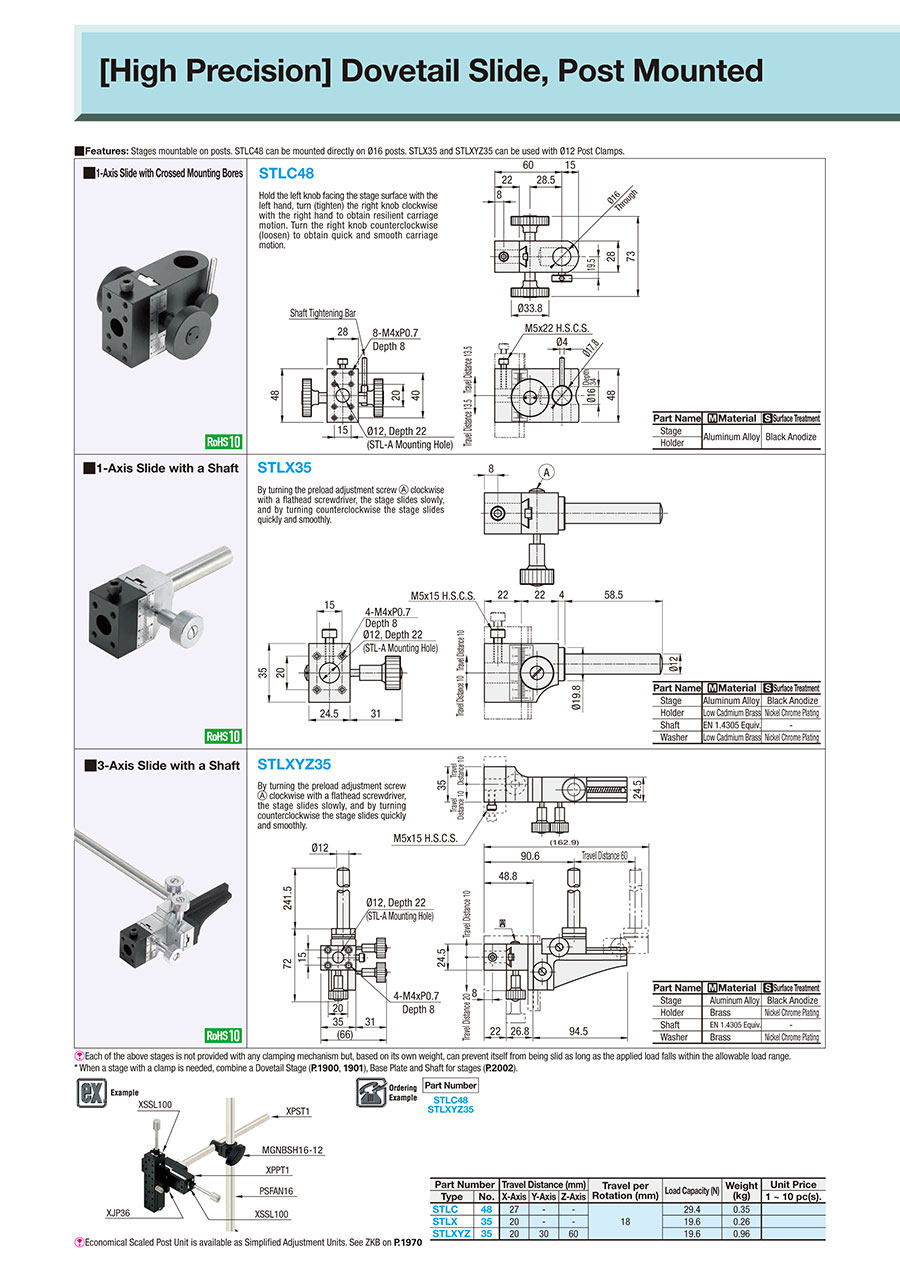

![[Precision] Post Locating/3 Axis Slide Type with Shaft:Related Image](http://uk.misumi-ec.com/linked/item/10300203210/img/drw_01.gif)
| Part Name | Material | Surface Treatment |
| Stage | Aluminum Alloy | Black Anodize |
| Holder | Brass | Nickel Chrome Plating |
| Shaft | EN 1.4305 Equiv. | - |
| Washer | Brass | Nickel Chrome Plating |
Specifications
| Part Number |
| STLC48 STLXYZ35 |
| Part Number | Travel Distance (mm) | Travel per Rotation (mm) | Load Capacity (N) | Weight (kg) | Unit Price | |||
| Type | No. | X-Axis | Y-Axis | Z-Axis | 1 ~ 10 pc(s). | |||
| STLC | 48 | 27 | - | - | 18 | 29.4 | 0.35 | |
| STLX | 35 | 20 | - | - | 19.6 | 0.26 | ||
| STLXYZ | 35 | 20 | 30 | 60 | 19.6 | 0.96 | ||
Part Number:
- In order to open the 3D preview, the part number must be fixed.
3D preview is not available, because the part number has not yet been determined.
Loading...
Part Number
|
|---|
| STLXYZ35 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | |
|---|---|---|---|---|---|
990.51 € | 1 | 5 Days | 10 |
Loading...
Example of Use
![[Precision] Post Locating/3 Axis Slide Type with Shaft:Related Image](http://uk.misumi-ec.com/linked/item/10300203210/img/exp_01.gif)
Basic information
| Table Material | Aluminum Alloy | Type | XY + Z-Axis | Table Surface Treatment | Black Anodized Aluminum |
|---|---|---|---|---|---|
| Through Hole (Table Center Hole) | Not Provided | Load Capacity (Range)(N) | 5 to 30 | Allowable Load(N) | 19.6 |
| Table Size (Length) L(mm) | 35 | Table Size (Width) W(mm) | 24.5 | Table Size (Thickness) H (Range)(mm) | 80.1 to 100 |
| Table Size (Thickness) H(mm) | 90.6 | Stroke (X Distance)(mm) | ±10 | Feed Knob Position | Side |
| Clamp | Standard | Z-Axis Stage Surface | Z-Axis | Feeding Method (Rack & Pinion Type) | Standard |
| Feeding Method (with Vernier Scale) | With Vernier Scale |
This page is [Precision] Post Locating / 3 Axis Slide Type with Shaft, part number STLXYZ35.
You can find the detail information about specifications and dimensions on part number STLXYZ35.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
