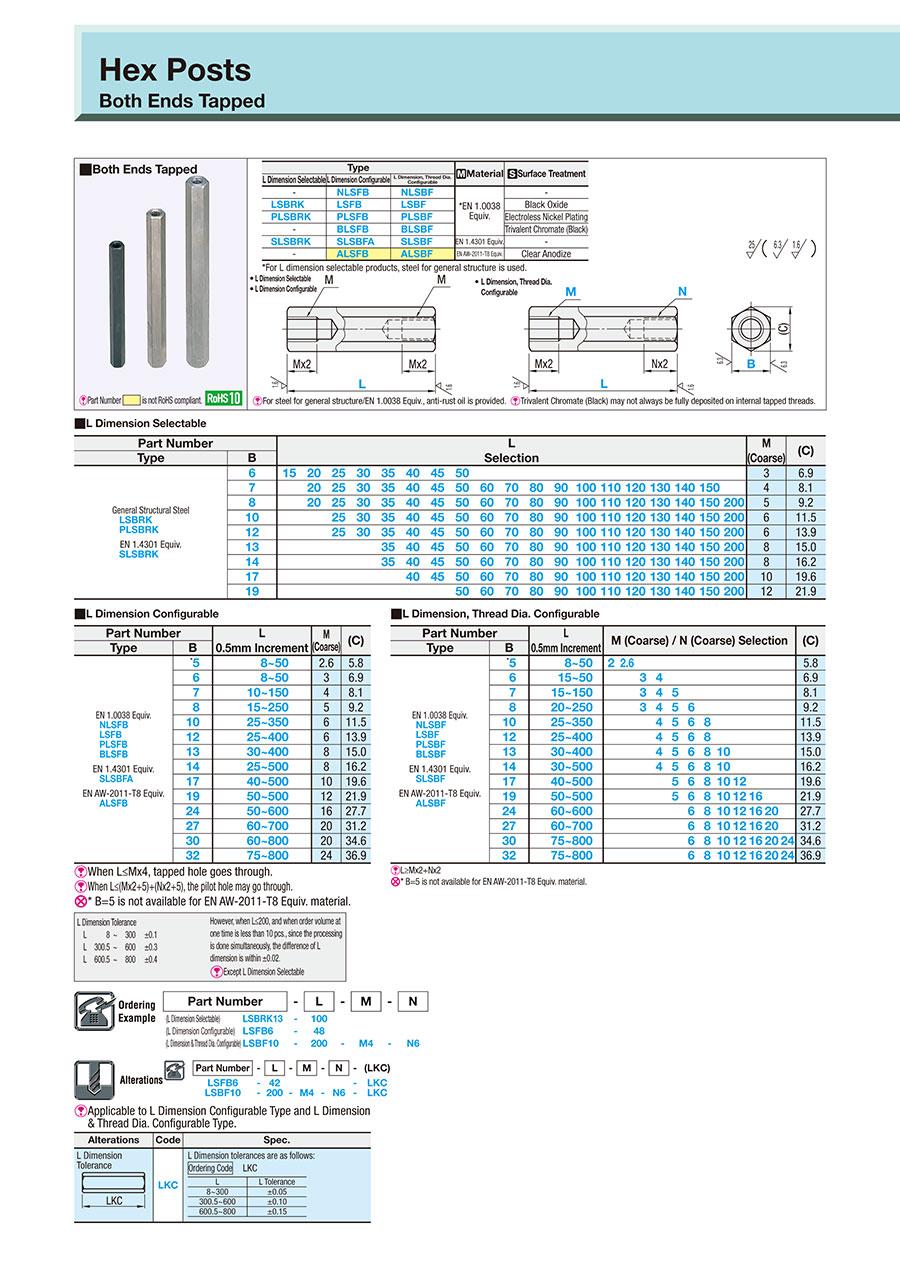

Hexagonal rods / material selectable / black oxided, nickel-plated / end forms selectable
Caution
- Please check the content on our website as the PDF does not contain the most up-to-date information.
Part number:
possible part numbers found.Outline drawing and specifications table
Back to the Category Distance elements (hexagonal, square, cylindrical)
Technical Drawing - Hexagonal Rods
Open the technical drawing in the new window
Available dimensions and tolerances can be found under the tab More information.
Basic Properties (e.g., material, hardness, coating, tolerance) - Hexagonal Rods
| Type | [ M ]Material | [ S ]Surface Treatment | ||
| L Dimension Selectable | L Dimension Configurable | L Dimension, Thread Dia. Configurable | ||
| - | NLSFB | NLSBF | *EN 1.0038 Equiv. | - |
| LSBRK | LSFB | LSBF | Black Oxide | |
| PLSBRK | PLSFB | PLSBF | Electroless Nickel Plating | |
| - | BLSFB | BLSBF | Trivalent Chromate (Black) | |
| SLSBRK | SLSBFA | SLSBF | EN 1.4301 Equiv. | - |
| - | ALSFB | ALSBF | EN AW-2011 Equiv. | Clear Anodize |
Further specifications can be found under the tab More information.
Composition of a Product Code - Hexagonal Rods
| Part Number | - | L | - | M | - | N |
| (L Dimension Selectable) LSBRK13 (L Dimension Configurable) LSFB6 (L Dimension & Thread Dia. Configurable) LSBF10 | - - - | 100 48 200 | - | M4 | - | N6 |
Alterations - Hexagonal Rods
Part number list
| Part number |
|---|
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
- ( - ) | 19 working days |
- ( - ) | 19 working days |
- ( - ) | 19 working days |
- ( - ) | 19 working days |
- ( - ) | 19 working days |
- ( - ) | 19 working days |
- ( - ) | 19 working days |
- ( - ) | 19 working days |
- ( - ) | 19 working days |
- ( - ) | 19 working days |
- ( - ) | 19 working days |
- ( - ) | 19 working days |
- ( - ) | 19 working days |
- ( - ) | 19 working days |
- ( - ) | 19 working days |
- ( - ) | 19 working days |
- ( - ) | 19 working days |
- ( - ) | 19 working days |
- ( - ) | 19 working days |
- ( - ) | 19 working days |
- ( - ) | 19 working days |
- ( - ) | 19 working days |
- ( - ) | 19 working days |
- ( - ) | 19 working days |
- ( - ) | 19 working days |
- ( - ) | 19 working days |
- ( - ) | 19 working days |
- ( - ) | 19 working days |
- ( - ) | 19 working days |
- ( - ) | 19 working days |
- ( - ) | 19 working days |
- ( - ) | 19 working days |
- ( - ) | 19 working days |
- ( - ) | 19 working days |
- ( - ) | 19 working days |
- ( - ) | 19 working days |
- ( - ) | 19 working days |
- ( - ) | 19 working days |
- ( - ) | 19 working days |
- ( - ) | 19 working days |
- ( - ) | 19 working days |
- ( - ) | 19 working days |
- ( - ) | 19 working days |
- ( - ) | 19 working days |
- ( - ) | 19 working days |
- ( - ) | 19 working days |
- ( - ) | 19 working days |
- ( - ) | 19 working days |
- ( - ) | 19 working days |
- ( - ) | 19 working days |
- ( - ) | 19 working days |
- ( - ) | 19 working days |
- ( - ) | 19 working days |
- ( - ) | 19 working days |
- ( - ) | 19 working days |
- ( - ) | 19 working days |
- ( - ) | 19 working days |
- ( - ) | 19 working days |
- ( - ) | 19 working days |
- ( - ) | 19 working days |
More Information
Basic information
Caution
- Please check the content on our website as the PDF does not contain the most up-to-date information.
Outline and specifications
Back to the Category Distance elements (hexagonal, square, cylindrical)
Technical Drawing - Hexagonal Rods
Open the technical drawing in the new window
Specification Tables - Hexagonal Rods
| Part Number | L Selection | M (Coarse) | (C) | |||||||||||||||||||
| Type | B | |||||||||||||||||||||
| General Structural Steel LSBRK PLSBRK EN 1.4301 Equiv. SLSBRK | 6 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 3 | 6.9 | |||||||||||
| 7 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 60 | 70 | 80 | 90 | 100 | 110 | 120 | 130 | 140 | 150 | 4 | 8.1 | |||
| 8 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 60 | 70 | 80 | 90 | 100 | 110 | 120 | 130 | 140 | 150 | 200 | 5 | 9.2 | ||
| 10 | 25 | 30 | 35 | 40 | 45 | 50 | 60 | 70 | 80 | 90 | 100 | 110 | 120 | 130 | 140 | 150 | 200 | 6 | 11.5 | |||
| 12 | 25 | 30 | 35 | 40 | 45 | 50 | 60 | 70 | 80 | 90 | 100 | 110 | 120 | 130 | 140 | 150 | 200 | 6 | 13.9 | |||
| 13 | 35 | 40 | 45 | 50 | 60 | 70 | 80 | 90 | 100 | 110 | 120 | 130 | 140 | 150 | 200 | 8 | 15.0 | |||||
| 14 | 35 | 40 | 45 | 50 | 60 | 70 | 80 | 90 | 100 | 110 | 120 | 130 | 140 | 150 | 200 | 8 | 16.2 | |||||
| 17 | 40 | 45 | 50 | 60 | 70 | 80 | 90 | 100 | 110 | 120 | 130 | 140 | 150 | 200 | 10 | 19.6 | ||||||
| 19 | 50 | 60 | 70 | 80 | 90 | 100 | 110 | 120 | 130 | 140 | 150 | 200 | 12 | 21.9 | ||||||||
■L Dimension Configurable
| Part Number | L 0.5mm Increment | M (Coarse) | (C) | |
| Type | B | |||
| EN 1.0038 Equiv. NLSFB LSFB PLSFB BLSFB EN 1.4301 Equiv. SLSBFA EN AW-2011 Equiv. ALSFB | *5 | 8~50 | 2.6 | 5.8 |
| 6 | 8~50 | 3 | 6.9 | |
| 7 | 10~150 | 4 | 8.1 | |
| 8 | 15~250 | 5 | 9.2 | |
| 10 | 25~350 | 6 | 11.5 | |
| 12 | 25~400 | 6 | 13.9 | |
| 13 | 30~400 | 8 | 15.0 | |
| 14 | 25~500 | 8 | 16.2 | |
| 17 | 40~500 | 10 | 19.6 | |
| 19 | 50~500 | 12 | 21.9 | |
| 24 | 50~600 | 16 | 27.7 | |
| 27 | 60~700 | 20 | 31.2 | |
| 30 | 60~800 | 20 | 34.6 | |
| 32 | 75~800 | 24 | 36.9 | |
When L≤(Mx2+5)+(Nx2+5), the pilot hole may go through.
* B=5 is not available for EN AW-2011 Equiv. material.
■L Dimension, Thread Dia. Configurable
| Part Number | L 0.5mm Increment | M (Coarse) / N (Coarse) Selection | (C) | ||||||||||||
| Type | B | ||||||||||||||
| EN 1.0038 Equiv. NLSBF LSBF PLSBF BLSBF EN 1.4301 Equiv. SLSBF EN AW-2011 Equiv. ALSBF | *5 | 8~50 | 2 | 2.6 | 5.8 | ||||||||||
| 6 | 15~50 | 3 | 4 | 6.9 | |||||||||||
| 7 | 15~150 | 3 | 4 | 5 | 8.1 | ||||||||||
| 8 | 20~250 | 3 | 4 | 5 | 6 | 9.2 | |||||||||
| 10 | 25~350 | 4 | 5 | 6 | 8 | 11.5 | |||||||||
| 12 | 25~400 | 4 | 5 | 6 | 8 | 13.9 | |||||||||
| 13 | 30~400 | 4 | 5 | 6 | 8 | 10 | 15.0 | ||||||||
| 14 | 30~500 | 4 | 5 | 6 | 8 | 10 | 16.2 | ||||||||
| 17 | 40~500 | 5 | 6 | 8 | 10 | 12 | 19.6 | ||||||||
| 19 | 50~500 | 5 | 6 | 8 | 10 | 12 | 16 | 21.9 | |||||||
| 24 | 60~600 | 6 | 8 | 10 | 12 | 16 | 20 | 27.7 | |||||||
| 27 | 60~700 | 6 | 8 | 10 | 12 | 16 | 20 | 31.2 | |||||||
| 30 | 75~800 | 6 | 8 | 10 | 12 | 16 | 20 | 24 | 34.6 | ||||||
| 32 | 75~800 | 6 | 8 | 10 | 12 | 16 | 20 | 24 | 36.9 | ||||||
* B=5 is not available for EN AW-2011 Equiv.material.
L Dimension Tolerance
| L 8 ~ 300 | ± | 0.1 |
| L 300.5 ~ 600 | ± | 0.3 |
| L 600.5 ~ 800 | ± | 0.4 |
However, when L≤200, and when order volume at one time is less than 10 pcs., since the processing
is done simultaneously, the difference of L dimension is within ±0.02.
Except L Dimension Selectable
Alterations - Hexagonal Rods
General Information - Hexagonal Rods
Selection details of spacers/spacers (hexagonal, square, cylindrical)
- Material: aluminum, steel, stainless steel, PMMA, PEEK
- Coatings: uncoated, burnished, chemically nickel-plated, anodized, chromated
- Basic shapes: hexagon, square, round
- End forms: straight, female thread, male thread, female thread with centering pin
- Outer diameter (round): 4 to 50 mm
- Spanner flat (hexagon, square): 4 to 32 mm
- Length: 5 to 800 mm
- Threads: M2 to M24
Description/Basics
Spacers are generally used as spacing connections. Due to their diversity, the wide range of design concepts can be realized with spacer bolts and practically every application can be realized using the appropriate spacer bolt.
The design and assembly of thin plates makes it extremely difficult to work with counterbores or internal threads. Therefore, spacer bolts are often used on plates, sheet metal or printed circuit boards (PCB).
The selectable assembly threads, the individually configurable length of the spacers, and the selectable length tolerance via the [LKC] option offer great design freedom compared to conventional mass-produced products. This advantage is particularly important if, for example, plates of different thicknesses or particularly thin plates are utilized.
For applications with particularly high positioning requirements, it is recommended to combine shim rings with a spacer. These can be configured in thicknesses from 0.01 to 1 mm and integrated as an additional compensating element.
The assembly of hexagonal spacers is particularly easy with the hex, since they can be held against one another with an open-ended spanner. With round spacer bolts, this can be realized with a spanner flat. The spacer bolts are also available with one-sided or two-sided internal thread (long nut). For precise positioning of a spacer bolt with an internal thread or external thread, MISUMI also offers a centering pin in the ISO tolerance h7.
This variety enables virtually barrier-free assembly of the components to be joined with screws, internal threads and external threads or nuts.
Application Examples - Hexagonal Rods
Application example: spacer bolt with external thread
(1) Spacer bolts with external thread on both sides, (2) mounting plate, (3) nut
Application example: spacer bolts with internal thread
(1) Spacer with internal thread on both sides, (2) mounting plate, (3) screw
Application example: spacer with tappet
(1) Distance bolts with centering pin, (2) mounting plate, (3) nut, (4) screw
Application example: threaded spacer pin
(1) spacer bolts with internal thread and external thread, (2) mounting plate, (3) nut, (4) screw
Industrial Applications
