Pipe Stands / Threaded / Round Flange

Pipe Stands / Threaded / Round Flange

MISUMI

MISUMI

Data sheet

Unit еxample related to this product
Panel Rotation Mechanism
Search for оther еxamples

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Pipe Stands/Threaded/Round Flange:Related Image

■ Pipe Threaded
TypeMaterialSurface TreatmentPortion
Round FlangedCompact Flanged
PSEGWPSEGEN 1.0480 Equiv.Electroless Nickel PlatingHollow
EN 1.0038 Equiv.Bracket
PSEGKWPSEGKEN 1.0480 Equiv.Black OxideHollow
EN 1.0038 Equiv.Bracket
PSEGS-EN 1.4301 Equiv.-Hollow
EN 1.4301 Equiv.Bracket
■ Pipe Threaded, Welded
TypeMaterialSurface TreatmentPortion
Round FlangedCompact Flanged
PSYG WPSYGEN 1.0480 Equiv.Electroless Nickel PlatingHollow
EN 1.0038 Equiv.Bracket

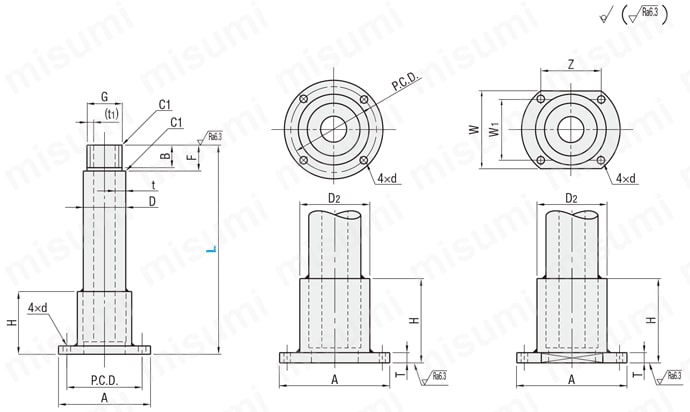

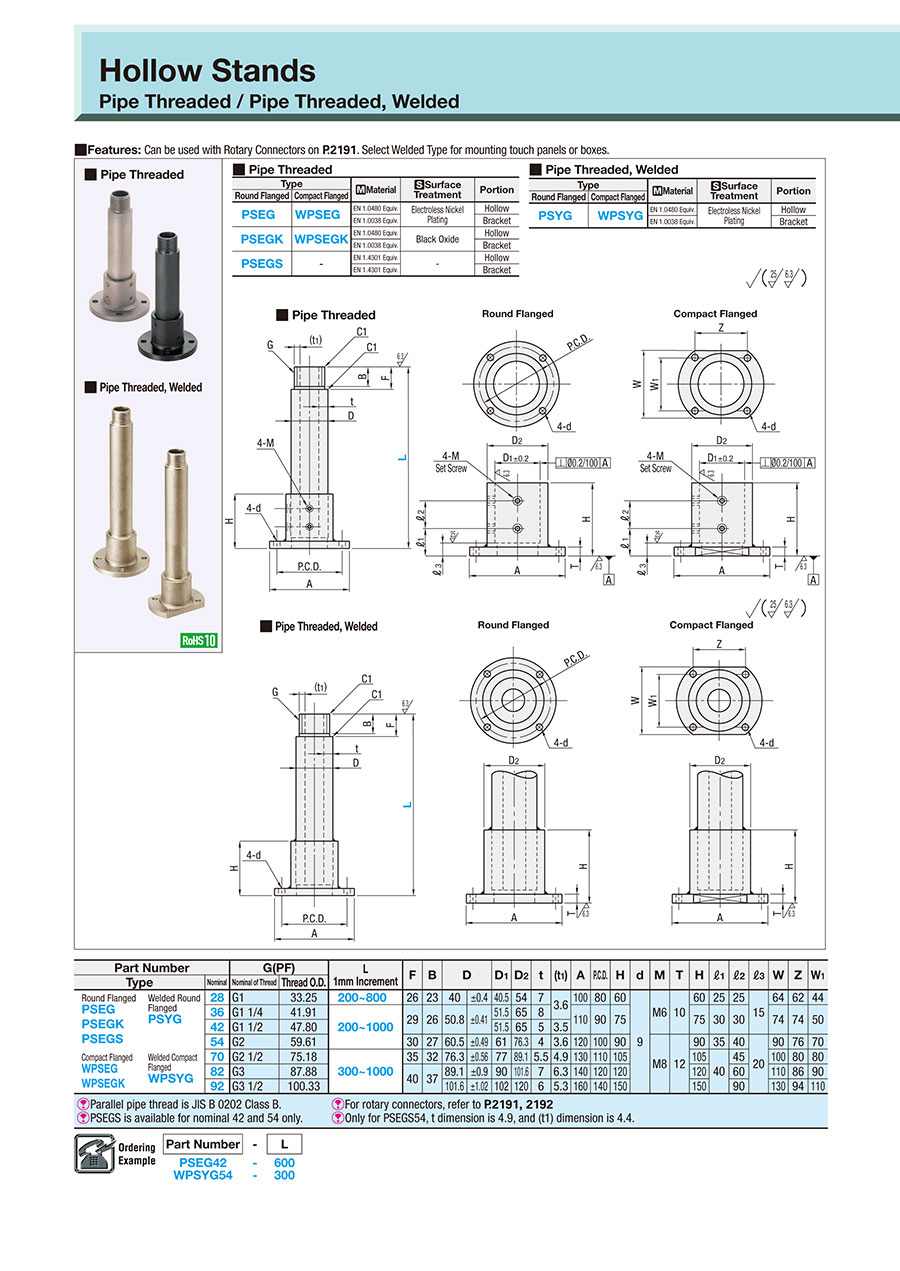

Specifications

Part Number-L
PSEG42
WPSYG54		-
-		600
300
Part NumberG(PF)L
1mm Increment		FBDD1D2t(t1)AP.C.D.HdMTHℓ1ℓ2ℓ3WZW1
TypeNominalNominal of ThreadThread O.D.
Round Flanged
PSEG
PSEGK
PSEGS		Welded Round Flanged
PSYG		28G133.25 200~800262340±0.440.55473.610080609M61060252515646244
36G1 1/441.91 200~1000292650.8±0.4151.56581109075753030747450
42G1 1/247.80 51.56553.5
54G259.61 302760.5±0.496176.343.612010090M81290354020907670
Compact Flanged
WPSEG
WPSEGK		Welded Compact Flanged
WPSYG		70G2 1/275.18 300~1000353276.3±0.567789.15.54.913011010510540451008080
82G387.88 403789.1±0.990101.676.3140120120120601108690
92G3 1/2100.33 101.6±1.0210212065.31601401501509013094110
Parallel pipe thread is JIS B 0202 Class B. For rotary connectors, refer to P.2191, 2192
PSEGS is available for nominal 42 and 54 only. Only for PSEGS54, t dimension is 4.9, and (t1) dimension is 4.4.

Part Number:

    3D preview is not available, because the part number has not yet been determined.

  • In order to open the 3D preview, the part number must be fixed.
Loading...

Plug-in is required for 3D Preview

CAD Download
