Rotary Connectors / Round Flange

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

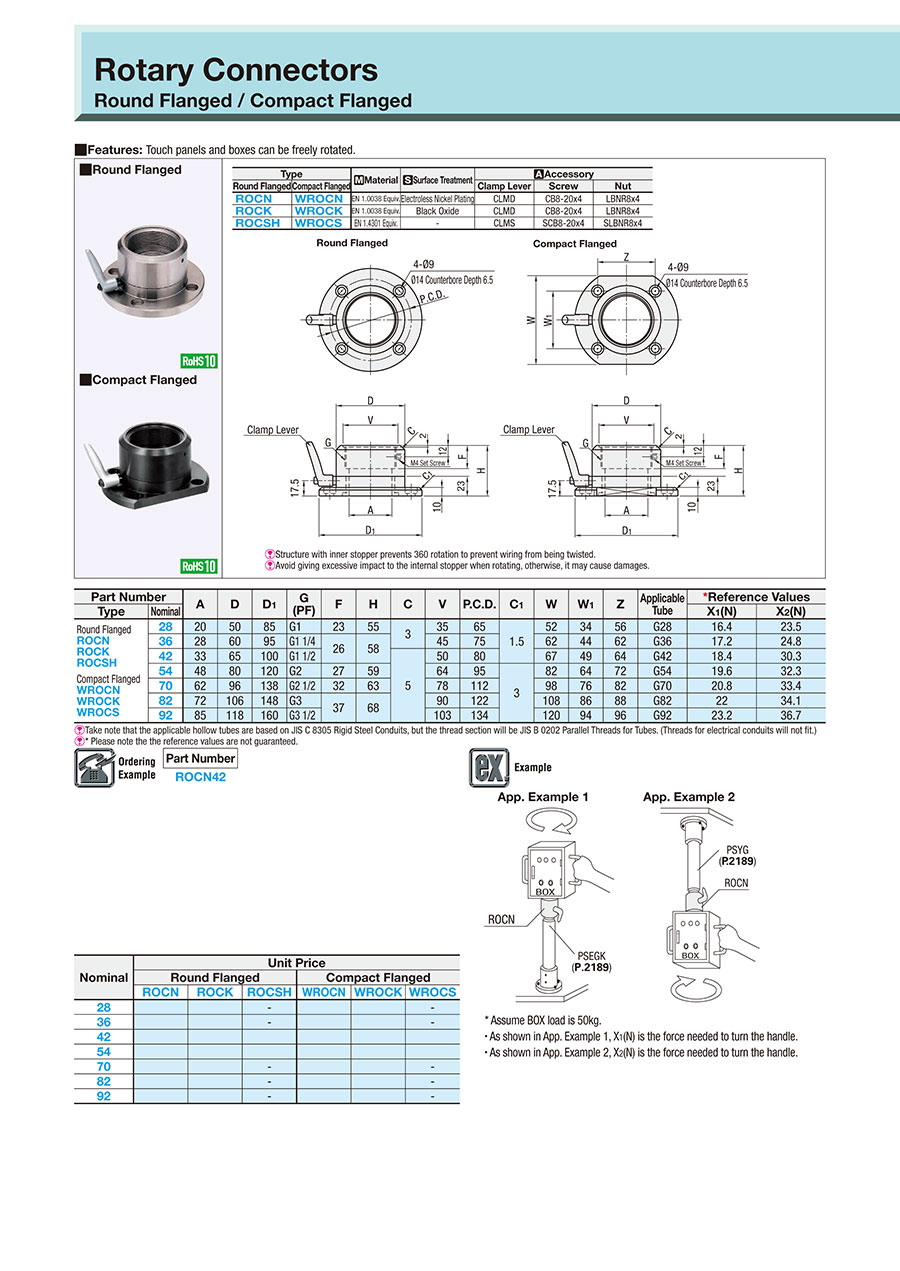

Rotary Connectors/Round Flange:Related Image

TypeMaterialSurface TreatmentAccessory
Round FlangedCompact FlangedClamp LeverScrewNut
ROCNWROCNEN 1.0038 Equiv.Electroless Nickel PlatingCLMDCB8-20x4LBNR8x4
ROCKWROCKEN 1.0038 Equiv.Black OxideCLMDCB8-20x4LBNR8x4
ROCSHWROCSEN 1.4301 Equiv.-CLMSSCB8-20x4SLBNR8x4

Specifications

Part Number
ROCN42
Part NumberADD1G
(PF)
FHCVP.C.D.C1WW1ZApplicable Tube*Reference Values
TypeNominalX1(N)X2(N)
Round Flanged
ROCN
ROCK

ROCSH
Compact Flanged
WROCN
WROCK
WROCS
28205085G12355335651.5523456G2816.423.5
36286095G1 1/426584575624462G3617.224.8
423365100G1 1/255080674964G4218.430.3
544880120G2275964953826472G5419.632.3
706296138G2 1/2326378112987682G7020.833.4
8272106148G33768901221088688G822234.1
9285118160G3 1/21031341209496G9223.236.7
Take note that the applicable hollow tubes are based on JIS C 8305 Rigid Steel Conduits, but the thread section will be JIS B 0202 Parallel Threads for Tubes. (Threads for electrical conduits will not fit.)
* Please note the the reference values are not guaranteed.

Part Number:

    3D preview is not available, because the part number has not yet been determined.

  • In order to open the 3D preview, the part number must be fixed.
Loading...
Part Number
ROCK28
ROCK36
ROCK42
ROCK54
ROCK70
ROCK82
ROCK92
ROCN28
ROCN36
ROCN42
ROCN54
ROCN70
ROCN82
ROCN92
ROCSH42
ROCSH54
WROCK28
WROCK36
WROCK42
WROCK54
WROCK70
WROCK82
WROCK92
WROCN28
WROCN36
WROCN42
WROCN54
WROCN70
WROCN82
WROCN92
WROCS42
WROCS54
Part NumberStandard Unit PriceMinimum order quantityVolume DiscountShipping Days?RoHSShape Material Surface Treatment Applicable Pipes

102.02 €

1 Available Same day

Stock

10Round FlangedEN 1.0038 Equiv.Black OxideG28

108.17 €

1 Available 13 Days 10Round FlangedEN 1.0038 Equiv.Black OxideG36

116.13 €

1 Available 13 Days 10Round FlangedEN 1.0038 Equiv.Black OxideG42

120.45 €

1 Available 13 Days 10Round FlangedEN 1.0038 Equiv.Black OxideG54

144.23 €

1 Available 13 Days 10Round FlangedEN 1.0038 Equiv.Black OxideG70

157.42 €

1 Available 13 Days 10Round FlangedEN 1.0038 Equiv.Black OxideG82

190.06 €

1 Available 13 Days 10Round FlangedEN 1.0038 Equiv.Black OxideG92

102.48 €

1 Available Same day

Stock

10Round FlangedEN 1.0038 Equiv.Electroless Nickel PlatingG28

109.54 €

1 Available 13 Days 10Round FlangedEN 1.0038 Equiv.Electroless Nickel PlatingG36

118.41 €

1 Available Same day

Stock

10Round FlangedEN 1.0038 Equiv.Electroless Nickel PlatingG42

126.93 €

1 Available Same day

Stock

10Round FlangedEN 1.0038 Equiv.Electroless Nickel PlatingG54

151.28 €

1 Available 13 Days 10Round FlangedEN 1.0038 Equiv.Electroless Nickel PlatingG70

167.08 €

1 Available 13 Days 10Round FlangedEN 1.0038 Equiv.Electroless Nickel PlatingG82

202.35 €

1 Available 13 Days 10Round FlangedEN 1.0038 Equiv.Electroless Nickel PlatingG92

219.86 €

1 Available 13 Days 10Round FlangedEN 1.4301 Equiv.-G42

246.25 €

1 Available 13 Days 10Round FlangedEN 1.4301 Equiv.-G54

111.46 €

1 Available 13 Days 10Compact FlangedEN 1.0038 Equiv.Black OxideG28

117.60 €

1 Available 13 Days 10Compact FlangedEN 1.0038 Equiv.Black OxideG36

125.58 €

1 Available Same day

Stock

10Compact FlangedEN 1.0038 Equiv.Black OxideG42

130.01 €

1 Available 13 Days 10Compact FlangedEN 1.0038 Equiv.Black OxideG54

153.89 €

1 Available 13 Days 10Compact FlangedEN 1.0038 Equiv.Black OxideG70

167.20 €

1 Available 13 Days 10Compact FlangedEN 1.0038 Equiv.Black OxideG82

199.84 €

1 Available 13 Days 10Compact FlangedEN 1.0038 Equiv.Black OxideG92

114.99 €

1 Available 13 Days 10Compact FlangedEN 1.0038 Equiv.Electroless Nickel PlatingG28

121.93 €

1 Available 13 Days 10Compact FlangedEN 1.0038 Equiv.Electroless Nickel PlatingG36

130.81 €

1 Available Same day

Stock

10Compact FlangedEN 1.0038 Equiv.Electroless Nickel PlatingG42

136.15 €

1 Available Same day

Stock

10Compact FlangedEN 1.0038 Equiv.Electroless Nickel PlatingG54

160.94 €

1 Available Same day

Stock

10Compact FlangedEN 1.0038 Equiv.Electroless Nickel PlatingG70

176.87 €

1 Available 13 Days 10Compact FlangedEN 1.0038 Equiv.Electroless Nickel PlatingG82

212.25 €

1 Available 13 Days 10Compact FlangedEN 1.0038 Equiv.Electroless Nickel PlatingG92

238.74 €

1 Available 13 Days 10Compact FlangedEN 1.4301 Equiv.-G42

274.11 €

1 Available 13 Days 10Compact FlangedEN 1.4301 Equiv.-G54

Loading...

  1. 1

Example of Use

Rotary Connectors/Round Flange:Related Image
