MISUMI

Shim Tapes / 1m Length

CatalogP.2-166

Part number:

Still undefined. 103 possible part numbers found.

Outline drawing and specifications table
Part number list
More Information
Catalog

Outline drawing and specifications table

Type	W	Length	[M]Material [H] Hardness
FGSM	12.7	1 m	T = 0.005, 0.015 -> T = 0.01, 0.02 to 0.5 ->	[ M ] EN 1.4301 Equiv. [ H ] 370 to 420HV [M]SK [H] 480 to 600HV
FGSMW	45.0	1 m
FGSML	12.7	5 m
SFGSM	12.7	1 m	[ M ] EN 1.4301 Equiv.	[ H ] 370 to 420HV
SFGSMW	45.0	1 m
SFGSML	12.7	5 m
DFGSMW	45.0	1 m	[M]EN CW505L Equiv. or EN CW507L Equiv.		[ H ]−

Specification Table

Part Number

FGSM0.01

■Standard (Length 1 m)

Part Number		T Tolerance
Type	T	T Tolerance
FGSM SFGSM (W = 12.7 mm) FGSMW SFGSMW DFGSMW (W = 45.0 mm)	0.005	±0.0005
	0.01	±0.003
	0.015
	0.02
	0.03	±0.005
	0.04
	0.05
	0.06
	0.07
	0.08
	0.09
	0.1
	0.15
	0.2	±0.015
	0.25
	0.3
	0.35
	0.4
	0.45
	0.5

■Long (Length 5 m)

Part Number		T Tolerance
Type	T	T Tolerance
FGSML SFGSML (W = 12.7 mm)	0.005	±0.0005
	0.01	±0.003
	0.015
	0.02
	0.03	±0.005
	0.04
	0.05
	0.06
	0.07
	0.08
	0.09
	0.1
	0.15
	0.2	±0.015

Part number list

Number of items

Part number

Material

Shim Tape Shape

Thickness T

(mm)

Width W

(mm)

RoHS?

Minimum order quantity

EN CW505L Equiv. or EN CW507L Equiv.	Standard Type (Length 1 m)	0.01	45.0	10	1 pieces
EN CW505L Equiv. or EN CW507L Equiv.	Standard Type (Length 1 m)	0.02	45.0	10	1 pieces
EN CW505L Equiv. or EN CW507L Equiv.	Standard Type (Length 1 m)	0.03	45.0	10	1 pieces
EN CW505L Equiv. or EN CW507L Equiv.	Standard Type (Length 1 m)	0.04	45.0	10	1 pieces
EN CW505L Equiv. or EN CW507L Equiv.	Standard Type (Length 1 m)	0.05	45.0	10	1 pieces
EN CW505L Equiv. or EN CW507L Equiv.	Standard Type (Length 1 m)	0.06	45.0	10	1 pieces
EN CW505L Equiv. or EN CW507L Equiv.	Standard Type (Length 1 m)	0.07	45.0	10	1 pieces
EN CW505L Equiv. or EN CW507L Equiv.	Standard Type (Length 1 m)	0.08	45.0	10	1 pieces
EN 1.4301 Equiv.	Standard Type (Length 1 m)	0.005	12.7	10	1 pieces
SK	Standard Type (Length 1 m)	0.01	12.7	10	1 pieces
SK	Standard Type (Length 1 m)	0.02	12.7	10	1 pieces
SK	Standard Type (Length 1 m)	0.03	12.7	10	1 pieces
SK	Standard Type (Length 1 m)	0.04	12.7	10	1 pieces
SK	Standard Type (Length 1 m)	0.05	12.7	10	1 pieces
SK	Standard Type (Length 1 m)	0.06	12.7	10	1 pieces
SK	Standard Type (Length 1 m)	0.07	12.7	10	1 pieces
SK	Standard Type (Length 1 m)	0.08	12.7	10	1 pieces
SK	Standard Type (Length 1 m)	0.09	12.7	10	1 pieces
EN 1.4301 Equiv.	Standard Type (Length 1 m)	0.015	45.0	10	1 pieces
SK	Standard Type (Length 1 m)	0.1	12.7	10	1 pieces
SK	Standard Type (Length 1 m)	0.2	12.7	10	1 pieces
SK	Standard Type (Length 1 m)	0.3	12.7	10	1 pieces
SK	Standard Type (Length 1 m)	0.4	12.7	10	1 pieces
SK	Standard Type (Length 1 m)	0.5	12.7	10	1 pieces
SK	Standard Type (Length 1 m)	0.15	12.7	10	1 pieces
SK	Standard Type (Length 1 m)	0.25	45.0	10	1 pieces
SK	Standard Type (Length 1 m)	0.35	45.0	10	1 pieces
SK	Standard Type (Length 1 m)	0.45	45.0	10	1 pieces
EN 1.4301 Equiv.	Long Type (Length 5 m)	0.005	12.7	10	1 pieces
SK	Long Type (Length 5 m)	0.01	12.7	10	1 pieces
SK	Long Type (Length 5 m)	0.02	12.7	10	1 pieces
SK	Long Type (Length 5 m)	0.03	12.7	10	1 pieces
SK	Long Type (Length 5 m)	0.04	12.7	10	1 pieces
SK	Long Type (Length 5 m)	0.05	12.7	10	1 pieces
SK	Long Type (Length 5 m)	0.06	12.7	10	1 pieces
SK	Long Type (Length 5 m)	0.07	12.7	10	1 pieces
SK	Long Type (Length 5 m)	0.08	12.7	10	1 pieces
SK	Long Type (Length 5 m)	0.09	12.7	10	1 pieces
EN 1.4301 Equiv.	Long Type (Length 5 m)	0.015	12.7	10	1 pieces
SK	Long Type (Length 5 m)	0.1	12.7	10	1 pieces
SK	Long Type (Length 5 m)	0.2	12.7	10	1 pieces
SK	Long Type (Length 5 m)	0.15	12.7	10	1 pieces
EN 1.4301 Equiv.	Standard Type (Length 1 m)	0.005	45.0	10	1 pieces
SK	Standard Type (Length 1 m)	0.03	45.0	10	1 pieces
SK	Standard Type (Length 1 m)	0.04	45.0	10	1 pieces
SK	Standard Type (Length 1 m)	0.05	45.0	10	1 pieces
SK	Standard Type (Length 1 m)	0.06	45.0	10	1 pieces
SK	Standard Type (Length 1 m)	0.07	45.0	10	1 pieces
SK	Standard Type (Length 1 m)	0.08	45.0	10	1 pieces
SK	Standard Type (Length 1 m)	0.09	45.0	10	1 pieces
EN 1.4301 Equiv.	Standard Type (Length 1 m)	0.015	45.0	10	1 pieces
SK	Standard Type (Length 1 m)	0.1	45.0	10	1 pieces
SK	Standard Type (Length 1 m)	0.2	45.0	10	1 pieces
SK	Standard Type (Length 1 m)	0.3	45.0	10	1 pieces
SK	Standard Type (Length 1 m)	0.4	45.0	10	1 pieces
SK	Standard Type (Length 1 m)	0.5	45.0	10	1 pieces
SK	Standard Type (Length 1 m)	0.15	45.0	10	1 pieces
SK	Standard Type (Length 1 m)	0.25	45.0	10	1 pieces
SK	Standard Type (Length 1 m)	0.35	45.0	10	1 pieces
SK	Standard Type (Length 1 m)	0.45	45.0	10	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

95.91 € ( 114.13 € )	5 working days
68.57 € ( 81.60 € )	5 working days
46.69 € ( 55.56 € )	5 working days
46.69 € ( 55.56 € )	5 working days
46.69 € ( 55.56 € )	5 working days
45.56 € ( 54.22 € )	5 working days
45.56 € ( 54.22 € )	5 working days
45.56 € ( 54.22 € )	5 working days
56.89 € ( 67.70 € )	Quote
16.31 € ( 19.41 € )	Quote
11.63 € ( 13.84 € )	Quote
10.04 € ( 11.95 € )	Quote
8.44 € ( 10.04 € )	Quote
8.44 € ( 10.04 € )	Quote
7.76 € ( 9.23 € )	Quote
7.76 € ( 9.23 € )	Quote
7.76 € ( 9.23 € )	Quote
7.76 € ( 9.23 € )	Quote
21.89 € ( 26.05 € )	Quote
7.18 € ( 8.54 € )	Quote
7.07 € ( 8.41 € )	Quote
7.07 € ( 8.41 € )	Quote
9.46 € ( 11.26 € )	Quote
9.46 € ( 11.26 € )	Quote
7.18 € ( 8.54 € )	Quote
7.07 € ( 8.41 € )	Quote
15.27 € ( 18.17 € )	Quote
9.37 €5.15 € ( 6.13 € )	Quote
237.13 € ( 282.18 € )	Quote
65.47 € ( 77.91 € )	Quote
47.09 € ( 56.04 € )	Quote
45.60 € ( 54.26 € )	Quote
33.64 € ( 40.03 € )	Quote
33.98 € ( 40.44 € )	Quote
33.98 € ( 40.44 € )	Quote
31.70 € ( 37.72 € )	Quote
31.70 € ( 37.72 € )	Quote
31.70 € ( 37.72 € )	Quote
119.71 € ( 142.45 € )	Quote
29.65 € ( 35.28 € )	Quote
29.35 € ( 34.93 € )	Quote
29.65 € ( 35.28 € )	Quote
108.08 € ( 128.62 € )	Quote
50.50 € ( 60.09 € )	Quote
43.67 €17.47 € ( 20.79 € )	Quote
41.39 € ( 49.25 € )	Quote
36.46 €16.04 € ( 19.09 € )	Quote
36.46 € ( 43.39 € )	Quote
34.54 €14.85 € ( 17.67 € )	Quote
34.21 € ( 40.71 € )	Quote
76.16 €22.85 € ( 27.19 € )	Quote
29.87 € ( 35.55 € )	Quote
25.42 € ( 30.25 € )	Quote
27.60 € ( 32.84 € )	Quote
32.15 € ( 38.26 € )	Quote
32.15 € ( 38.26 € )	Quote
25.42 € ( 30.25 € )	Quote
25.18 € ( 29.96 € )	Quote
27.32 € ( 32.51 € )	Quote
32.15 € ( 38.26 € )	Quote

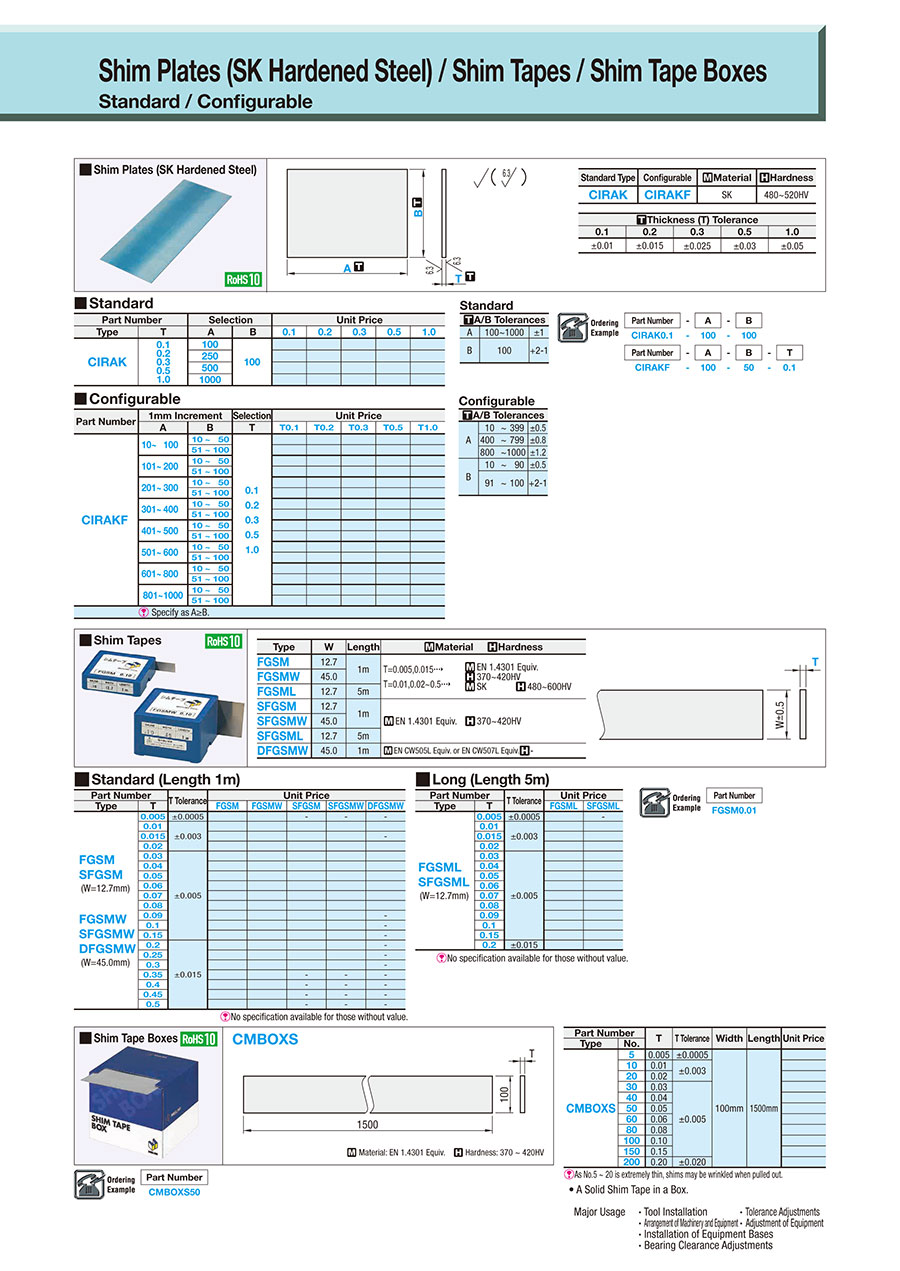

Catalog
