    Steel Pipes Items / U Bolts

    Steel Pipes Items / U Bolts

    Caution

    • Please check the content on our website as the PDF does not contain the most up-to-date information.

    Part number:

    Still undefined. 22 possible part numbers found.
    Quantity:

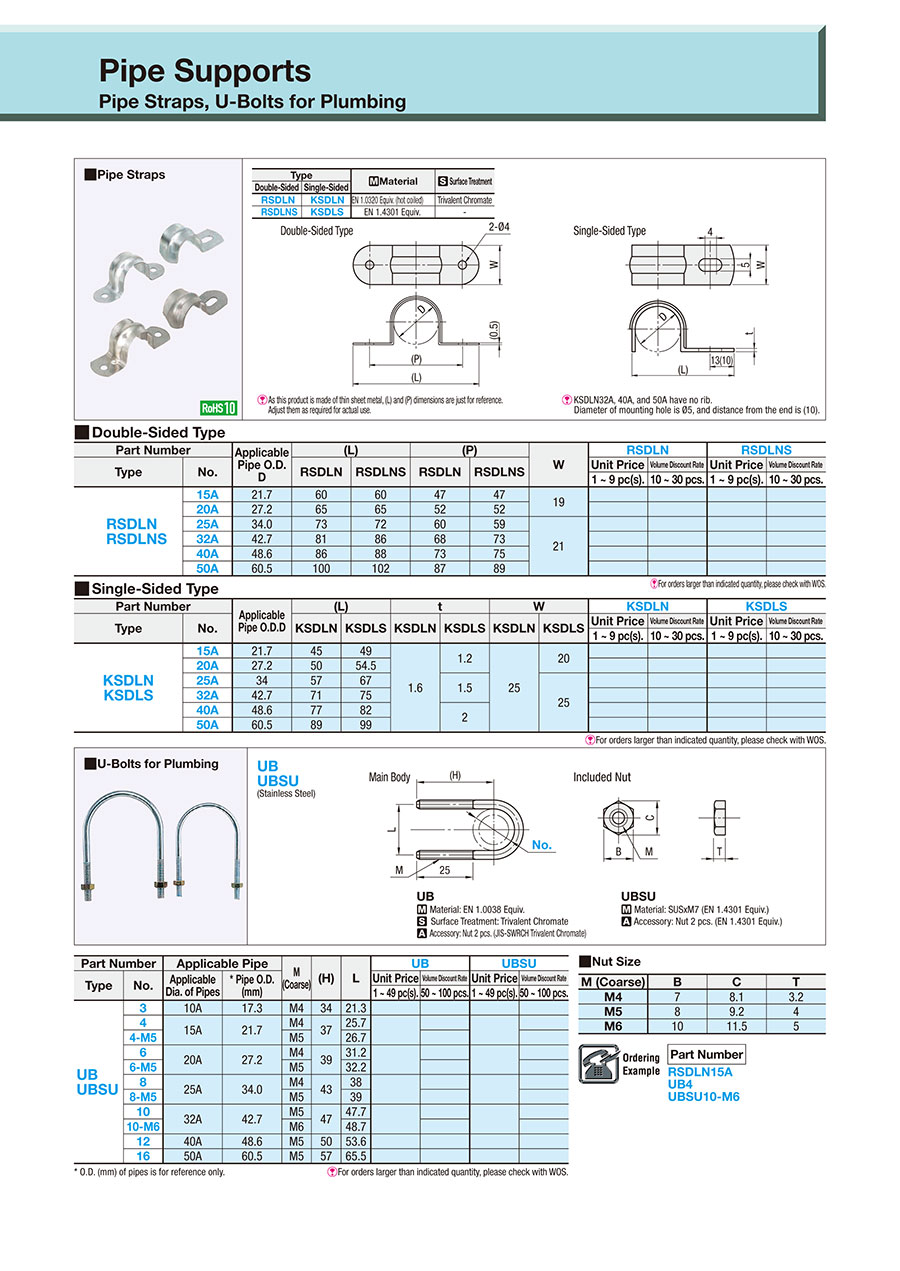

    Outline drawing and specifications table

    Dimensional Drawing

    UB
    UBSU
    (Stainless Steel)

    Main Body

    Included Nut


    [ ! ] The bolt length is 25 to 30.

    Product Specifications

    TypeMaterialSurface TreatmentAccessory
    UBEN 1.0038 Equiv.Trivalent ChromateNut 2 pcs. (JIS−SWRCH trivalent chromate)
    UBSUEN 1.4567 Equiv. (EN 1.4301 Equiv. )N/ANut 2 pcs. (EN 1.4301 Equiv. )

    Specification Table

    Part Number
    UB4
    UBSU10－M6
    Part NumberApplicable PipeM
    (Coarse)    		(H)L
    TypeNo.Applicable Dia. of Pipes* Main Applicable Pipe O.D.
    (mm)
    UB
    UBSU    		310 A17.3M43421.3
    415 A21.7M43725.7
    4－M5M526.7
    620 A27.2M43931.2
    6－M5M532.2
    825 A34.0M44338
    8－M5M539
    1032 A42.7M54747.7
    10－M6M648.7
    1240 A48.6M55053.6
    1650 A60.5M55765.5
    * O.D. (mm) of pipes is for reference only.

    Nut Size

    M (Coarse)BCT
    M478.13.2
    M589.24
    M61011.55

    Part number list

    Number of items
  • 1
    • Part number
    UB3
    UB4
    UB4-M5
    UB6
    UB6-M5
    UB8
    UB8-M5
    UB10
    UB10-M6
    UB12
    UB16
    UBSU3
    UBSU4
    UBSU4-M5
    UBSU6
    UBSU6-M5
    UBSU8
    UBSU8-M5
    UBSU10
    UBSU10-M6
    UBSU12
    UBSU16

    Main Applicable Pipe O.D.

    (mm)

    Material

    Surface Treatment

    Applicable No.

    M (Coarse)

    		RoHS?Minimum order quantity
    10 to Less Than 20
    EN 1.0038 Equiv.
    Trivalent Chromate
    10A
    4
    10
    1 pieces
    20 to Less Than 30
    EN 1.0038 Equiv.
    Trivalent Chromate
    15A
    4
    10
    1 pieces
    20 to Less Than 30
    EN 1.0038 Equiv.
    Trivalent Chromate
    15A
    5
    10
    1 pieces
    20 to Less Than 30
    EN 1.0038 Equiv.
    Trivalent Chromate
    20A
    4
    10
    1 pieces
    20 to Less Than 30
    EN 1.0038 Equiv.
    Trivalent Chromate
    20A
    5
    10
    1 pieces
    30 to Less Than 40
    EN 1.0038 Equiv.
    Trivalent Chromate
    25A
    4
    10
    1 pieces
    30 to Less Than 40
    EN 1.0038 Equiv.
    Trivalent Chromate
    25A
    5
    10
    1 pieces
    40 to Less Than 50
    EN 1.0038 Equiv.
    Trivalent Chromate
    32A
    5
    10
    1 pieces
    40 to Less Than 50
    EN 1.0038 Equiv.
    Trivalent Chromate
    32A
    6
    10
    1 pieces
    40 to Less Than 50
    EN 1.0038 Equiv.
    Trivalent Chromate
    40A
    5
    10
    1 pieces
    60 to Less Than 70
    EN 1.0038 Equiv.
    Trivalent Chromate
    50A
    5
    10
    1 pieces
    10 to Less Than 20
    EN 1.4567 Equiv. (EN 1.4301 Equiv.)
    Not Provided
    10A
    4
    10
    1 pieces
    20 to Less Than 30
    EN 1.4567 Equiv. (EN 1.4301 Equiv.)
    Not Provided
    15A
    4
    10
    1 pieces
    20 to Less Than 30
    EN 1.4567 Equiv. (EN 1.4301 Equiv.)
    Not Provided
    15A
    5
    10
    1 pieces
    20 to Less Than 30
    EN 1.4567 Equiv. (EN 1.4301 Equiv.)
    Not Provided
    20A
    4
    10
    1 pieces
    20 to Less Than 30
    EN 1.4567 Equiv. (EN 1.4301 Equiv.)
    Not Provided
    20A
    5
    10
    1 pieces
    30 to Less Than 40
    EN 1.4567 Equiv. (EN 1.4301 Equiv.)
    Not Provided
    25A
    4
    10
    1 pieces
    30 to Less Than 40
    EN 1.4567 Equiv. (EN 1.4301 Equiv.)
    Not Provided
    25A
    5
    10
    1 pieces
    40 to Less Than 50
    EN 1.4567 Equiv. (EN 1.4301 Equiv.)
    Not Provided
    32A
    5
    10
    1 pieces
    40 to Less Than 50
    EN 1.4567 Equiv. (EN 1.4301 Equiv.)
    Not Provided
    32A
    6
    10
    1 pieces
    40 to Less Than 50
    EN 1.4567 Equiv. (EN 1.4301 Equiv.)
    Not Provided
    40A
    5
    10
    1 pieces
    60 to Less Than 70
    EN 1.4567 Equiv. (EN 1.4301 Equiv.)
    Not Provided
    50A
    5
    10
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    1.25 €
    ( 1.49 € )
    5 working days
    1.79 €
    ( 2.13 € )
    5 working days
    1.38 €
    ( 1.64 € )
    5 working days
    1.64 €
    ( 1.95 € )
    5 working days
    1.64 €
    ( 1.95 € )
    5 working days
    1.88 €
    ( 2.24 € )
    Stock item: 1 working dayAvailable for same-day shipping
    1.88 €
    ( 2.24 € )
    Stock item: 1 working dayAvailable for same-day shipping
    2.15 €
    ( 2.56 € )
    Stock item: 1 working dayAvailable for same-day shipping
    2.15 €
    ( 2.56 € )
    5 working days
    2.15 €
    ( 2.56 € )
    Stock item: 1 working dayAvailable for same-day shipping
    2.26 €
    ( 2.69 € )
    5 working days
    2.15 €
    ( 2.56 € )
    5 working days
    2.26 €
    ( 2.69 € )
    Stock item: 1 working dayAvailable for same-day shipping
    2.26 €
    ( 2.69 € )
    5 working days
    2.39 €
    ( 2.84 € )
    5 working days
    2.39 €
    ( 2.84 € )
    5 working days
    2.89 €
    ( 3.44 € )
    5 working days
    2.89 €
    ( 3.44 € )
    5 working days
    3.15 €
    ( 3.75 € )
    5 working days
    3.15 €
    ( 3.75 € )
    Stock item: 1 working dayAvailable for same-day shipping
    3.53 €
    ( 4.20 € )
    5 working days
    3.78 €
    ( 4.50 € )
    5 working days
  • 1

    • More Information

    Basic information

    [Features] Used to support piping. -Trivalent chromate can be selected for surface treatment.
