Flanged Brackets / Square Round

Click image to view enlarged image

CatalogP.2-208

Part number:

Still undefined. 81 possible part numbers found.

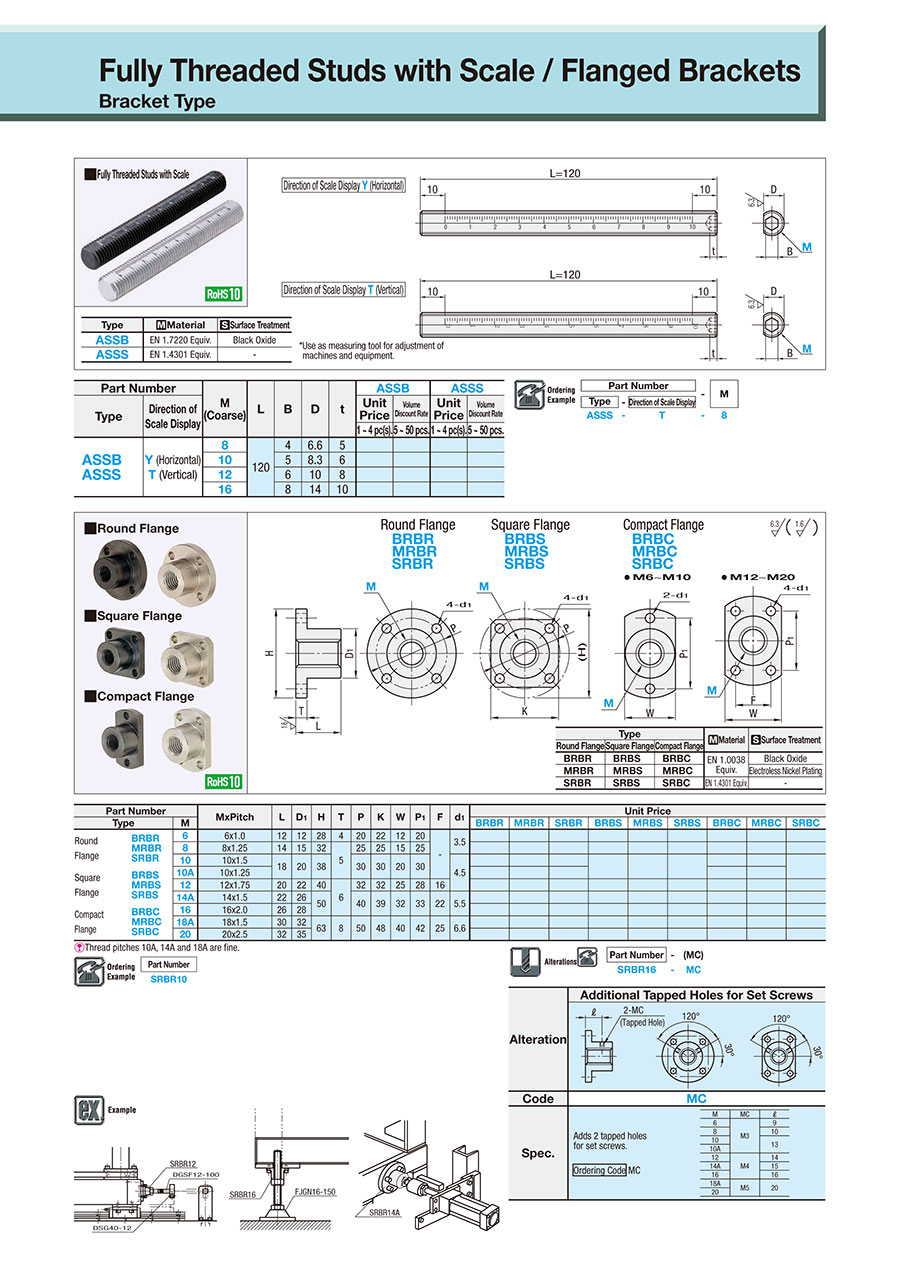

Outline drawing and specifications table
Part number list
More Information
Catalog

Outline drawing and specifications table

Flanged Brackets/Square Round:Related Image

Type			Material	Surface Treatment
Round Flange	Square Flange	Compact Flange	Material	Surface Treatment
BRBR	BRBS	BRBC	EN 1.0038 Equiv.	Black Oxide
MRBR	MRBS	MRBC	EN 1.0038 Equiv.	Electroless Nickel Plating
SRBR	SRBS	SRBC	EN 1.4301 Equiv.	-

Specifications

Part Number

SRBR10

Part Number			MxPitch	L	D₁	H	T	P	K	W	P₁	F	d₁	Unit Price
Type		M	MxPitch	L	D₁	H	T	P	K	W	P₁	F	d₁	BRBR	MRBR	SRBR	BRBS	MRBS	SRBS	BRBC	MRBC	SRBC
Round Flange	BRBR MRBR SRBR	6	6x1.0	12	12	28	4	20	22	12	20	-	3.5
		8	8x1.25	14	15	32	5	25	25	15	25		3.5
		10	10x1.5	18	20	38		30	30	20	30		4.5
Square Flange	BRBS MRBS SRBS	10A	10x1.25	18	20	38		30	30	20	30
		12	12x1.75	20	22	40	6	32	32	25	28	16
		14A	14x1.5	22	26	50		40	39	32	33	22	5.5
Compact Flange	BRBC MRBC SRBC	16	16x2.0	26	28	50		40	39	32	33	22	5.5
		18A	18x1.5	30	32	63	8	50	48	40	42	25	6.6
		20	20x2.5	32	35	63	8	50	48	40	42	25	6.6

Thread pitches 10A, 14A and 18A are fine.

Alterations

Part number list

Number of items

Part number

Compatible Nominal Thread Size (M)	Material	Surface Treatment	Screw Holder Shape	Thread Nominal M	Pitch	RoHS?	Minimum order quantity

6	EN 1.0038 Equiv.	Black Oxide	Compact Flanged	6	1.0	10	1 pieces
8	EN 1.0038 Equiv.	Black Oxide	Compact Flanged	8	1.25	10	1 pieces
10	EN 1.0038 Equiv.	Black Oxide	Compact Flanged	10	1.5	10	1 pieces
10	EN 1.0038 Equiv.	Black Oxide	Compact Flanged	10	1.25	10	1 pieces
12	EN 1.0038 Equiv.	Black Oxide	Compact Flanged	12	1.75	10	1 pieces
14	EN 1.0038 Equiv.	Black Oxide	Compact Flanged	14	1.5	10	1 pieces
16	EN 1.0038 Equiv.	Black Oxide	Compact Flanged	16	2.0	10	1 pieces
18	EN 1.0038 Equiv.	Black Oxide	Compact Flanged	18	1.5	10	1 pieces
20	EN 1.0038 Equiv.	Black Oxide	Compact Flanged	20	2.5	10	1 pieces
6	EN 1.0038 Equiv.	Black Oxide	Round Flanged	6	1.0	10	1 pieces
8	EN 1.0038 Equiv.	Black Oxide	Round Flanged	8	1.25	10	1 pieces
10	EN 1.0038 Equiv.	Black Oxide	Round Flanged	10	1.5	10	1 pieces
10	EN 1.0038 Equiv.	Black Oxide	Round Flanged	10	1.25	10	1 pieces
12	EN 1.0038 Equiv.	Black Oxide	Round Flanged	12	1.75	10	1 pieces
14	EN 1.0038 Equiv.	Black Oxide	Round Flanged	14	1.5	10	1 pieces
16	EN 1.0038 Equiv.	Black Oxide	Round Flanged	16	2.0	10	1 pieces
18	EN 1.0038 Equiv.	Black Oxide	Round Flanged	18	1.5	10	1 pieces
20	EN 1.0038 Equiv.	Black Oxide	Round Flanged	20	2.5	10	1 pieces
6	EN 1.0038 Equiv.	Black Oxide	Square Flanged	6	1.0	10	1 pieces
8	EN 1.0038 Equiv.	Black Oxide	Square Flanged	8	1.25	10	1 pieces
10	EN 1.0038 Equiv.	Black Oxide	Square Flanged	10	1.5	10	1 pieces
10	EN 1.0038 Equiv.	Black Oxide	Square Flanged	10	1.25	10	1 pieces
12	EN 1.0038 Equiv.	Black Oxide	Square Flanged	12	1.75	10	1 pieces
14	EN 1.0038 Equiv.	Black Oxide	Square Flanged	14	1.5	10	1 pieces
16	EN 1.0038 Equiv.	Black Oxide	Square Flanged	16	2.0	10	1 pieces
18	EN 1.0038 Equiv.	Black Oxide	Square Flanged	18	1.5	10	1 pieces
20	EN 1.0038 Equiv.	Black Oxide	Square Flanged	20	2.5	10	1 pieces
6	EN 1.0038 Equiv.	Electroless Nickel Plating	Compact Flanged	6	1.0	10	1 pieces
8	EN 1.0038 Equiv.	Electroless Nickel Plating	Compact Flanged	8	1.25	10	1 pieces
10	EN 1.0038 Equiv.	Electroless Nickel Plating	Compact Flanged	10	1.5	10	1 pieces
10	EN 1.0038 Equiv.	Electroless Nickel Plating	Compact Flanged	10	1.25	10	1 pieces
12	EN 1.0038 Equiv.	Electroless Nickel Plating	Compact Flanged	12	1.75	10	1 pieces
14	EN 1.0038 Equiv.	Electroless Nickel Plating	Compact Flanged	14	1.5	10	1 pieces
16	EN 1.0038 Equiv.	Electroless Nickel Plating	Compact Flanged	16	2.0	10	1 pieces
18	EN 1.0038 Equiv.	Electroless Nickel Plating	Compact Flanged	18	1.5	10	1 pieces
20	EN 1.0038 Equiv.	Electroless Nickel Plating	Compact Flanged	20	2.5	10	1 pieces
6	EN 1.0038 Equiv.	Electroless Nickel Plating	Round Flanged	6	1.0	10	1 pieces
8	EN 1.0038 Equiv.	Electroless Nickel Plating	Round Flanged	8	1.25	10	1 pieces
10	EN 1.0038 Equiv.	Electroless Nickel Plating	Round Flanged	10	1.5	10	1 pieces
10	EN 1.0038 Equiv.	Electroless Nickel Plating	Round Flanged	10	1.25	10	1 pieces
12	EN 1.0038 Equiv.	Electroless Nickel Plating	Round Flanged	12	1.75	10	1 pieces
14	EN 1.0038 Equiv.	Electroless Nickel Plating	Round Flanged	14	1.5	10	1 pieces
16	EN 1.0038 Equiv.	Electroless Nickel Plating	Round Flanged	16	2.0	10	1 pieces
18	EN 1.0038 Equiv.	Electroless Nickel Plating	Round Flanged	18	1.5	10	1 pieces
20	EN 1.0038 Equiv.	Electroless Nickel Plating	Round Flanged	20	2.5	10	1 pieces
6	EN 1.0038 Equiv.	Electroless Nickel Plating	Square Flanged	6	1.0	10	1 pieces
8	EN 1.0038 Equiv.	Electroless Nickel Plating	Square Flanged	8	1.25	10	1 pieces
10	EN 1.0038 Equiv.	Electroless Nickel Plating	Square Flanged	10	1.5	10	1 pieces
10	EN 1.0038 Equiv.	Electroless Nickel Plating	Square Flanged	10	1.25	10	1 pieces
12	EN 1.0038 Equiv.	Electroless Nickel Plating	Square Flanged	12	1.75	10	1 pieces
14	EN 1.0038 Equiv.	Electroless Nickel Plating	Square Flanged	14	1.5	10	1 pieces
16	EN 1.0038 Equiv.	Electroless Nickel Plating	Square Flanged	16	2.0	10	1 pieces
18	EN 1.0038 Equiv.	Electroless Nickel Plating	Square Flanged	18	1.5	10	1 pieces
20	EN 1.0038 Equiv.	Electroless Nickel Plating	Square Flanged	20	2.5	10	1 pieces
6	EN 1.4301 Equiv.	-	Compact Flanged	6	1.0	10	1 pieces
8	EN 1.4301 Equiv.	-	Compact Flanged	8	1.25	10	1 pieces
10	EN 1.4301 Equiv.	-	Compact Flanged	10	1.5	10	1 pieces
10	EN 1.4301 Equiv.	-	Compact Flanged	10	1.25	10	1 pieces
12	EN 1.4301 Equiv.	-	Compact Flanged	12	1.75	10	1 pieces
14	EN 1.4301 Equiv.	-	Compact Flanged	14	1.5	10	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

11.64 € ( 13.85 € )	8 working days
11.90 € ( 14.16 € )	8 working days
14.17 € ( 16.86 € )	5 working days
14.17 € ( 16.86 € )	8 working days
16.95 € ( 20.17 € )	5 working days
19.10 € ( 22.73 € )	8 working days
20.00 € ( 23.80 € )	5 working days
25.05 € ( 29.81 € )	8 working days
26.32 € ( 31.32 € )	8 working days
9.23 € ( 10.98 € )	8 working days
10.38 € ( 12.35 € )	8 working days
11.77 € ( 14.01 € )	5 working days
11.77 € ( 14.01 € )	8 working days
13.92 € ( 16.56 € )	8 working days
15.94 € ( 18.97 € )	8 working days
16.83 € ( 20.03 € )	5 working days
20.88 € ( 24.85 € )	8 working days
21.75 € ( 25.88 € )	5 working days
12.52 € ( 14.90 € )	8 working days
13.66 € ( 16.26 € )	8 working days
16.58 € ( 19.73 € )	8 working days
16.58 € ( 19.73 € )	8 working days
19.73 € ( 23.48 € )	8 working days
22.13 € ( 26.33 € )	8 working days
23.41 € ( 27.86 € )	8 working days
30.61 € ( 36.43 € )	8 working days
32.27 € ( 38.40 € )	8 working days
11.77 € ( 14.01 € )	8 working days
12.02 € ( 14.30 € )	8 working days
14.55 € ( 17.31 € )	8 working days
14.55 € ( 17.31 € )	8 working days
17.33 € ( 20.62 € )	5 working days
19.49 € ( 23.19 € )	8 working days
21.26 € ( 25.30 € )	5 working days
25.95 € ( 30.88 € )	8 working days
26.94 € ( 32.06 € )	8 working days
9.49 € ( 11.29 € )	8 working days
10.63 € ( 12.65 € )	8 working days
12.02 € ( 14.30 € )	5 working days
12.02 € ( 14.30 € )	8 working days
14.43 € ( 17.17 € )	5 working days
16.45 € ( 19.58 € )	8 working days
17.21 € ( 20.48 € )	5 working days
21.38 € ( 25.44 € )	8 working days
22.52 € ( 26.80 € )	5 working days
12.78 € ( 15.21 € )	8 working days
13.92 € ( 16.56 € )	8 working days
16.83 € ( 20.03 € )	8 working days
16.83 € ( 20.03 € )	8 working days
20.12 € ( 23.94 € )	8 working days
22.52 € ( 26.80 € )	8 working days
23.92 € ( 28.46 € )	5 working days
31.38 € ( 37.34 € )	8 working days
33.01 € ( 39.28 € )	8 working days
16.95 € ( 20.17 € )	7 working days
18.60 € ( 22.13 € )	5 working days
22.65 € ( 26.95 € )	5 working days
22.65 € ( 26.95 € )	7 working days
27.08 € ( 32.23 € )	7 working days
30.49 € ( 36.28 € )	7 working days
