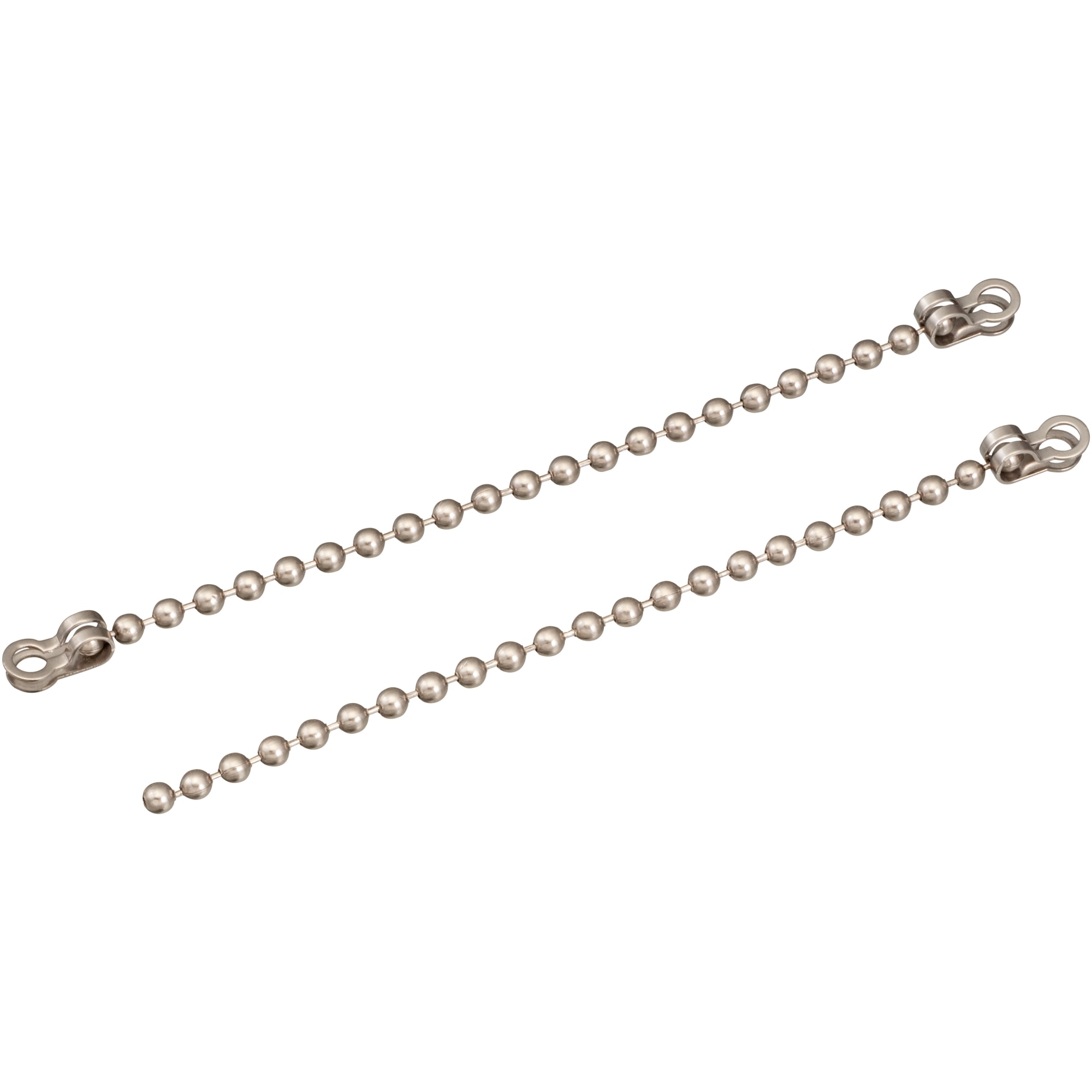

Loss-Prevention Ball Chains

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

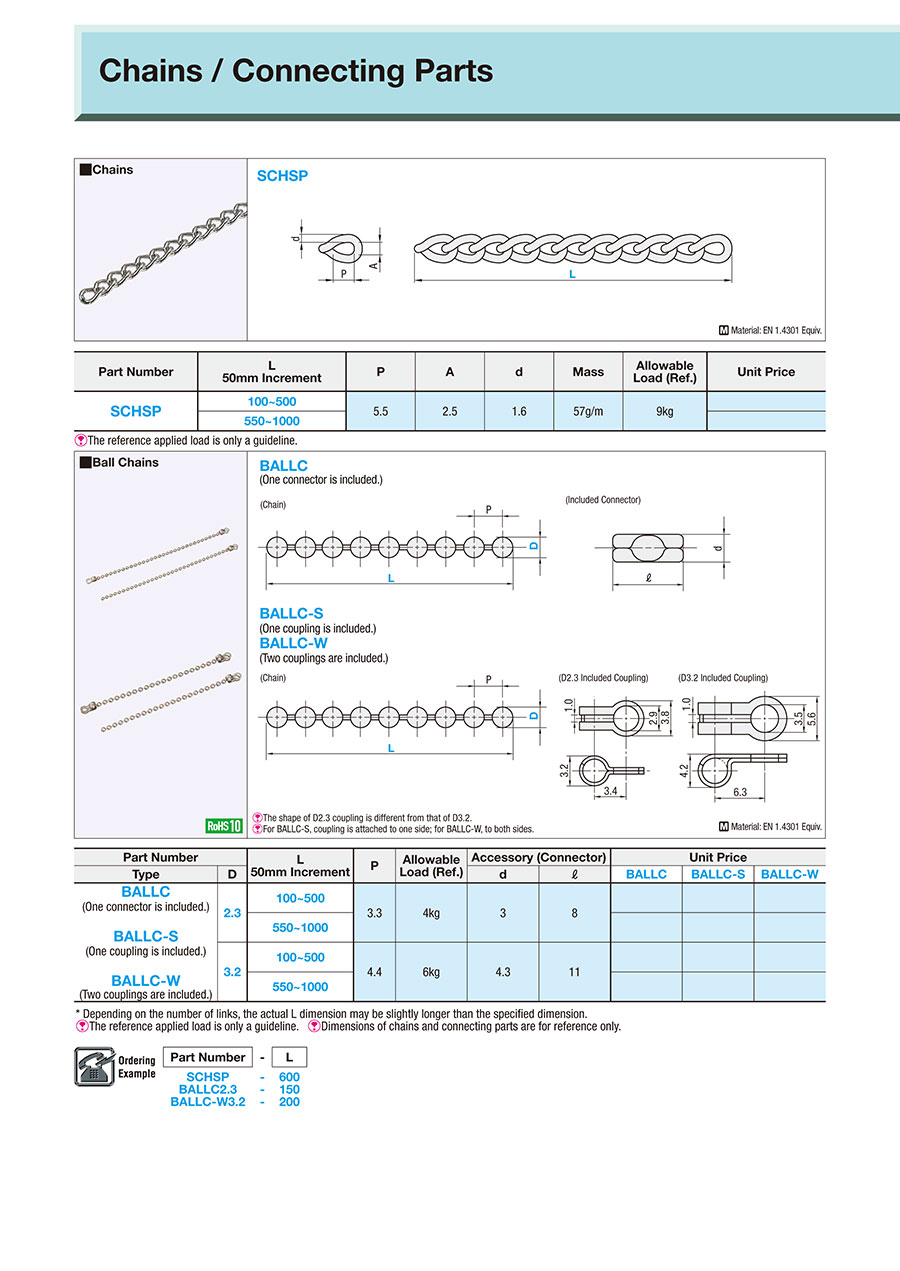

Loss-Prevention Ball Chains:Related Image

  Material: EN 1.4301 Equiv.

Specifications

Part Number-L
SCHSP
BALLC2.3
BALLC-W3.2
-
-
-
600
150
200
Part NumberL
50mm Increment
PAllowable Load (Ref.)Accessory (Connector)Unit Price
TypeDd ℓ BALLCBALLC-SBALLC-W
BALLC
(One connector is included.)

BALLC-S
(One coupling is included.)

BALLC-W
(Two couplings are included.)
2.3100~5003.34kg38
550~1000
3.2100~5004.46kg4.311
550~1000
* Depending on the number of links, the actual L dimension may be slightly longer than the specified dimension.
The reference applied load is only a guideline. Dimensions of chains and connecting parts are for reference only.

Part Number:

  • Incomplete part number.
    Please use left hand selections to complete a part number.
Loading...
Part Number
BALLC2.3-[100-1000/50]
BALLC3.2-[100-1000/50]
BALLC-S2.3-[100-1000/50]
BALLC-S3.2-[100-1000/50]
BALLC-W2.3-[100-1000/50]
BALLC-W3.2-[100-1000/50]
Part NumberStandard Unit PriceVolume DiscountShipping Days?RoHSBall O.D. D
(Ø)
Accessories L
(mm)

-

12 Days 102.3Connector 1 pc.100 ~ 1000

-

12 Days 103.2-100 ~ 1000

-

12 Days 102.3Coupling 1 pc.100 ~ 1000

-

12 Days 103.2Coupling 1 pc.100 ~ 1000

-

12 Days 102.3Couplings 2 pcs.100 ~ 1000

-

12 Days 103.2Couplings 2 pcs.100 ~ 1000

Loading...

  1. 1

Basic information

Body Material EN 1.4301 Equiv.
