Rubber damper / with counterbore / fully configurable

Rubber damper / with counterbore / fully configurable
View the FAQ (4)

MISUMI

MISUMI

  • Order quantities extended (D-JIT)

Data sheet

Unit еxample related to this product
Simplified workpiece holder
Search for оther еxamples

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Back to the Category Discs/Sleeves (Rubber, Caoutchouc, Foam, Felt)

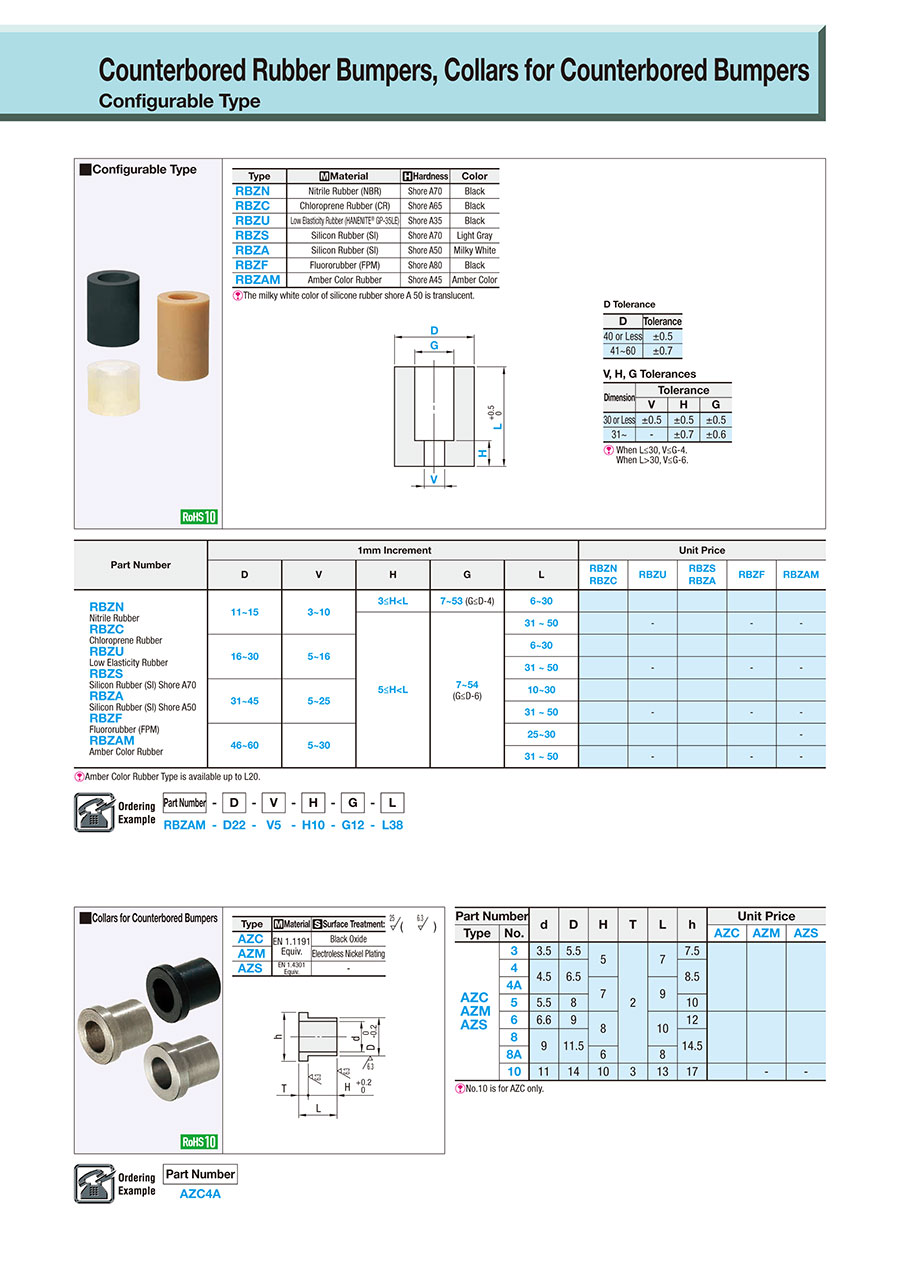

Technical Drawing - Polyurethane Rubber Washers

Rubber Bumpers/Counterbored/Fully Configurable:Related Image
Open the technical drawing in the new window



Available dimensions and tolerances can be found under the tab More information.

Basic Properties (e.g., material, hardness, coating, tolerance) - Polyurethane Rubber Washers

TypeMaterialHardnessColor
RBZNNitrile Rubber (NBR)Shore A70Black
RBZCChloroprene Rubber (CR)Shore A65Black
RBZULow Elasticity Rubber (HANENITE® GP-35LE)Shore A35Black
RBZSSilicon Rubber (SI)Shore A70Light Gray
RBZASilicon Rubber (SI)Shore A50Milky White
RBZFFluororubber (FPM)Shore A80Black
RBZAMAmber Color RubberShore A45Amber Color
The milky white color of silicone rubber shore A 50 is translucent.


Further specifications can be found under the tab More information.

Composition of a Product Code - Polyurethane Rubber Washers

Part Number-D-V-H-G-L
RBZAM-D22-V5-H10-G12-L38

General Information - Polyurethane Rubber Washers

Rubber washer - rubber sleeve with counterbore - rubber sleeve - rounded rubber damper - foam washer - foam sleeve



Selection details of rubber discs/rubber sleeves

- Material: heat-resistant antistatic, abrasion-resistant, highly abrasion-resistant, low-impact polyurethane rubber (PU/PUR), Vulkollan, ceramic polyurethane rubber, nitrile rubber sponge (NBR), chloroprene rubber (CR), ethylene cautchouc (EPDM), silicone rubber (SI), fluoro-cautchouk (FPM), hard rubber, butyl rubber (IIR), natural rubber, nitrile rubber foam, chloroprene rubber foam, polyethylene foam (EPDM foam), EPT sealing material, Silicone rubber foam, fluoro-rubber foam, special polyurethane foam (SOFRAS), polyester felt, polyester felt

- Hardness: Asker C5 to C35, Asker F75 to F85, Shore A15 to A95

- Versions: disc with bore holes, sleeves with holes, sleeves without holes, sleeves with counterbores, sleeves with external threads, sleeves with collar, dampers with round tip, dampers with conical tip

- Inner diameter: up to 80 mm

- Outer diameter: 6 to 100 mm

- Length: 1 to 10 mm (discs), 10 to 500 mm (sleeves)



Description/Basics

Rubber discs and rubber sleeves, also called rubber buffers, are generally used for vibration damping and impact damping. Rubber sleeves are often used as stopper buffers in industry. Rubber discs are occasionally also used as seals.
Discs and sleeves made of natural rubber are offered in different materials and hardnesses.

While rubber discs are often used for sealing, rubber sleeves are increasingly used as rubber buffers, stopper buffers, or elastomer dampers. MISUMI already offers such a rubber sleeve as a rubber buffer with external thread or counterbore for fastening.
The rubber buffer is also available with a vulcanized metal collar, which not only allows for a firm assembly, but also sits in the anti-backlash rubber sleeve. These adhesives are also available separately. In addition to the material of the rubber buffer, the shape of the stopper buffer is also responsible for the damping characteristic. conical or rounded rubber buffers can also develop a progressive damping curve that generates increasing damping.

Depending on the application and environmental influences, MISUMI offers rubber discs and rubber sleeves in various basic materials with the appropriate resistance. An overview of the intended uses of the respective natural rubber can be found under Natural Rubber Properties as PDF .
The rubber buffers made of polyurethane rubber are also available in an antistatic version. The specific resistance of antistatic rubber discs and rubber sleeves prevents static charging. This can prevent damage to electronic components.
For high temperature applications, MISUMI offers heat-resistant polyurethane rubber, which can withstand temperatures of approx. +120°C (see Specifications for further information).
Vulkollan, on the other hand, is a very abrasion-resistant polyurethane, the abrasion resistance of which is six times higher compared to conventional polyurethane.
Ceramic polyurethane washers and sleeves contain ceramic particles. Despite a low Shore hardness, they can be machined to give them a smooth surface.
MISUMI also offers foam discs and foam sleeves. In addition to damping, these can also have sealing properties. This is achieved by the foam discs due to the closed or semi-closed pores (EPT sealer) inside the material. For semi-closed pores, the pores are sealed under load. Therefore, the type of pores must always be observed for foams in order to select the appropriate foam depending on the application. You can get help for your selection by following this link.
Further properties of natural rubbers and foams can be found in the Properties PDF.
In addition to the aforementioned basic materials, the MISUMI online shop also offers felt discs and felt sleeves. Felt has the properties of capillary action and can absorb and release liquids such as oil. In addition, felt is gentle on sensitive surfaces and is often used for polishing surfaces.

A antivibration materials can also be used for two-sided mounting to dampen vibration.
MISUMI also offers vibration damping and impact damping materials in the form of sheets.

Application Examples - Polyurethane Rubber Washers

Application example - rubber roller with rubber sleeve - rubber roller with roller bearing - roller bearing with axle - running wire

Application example: rubber roller
(1) Rubber sleeve, (2) Roller bearing, (3) Axles / Rotary Shafts, (4) Catch ropes

Application example - cylinder stopper buffer - cylinder end stop - rubber buffer - rubber buffer for cylinder -

Application example: cylinder stopper buffer
(1) Rubber washer, (2) Floating joints, (3) Pneumatic cylinder



Industrial Applications

3D printer industry
Automotive industry
Pharmaceutical industry
Packaging industry

Part Number:

    3D preview is not available, because the part number has not yet been determined.

  • In order to open the 3D preview, the part number must be fixed.
Loading...

Plug-in is required for 3D Preview

CAD Download

Data to be displayed
30
45
60
  1. 1
Part Number
RBZA-D[11-60/1]-V[3-30/1]-H[3-49/1]-G[7-54/1]-L[6-50/1]
RBZAM-D[11-45/1]-V[3-30/1]-H[3-49/1]-G[7-54/1]-L[6-20/1]
RBZC-D[11-60/1]-V[3-30/1]-H[3-49/1]-G[7-54/1]-L[6-50/1]
RBZF-D[11-60/1]-V[3-30/1]-H[3-29/1]-G[7-54/1]-L[6-30/1]
RBZN-D[11-60/1]-V[3-30/1]-H[3-49/1]-G[7-54/1]-L[6-50/1]
RBZS-D[11-60/1]-V[3-30/1]-H[3-49/1]-G[7-54/1]-L[6-50/1]
RBZU-D[11-60/1]-V[3-30/1]-H[3-29/1]-G[7-54/1]-L[6-30/1]
Part NumberMinimum order quantityVolume Discount
Standard
Shipping Days
?
RoHSDetailed Material Hardness (shore, asker) D
(mm) 		G
(mm) 		H
(mm) 		L
(mm) 		V
(mm)
1 7 Days 10Silicon Rubber (SI)Shore A5011 ～ 607 ～ 543 ～ 496 ～ 503 ～ 30
1 7 Days 10Amber Color RubberShore A4511 ～ 457 ～ 543 ～ 496 ～ 203 ～ 30
1 7 Days 10Chloroprene Rubber (CR)Shore A6511 ～ 607 ～ 543 ～ 496 ～ 503 ～ 30
1 7 Days 10Fluoro Rubber (FPM)Shore A8011 ～ 607 ～ 543 ～ 296 ～ 303 ～ 30
1 7 Days 10Nitrile Rubber (NBR Nitrile Rubber )Shore A7011 ～ 607 ～ 543 ～ 496 ～ 503 ～ 30
1 7 Days 10Silicon Rubber (SI)Shore A7011 ～ 607 ～ 543 ～ 496 ～ 503 ～ 30
1 7 Days 10[Low Elasticity Rubber] Low Elasticity Rubber (HANENITE®GP-35LE)Shore A3511 ～ 607 ～ 543 ～ 296 ～ 303 ～ 30

Loading...

  1. 1

Back to the Category Disks/Sleeves (Rubber, Caoutchouc, Foam, Felt)

Technical Drawing - Polyurethane Rubber Washers

Rubber Bumpers/Counterbored/Fully Configurable:Related Image
Open the technical drawing in the new window

Specification Tables - Polyurethane Rubber Washers

D Tolerance
DTolerance
40 or Less±0.5
41~60±0.7

V, H, G Tolerances
DimensionTolerance
VHG
30 or Less±0.5±0.5±0.5
31~-±0.7±0.6
When L≤30, V≤G-4. When L>30, V≤G-6.
Part Number1mm IncrementUnit Price
DVHGLRBZN
RBZC		RBZURBZS
RBZA		RBZFRBZAM
RBZN
Nitrile Rubber
RBZC
Chloroprene Rubber
RBZU
Low Elasticity Rubber
RBZS
Silicon Rubber (SI) Shore A70
RBZA
Silicon Rubber (SI) Shore A50
RBZF
Fluororubber (FPM)
RBZAM
Amber Color Rubber		11~153~103≤H7~53 (G≤D-4)6~30
5≤H7~54
(G≤D-6)		31 ~ 50 - -
16~305~166~30
31 ~ 50 - -
31~455~2510~30
31 ~ 50 - -
46~605~3025~30
31 ~ 50 - -
Amber Color Rubber Type is available up to L20.


Basic information

Shape Counterbored Material Rubber

Configure

Clear all

7Suggestion of an applicable part number.

View Part Numbers

Some specification is not specified yet.
The part number is completed.

Basic Attributes

  • Detailed Material

    • Nitrile Rubber (NBR Nitrile Rubber )
    • Chloroprene Rubber (CR)
    • Silicon Rubber (SI)
    • Fluoro Rubber (FPM)
    • Low Elasticity Rubber
      • Low Elasticity Rubber (HANENITE®GP-35LE)
    • Amber Color Rubber

    Clear

  • Hardness (shore, asker)

    • Shore A45
    • Shore A50
    • Shore A65
    • Shore A70
    • Shore A80
    • Shore A35

    Clear

  • D(mm)

     [11-60/1mm Unit(s)]

    Clear

  • G(mm)

     [7-54/1mm Unit(s)]

    Clear

  • H(mm)

     [3-49/1mm Unit(s)]

    Clear

  • L(mm)

     [6-50/1mm Unit(s)]

    Clear

  • V(mm)

     [3-30/1mm Unit(s)]

    Clear

  • Type

    • RBZA
    • RBZAM
    • RBZC
    • RBZF
    • RBZN
    • RBZS
    • RBZU

    Clear

  • Filter by CAD data type

    • 2D
    • 3D

    Clear

Optional Attributes

Frequently Asked Questions (FAQ)

Question:

What is Vulkollan?
Answer:

Vulkollan is a highly abrasion-resistant polyurethane rubber that has high wear resistance. It is one of the high-performance rubbers that has little pressure deformation and can withstand high impact forces. In addition, Vulkollan has a high tear strength. However, over time Vulkollan may change its colour, but without losing its mechanical properties.
Question:

Which rubber is resistant?
Answer:

Vulkollan is an abrasion-resistant material. It has an approx. six-fold higher abrasion resistance than conventional polyurethane materials. Vulkollan is particularly suitable for applications where high abrasion is expected.
Question:

Which rubber washer is oil-resistant?
Answer:

A rubber disc made of nitrile rubber (NBR) is highly resistant to various oils. This material is often used as a seal due to its good heat resistance and abrasion resistance.
Question:

Can a rubber sleeve be glued?
Answer:

A rubber sleeve or rubber disc can be stuck in or glued in. However, it must be ensured that the correct adhesive is selected in relation to the material of the elastomer. If this is not taken into account, the adhesive does not have the desired effect or even attack and degrade the elastomer. In addition, the adhesive should support the respective property of the material, e.g., antistatic or temperature resistance.
